Wideband Performance 4 - 8 GHz Psat 10W RF Power Amplifier For RF testing and system characterization
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-40008000-40C
Price：
Product Description

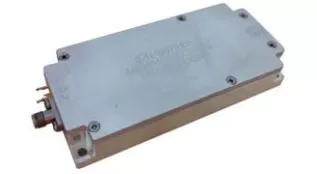

Wideband Performance 4 - 8 GHz Psat 10W RF Power Amplifier For RF testing and system characterization
Description
The 4-8 GHz Wideband Power Amplifier with Psat 10W is an RF amplifier designed to operate across the 4 GHz to 8 GHz frequency range. It provides high-power amplification for a variety of applications. Here are its key features:
Frequency Range: Covers the 4 GHz to 8 GHz band, ideal for RF applications that require broad-spectrum amplification, such as communications and radar systems.
Psat 10W: The amplifier has a saturation power (Psat) of 10W (or 40 dBm), meaning it can deliver up to 10 watts of output power before its gain starts to compress, making it suitable for high-power applications.
Wideband Performance: Capable of amplifying signals across a broad frequency range without significant distortion, ensuring high fidelity and performance.
Applications:
This wideband power amplifier is typically used in:
Telecommunications: In systems such as satellite communication, wireless communication networks, and mobile base stations where strong signal transmission is required over wide frequencies.
Radar Systems: Used in radar applications for high-power signal generation, particularly in military, aviation, and weather radar systems.
Test & Measurement: For RF testing and system characterization, where high-power and wide frequency coverage are needed.
Electronic Warfare: Used in jamming and countermeasures applications due to its high power and broad frequency coverage.
Broadcasting: Amplifying signals for broadcasting applications, ensuring wide coverage and high signal strength.
The 4-8 GHz Wideband Power Amplifier with Psat 10W is well-suited for high-performance RF systems that demand both high power output and broad frequency coverage, offering reliable amplification in diverse applications.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 4 | 8 | GHz | |
| Gain | 40 | dB | ||
| Gain Flatness @-15dB Input | ±1.5 | dB | ||
| Noise Figure | 10 | dB | ||
| Output Power (Psat) | 10 | Watt | ||
| Spurious Signals | -60 | dBc | ||
| Harmonics | -25 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| Power Supply | +28 | Volt | ||
| Current | 2.5 | A | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +60 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||

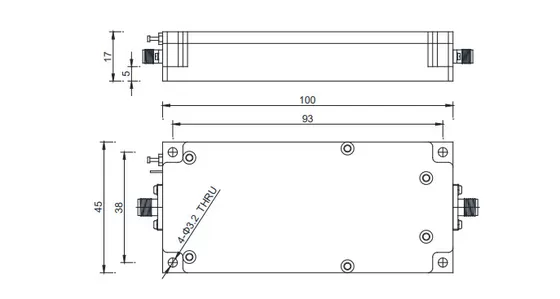

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | Max | Millimeter | |
| Weight | 0.5S | Max | Kg |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| Impedance | 50 | Ohms | |
Product Details
Name:
4 - 8 GHz RF Power Amplifier
Operating Frequency:
4 - 8 GHz
Psat Output Power:
10W
Gain:
40dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±1.5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-25dBc
Operating Temp:
-20~60°c
Application:
Communications, radar system
Transport Package:
Carton
Specification:
100*45*17mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
