High Gain and Linearity 1 - 6 GHz 40dBm Wideband RF Power Amplifier For Radar and Sensing
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-10006000-35C
Price：
Product Description

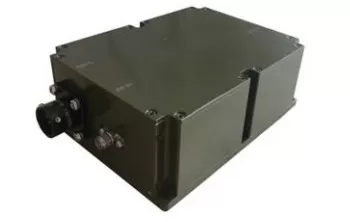

High Gain and Linearity 1 - 6 GHz 40dBm Wideband RF Power Amplifier For Radar and Sensing
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 1 | 2 | GHz | |
| Power Gain | 35 | dB | ||
| Power Gain Flatness | ±3 | dB | ||
| Output Power | 40 | dBm | ||
| Noise Figure | dB | |||
| Spurious | -60 | dBc | ||
| Harmonics | -10 | dBc | ||
| VSWR | Ratio | |||
| Power Supply | +28 | Volt | ||
| Current | 2 | A | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +5 | dBm | ||
| Operating Temperature | 0 | +40 | ℃ | |
| Non-operating Temperature | -40 | +70 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||

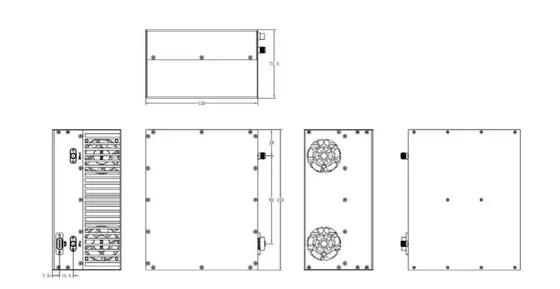

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 150*120*30 | Max | Millimeter |
| Weight | 2 | Max | Kg |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| DC Interface Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
1 - 6 GHz RF Power Amplifier
Operating Frequency:
1 - 6 GHz
Psat Output Power:
40dBm
Gain:
35dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-10dBc
Operating Temp:
0~40°c
Application:
EMC Test，Communications, radar system,Test & Measurement
Transport Package:
Carton
Specification:
150*120*30mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
