High Power Amplifier 1000-6000 MHz Psat 100W Wideband Power Amplifier for EMC
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-10006000-50C
Price：
Product Description

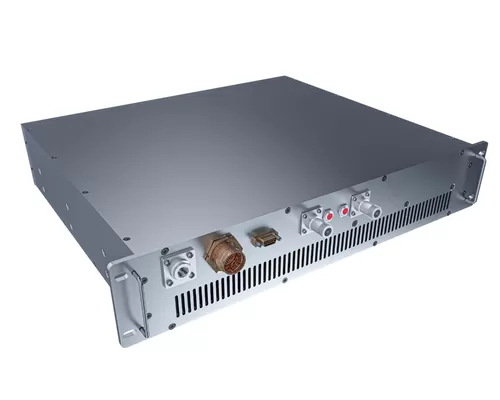

High Power Amplifier 1000-6000 MHz Psat 100W Wideband Power Amplifier for EMC
Description
The chassis is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 1000 | 6000 | MHz | |
| RF INPUT | 0 | 5 | dBm | |
| Power Gain | 50 | dB | ||
| P-1dB Output Power | 50 | W | ||
| P-sat Output Power | 100 | W | ||
| Power Gain Flatness | ±4 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -65 | dBc | ||
| Harmonic Signals | -15 | -10 | dBc | |
| Gain Adjust Range | 31.5 | |||
| Gain Adjust Ste | 0.5 | |||
| Operating Voltage | 200 | 220 | 260 | V AC |
| Supply Power | 2000 | W | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |

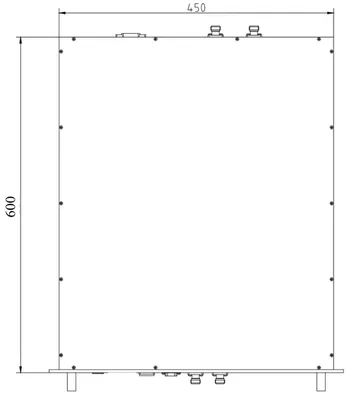

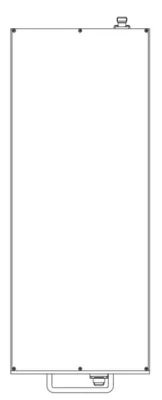

| Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*600*223 | mm |
| RF Connectors (Input / Output) | N-K / N-K (N female) | -- |
| Control Connector (Option1) | DB9:Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current | -- |
| Control Connector (Option2) | RJ45:Remote control and monitoring can be realized through LAN | |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤40 | kg |
| AC Connector | Three-in-one air switch | |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -25 | +55 | °C |
| Humidity Range | 0-90 | % | |
| Amplifier Safeguard Temp. | +80 | °C | |
| Protections | With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection Maximum withstand standing wave 4:1 | ||

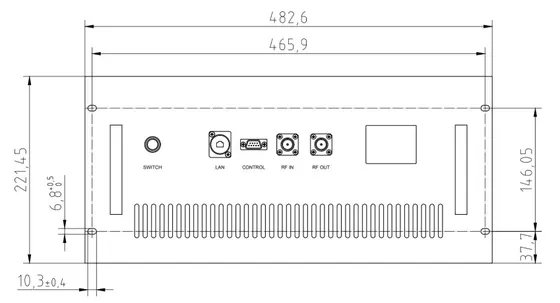

| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | —— | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| NUMBER | interface type | DESCRIPTION | |
| X1 | N-FK | RF IN | |
| X2 | N-FK | RF OUT | |
| X3 | LCD display | Human-computer interaction interface | |
| X4 | Three-in-one air switch | AC/220V/50Hz | |
| X5 | RJ45 | LAN | |
| X6 | DB9 | Control interface | |
| X7 | N-FK | Forward coupling port | |
| X8 | N-FK | Reverse coupling port | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | DB9 | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 3 | Temp monitoring | Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 4 | Voltage monitoring | Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 5 | Current monitoring | Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 6 | RXD | RS232 serial bus interface, PA gain adjustment |
| 7 | TXD | |
| 8 | GND | |
| 9 | NC | NC |
Product Details
Name:
1000 - 6000MHz RF Power Amplifier
Operating Frequency:
1000 - 6000MHz
Psat Output Power:
100W
Gain:
50dB
Input Vswr:
2
Power Gain Flatness:
±4dB
Spurious Signals:
-65dBc
Harmonic Signals:
-10dBc
Operating Temp:
-25~55°c
Application:
EMC Test
Transport Package:
Carton
Specification:
482*550*223mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
