High Power Amplifier 0.7-6GHz Psat 40 dBm Wideband Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 0.7 | 6 | GHz | |
| Power Gain | 40 | dB | ||
| Power Gain Flatness | ±2 | dB | ||
| Noise Figure | dB | |||
| Past Power | 40 | dBm | ||
| Spurious | -60 | dBc | ||
| Harmonics | -15 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| Power Supply | +50 | Volt | ||
| Efficiency | 35 | % | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | dBm | |||
| Operating Temperature | -20 | +50 | ℃ | |
| Non-operating Temperature | -45 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||
| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |

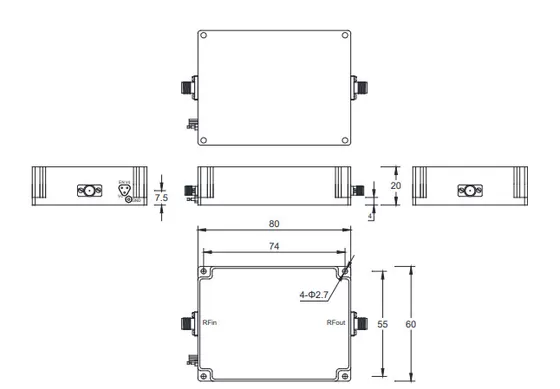

| Dimensions | 80*60*20 | Max | Millimeter |
| Weight | 0.4 | Max | Kg |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| Impedance | 50 | Ohms | |
Product Details
Name:
0.7 - 6 GHz RF Power Amplifier
Operating Frequency:
0.7 - 6 GHz
Psat Output Power:
40dBm
Gain:
40dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±2dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20~50°c
Application:
Communications, radar systems
Transport Package:
Carton
Specification:
80*60*20mm
