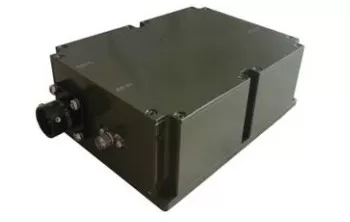

EMC High Power Amplifier 2-12 GHz P1dB 33 dBm Wideband Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 2 | 12 | GHz | |
| Power Gain | 35 | dB | ||
| Gain Flatness | dB | |||
| Output Power @P1dB | 33 | dBm | ||
| Noise Figure | dBm | |||
| IP3 | dBm | |||
| Spurious | dBc | |||
| Harmonics | dBc | |||
| VSWR | ||||
| DC Power Supply | 15 | Volt | ||
| Current | 0.6 | A | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | dBm | |||
| Operating Temperature | -40 | +55 | ℃ | |
| Non-operating Temperature | -55 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

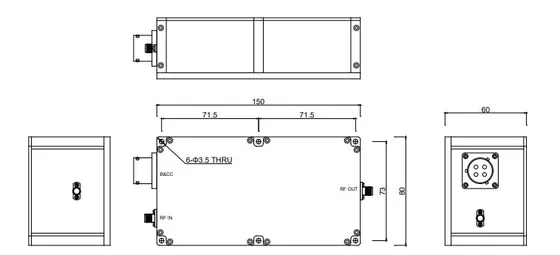

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 150*80*60 | Max | Millimeter |
| Weight | 2.5 | Max | Kg |
| RF Connectors Input | 2.92mm-F | ||
| RF Connectors output | 2.92mm-F | ||
| DC Interface Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
2-12 GHz High Power Amplifier
Operating Frequency:
2-12GHz
Psat Output Power:
33dBm
Gain:
35dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
-40~55°c
Application:
Communications, radar systems
Transport Package:
Carton
Specification:
150*80*60mm
