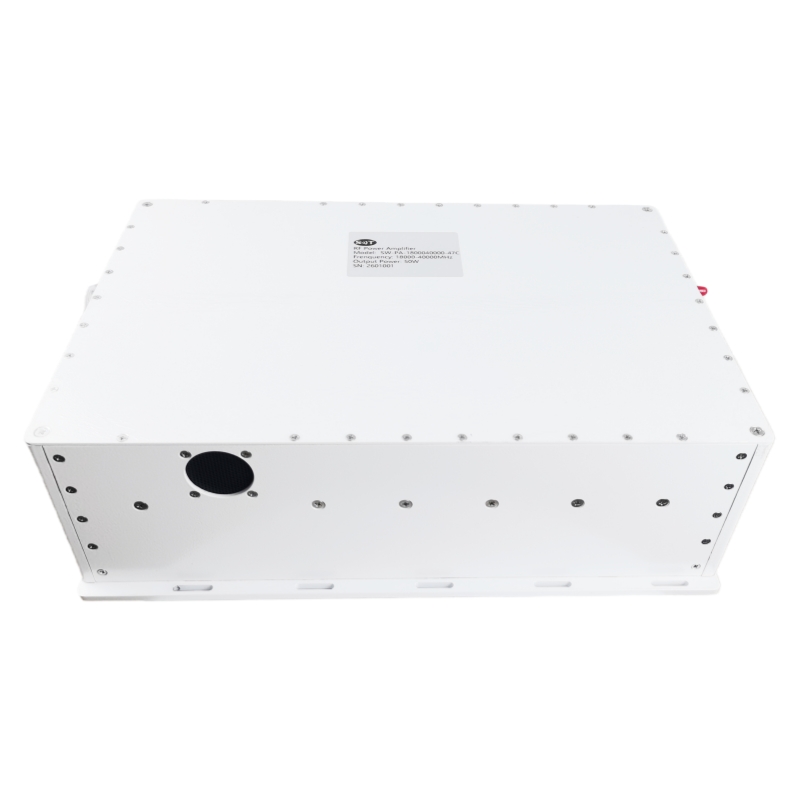

18–40 GHz 50W High-Power Broadband Amplifier for Satellite, Radar & Test Systems
Place of Origin：China
Brand Name：SWT

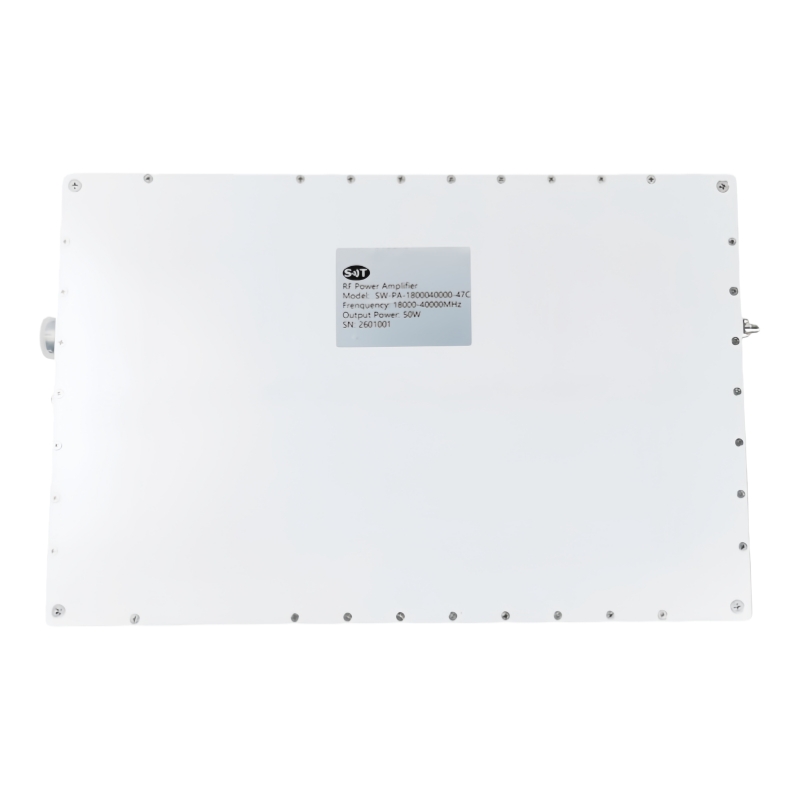

Model Number：SW-PA-1800040000-47C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both defense and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 18 | 40 | GHz | |
RF INPUT | 0 | dBm | ||
Power Gain | 47 | dB | ||
P-sat Output Power | 47 | dBm | ||
Power Gain Flatness | ±2 | |||
In/Out Impedance | 50 | Ω | ||
Input VSWR | 1.5 | |||
Spurious Signals | -55 | dBc | ||
Harmonic | -20 | dBc | ||
Operating Voltage | 220 | V AC | ||
Power Dissipation | 500 | 600 | W | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

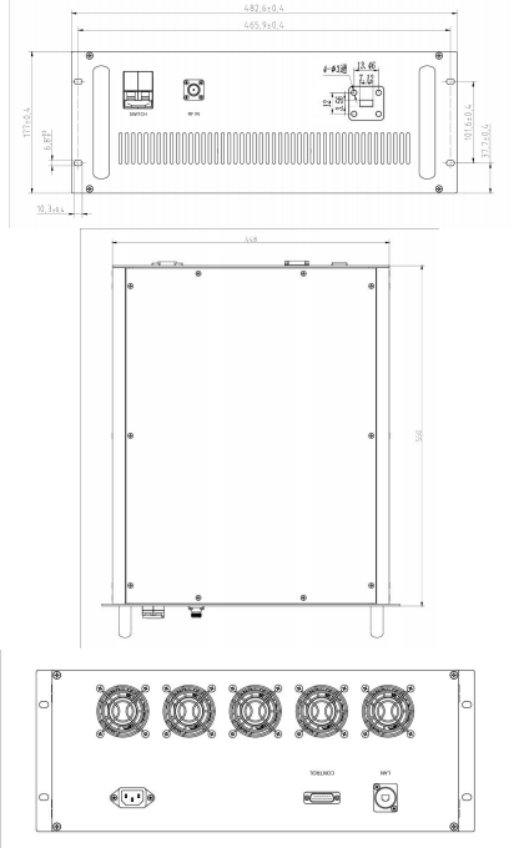

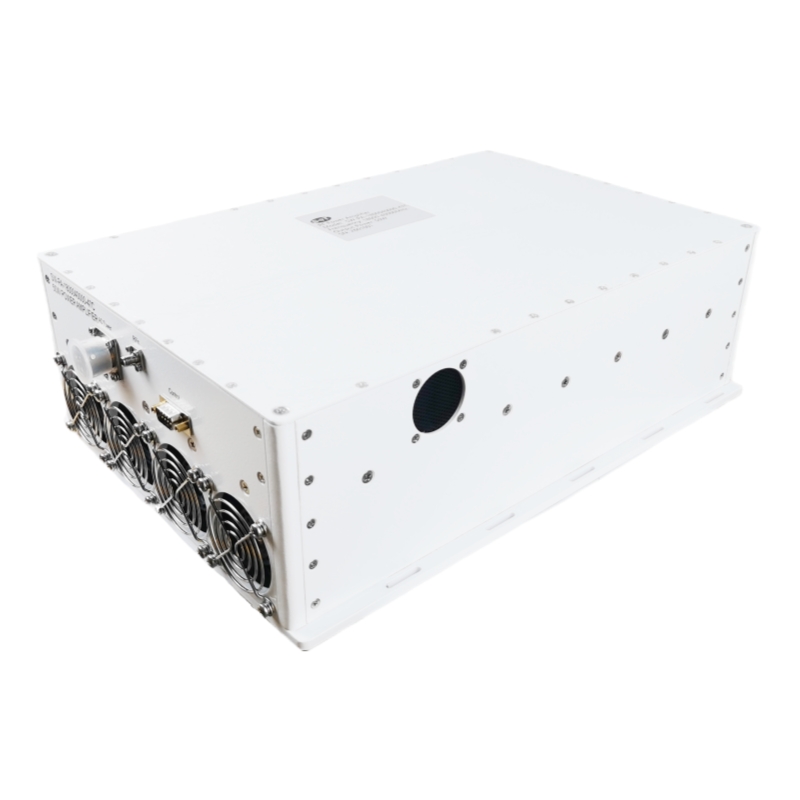

Dimensions (W x D x H) | The standard 19-inch shelf is 4U high, 482*550*178 | mm |
RF Connectors (Input / Output) | 2.92mm-KF / WRD1800C24 | -- |
Control Connector | DB9 Male： Power on/power off control; Monitoring parameters include temperature | -- |
AC Connectors | K20- B3 Male：Standard 220V socket | |
Cooling | Forced air cooling for heat dissipation | -- |
Weight | ≤10 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +55 | °C |
Humidity Range | 0-95 | % | |
Amplifier Safeguard Temp. | +75 | °C | |
Protections | With over temperature protection, output mismatch protection | -- | |
INPUT/OUTPUT panel Connector | ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |

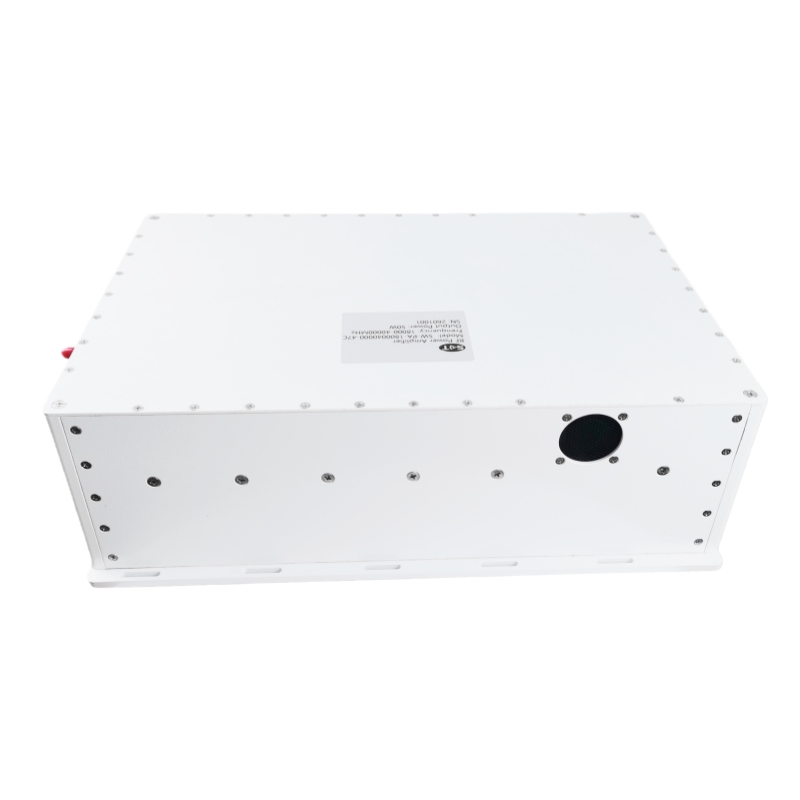

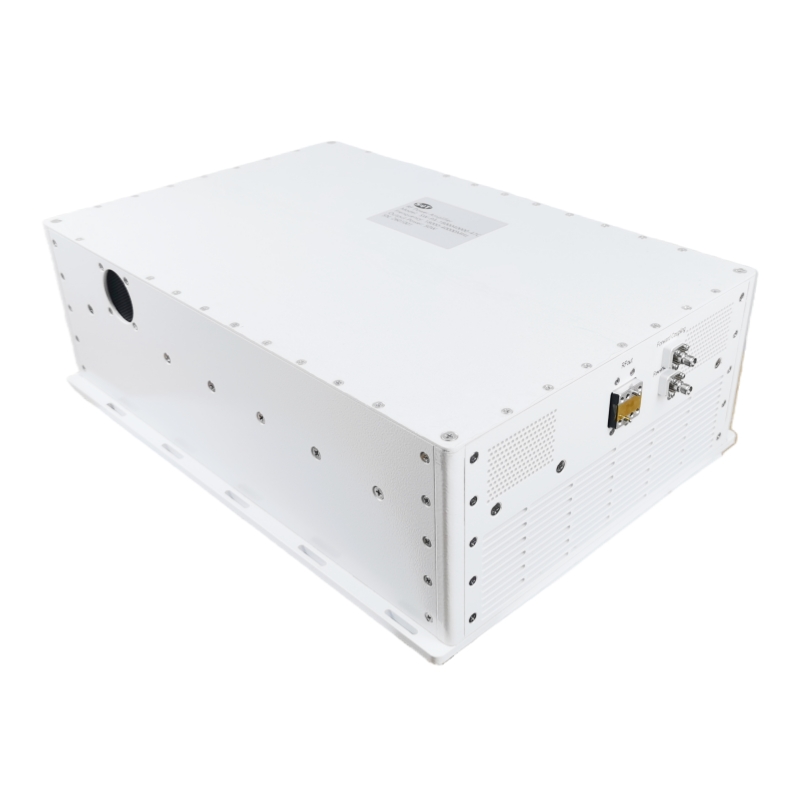

X1 | 2.92mm-KF | RF IN |
X2 | WRD1800C24 | RF OUT |
X3 | DB9 Male | Control interface |
X4 | K20-B3 Male | Standard 220V socket |

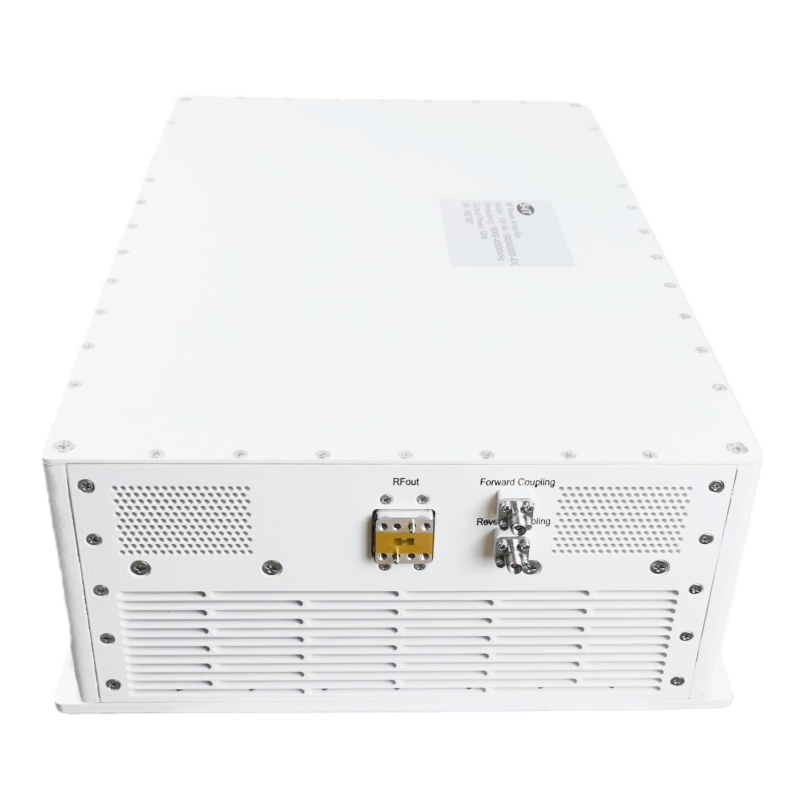

X5 | 2.92mm-KF | Forward coupling port (40dB ±1dB) |
X6 | 2.92mm-KF | Reverse coupling port (40dB ±1dB) |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB9 Male | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | RS485A |
PC software communicate with PA interface |
2 | RS485B | |
3 | GND | |
4-9 | NCN | NC |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | K20-B3 Male | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | L |
Standard 220V socket |
2 | N | |
3 | GND | |
Product Details
Name:
18–40 GHz 50W High-Power Broadband Amplifier for Satellite, Radar & Test Systems
Operating Frequency:
18–40 GHz
Psat Output Power:
47 dBm
Gain:
47 dB
Input Vswr:
1.5
Power Gain Flatness:
±2
Spurious Signals:
-55 dBc
Harmonic Signals:
-20 dBc
Operating Temp:
-20-+55 °C
Application:

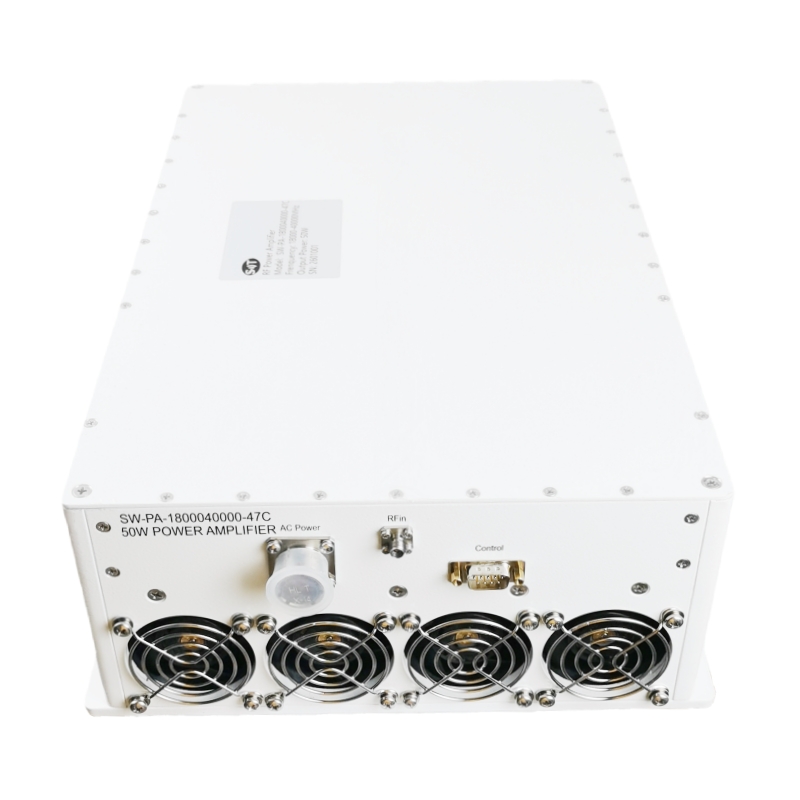

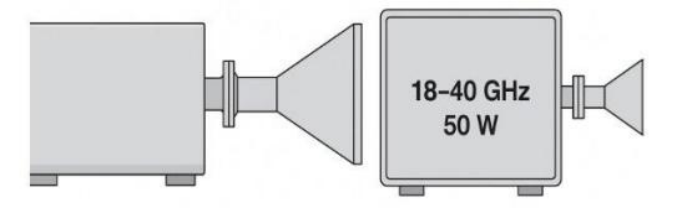

Suitable for application scenarios such as satellite communication links, ground-station and terminal verification, radar/remote-sensing test platforms, and general RF test & measurement benches.
Transport Package:
Packaging: Carton
Specification:
482*550*178 mm
