2-12GHz X Band Amplifier Past CW 200W Broadband RF Power Amplifier for Test & Measurement
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-200012000-50C
Price：
Product Description

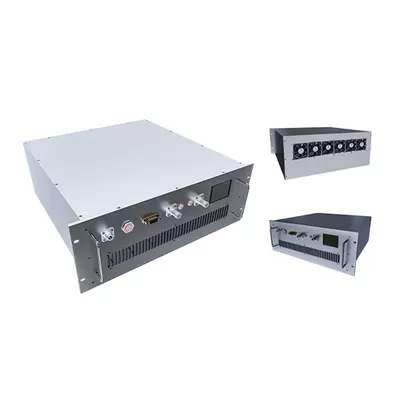

2-12GHz X Band Amplifier Past CW 200W Broadband RF Power Amplifier for Test & Measurement
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 2 | 12 | GHz | |
| Power Gain | 50 | dB | ||
| Gain control | dB | |||
| Power Gain Flatness | ±3 | dB | ||
| Output Power (Psat CW) | 200 | Watt | ||
| Spurious | -60 | dBc | ||
| Harmonic | -10 | dBc | ||
| Input VSWR | Ratio | |||
| Output VSWR | Ratio | |||
| Input Voltage | 220 | Volt | ||
| Human-computer Interface | Touch screen LCD: FWD Power, Temperature, Voltage, Current | |||
| Program Control Interfac | RS232 and Ethernet | |||
Note:
1.Over REV VSWR Protection; Over Current Protection; Over temperature protection.
2.FWD/REV Detection; TCP / IP Communication; Air forced cool.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | dBm | |||
| Operating Temperature | -20 | +50 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||

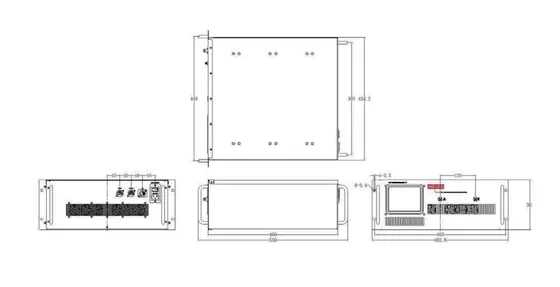

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 19’ | Max | Millimeter |
| Weight | 35000 | Max | gram |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | N-F | ||
| Forward / Reverse Detection Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
2-12GHz RF Power Amplifier
Operating Frequency:
2-12GHz
Psat Output Power:
200W
Gain:
50dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-10dBc
Operating Temp:
-20~50°c
Application:
Telecommunications,Radar Systems,Satellite Communication,Test & Measurement,Broadcasting
Transport Package:
Carton
Specification:
4U
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
