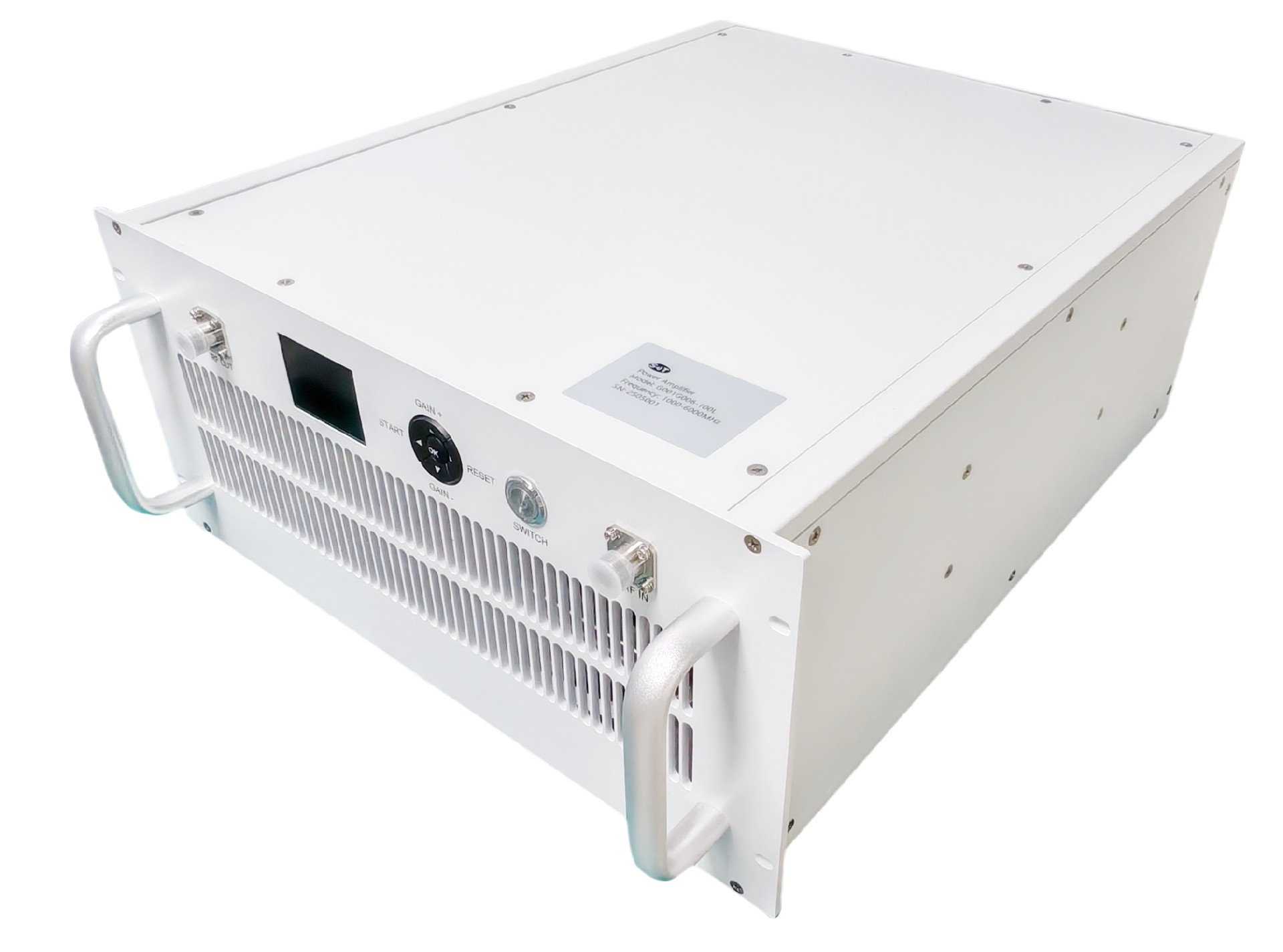

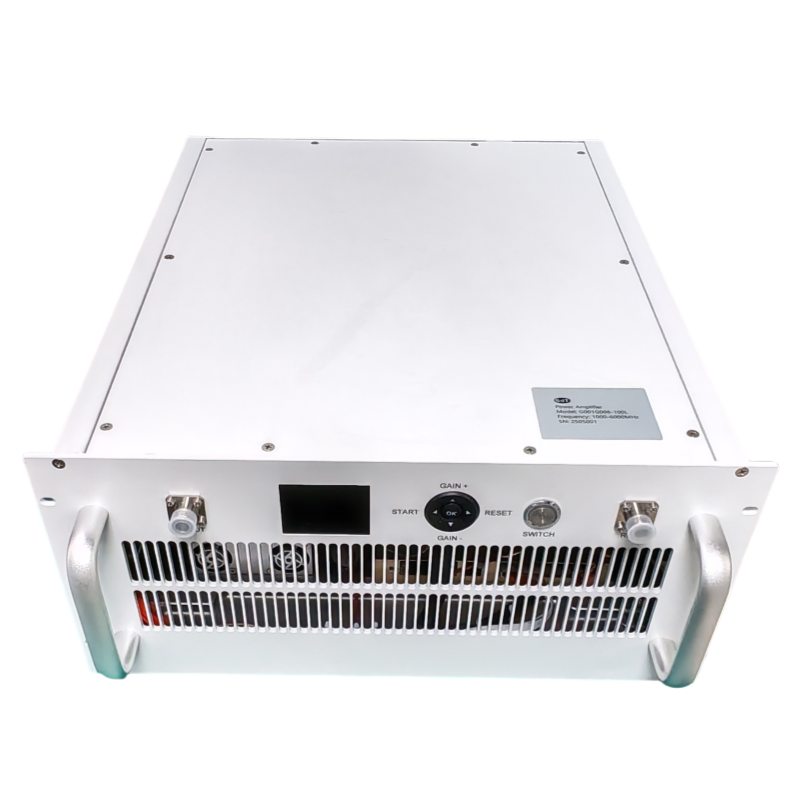

100W, 1-6 GHz Industrial & Commercial Rack Mount Power Amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-10006000-50C
Price：Please Contact Customer Service
Product Description
Description
The chassis is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 1000 | 6000 | MHz | |
RF INPUT | 0 | 5 | dBm | |
Power Gain | 50 | dB | ||
P-1dB Output Power | 50 | W | ||
P-sat Output Power | 100 | W | ||
Power Gain Flatness | ±4 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -65 | dBc | ||
Harmonic Signals | -15 | dBc | ||
Gain Adjust Range | 31.5 | |||
Gain Adjust Ste | 0.5 | |||
Operating Voltage | 200 | 220 | 240 | V AC |
Supply Power | 1600 | W | ||
Input VSWR | 2 | |||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

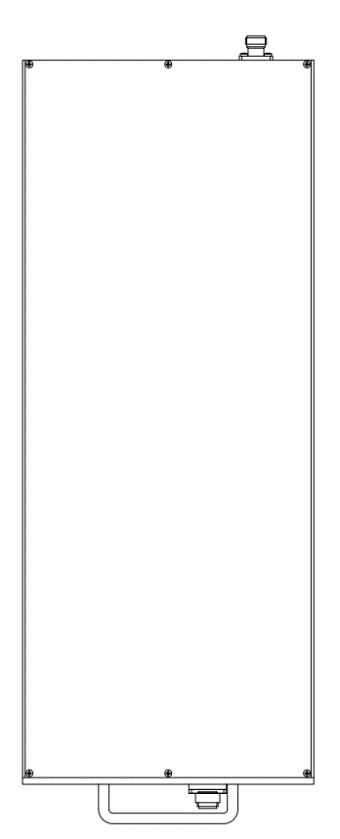

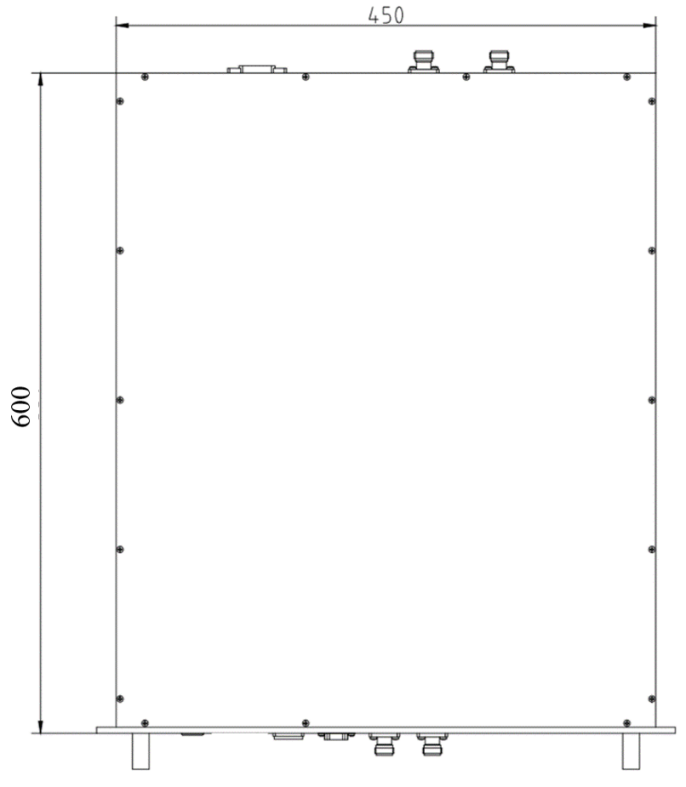

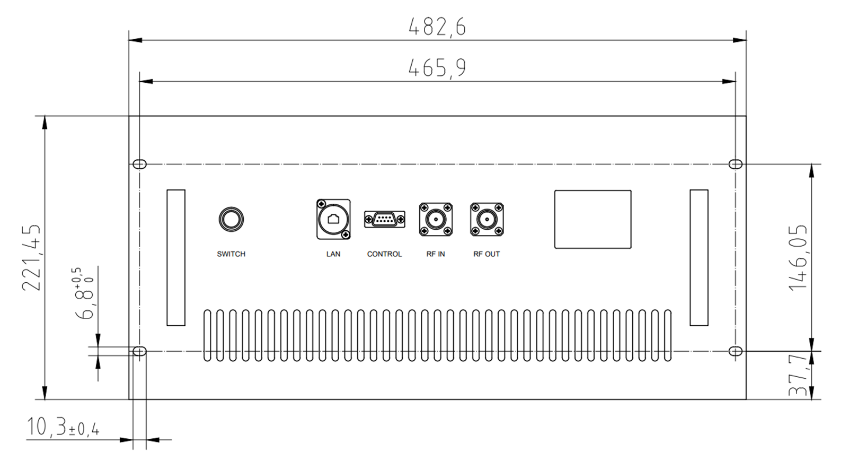

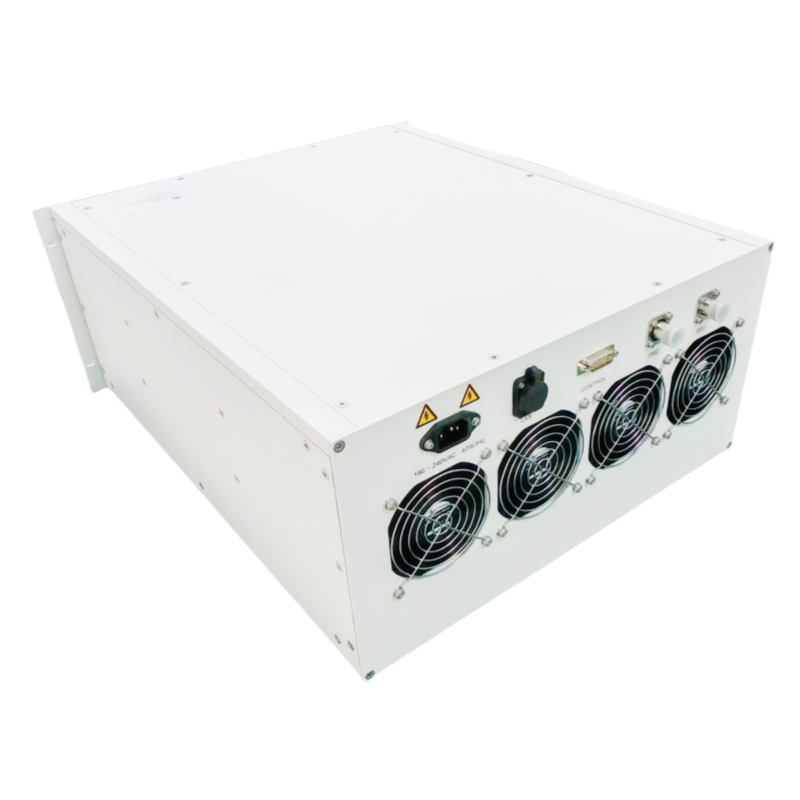

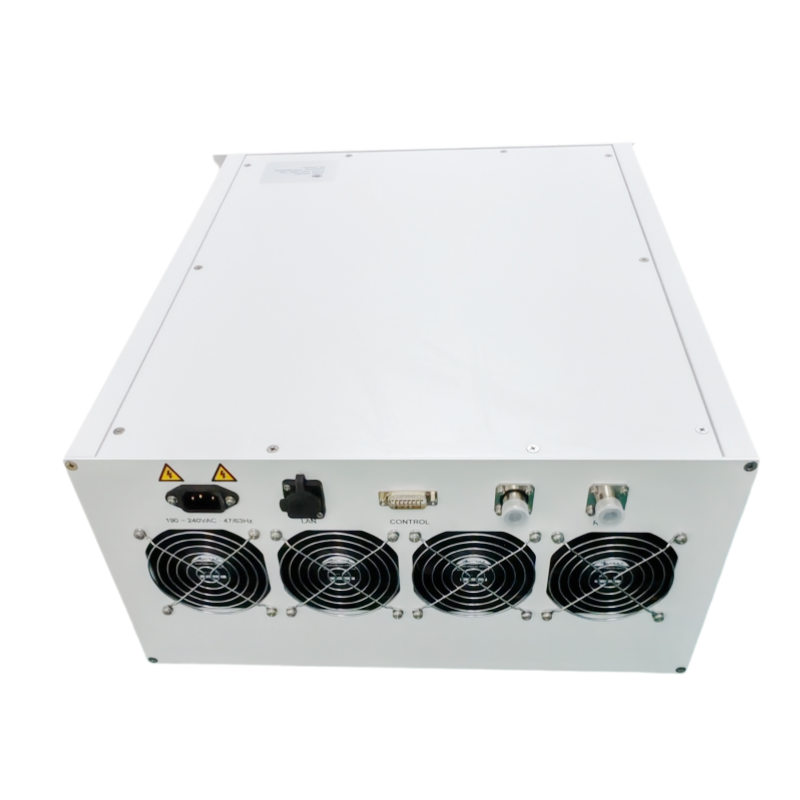

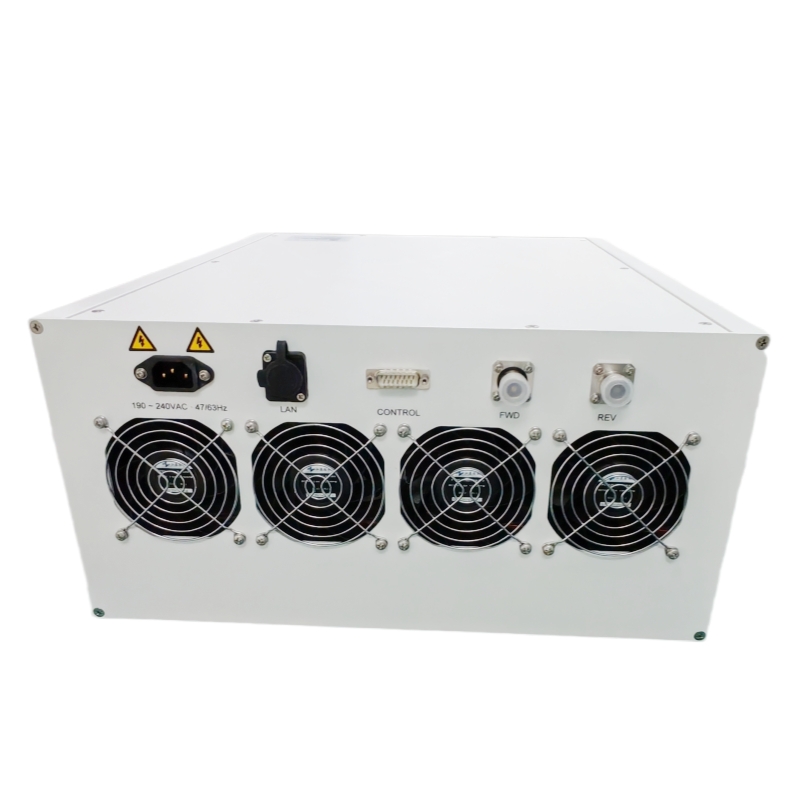

Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*600*223 | mm |
RF Connectors (Input / Output) | N-K / N-K (N female) | -- |
Control Connector (Option1) | DB9：Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current | -- |
Control Connector (Option2) | RJ45：Remote control and monitoring can be realized through LAN | |
Cooling | Built-in cooling system, forced air cooling | -- |
Weight | ≤40 | kg |
AC Connector | Three-in-one air switch | |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -25 | +55 | °C |
Humidity Range | 0-90 | % | |
Amplifier Safeguard Temp. | +80 | °C | |
Protections | With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection | ||
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB9 | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
2 | Output Power monitoring | |
3 | Temp monitoring | |
4 | Voltage monitoring | |
5 | Current monitoring | |
6 | RXD | RS232 serial bus interface, PA gain adjustment |
7 | TXD | |
8 | GND | |
9 | NC | NC |
Product Details
Name:
Operating Frequency:
Psat Output Power:
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
