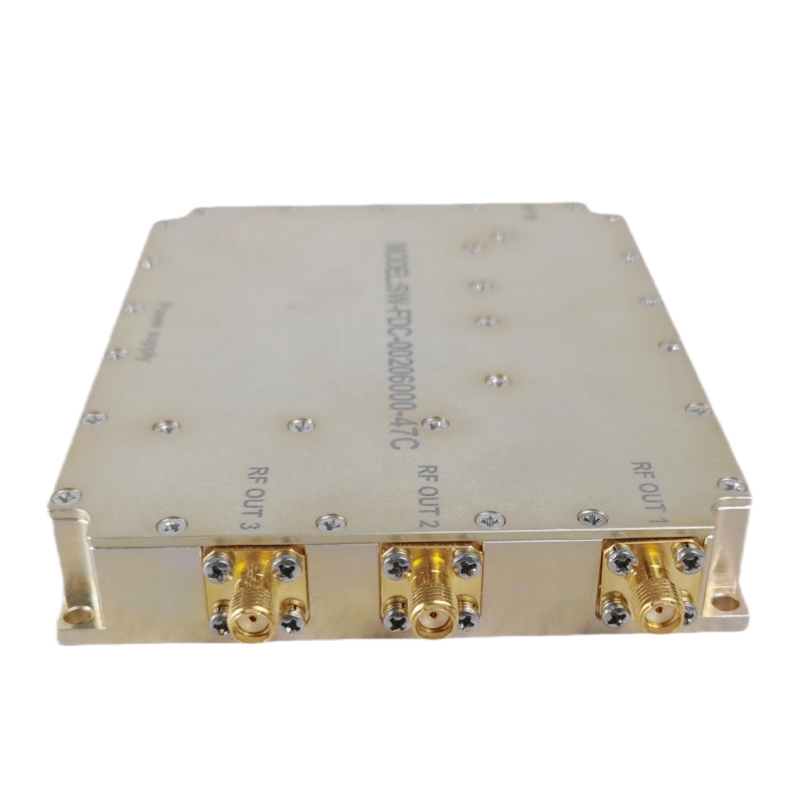

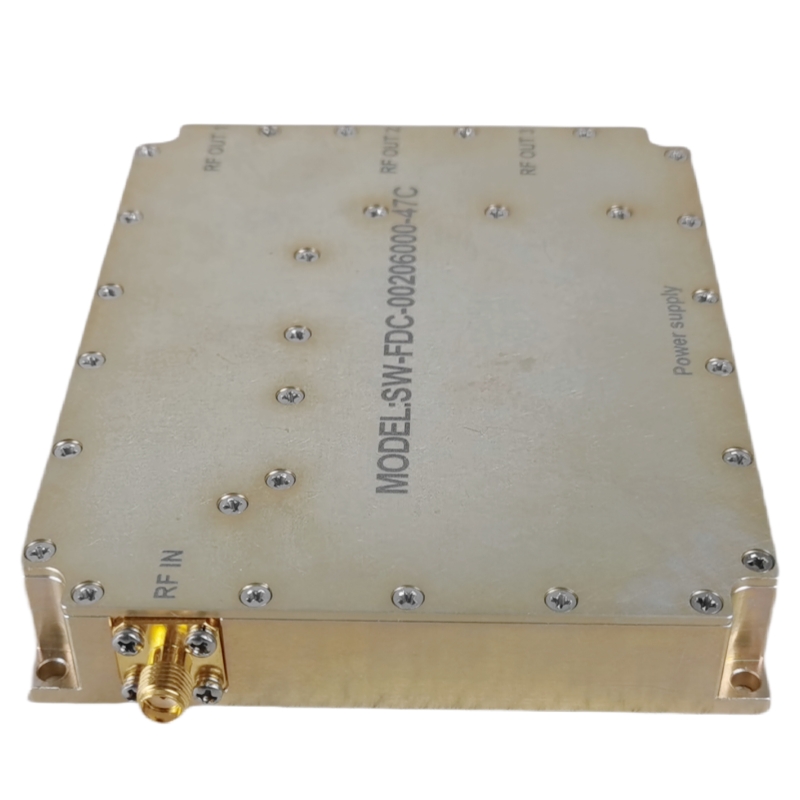

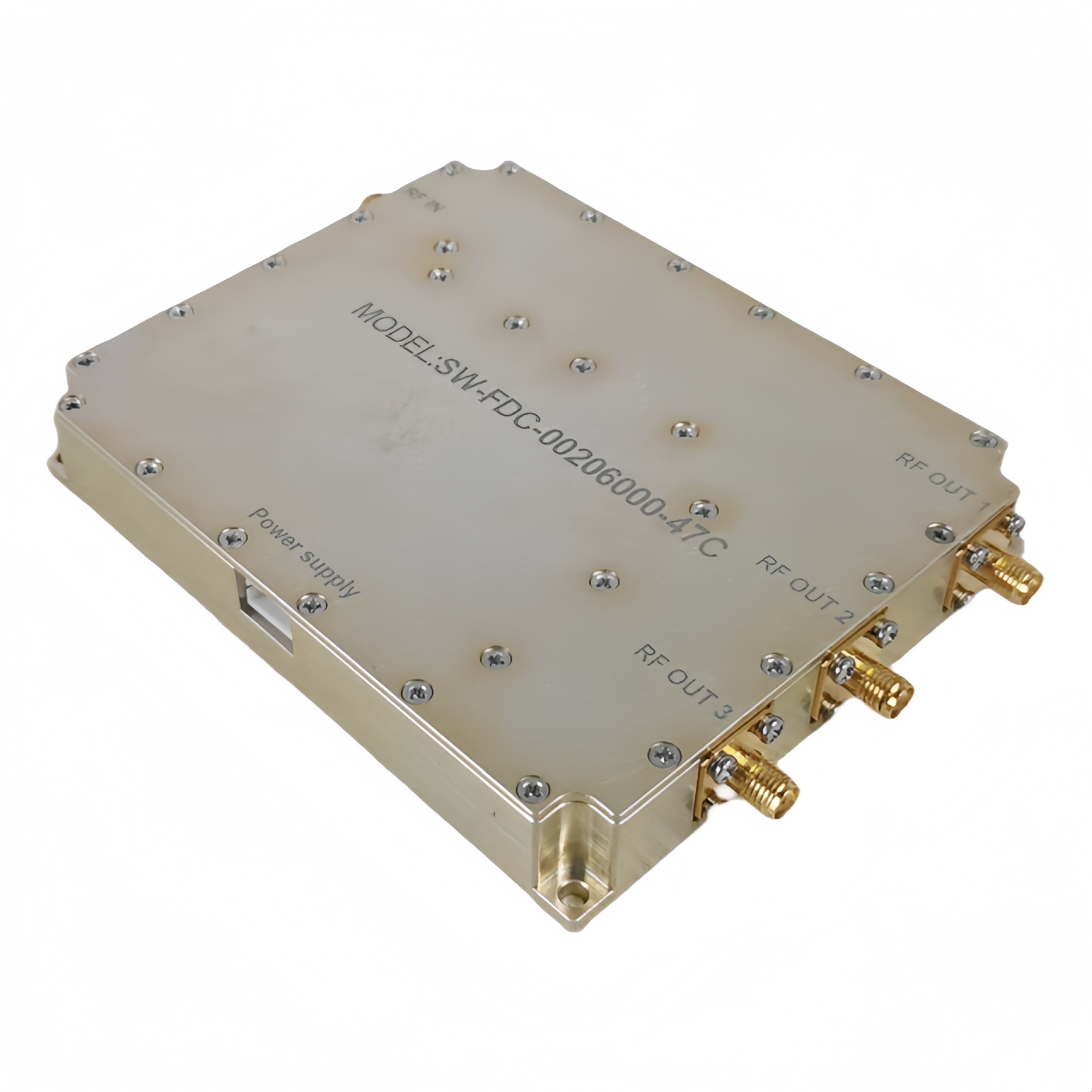

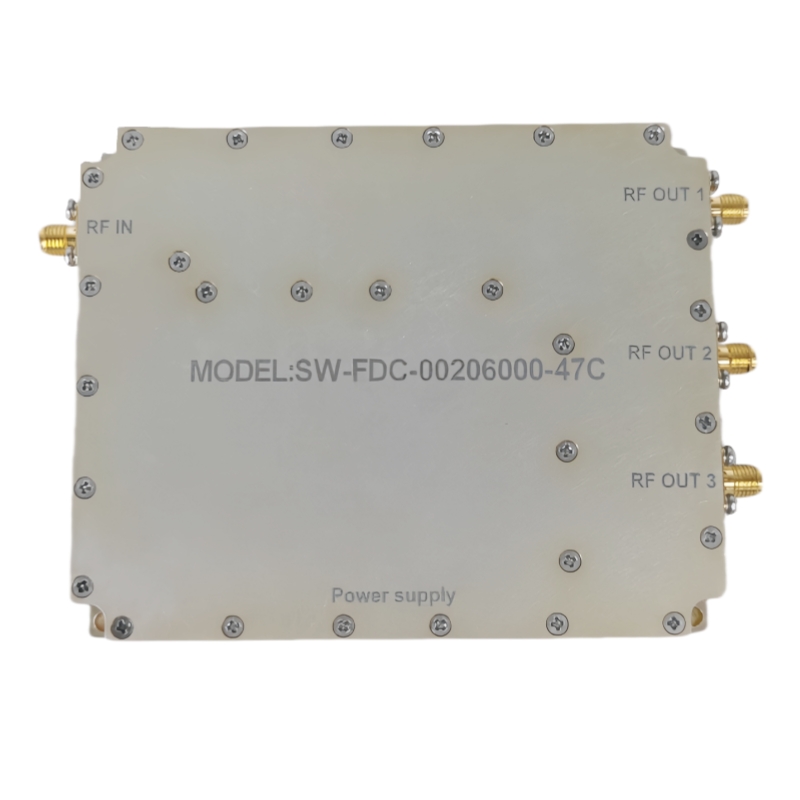

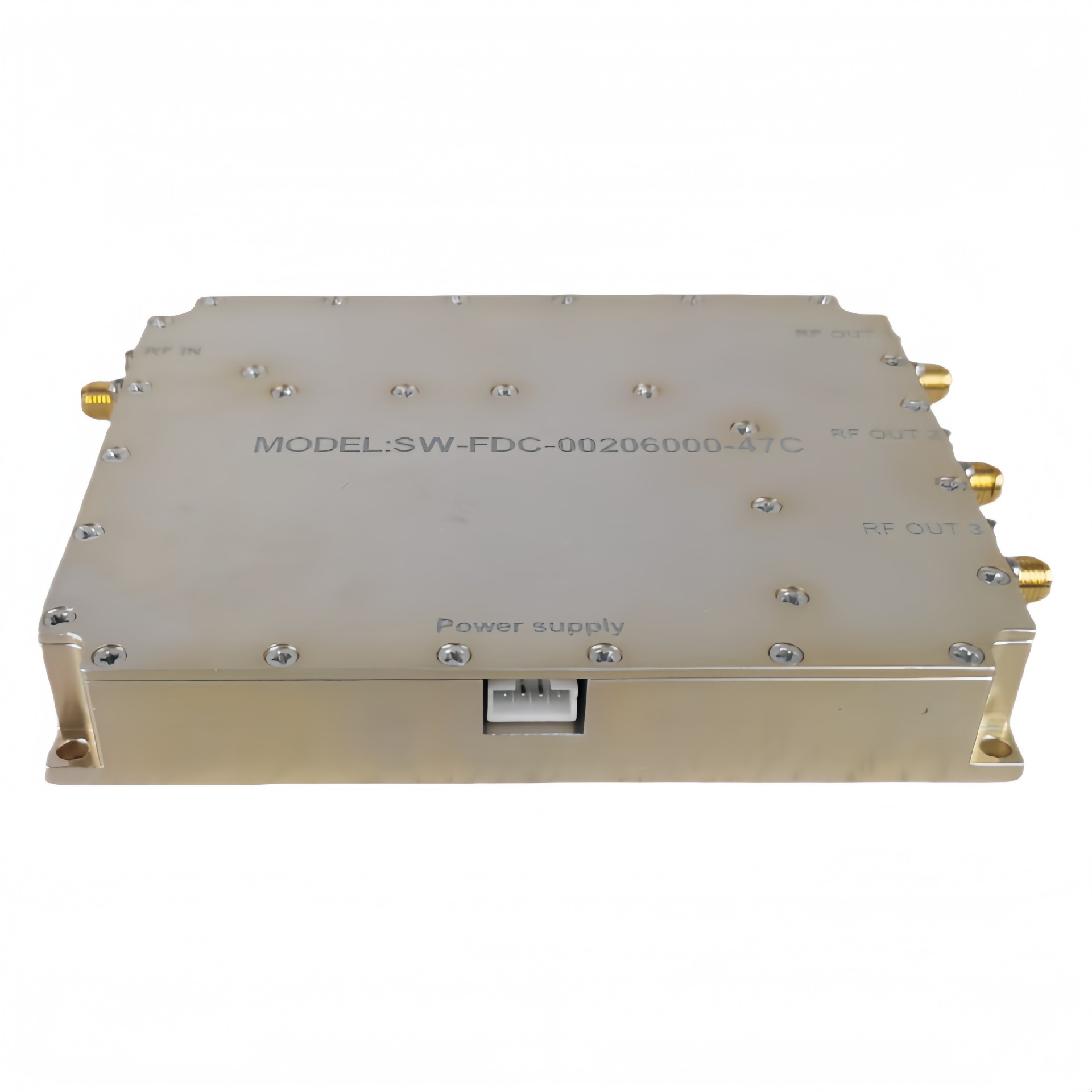

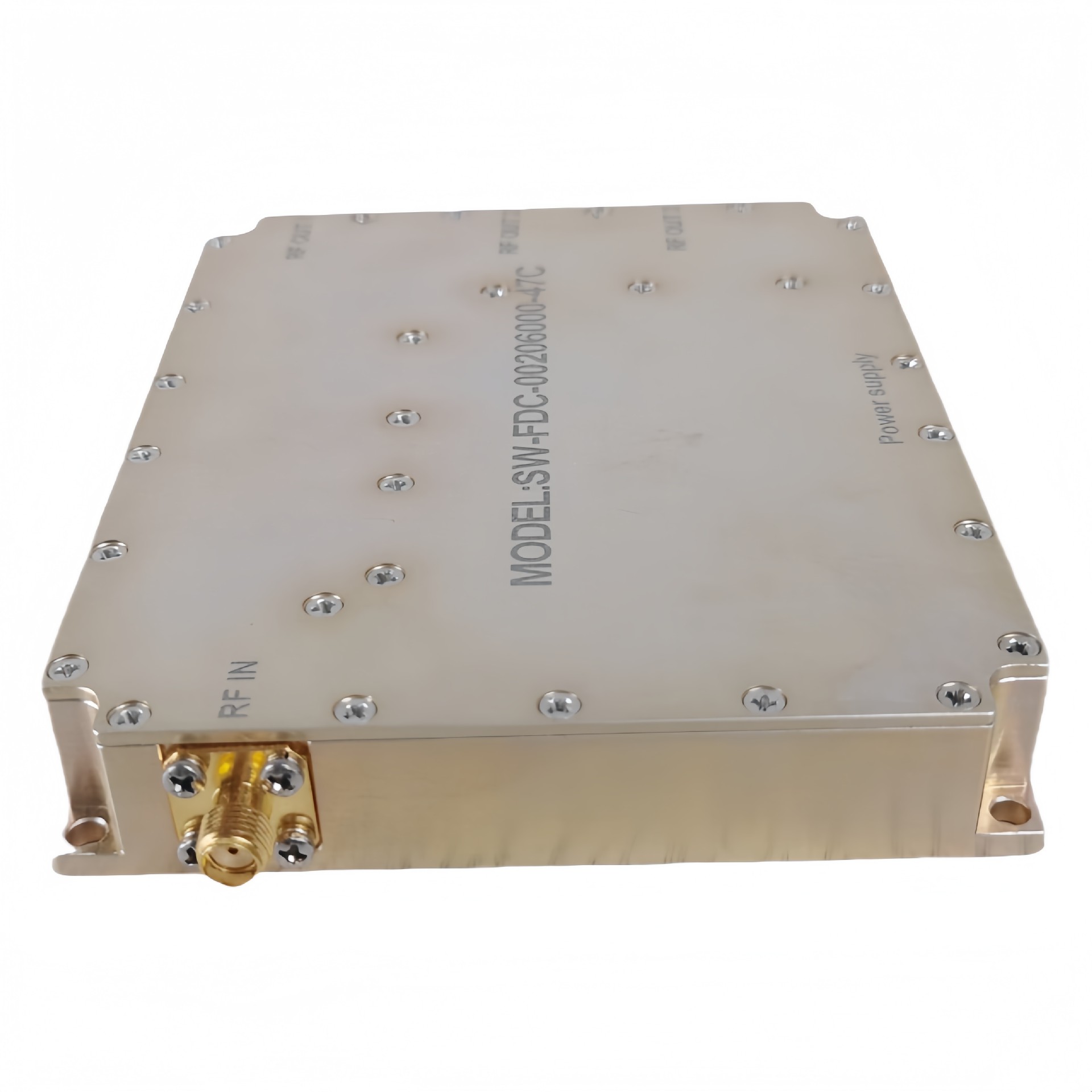

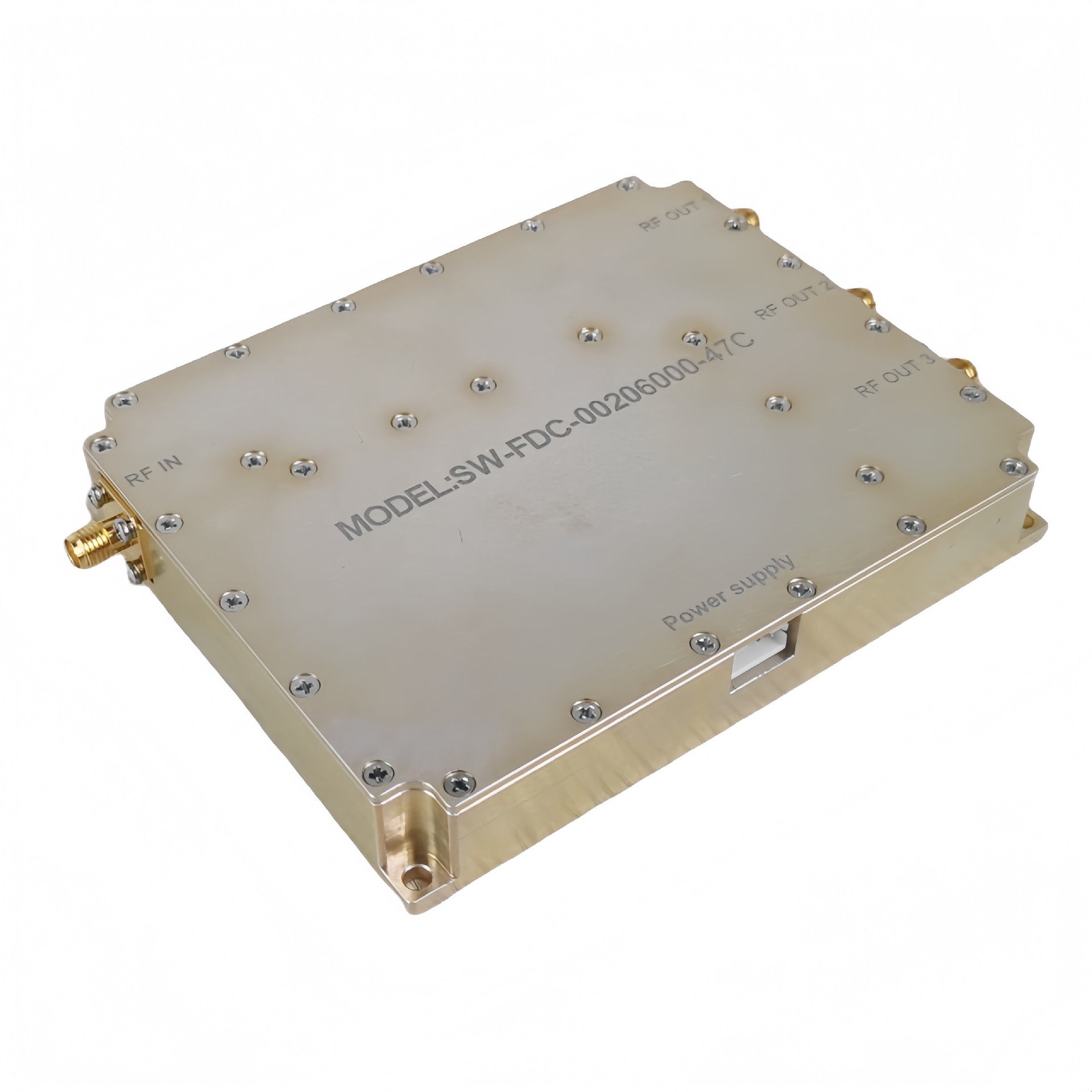

0.2~6GHz Frequency detection module
Place of Origin：China
Brand Name：SWT
Model Number：SW-FDC-00206000-47C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Input Frequency Range | 20 | 6000 | MHz | |
Output Frequency Range 1 | 20 | 500 | MHz | |
Output Frequency Range 2 | 500 | 2000 | MHz | |
Output Frequency Range 3 | 2000 | 6000 | MHz | |
RF INPUT Power Range | -20 | 10 | dBm | |
RF Gain | 0 | dB | ||
P1 dB Output Power | 10 | dBm | ||
Power Gain Flatness | ±3 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -20 | dBc | ||
Input and Output VSWR | 2 | -- | ||
Operating Voltage | 28 | V DC | ||
Current | 0.3 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 113.2*92*16 | mm |
RF Connectors (Input / Output) | SMA-KF / SMA-KF | -- |
DC Connector | PH-4AW | -- |
Cooling | Base heat dissipation | -- |
Mounting | ||
Weight | ≤0.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +60 | °C |
Storage Temp. | -40 | +80 | °C |
Humidity Range | 0-95 | % | |
| ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |
X1 | SMA- KFD | RF IN |
X2-X4 | SMA- KFD | RF OUT 1-3 |
X5 | PH-4AW | DC interface |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | PH-4AW | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | VDD | 28V |
2 | GND | GND |
3 | GND | GND |
4 | GND | GND |
Product Details
Name:
Operating Frequency:
Psat Output Power:
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
