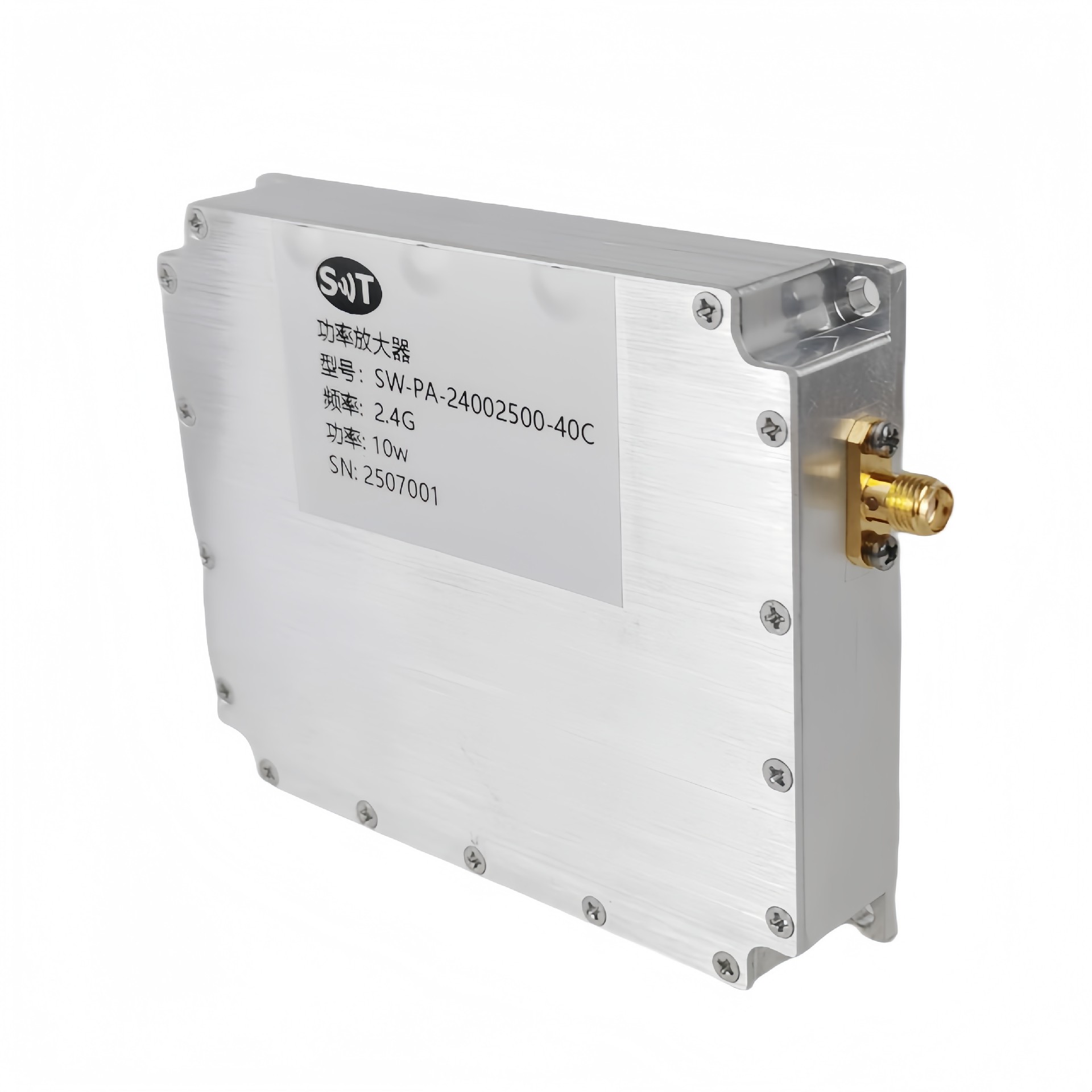

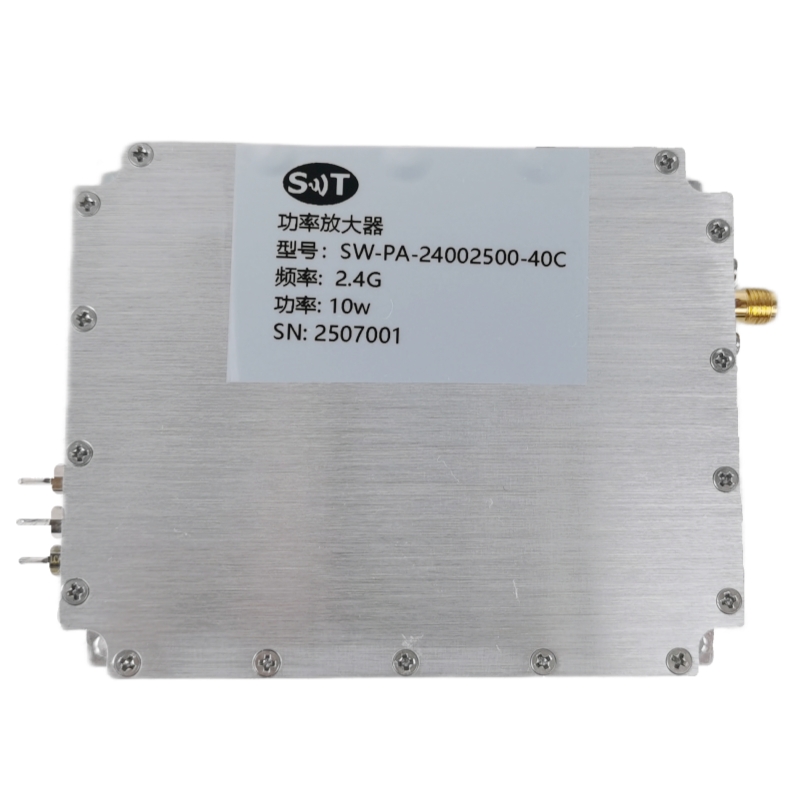

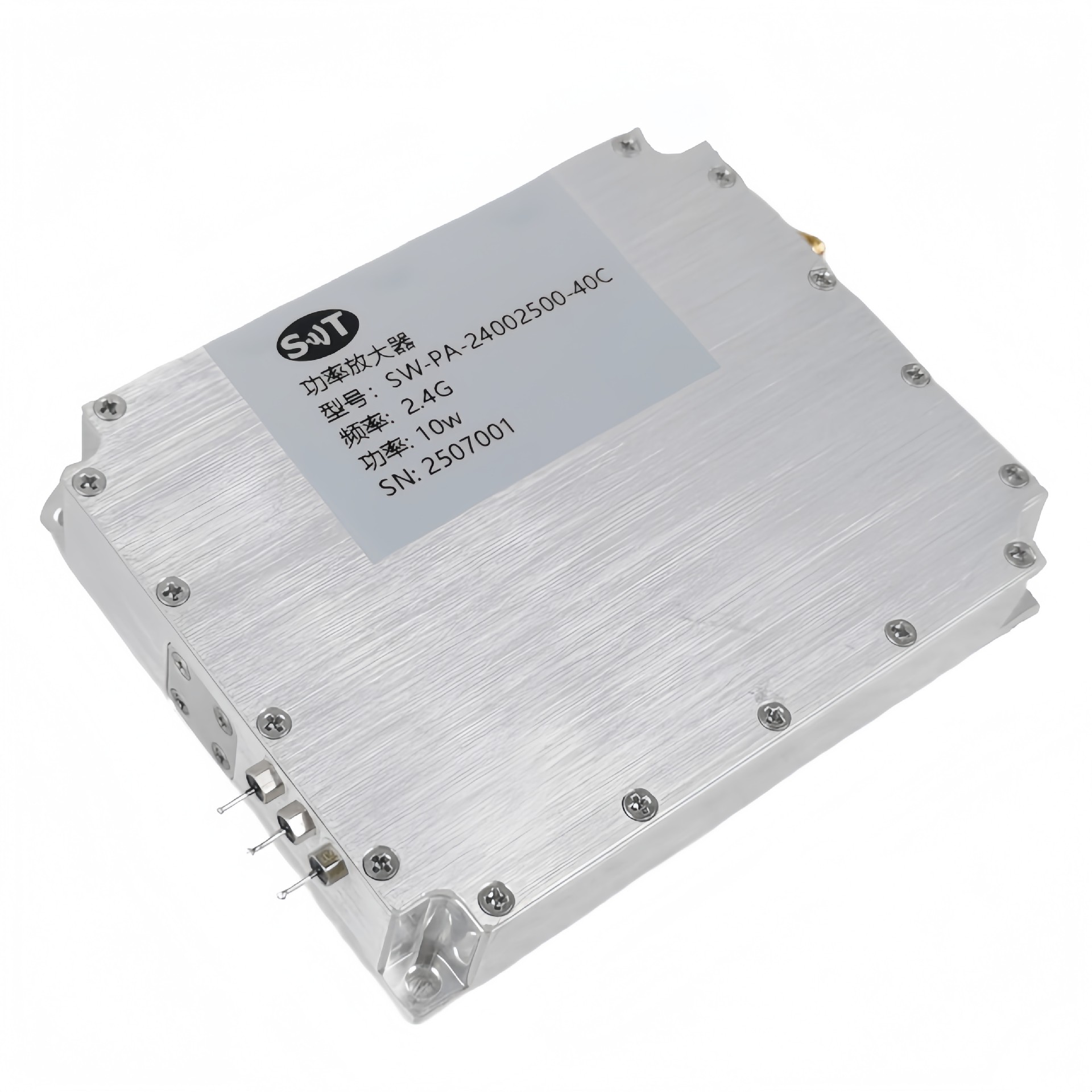

2.45GHz 10W Power Amplifier Module
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-24002500-40C
Price：Please Contact Customer Service
Product Description
Main Technical Specifications
Parameter | Code | Min | TYP | Max | Unit |
Operating Frequency | BW | 2.45 | GHz | ||
Saturated Output Power | Psat | 10 | W | ||
Input Power | Pin | 0 | dBm | ||
Power Gain | Gp | 40 | dB | ||
Input VSWR | VSWRin | 2.0 | |||
Input/Output Impedance | I/O-IMP | 50 | Ω | ||
Supply Voltage | Vdc | 28 | V | ||
Power Dissipation (CW) | Pdiss | 40 | W | ||
| Operating Temperature Range
| OT | -10 | +55 | ℃ | |
Dimensions | DM | 100*80*20mm | |||
Weight | WT | Not exceeding 0.4Kg
| |||
Cooling Requirement | Cooling | Requires external heat sink | |||

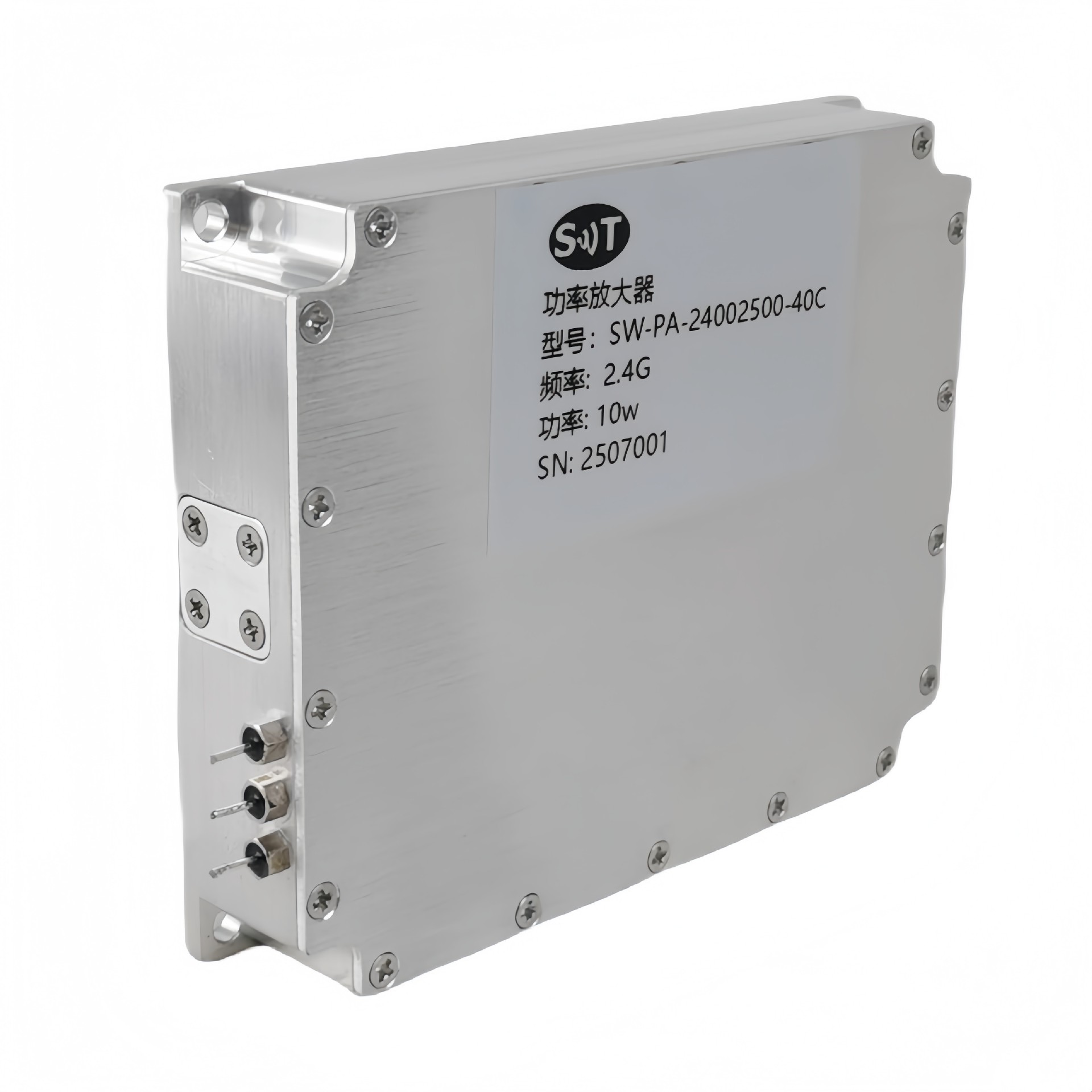

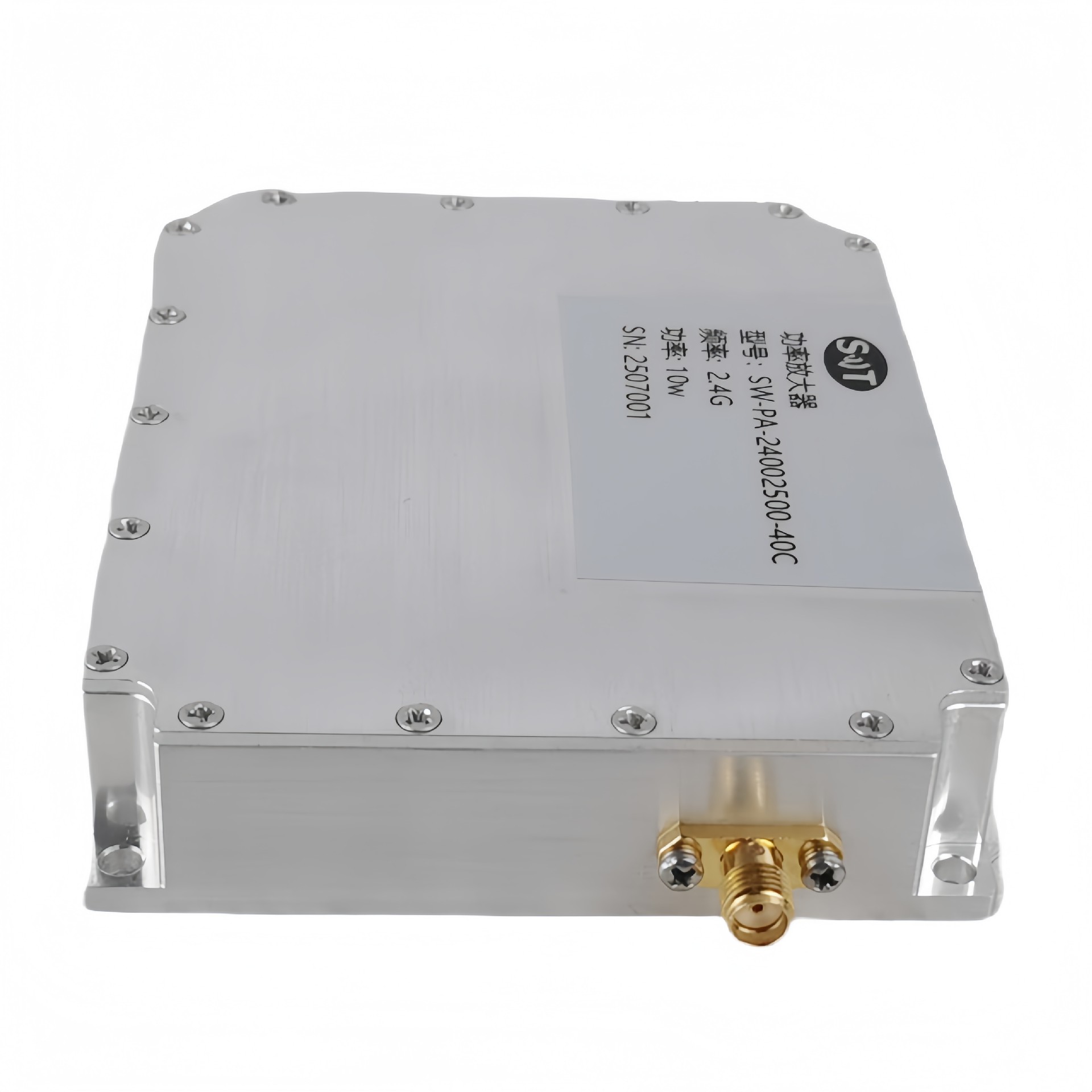

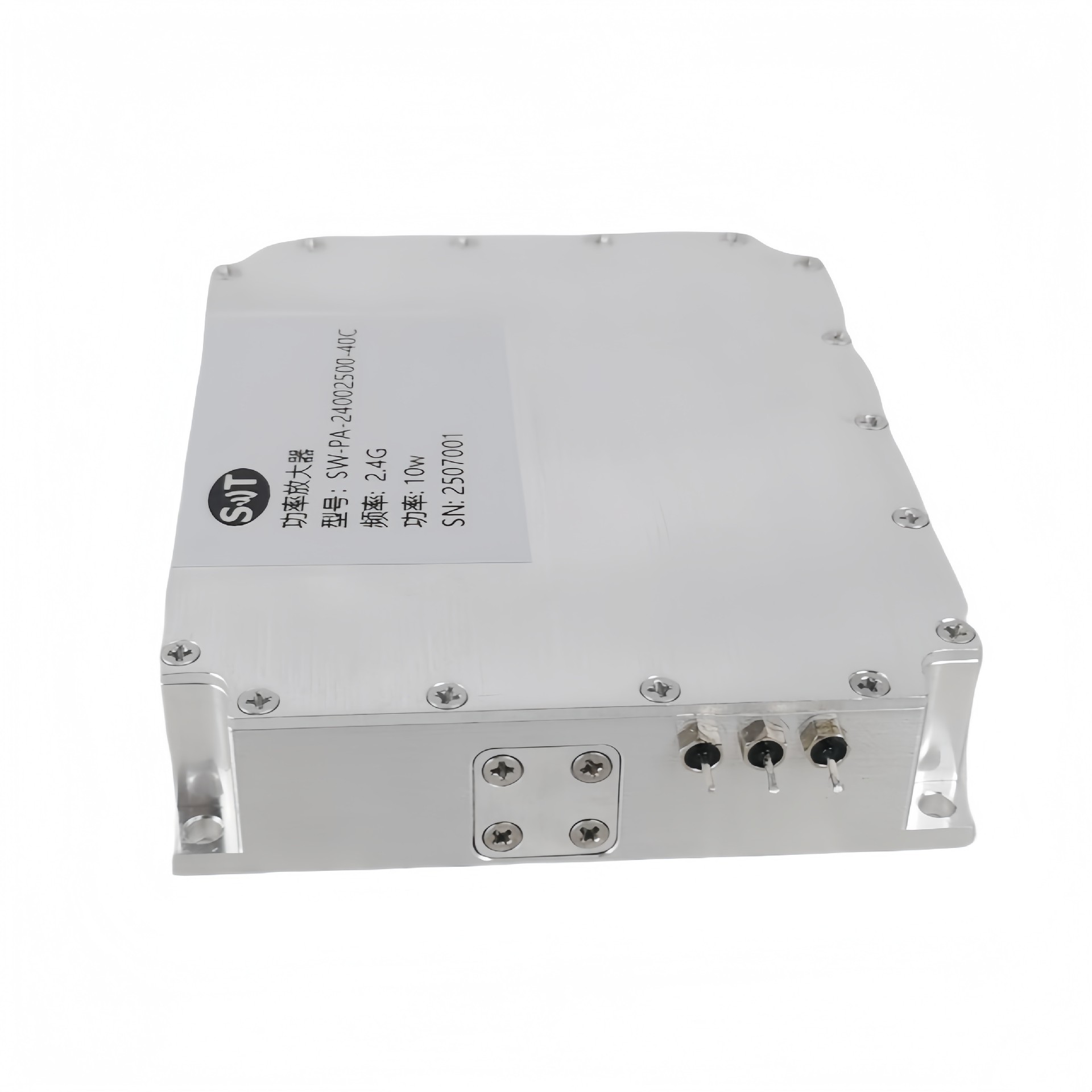

Connector Definitions
Connector Code | Connector Type | Function | Notes |
X1 | SMA | RF Input | |
X2 | SMA | RF Output
| |
X3 | Feed Capacitor | +28V Power Supply | Power connecto |

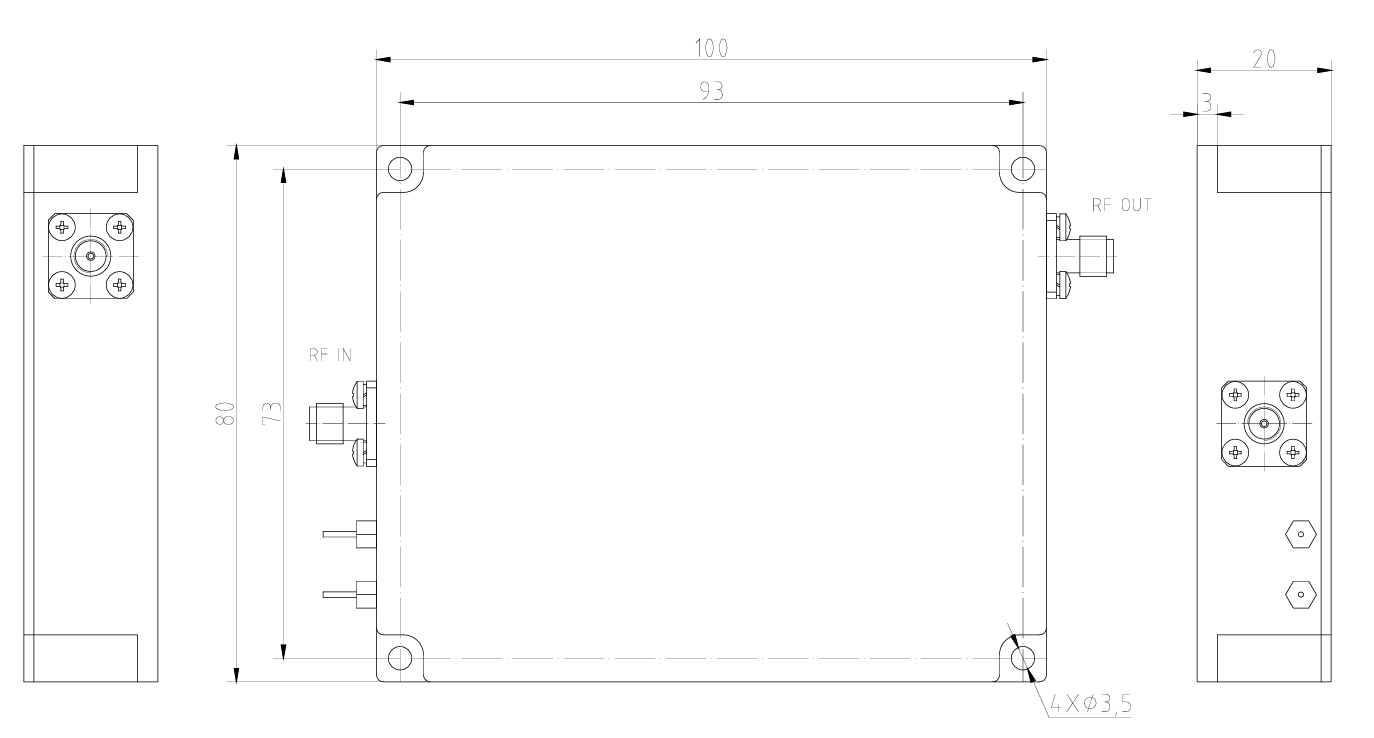

Outline Diagram
Product Details
Name:
Operating Frequency:
Psat Output Power:
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
