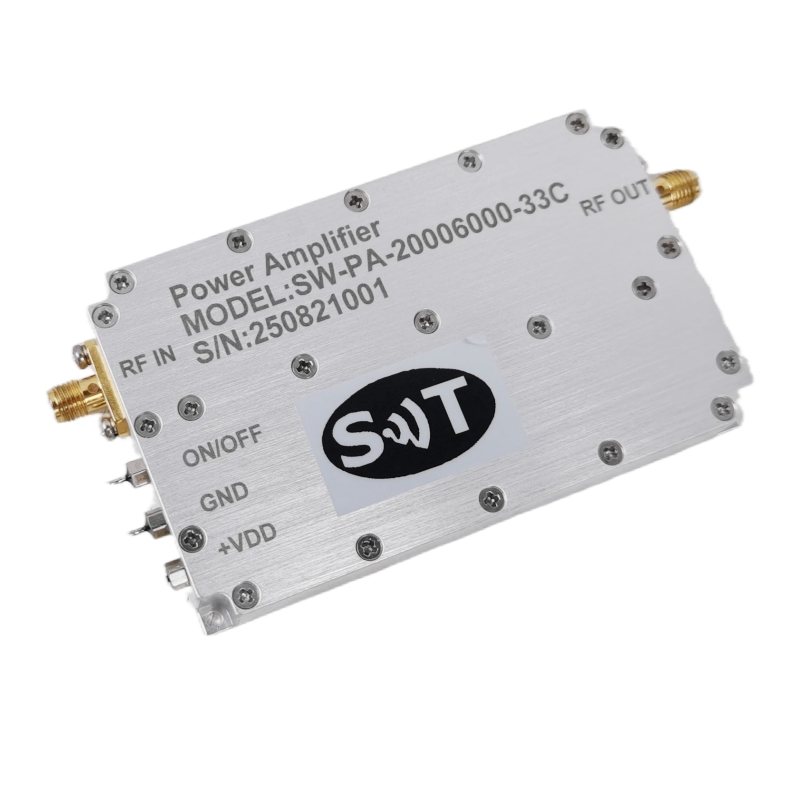

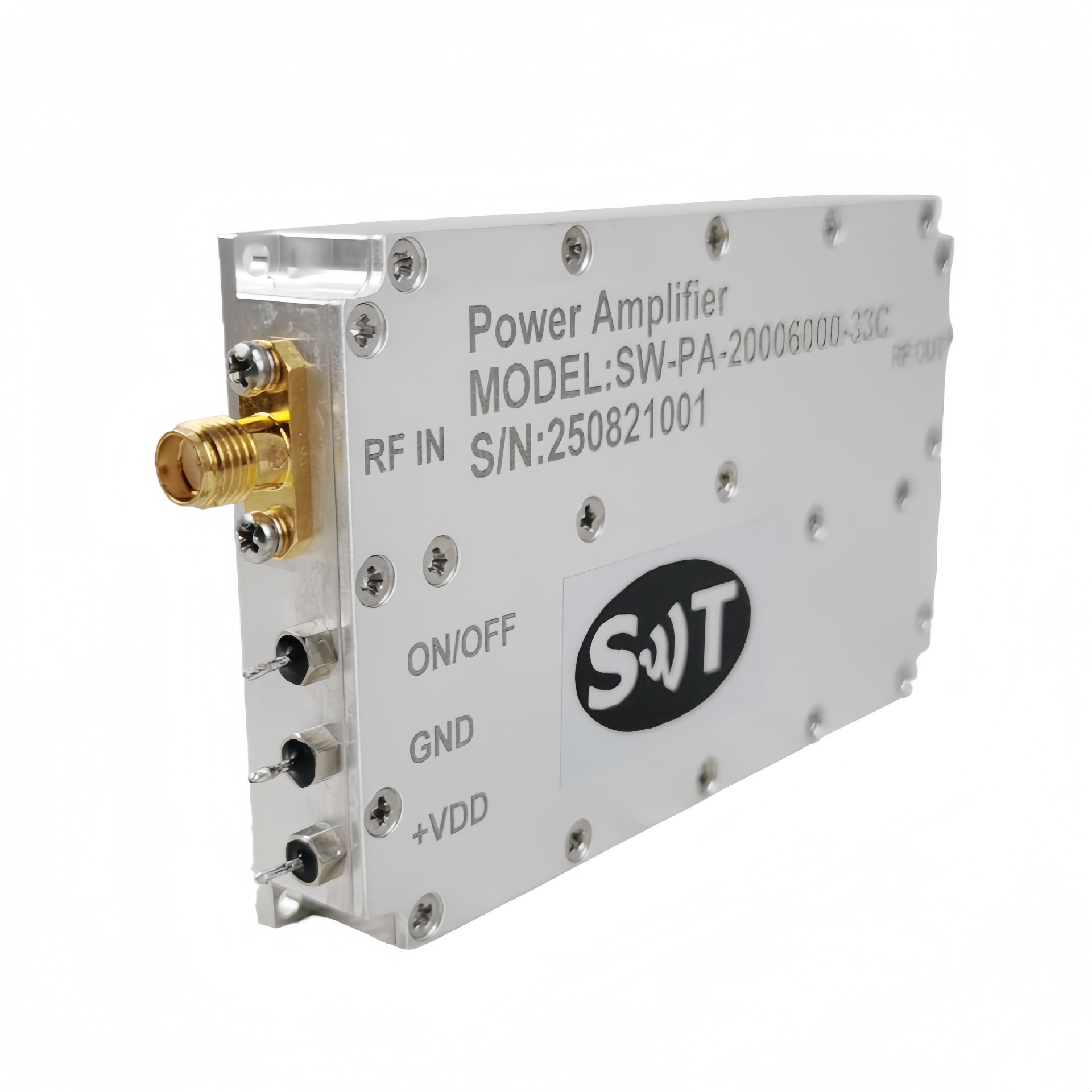

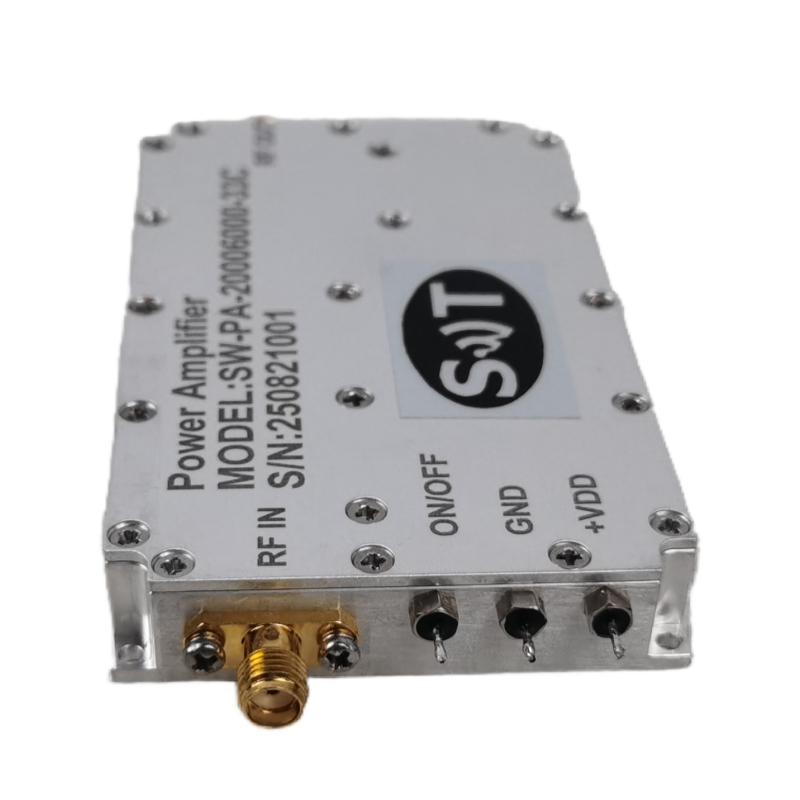

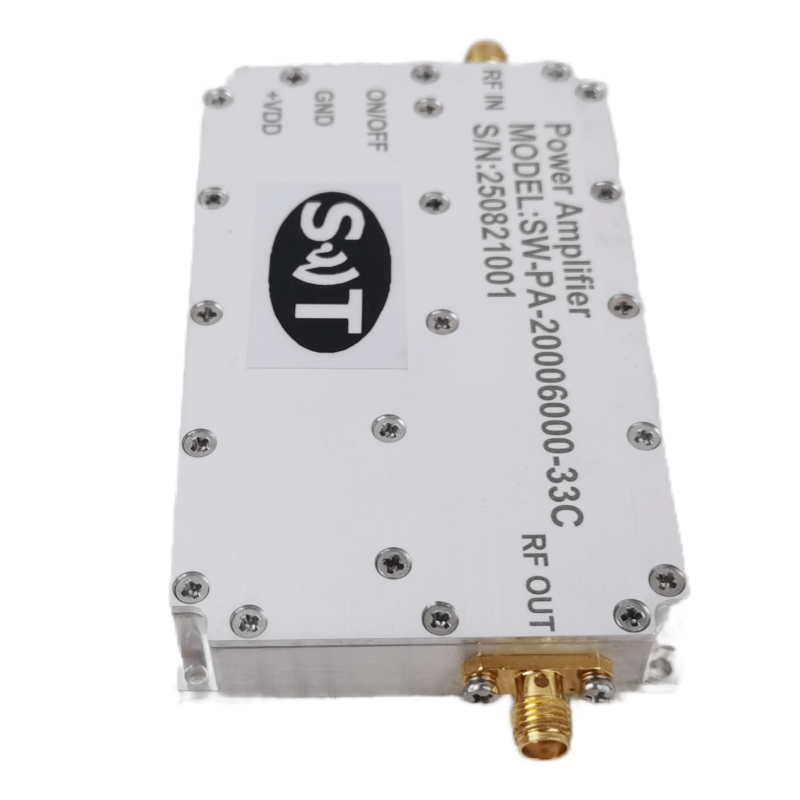

High-Performance 2W 2000~6000MHz RF Power Amplifier for Industrial and Commercial Broadband Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-20006000-33C
Price：Please Contact Customer Service
Product Description

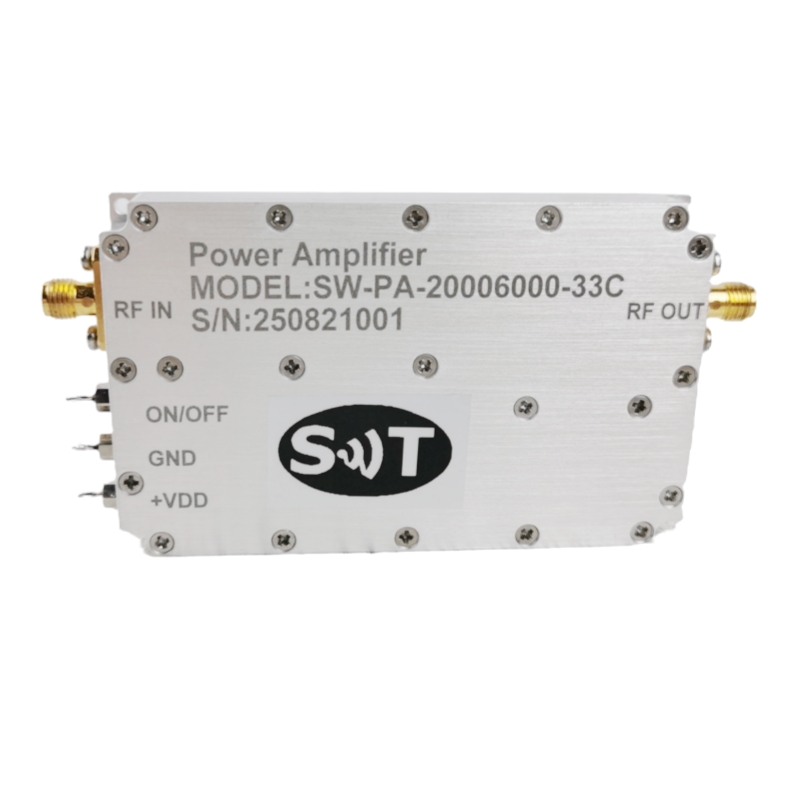

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28V DC +25℃, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2000 | 6000 | MHz | |
RF INPUT | 0 | dBm | ||
P-1dB Power Output | 33 | dBm | ||
Power Gain | 31 | 33 | dB | |
Power Gain Flatness | ±1.5 | dB | ||
Input VSWR | 2.0 | |||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -10 | dBc | ||
Operating Voltage | 24 | 28 | V DC | |
In-Out impedance | 50 | Ω | ||
Currents | 0.8 | A | ||
Switching time | 300 | ns | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

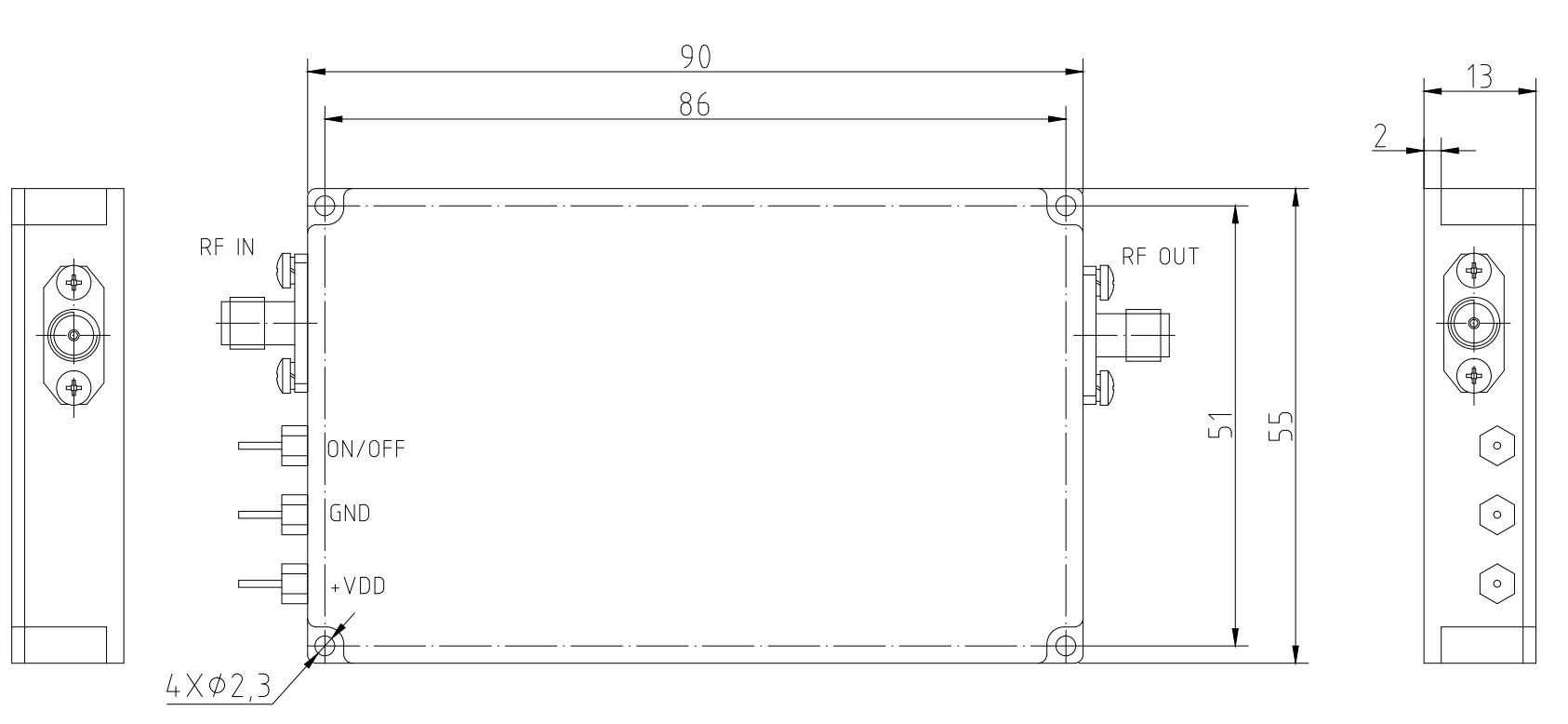

Dimensions (L x W x H) | 90 x 55 x 13 | mm |
RF Connectors (Input / Output) | SMA- KFD/ SMA - KFD | -- |
DC/Control Connector | Feed thru capacitor | -- |
Cooling | Consider heat dissipation with the system (Not Supplied) | -- |
Mounting | φ2.3-4 Thru Hole | -- |
Weight | ≤0.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Humidity Range | 0-95 | % | |
