300MHz-5.9GHz 100W RF Module: Suitable for Vehicle-Mounted Mobile Scenarios, Supporting Multi-Band Signal Amplification & Custom Sweeping
Place of Origin：China
Brand Name：SWT

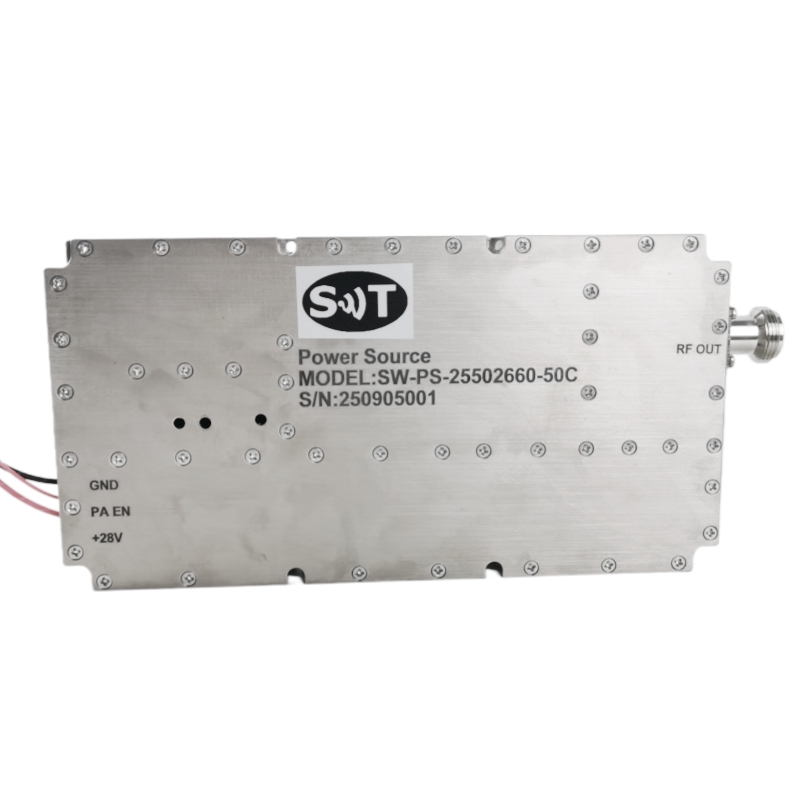

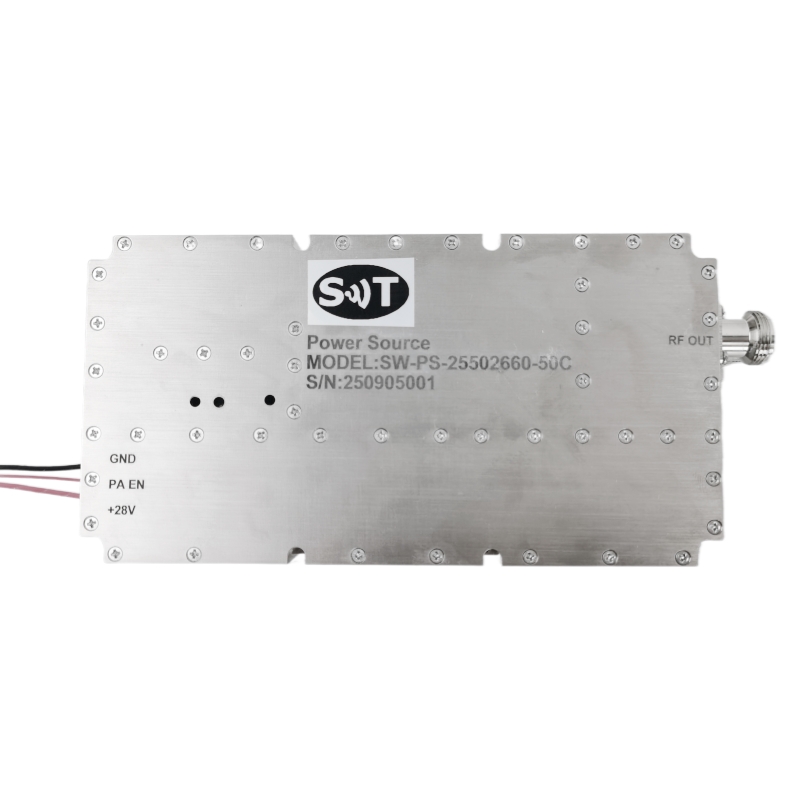

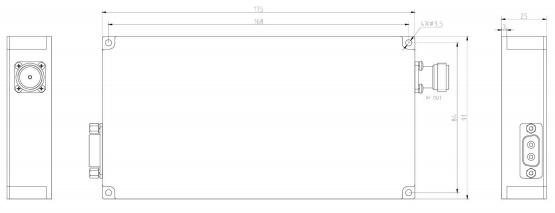

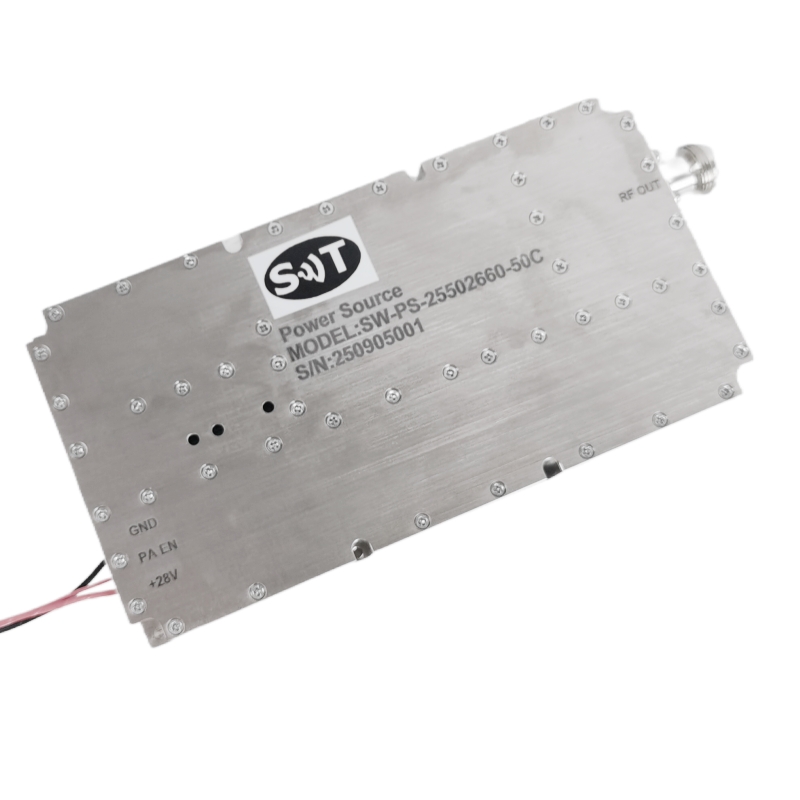

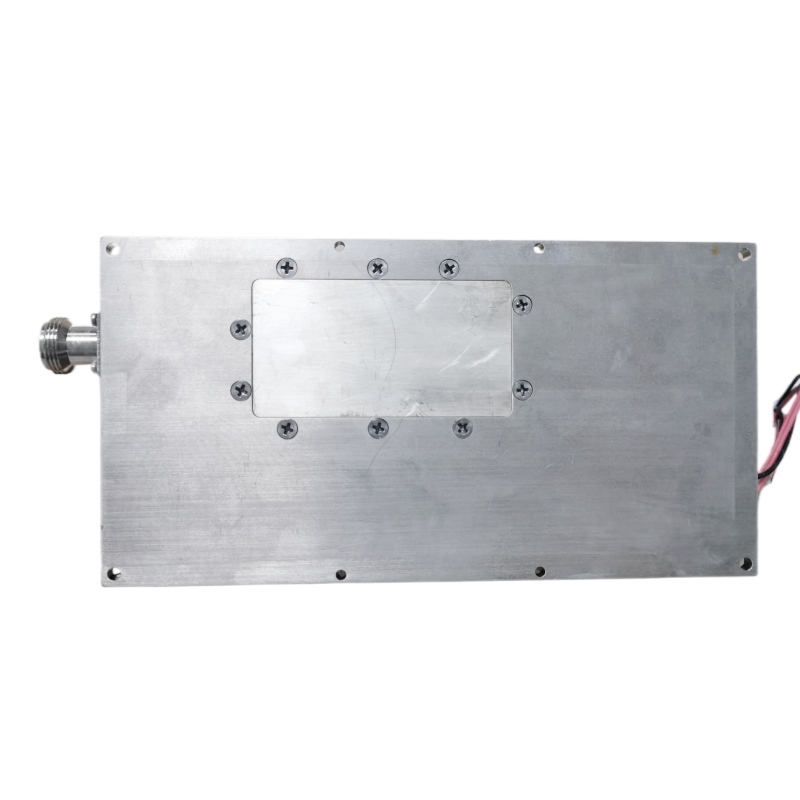

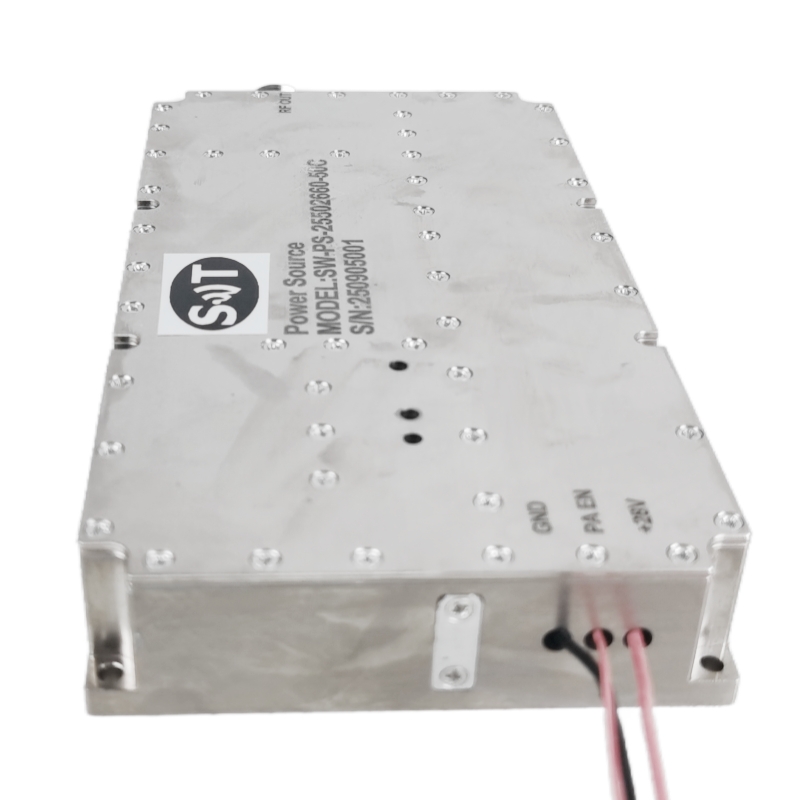

Model Number：SW-PS-25502660-50C
Price：Please Contact Customer Service
Product Description
100W Module Technical Datasheet
RF DATA
Item | Spec. | Remarks |
Frequency Range |
300-400MHz | Bandwidth Range±10MHz |
Frequency Range |
400-500 MHz | Bandwidth Range±10MHz |
Frequency Range |
500-600 MHz | Bandwidth Range±10MHz |
Frequency Range |
600-700 MHz | Bandwidth Range±10MHz |
Frequency Range |
700-800 MHz | Bandwidth Range±10MHz |
Frequency Range |
800-900 MHz | Bandwidth Range±10MHz |
Frequency Range |
900-1000 MHz | Bandwidth Range±10MHz |
Frequency Range |
1000-1100 MHz | Bandwidth Range±10MHz |
Frequency Range |
1100-1300 MHz | Bandwidth Range±10MHz |
Frequency Range |
1300-1500 MHz | Bandwidth Range±10MHz |
Frequency Range |
2200-2400 MHz | Bandwidth Range±10MHz |
Frequency Range |
2300-2400 MHz | Bandwidth Range±10MHz |
Frequency Range |
2400-2500 MHz | Bandwidth Range±10MHz | |
Frequency Range |
2500-2700 MHz | Bandwidth Range±10MHz | |
Frequency Range |
3300-3700 MHz | Bandwidth Range±10MHz | |
Frequency Range |
5150-5300 MHz | Bandwidth Range±10MHz | |
Frequency Range |
5700-5800 MHz | Bandwidth Range±10MHz | |
Frequency Range |
5800-5900 MHz | Bandwidth Range±10MHz | |
Working Voltage | 28V | 24-30V | |
Working current | ≤ 10A | output 100W | |
Analog sweeping speed | Customized 50-300KHz Standard 120 KHz | 8μ/s | |
Output Power (Max) | 50±1 dBm | 100W | |
Gain (Max) | 50±1 dB | ||
Ripple in Band | ≤ 3 dB | Peak | |
Bandwidth adjustment | Yes | By screw | |
Center adjustment | Yes | By screw | |
Enable control | Customize | 24-28V | |
Input power (Max) |
≤ +10dBm | Optional (If signal source from Subscriber) | |
Input Signal Source | Built-in high-speed noise modulation signal source | Optional (customize VCO, DDS or SDR) | |
Output VSWR | ≤1.5 | Inside circulator, VSWR protect | |
High Low Temperature | Working Temperatur | -20～+65℃ | Working properly |
Frequency Range |
2400-2500 MHz | Bandwidth Range±10MHz | |
Frequency Range |
2500-2700 MHz | Bandwidth Range±10MHz | |
Frequency Range |
3300-3700 MHz | Bandwidth Range±10MHz | |
Frequency Range |
5150-5300 MHz | Bandwidth Range±10MHz | |
Frequency Range |
5700-5800 MHz | Bandwidth Range±10MHz | |
Frequency Range |
5800-5900 MHz | Bandwidth Range±10MHz | |
Working Voltage | 28V | 24-30V | |
Working current | ≤ 10A | output 100W | |
Analog sweeping speed | Customized 50-300KHz Standard 120 KHz | 8μ/s | |
Output Power (Max) | 50±1 dBm | 100W | |
Gain (Max) | 50±1 dB | ||
Ripple in Band | ≤ 3 dB | Peak | |
Bandwidth adjustment | Yes | By screw | |
Center adjustment | Yes | By screw | |
Enable control | Customize | 24-28V | |
Input power (Max) |
≤ +10dBm | Optional (If signal source from Subscriber) | |
Input Signal Source | Built-in high-speed noise modulation signal source | Optional (customize VCO, DDS or SDR) | |
Output VSWR | ≤1.5 | Inside circulator, VSWR protect | |
High Low Temperature | Working Temperatur | -20～+65℃ | Working properly |
Product Details
Name:
Operating Frequency:
300MHz-5.9GHz
Psat Output Power:
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
