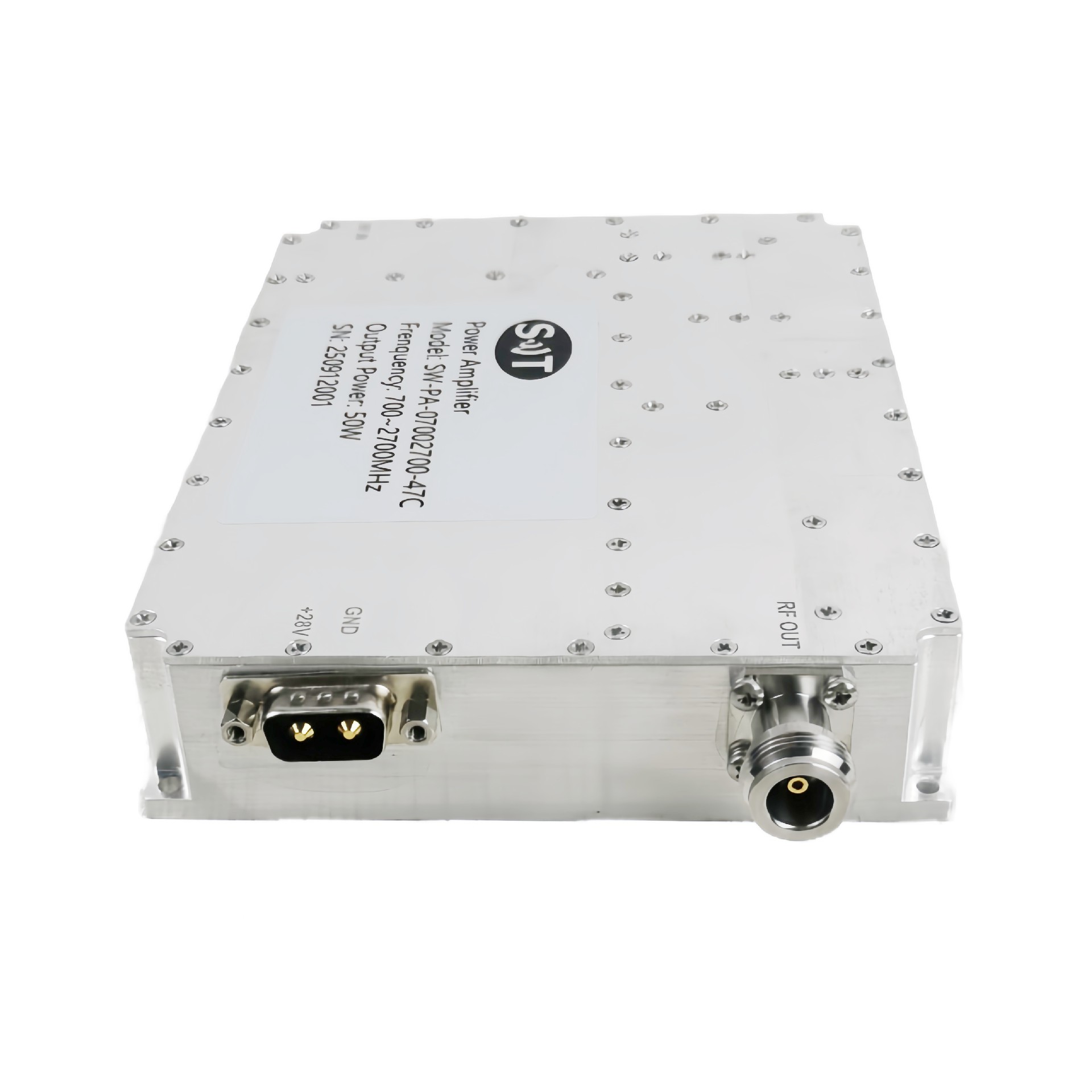

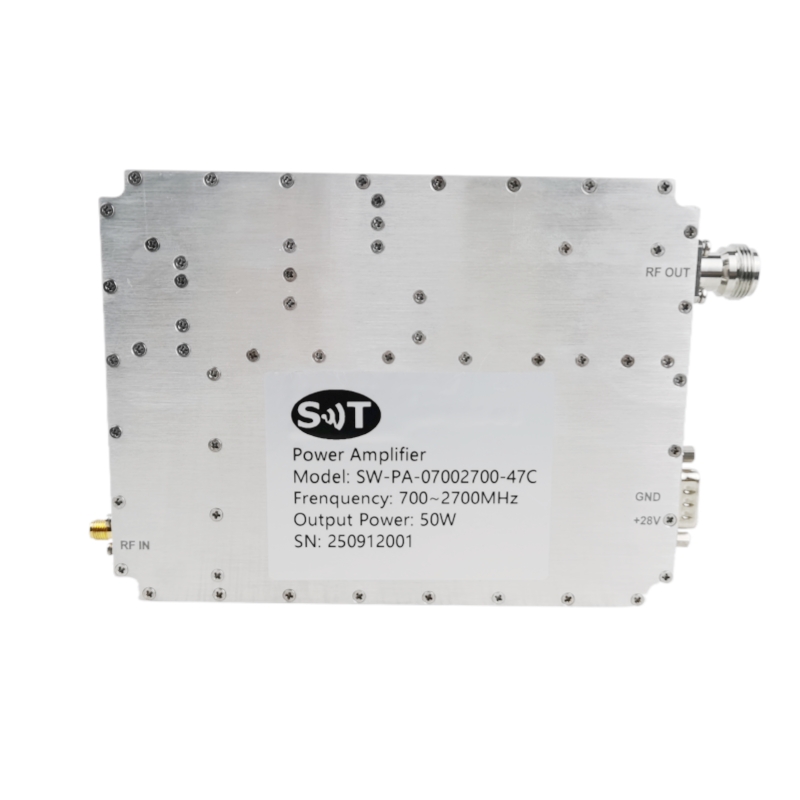

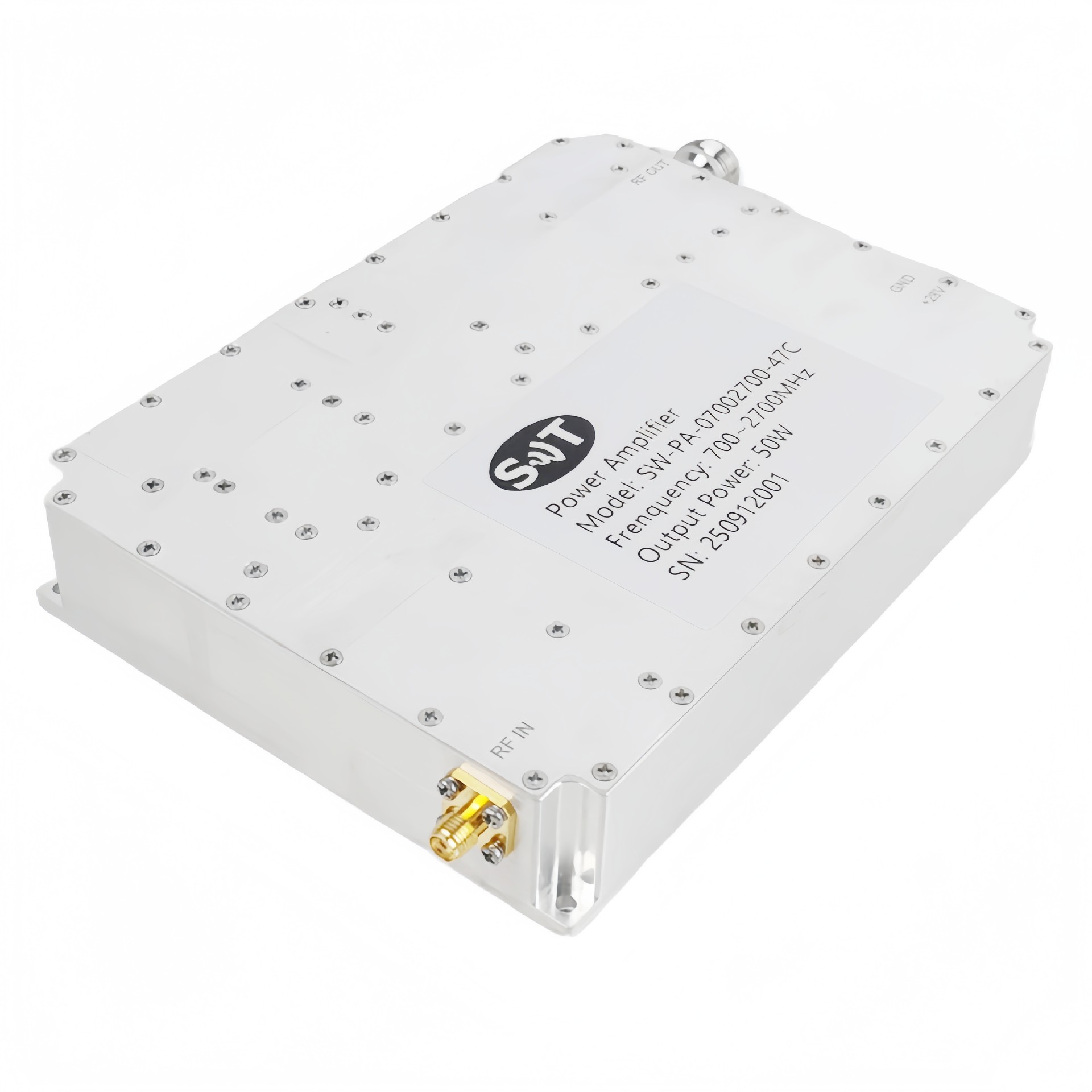

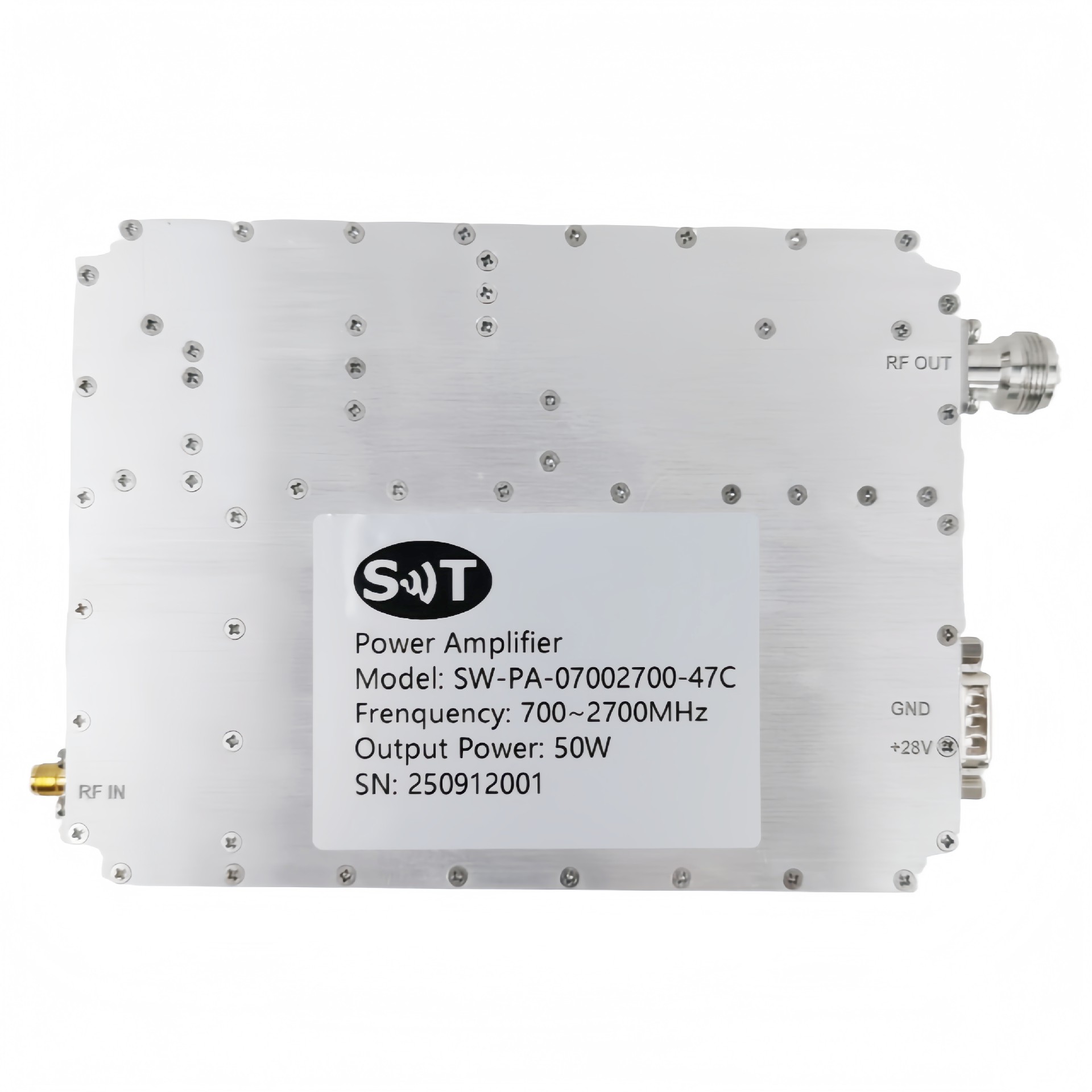

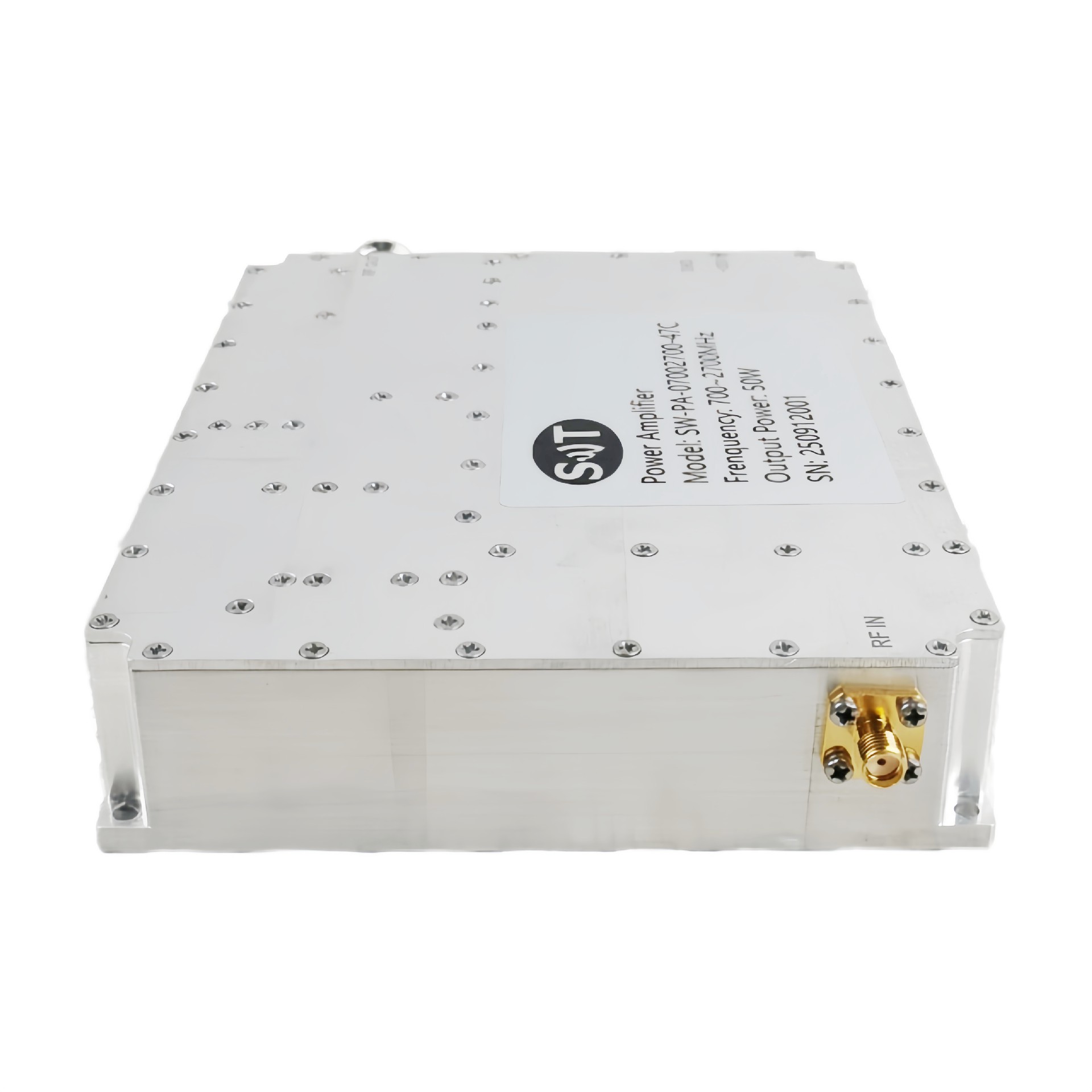

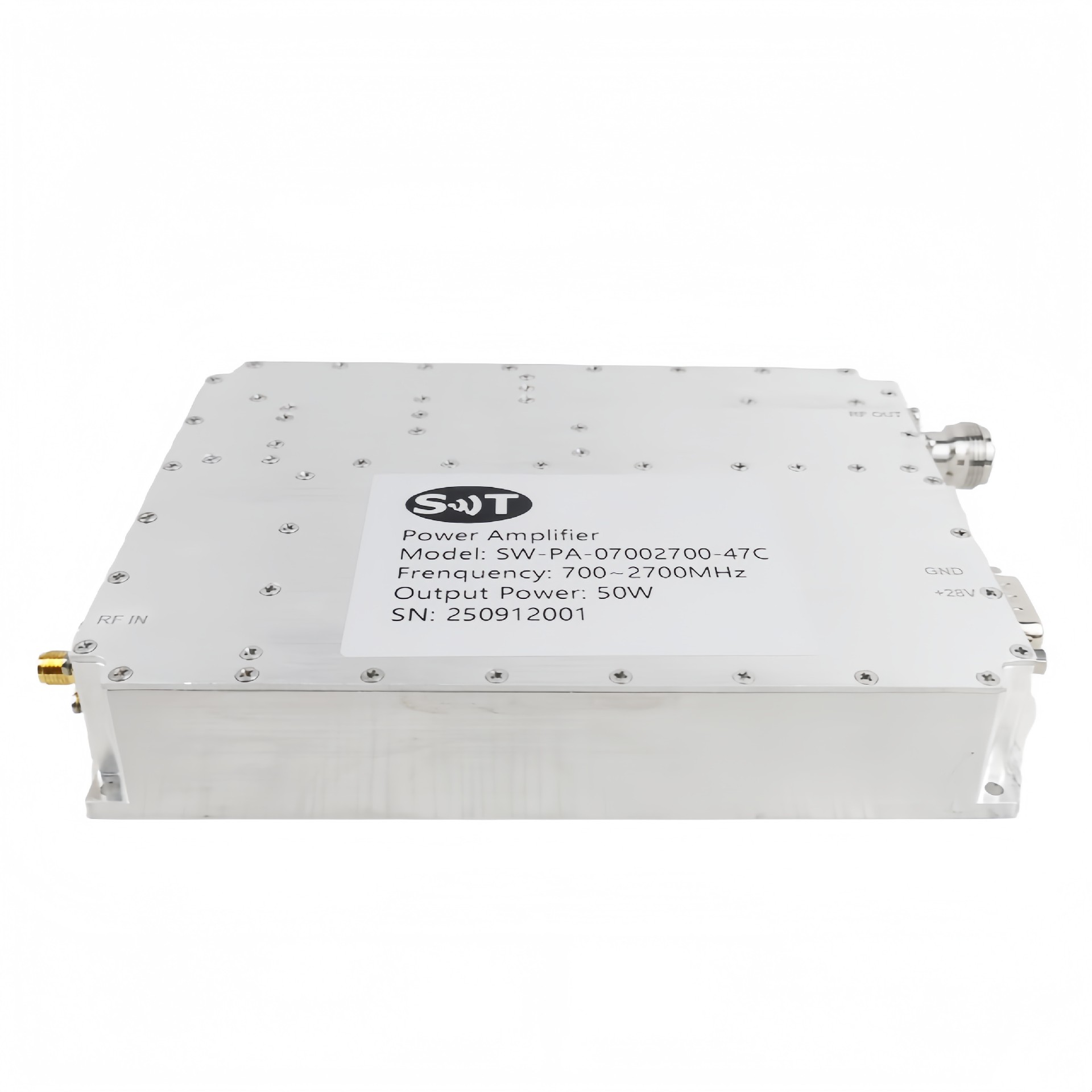

700-2700MHz 50W Broadband Power Amplifier for Industrial Comms, Radar & EW Systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-07002700-47C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28 VDC+25oC and in a 500 system
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 700 | 2700 | MHz | |
RF INPUT | 0 | dBm | ||
P-sat Power Output | 47 | dBm | ||
Power Gain | 47 | dB | ||
Power Gain Flatness | ±3 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 8 | 10 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

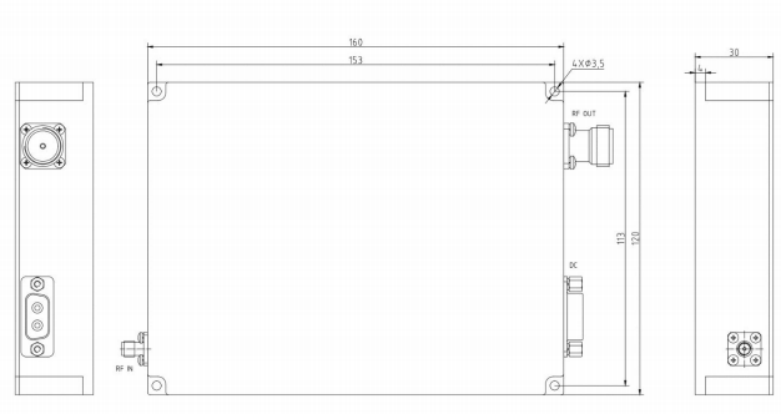

Dimensions (L x W x H) | 160x120x30 | mm |
RF Connectors (Input / Output) | SMA- KFD/ N - KFD | -- |
DC / Connector | DSUB 2W2 | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | φ3.5-6 Thru Hole | -- |
Weight | ≤1.8 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 80 | °C | |
INPUT/OUTPUT PINS | ||
AMPLIFIER CONNECTOR TYPE: | DSUB 2W2 | |
TRIAD CABLE PART NUMBER: | —— | |
PIN NUMBER | LABEL | DESCRIPTION |
A1 | +VDC | +28V |
A2 | GND | Ground |
Product Details
Name:
Operating Frequency:
Psat Output Power:
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
