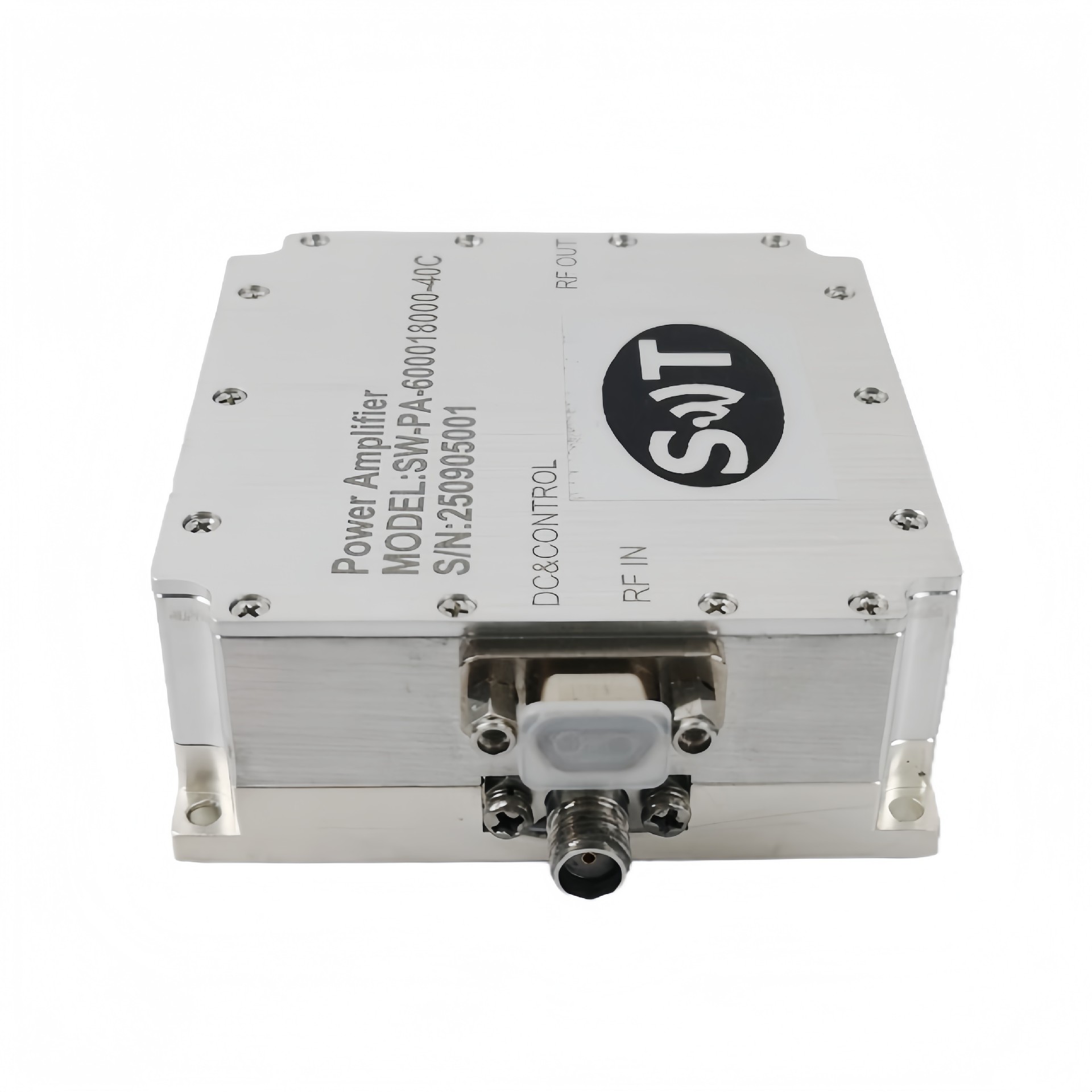

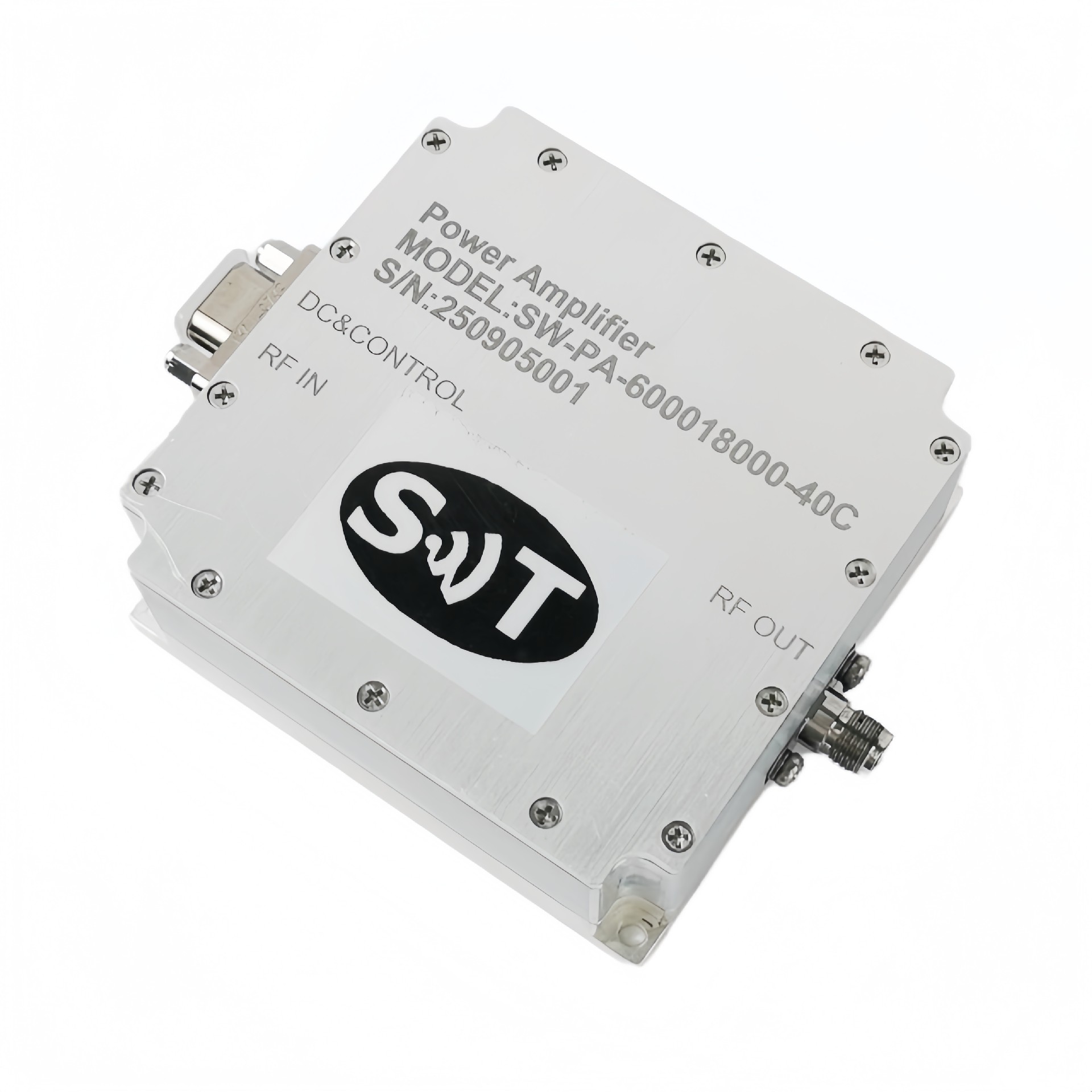

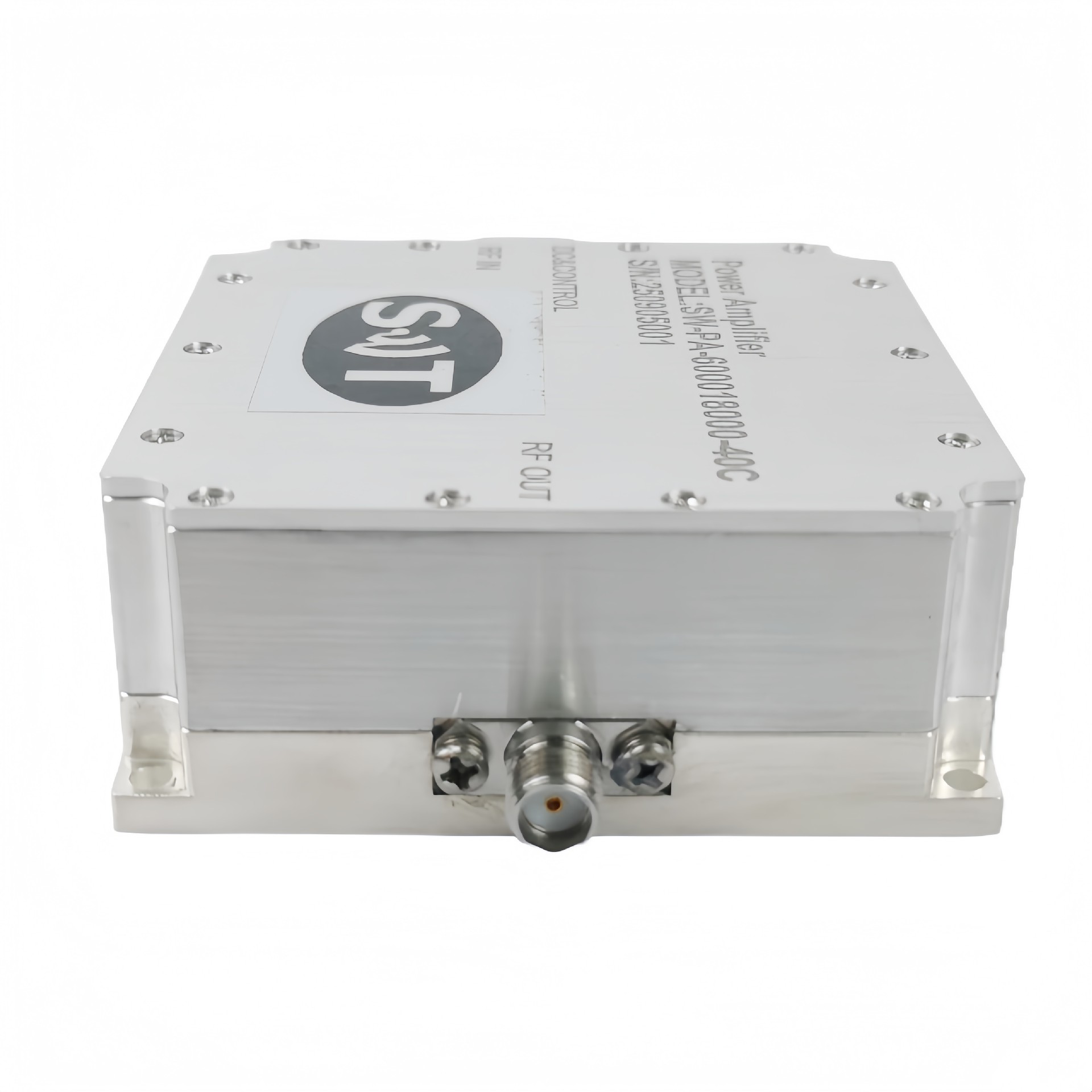

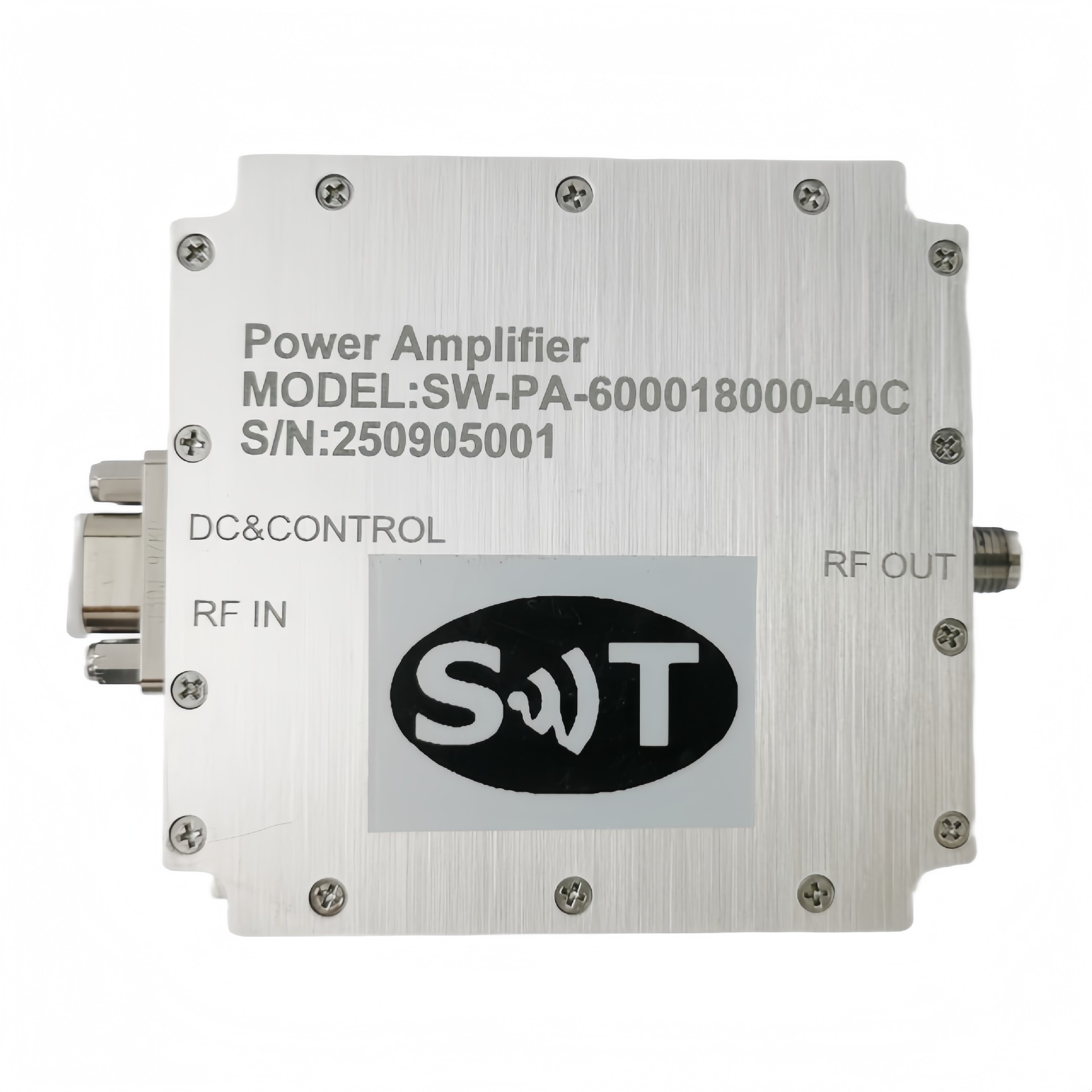

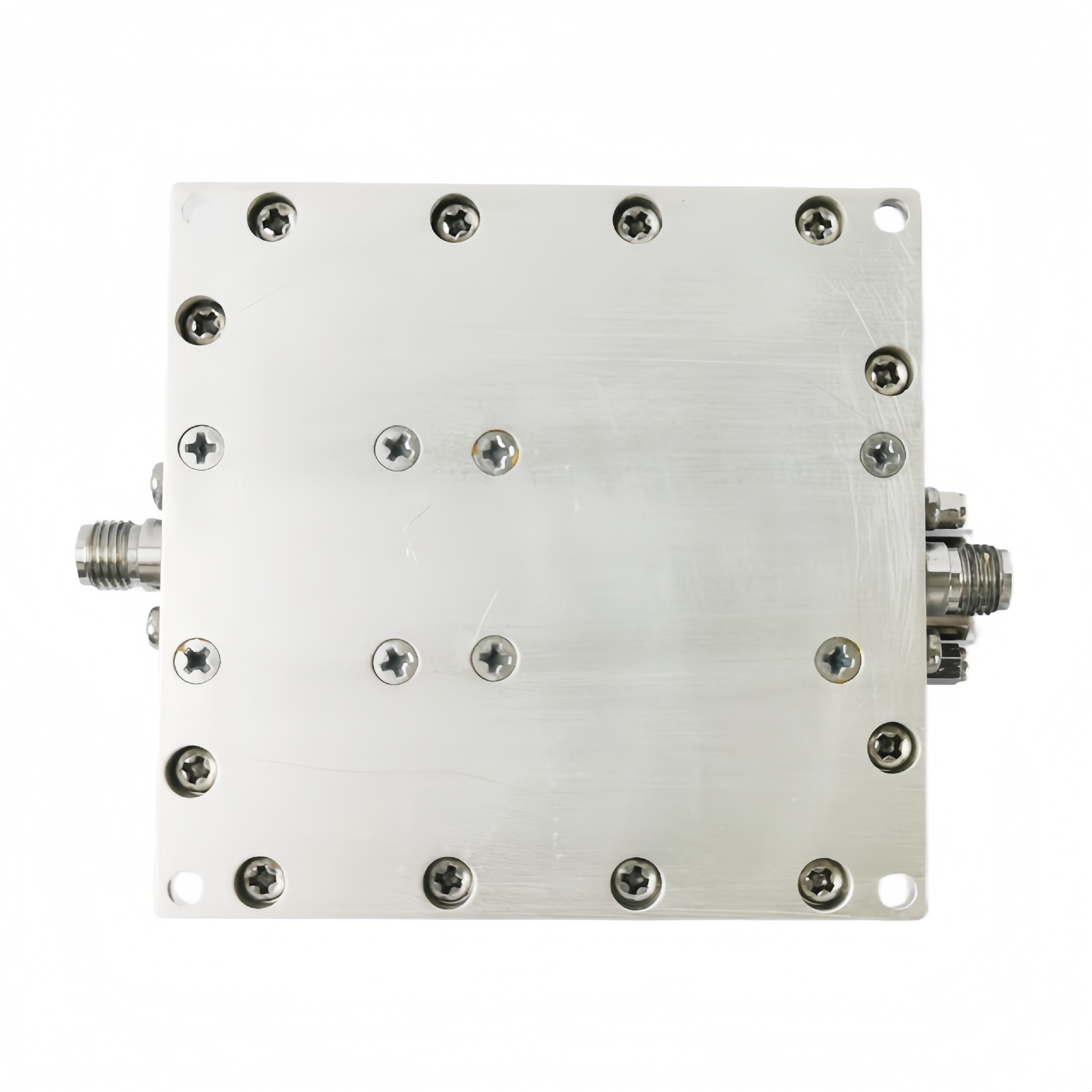

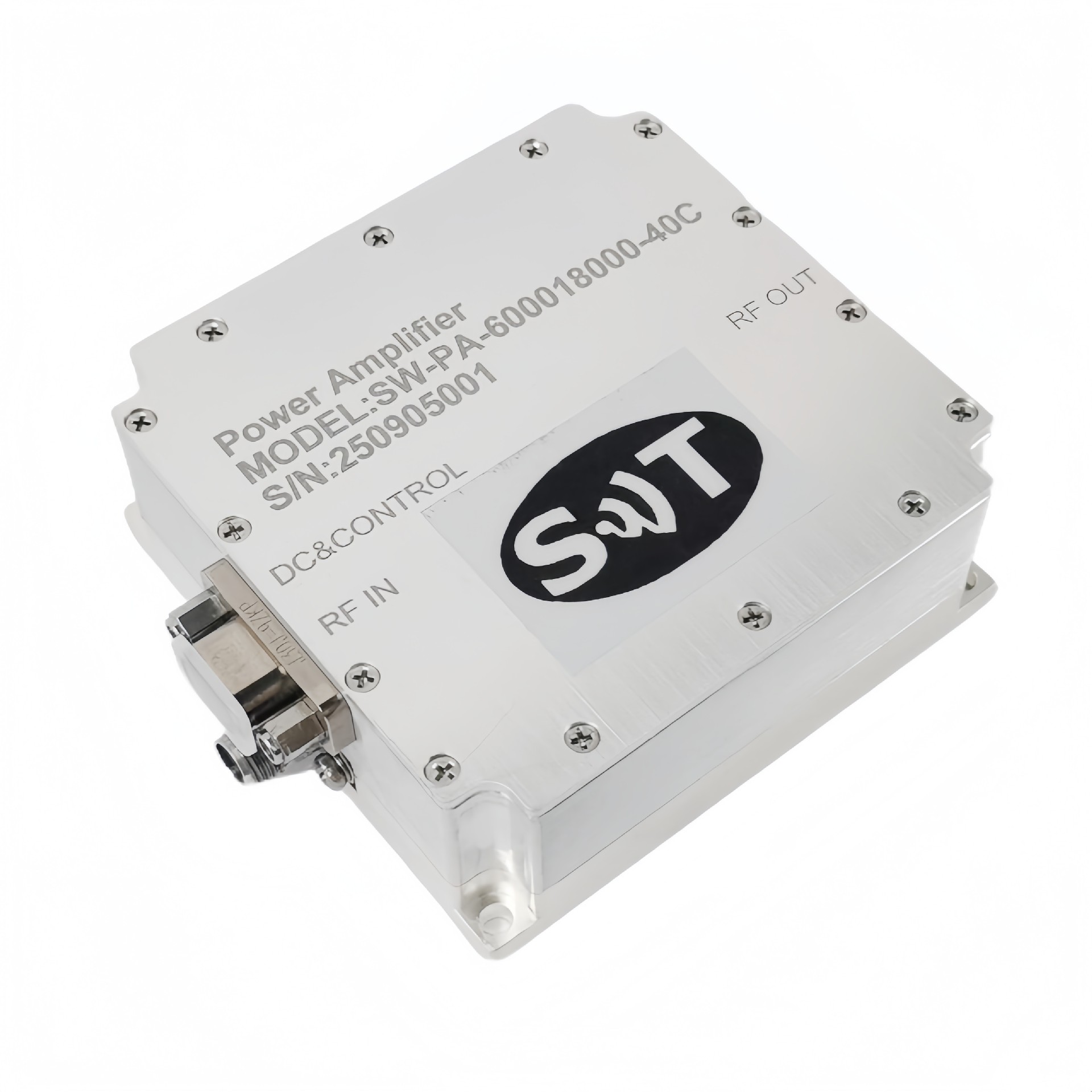

6000-18000MHz 10W Power Amplifier for Industrial & Commercial
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-600018000-40C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 6000 | 18000 | MHz | |
RF INPUT | 0 | dBm | ||
P-sat Power Output | 40 | dBm | ||
Power Gain | 40 | dB | ||
Power Gain Flatness | ±2 | ±3 | dB | |
Input VSWR | 1.5 | 2 | ||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 62.6*60.6*24 | mm |
RF Connectors (Input / Output) | SMA- KFD/ SMA- KFD | -- |
DC / Control Connector | J30J-15ZKP | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | φ2.8-4 Thru Hole | -- |
Weight | ≤1 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | 0 | +50 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 85 | °C | |
INPUT/OUTPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | J30J-15ZKP | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
1-3 | +VDC | +28V | |
4-6 | GND | Ground | |
7 | Amp Enable | Disable : TTL “Low”, Enable: TTL “High” (Low : 0~0.5V, High : 2.5~5V) | |
8-13 | NC | NC | |
14-15 | NC | NC | |
Product Details
Name:
6000-18000 MHz
Operating Frequency:
Psat Output Power:
40 dB
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
