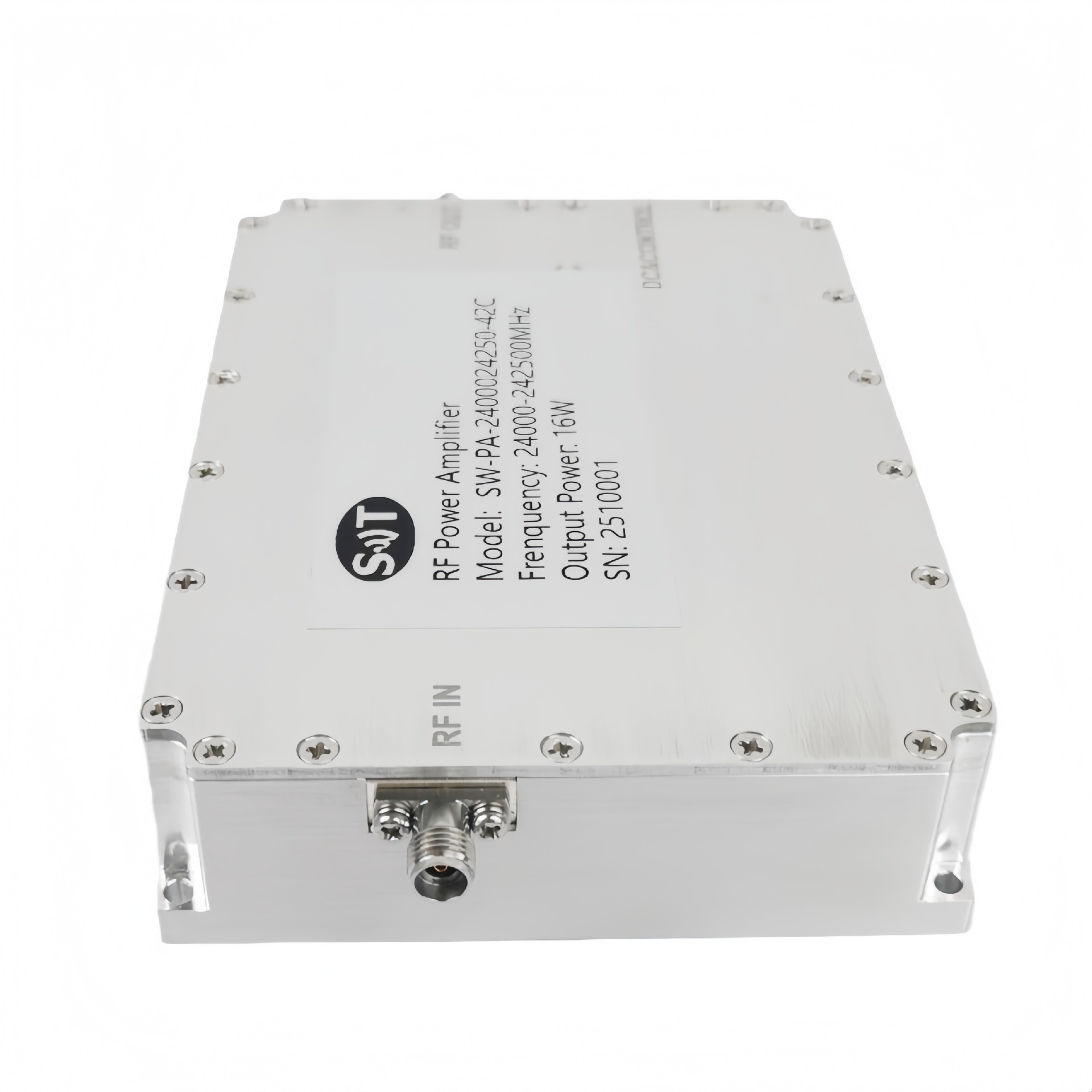

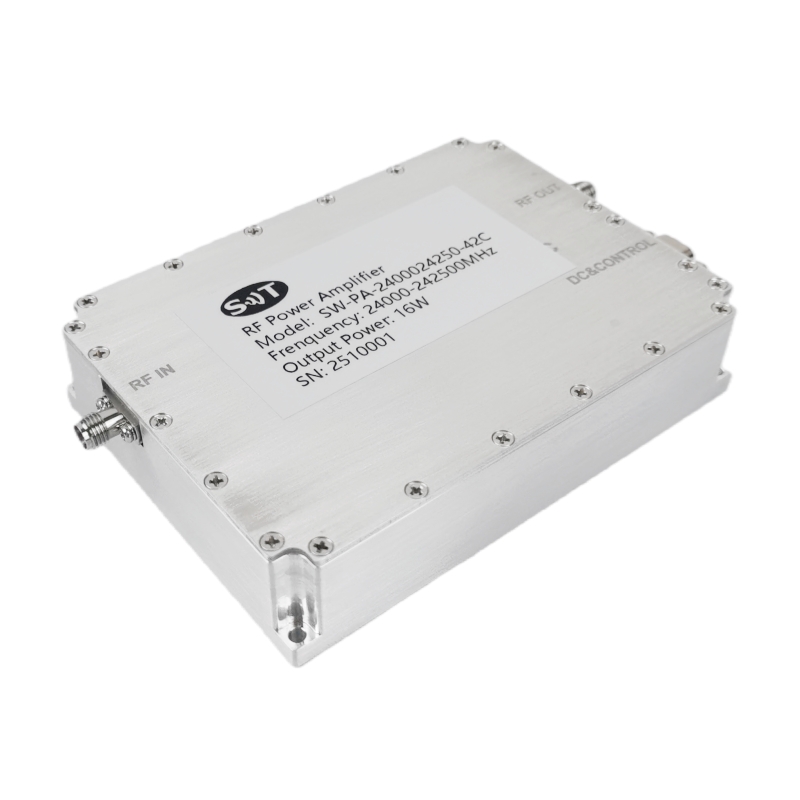

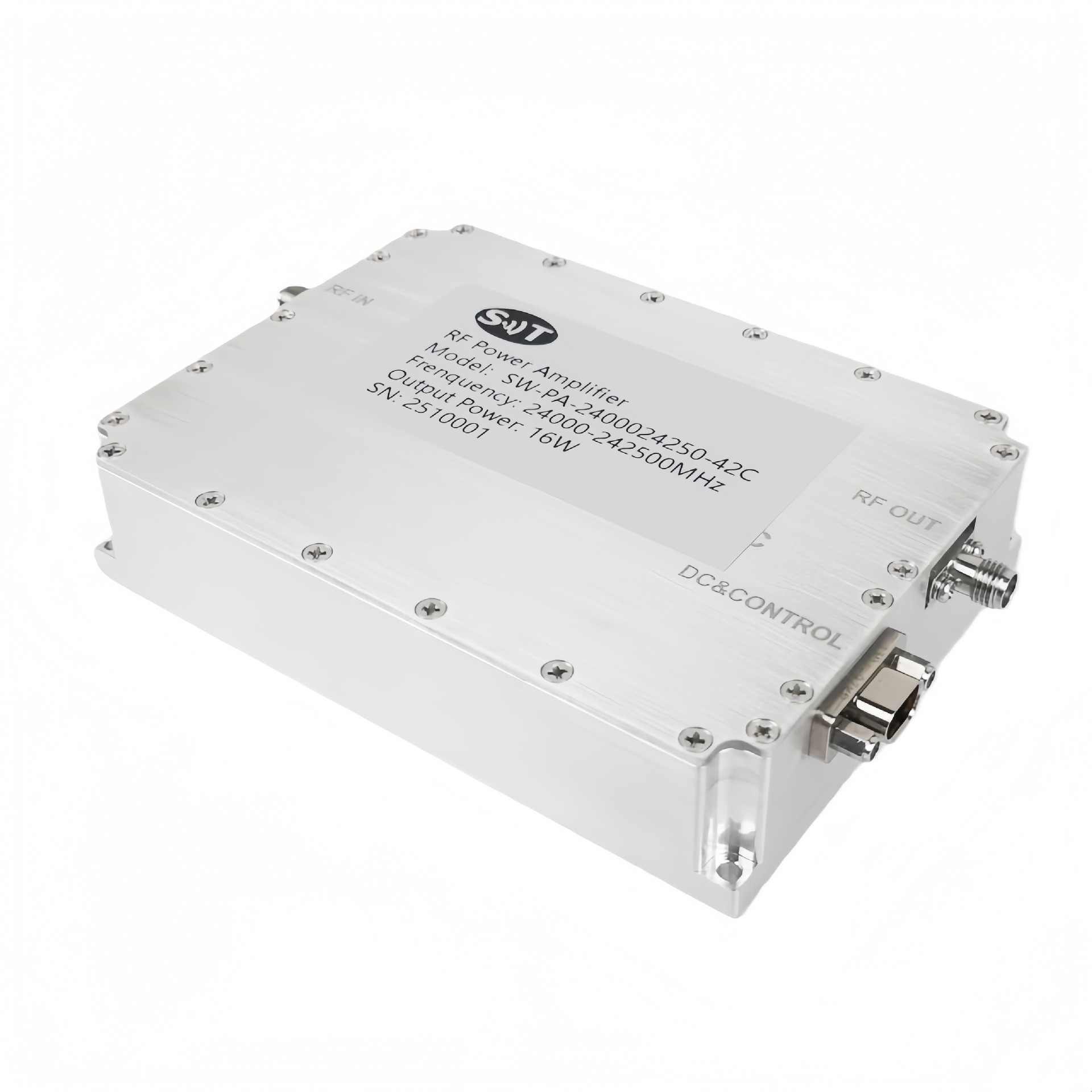

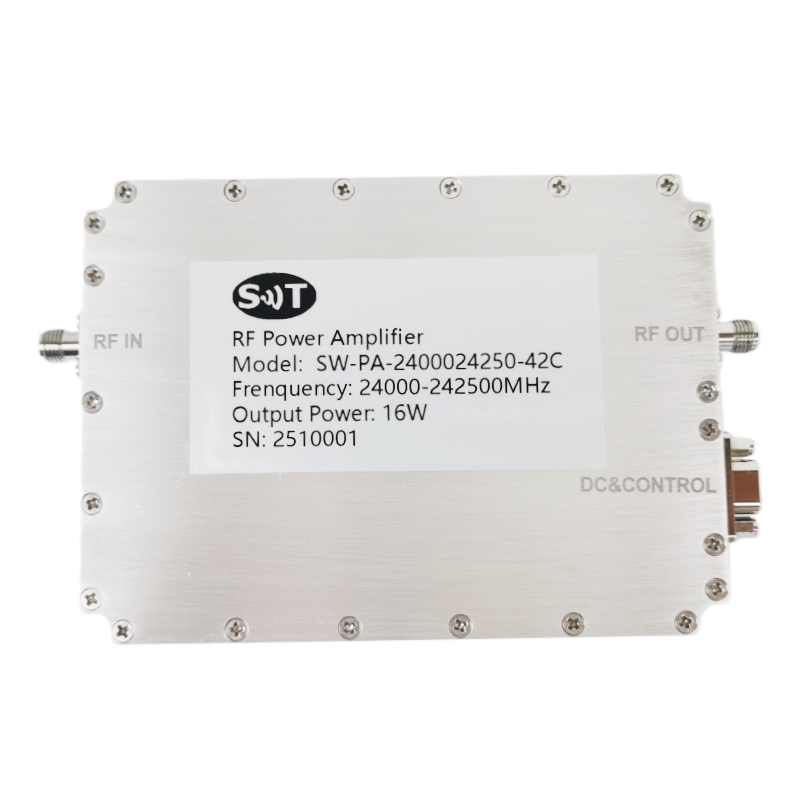

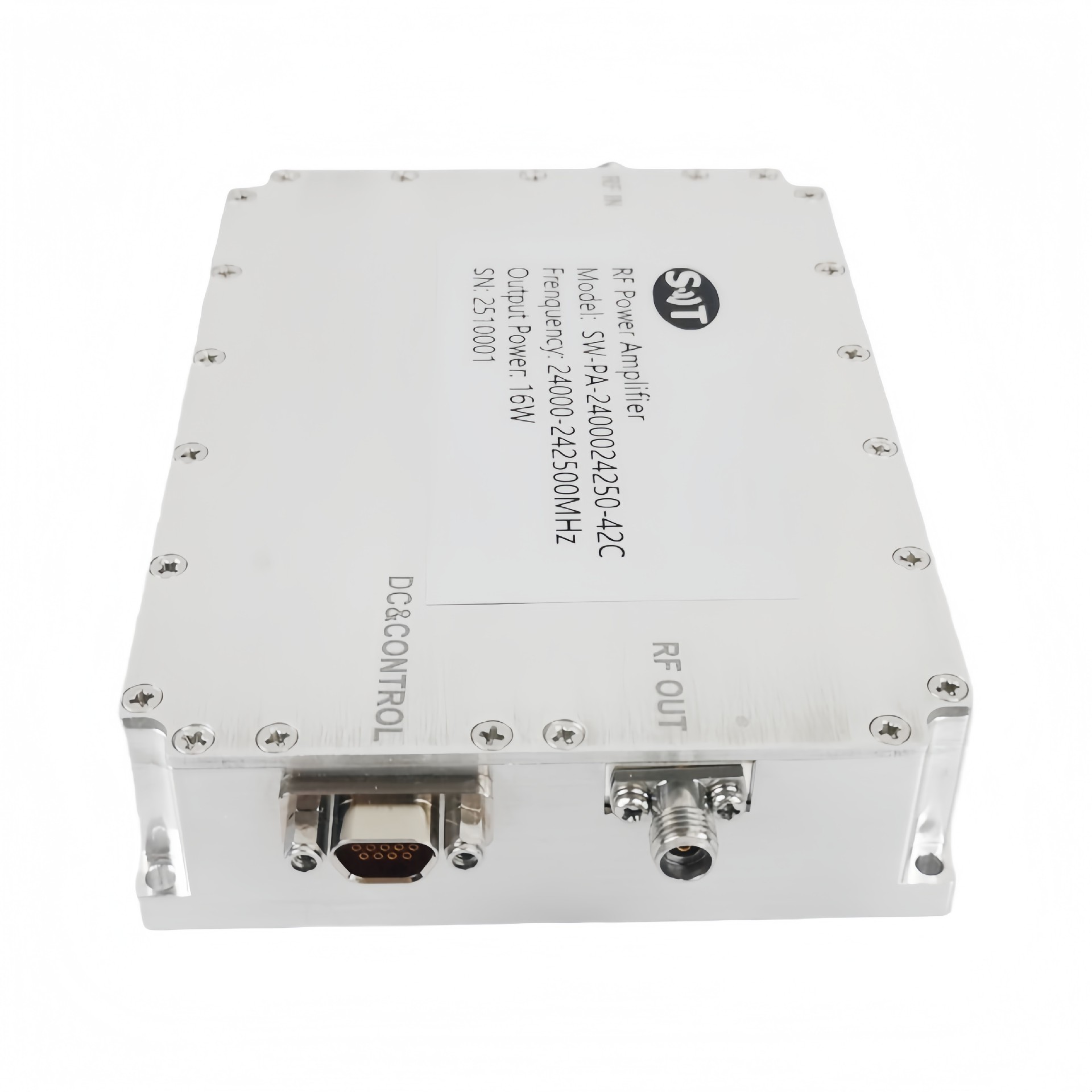

24000~24250 MHz 16 W 42 dB Gain Power Amplifier for Industrial & Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-2400024250-42C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 24V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 24000 | 24250 | MHz | |
RF INPUT | 0 | dBm | ||
RF Gain | 42 | dB | ||
P1 dB Output Power | 42 | dBm | ||
Power Gain Flatness | ±1.5 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -15 | dBc | ||
Input and Output VSWR | 2 | |||
Operating Voltage | 18 | 24 | 28 | V DC |
Current | 3.5 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 200*150*60 | mm |
RF Connectors (Input / Output) | 2.92-F / 2.92-F | -- |
DC/Control Connector | J30J-9ZKP：PA on/off control; Over-Temperature alarm | -- |
Cooling | Base heat dissipation | -- |
Weight | ≤2 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +60 | °C |
Storage Temp. | -40 | +80 | °C |
Humidity Range | 0-95 | % | |
| ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |
X1 | SMA- KFD | RF IN |
X2 | SMA- KFD | RF OUT |
X3 | J30J-9ZKP | DC / Control interface |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | J30J-09ZKP | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1~3 | VDD | 24V |
4~6 | GND | GND |
7 | PA Enable(1) | Logic Hi = Enable, Logic Lo = Disable or No Connection |
8 | Over-Temperature alarm | Logic Hi when the temperature is above 85 °C, |
9 | NC | NC |
Product Details
Name:
Operating Frequency:
24000-24250 GHz
Psat Output Power:
Gain:
28 dB
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
