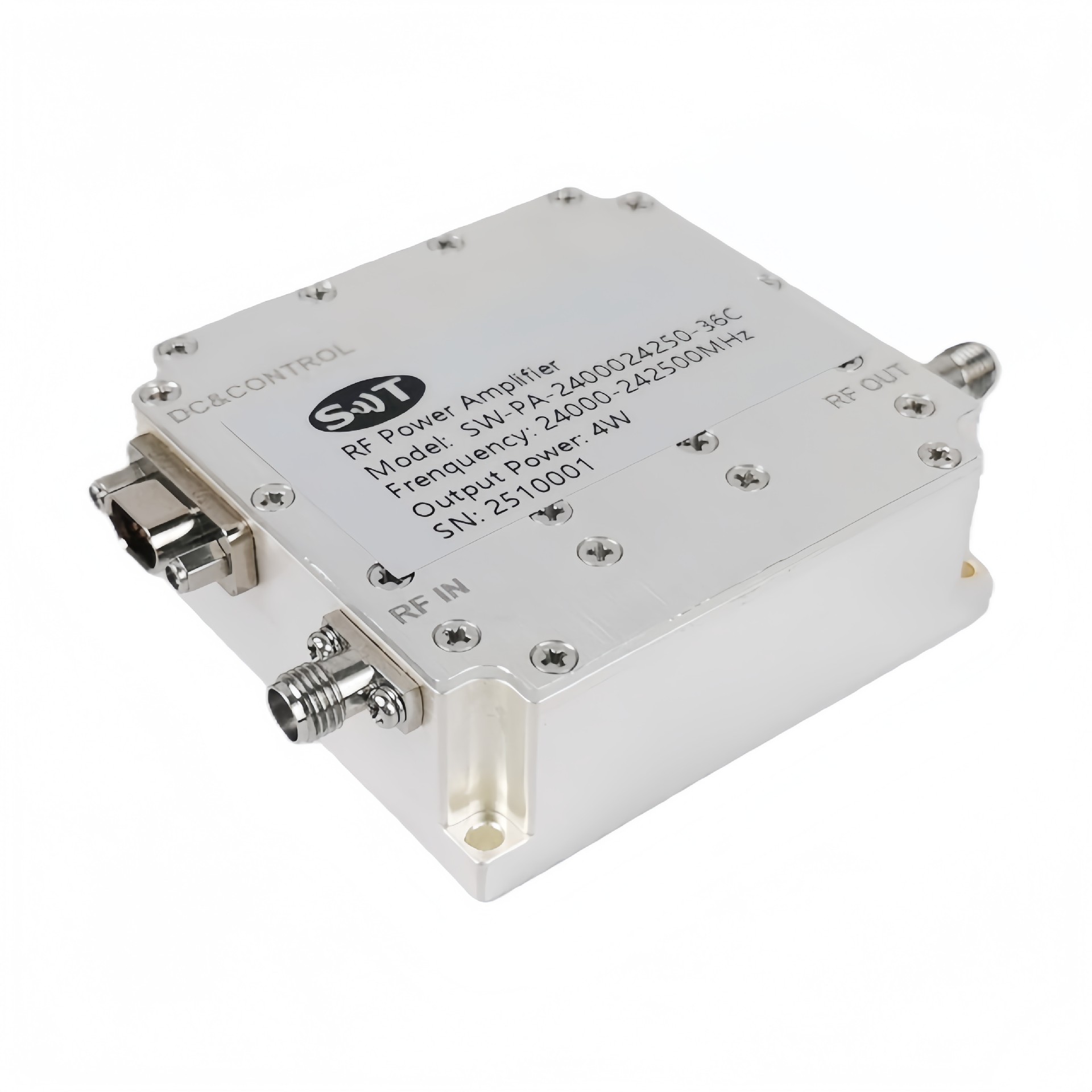

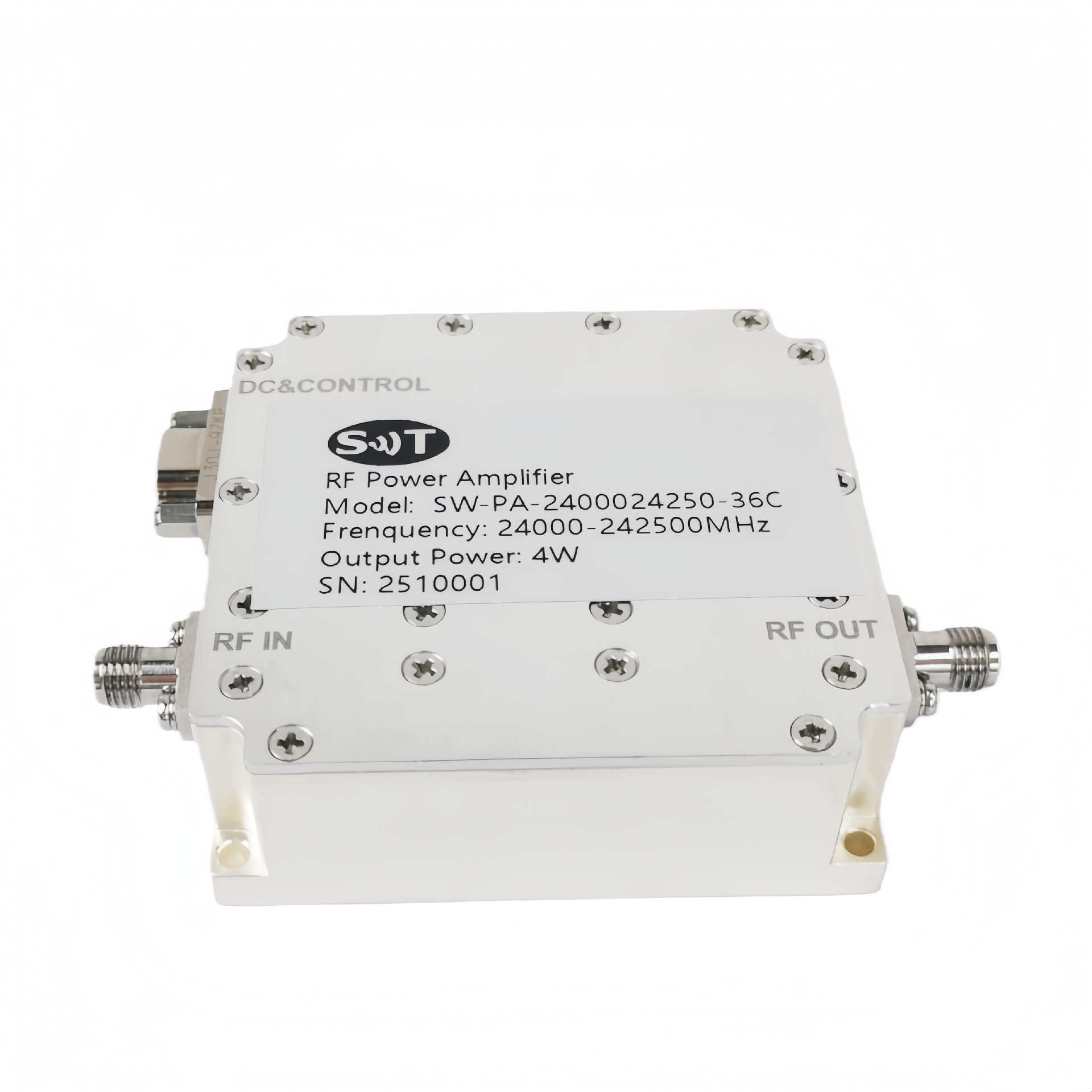

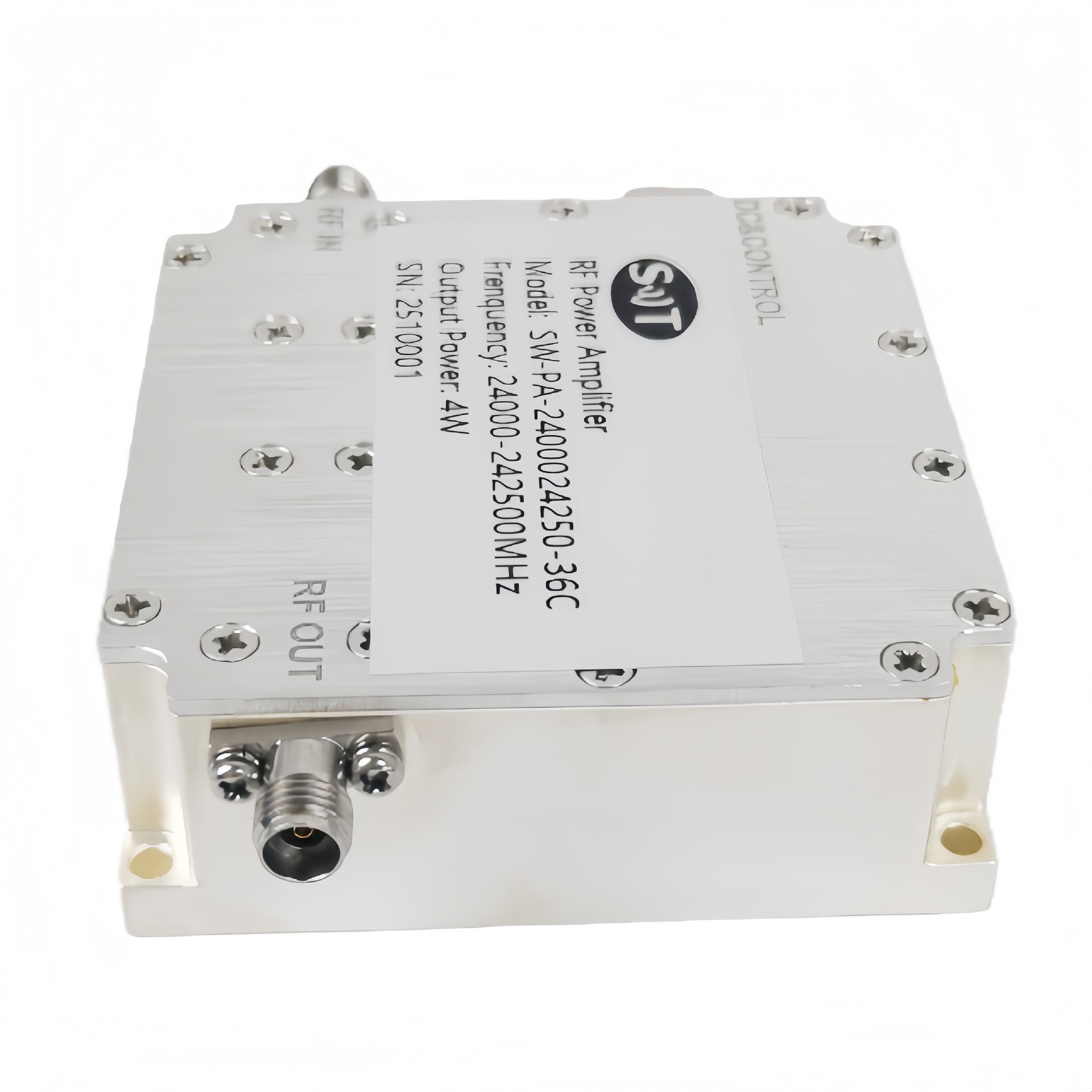

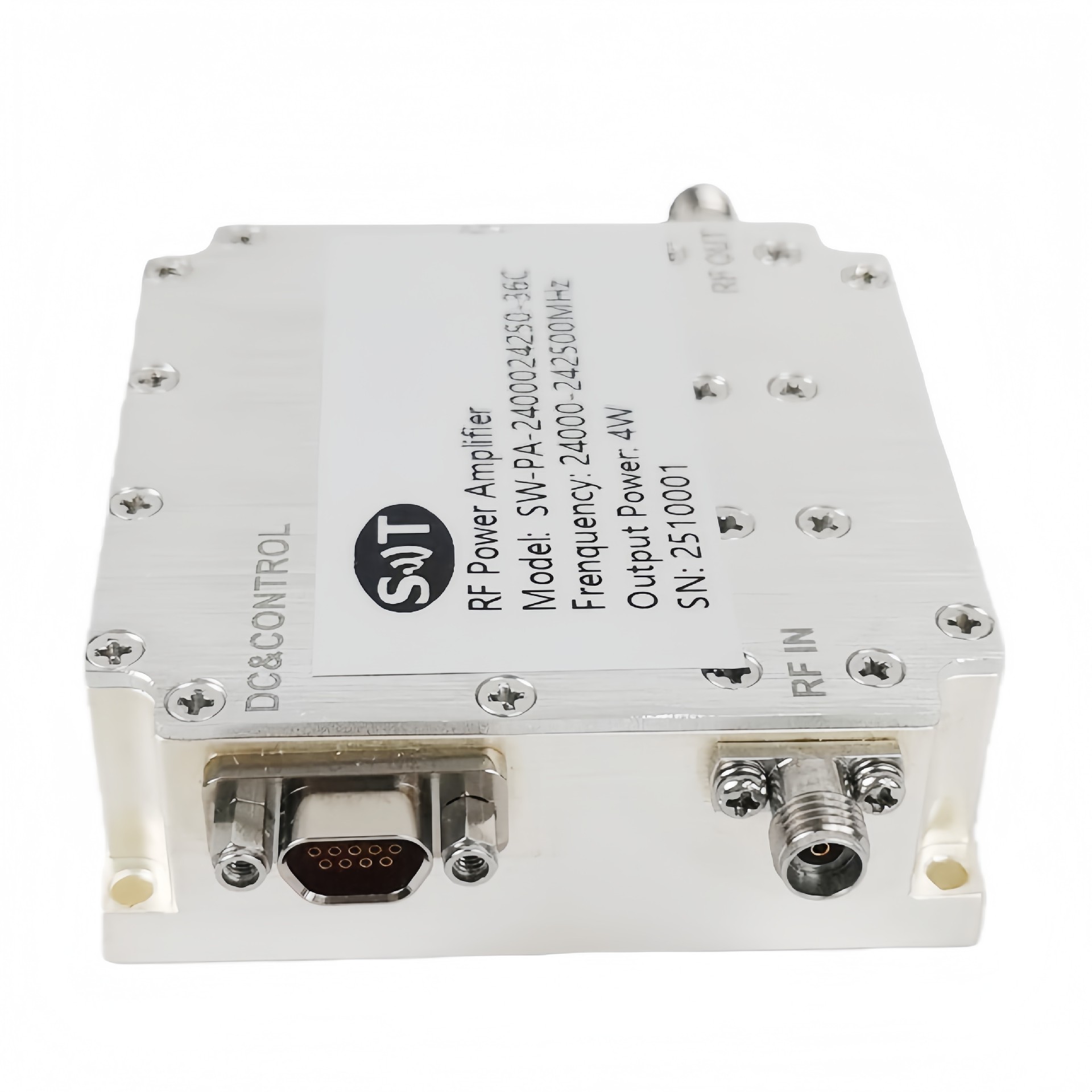

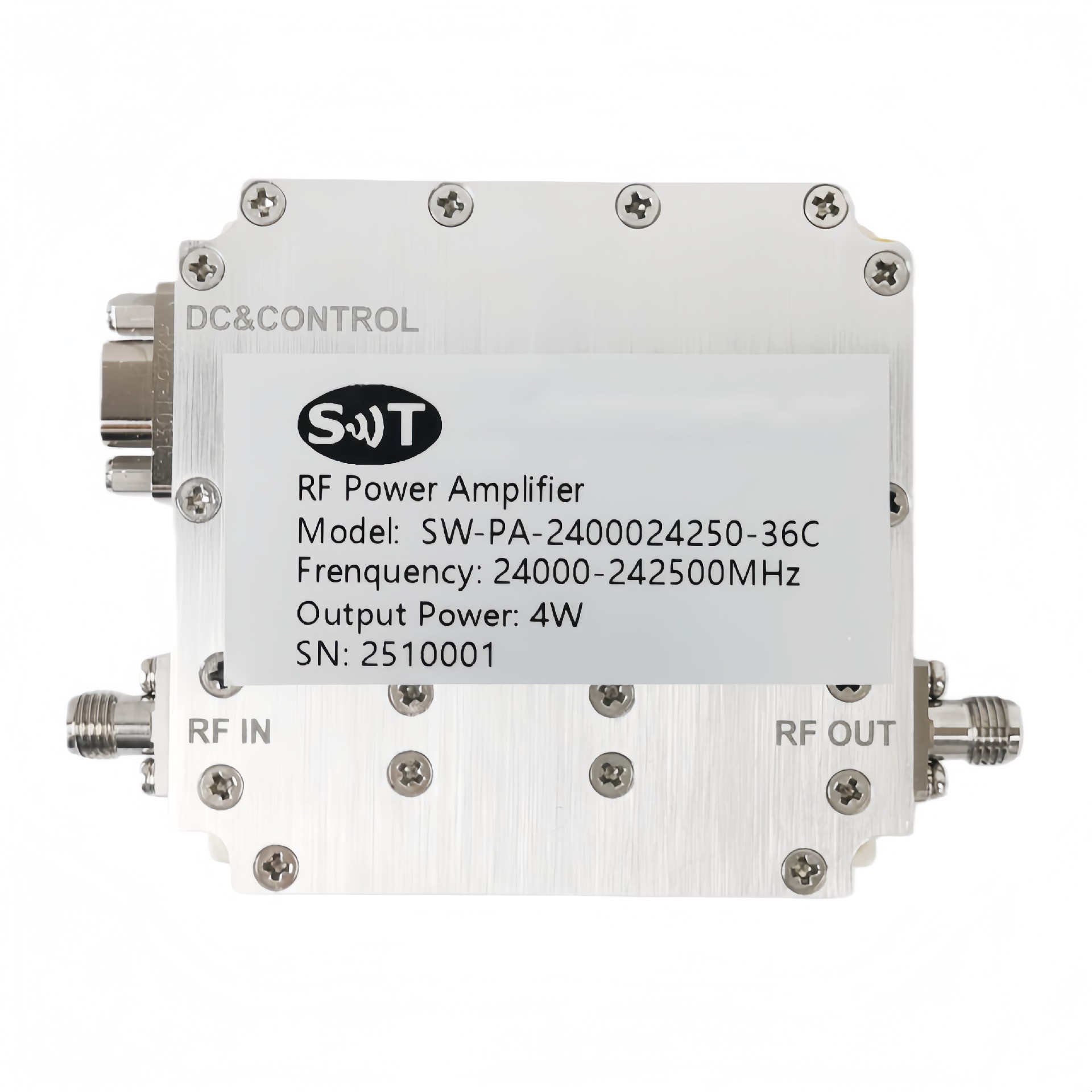

24000~24250 MHz 4 W 36 dB Gain Power Amplifier for Industrial & Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-2400024250-36C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 24V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 24000 | 24250 | MHz | |
RF INPUT | 0 | dBm | ||
RF Gain | 36 | dB | ||
P1 dB Output Power | 36 | dBm | ||
Power Gain Flatness | ±1.5 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -15 | dBc | ||
Input and Output VSWR | 2 | |||
Operating Voltage | 18 | 24 | 28 | V DC |
Current | 1.8 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 100*100*30 | mm |
RF Connectors (Input / Output) | 2.92-F / 2.92-F | -- |
DC/Control Connector | J30J-9ZKP：PA on/off control; Over-Temperature alarm | -- |
Cooling | Base heat dissipation | -- |
Weight | ≤1 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +60 | °C |
Storage Temp. | -40 | +80 | °C |
Humidity Range | 0-95 | % | |
Product Details
Name:
Operating Frequency:
24000-24250 MHz
Psat Output Power:
Gain:
36 dB
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
100*100*30 mm
