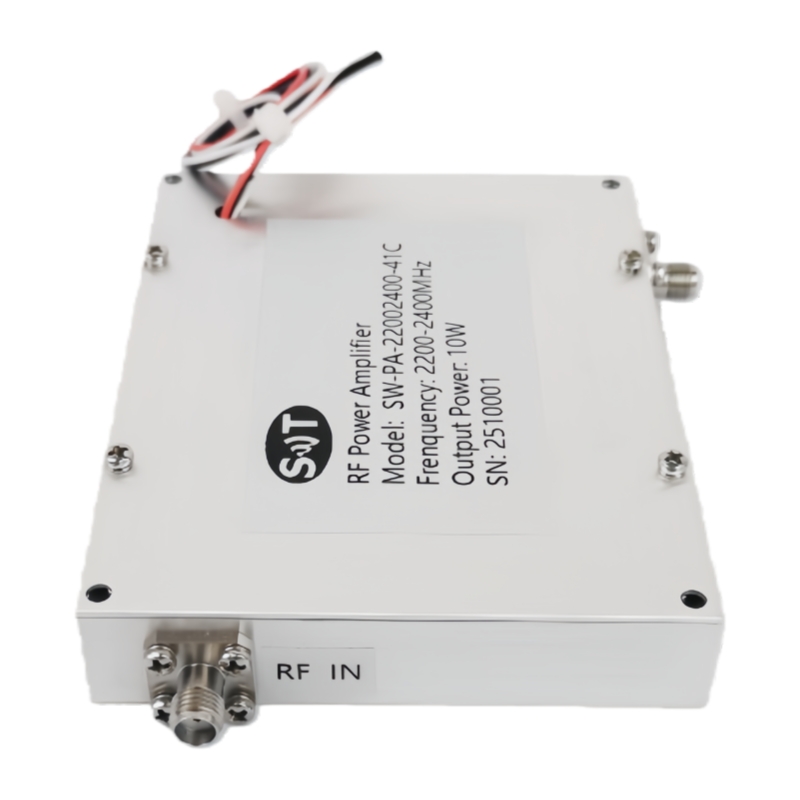

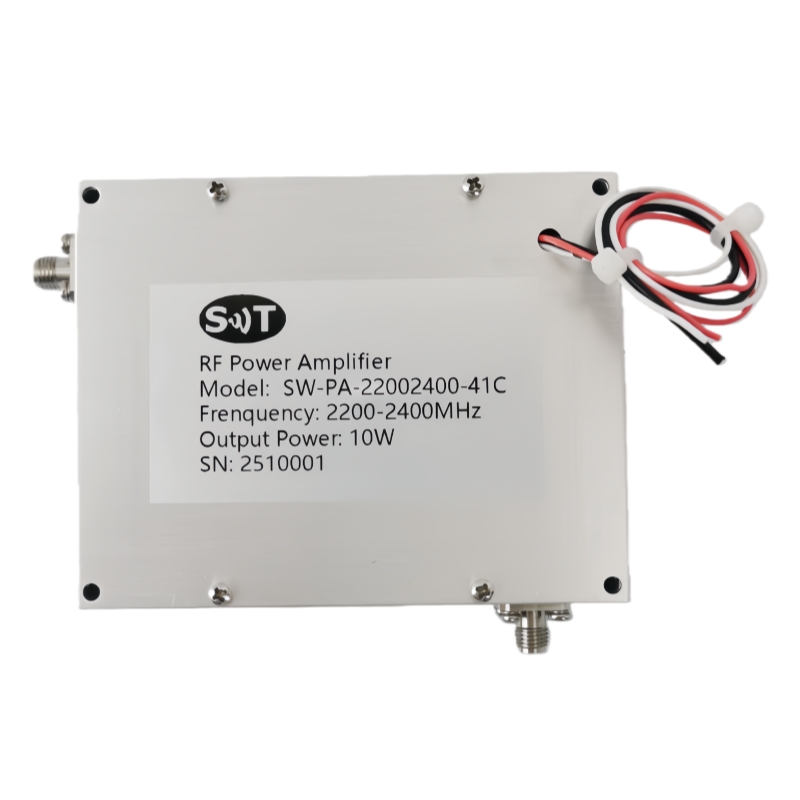

2000-2400MHz 10W RF Power Amplifier for UAV Communication & Monitoring
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-22002400-41C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.

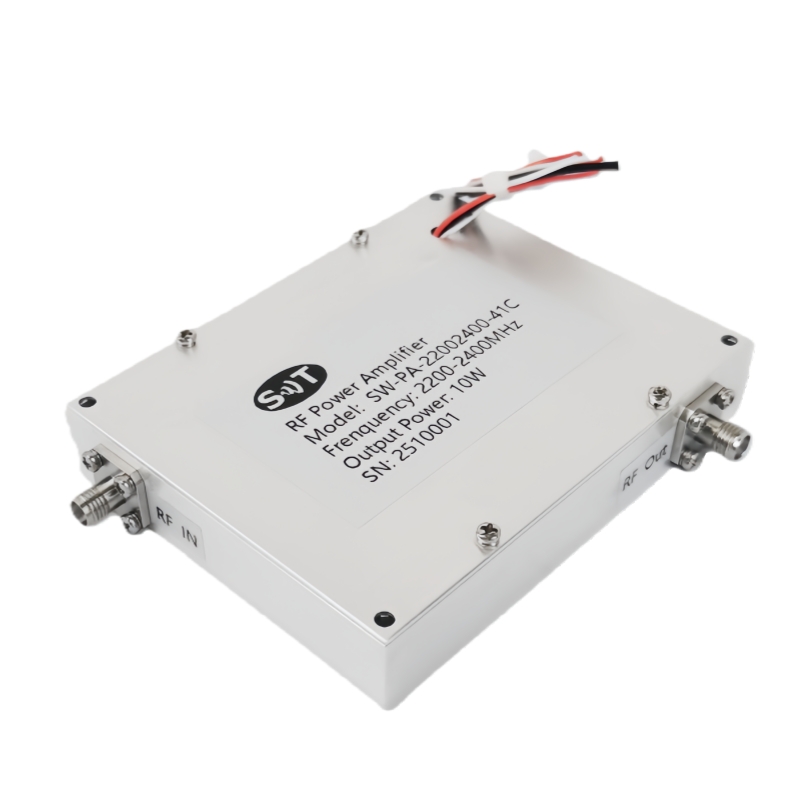

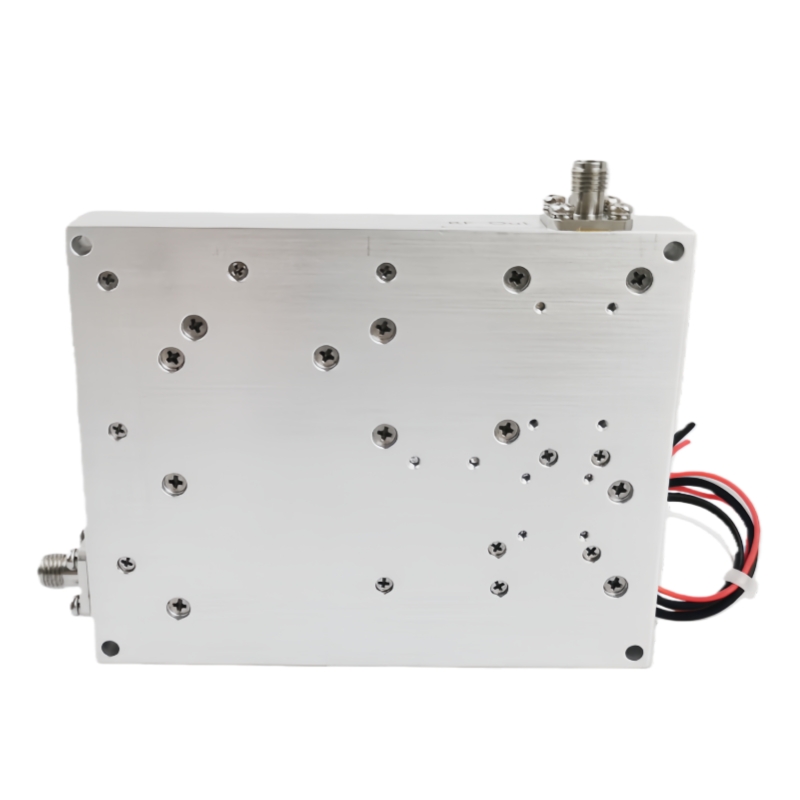

RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2200 | 2400 | MHz | |
RF INPUT | 0 | dBm | ||
Power Gain | 41 | dB | ||
P-sat Power Output | 41 |  | dBm | |
Power Gain Flatness | ±1 | dB | ||
Input VSWR | 2 | |||
Harmonic Signals | -55 | dBc | ||
Spurious Signals | -60 | dBc | ||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 0.9 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

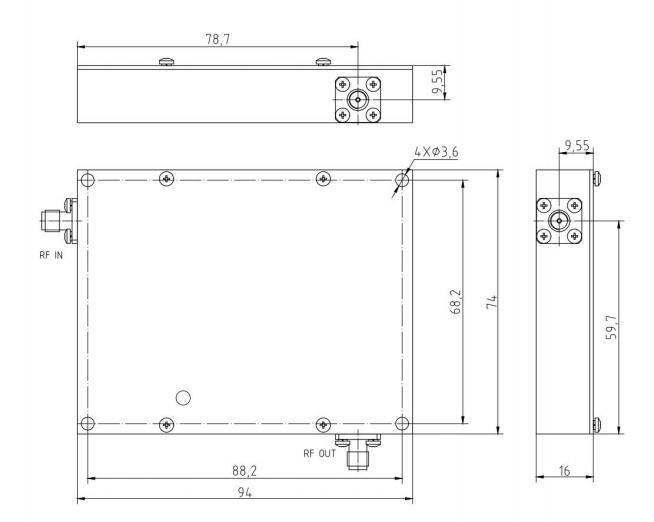

Dimensions (L x W x H) | 94*74* 16 | mm |
RF Connectors (Input / Output) | SMA-F/SMA-F（4-hole） | -- |
DC | Via shielded wires through top cover | -- |
Cooling | External heat dissipation is required | -- |
Mounting | φ3.5-4 Thru Hole | -- |
Weight | ≤0.8 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp | -20 | +60 | °C |
Humidity Range | 5-95 | % | |
