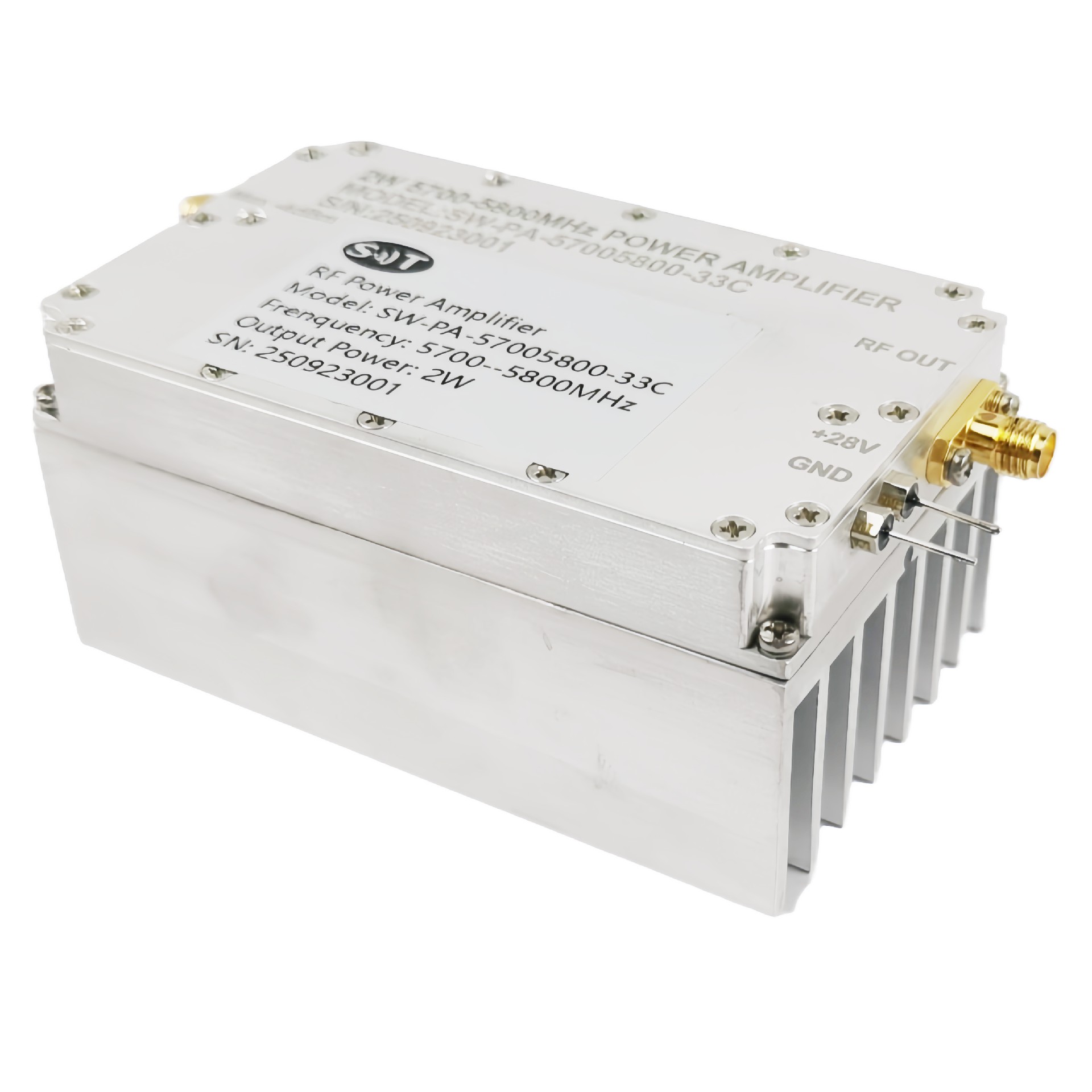

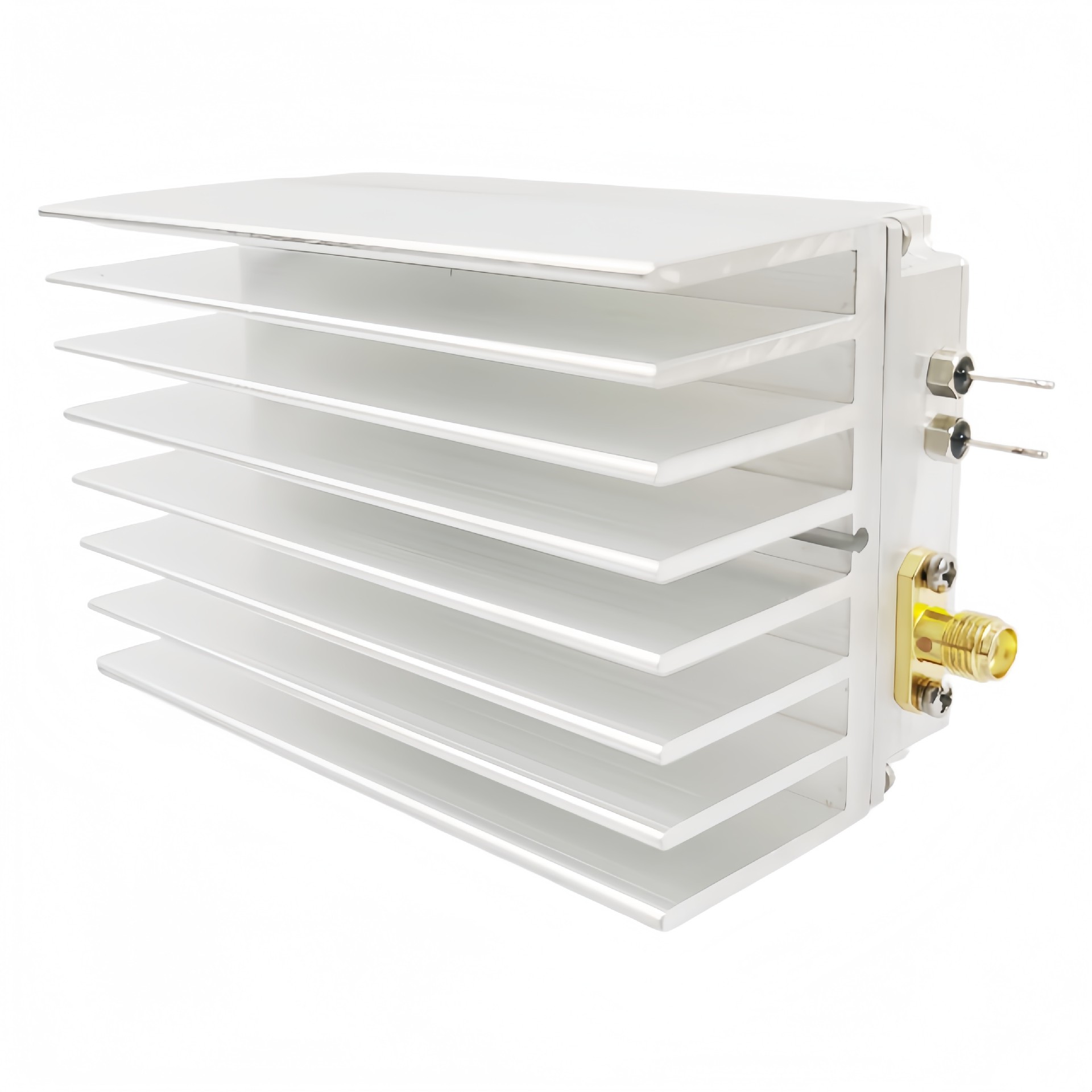

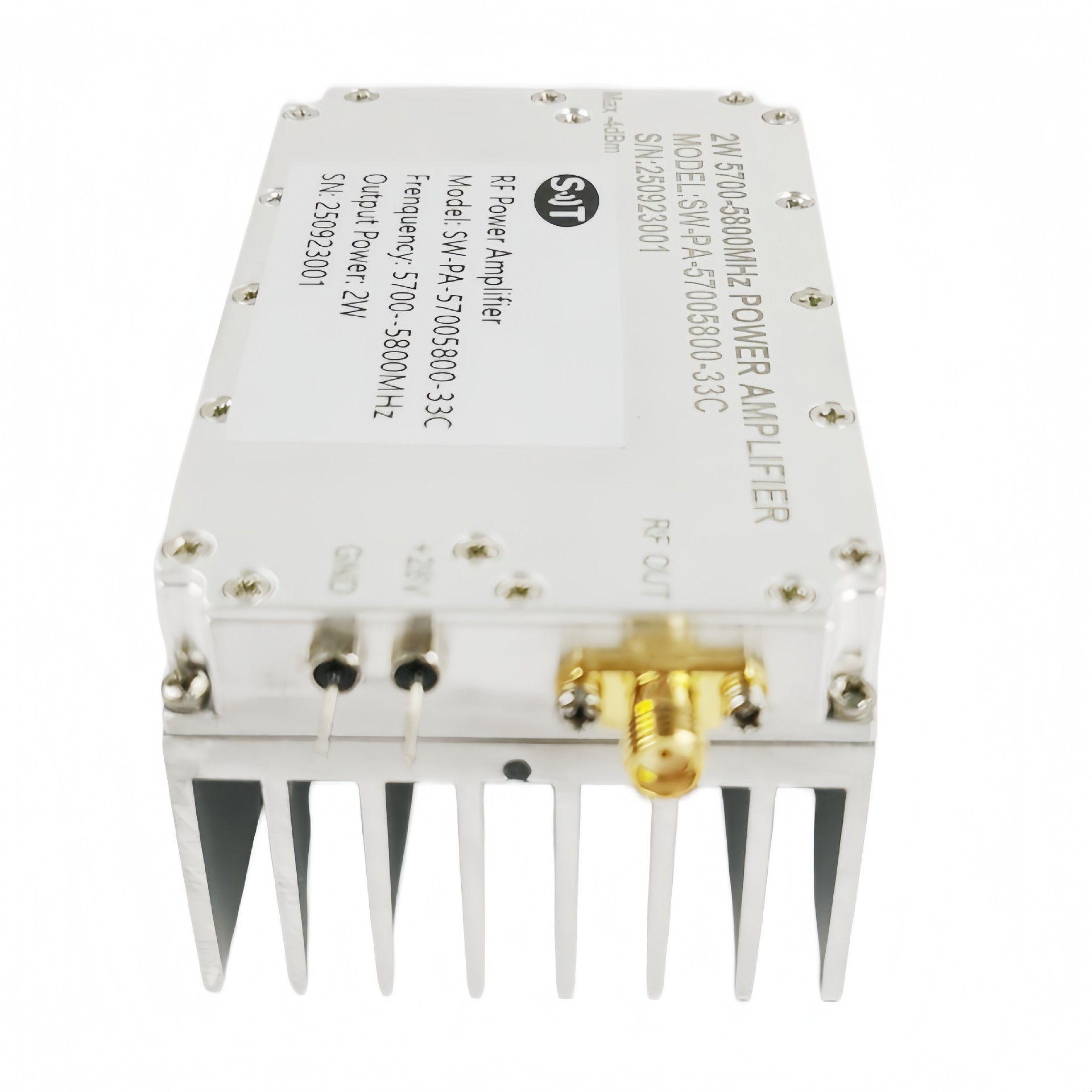

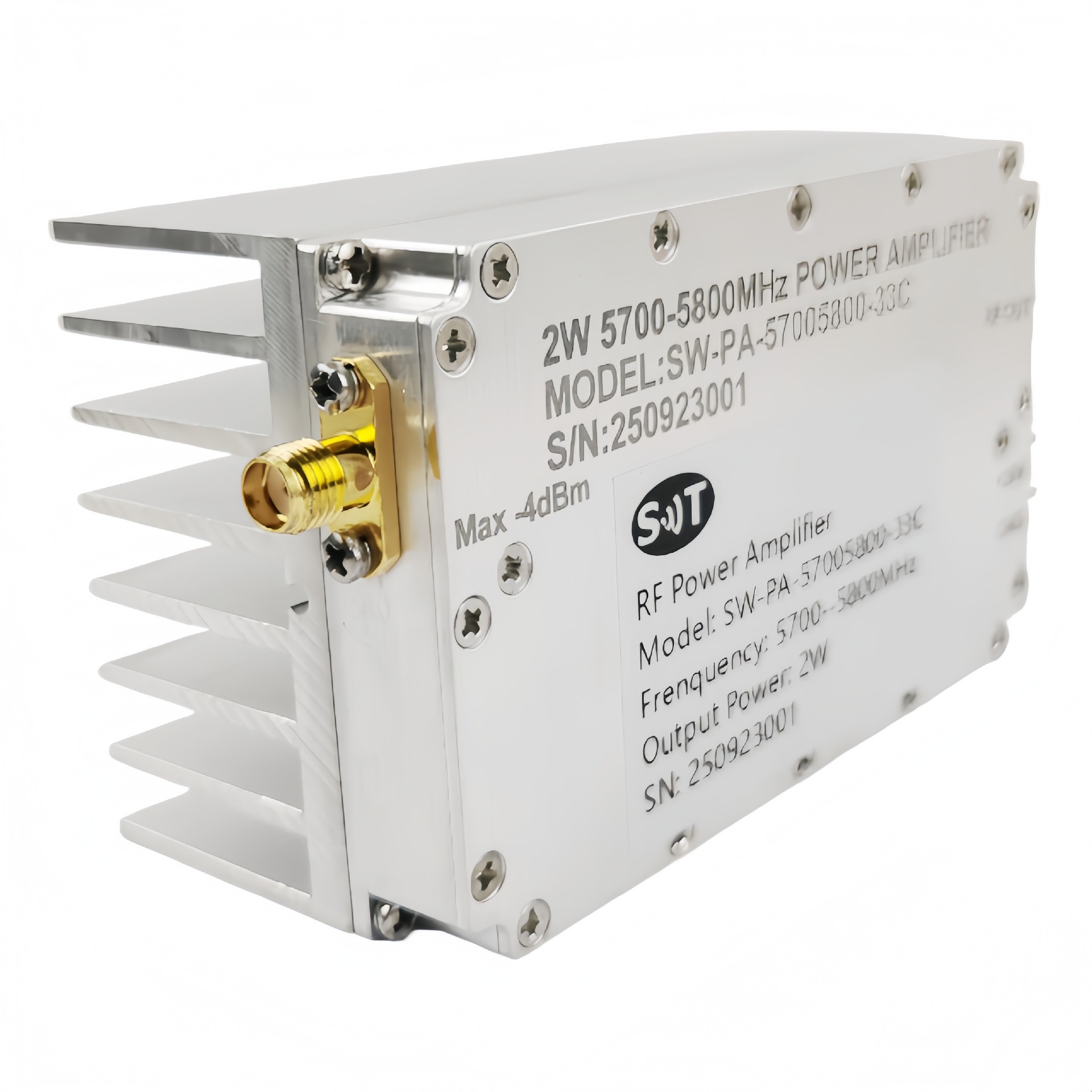

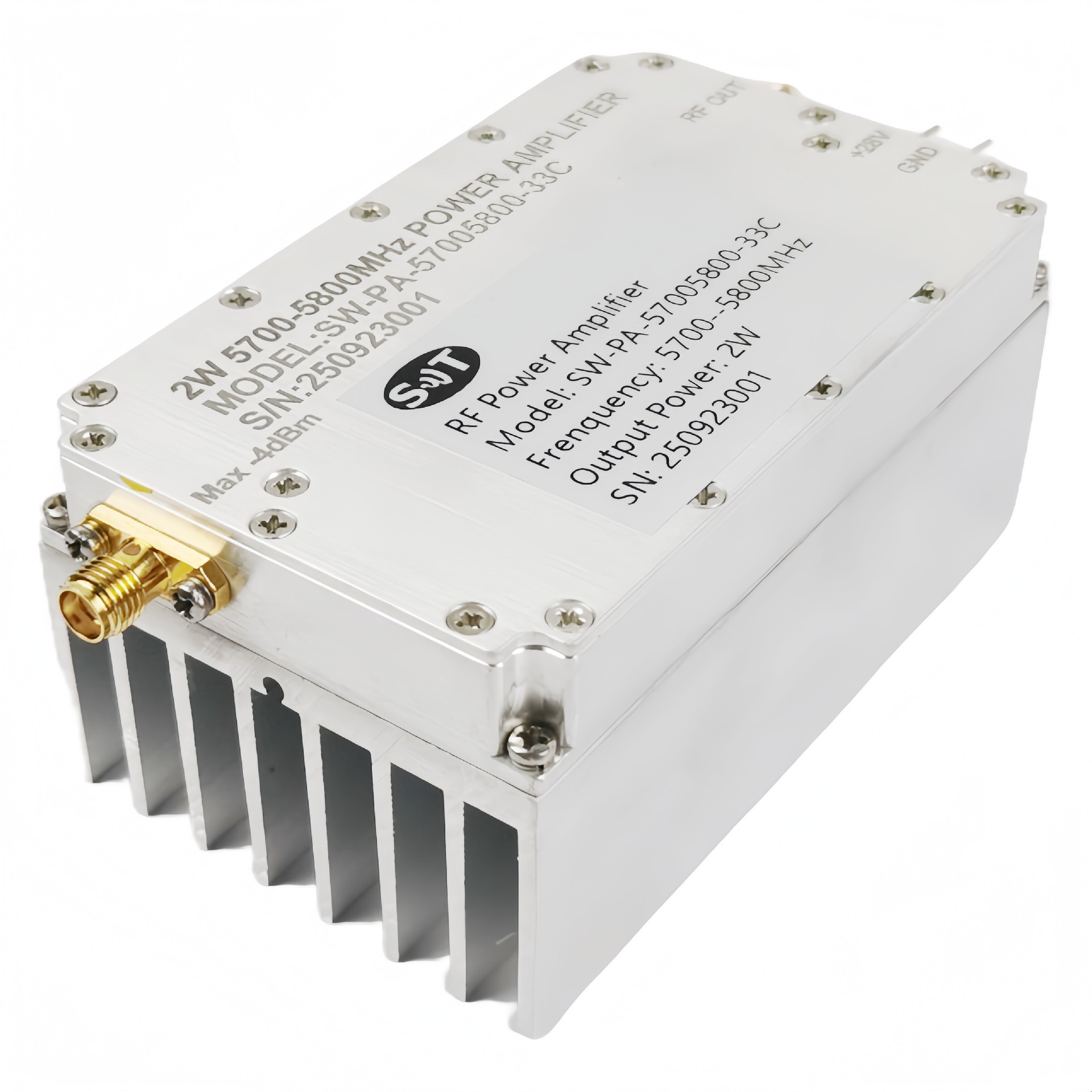

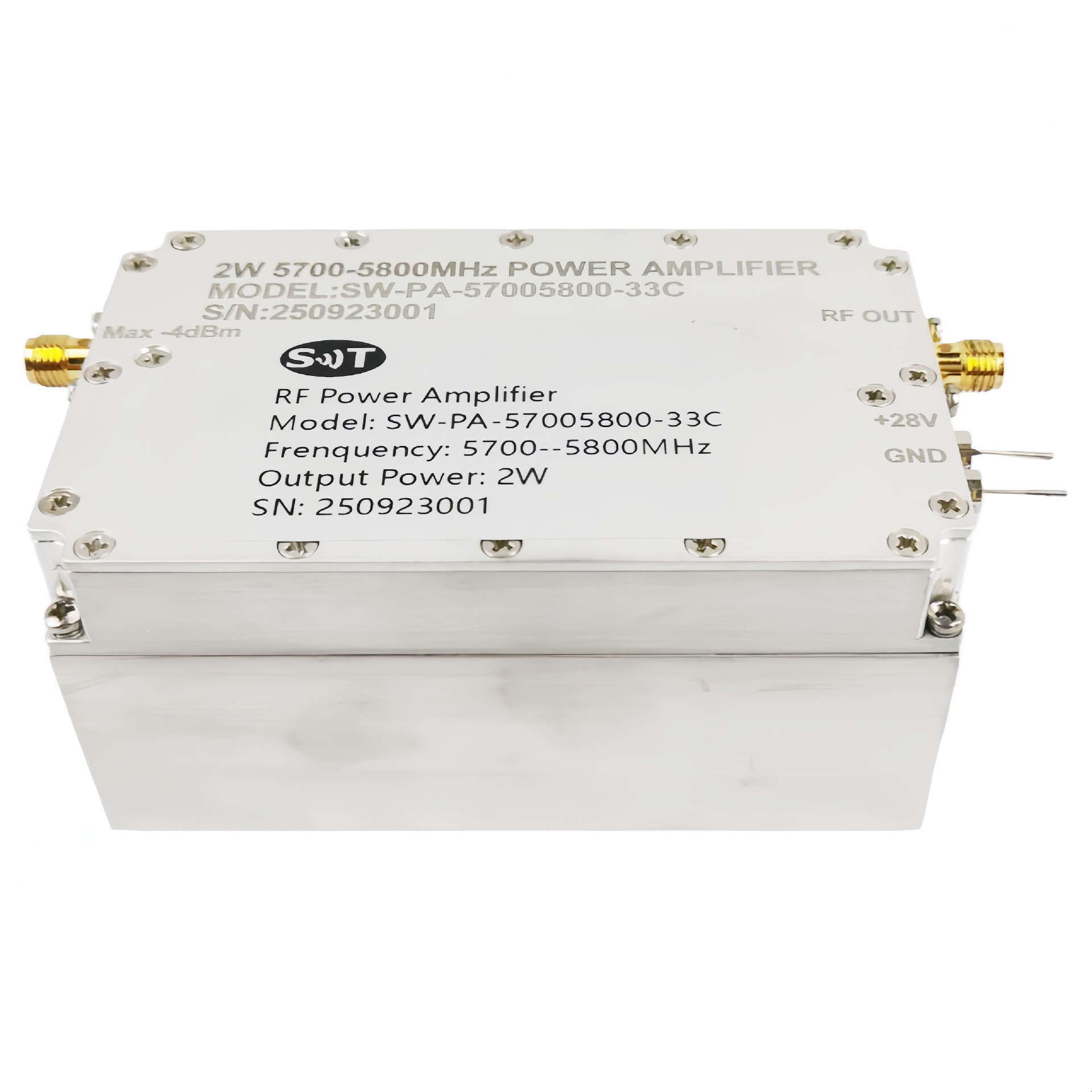

5700-5800 MHz 2 W Power Amplifier for Vehicle-Mounted Communication & Industrial Sensing
Place of Origin：China
Brand Name：SWT
Model Number：
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 5700 | 5800 | MHz | |
RF INPUT | -4 | dBm | ||
P-sat Power Output | 33 | dBm | ||
Power Gain | 37 | dB | ||
Power Gain Flatness | ±1 | dB | ||
Input VSWR | 2.0 | |||
Spurious Signals | -60 | dBc | ||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Currents | 0.5 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

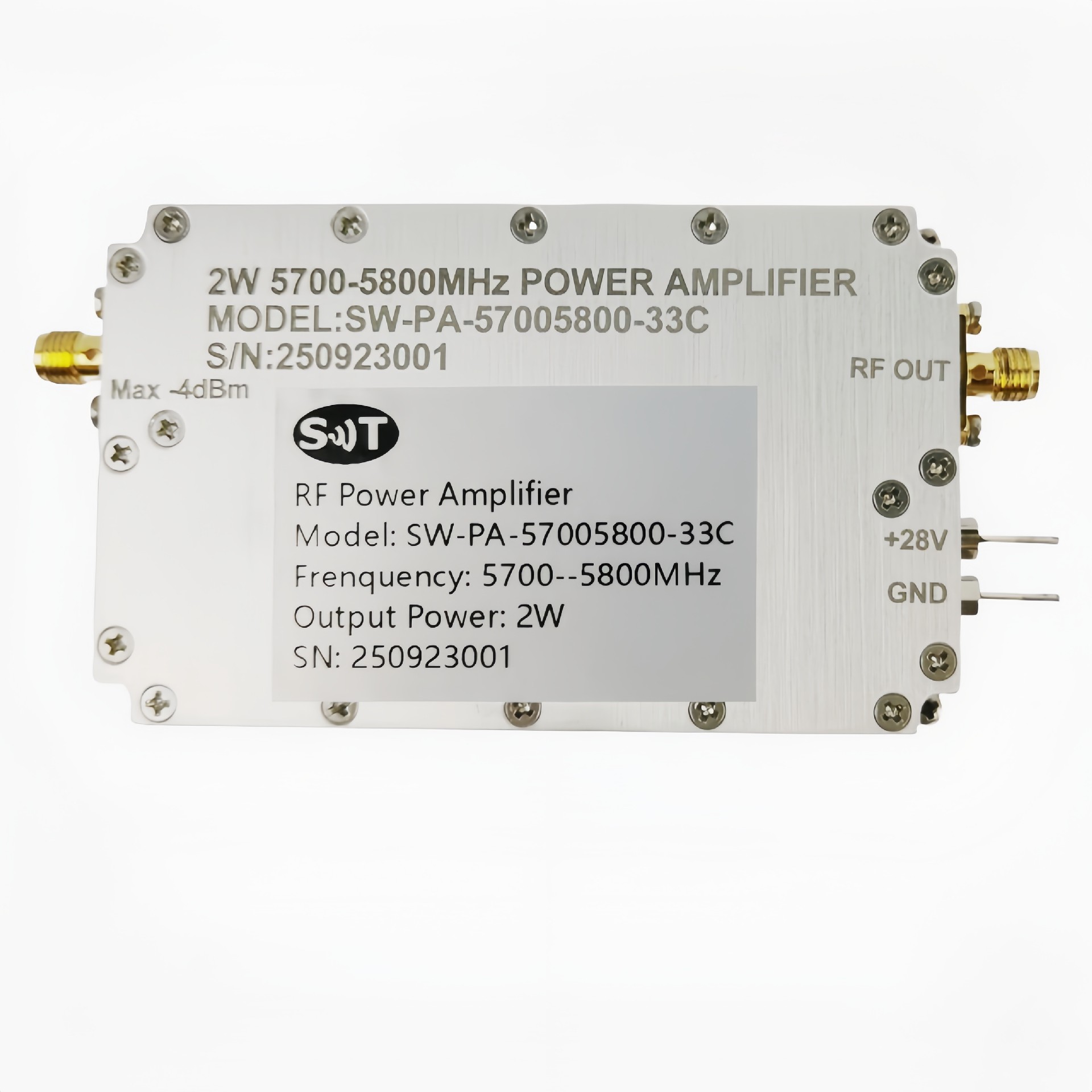

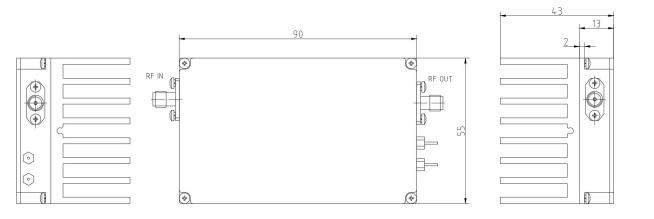

Dimensions (L x W x H) | 90 x 55 x 13 | mm |
RF Connectors (Input / Output) | SMA- KFD/ SMA -KFD | -- |
DC Connector | Feed thru capacitor | -- |
Cooling | Consider heat dissipation with the system (Not Supplied) | |
Mounting | 3-4 Thru Hole | -- |
Weight | ≤1 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 85 | °C | |
