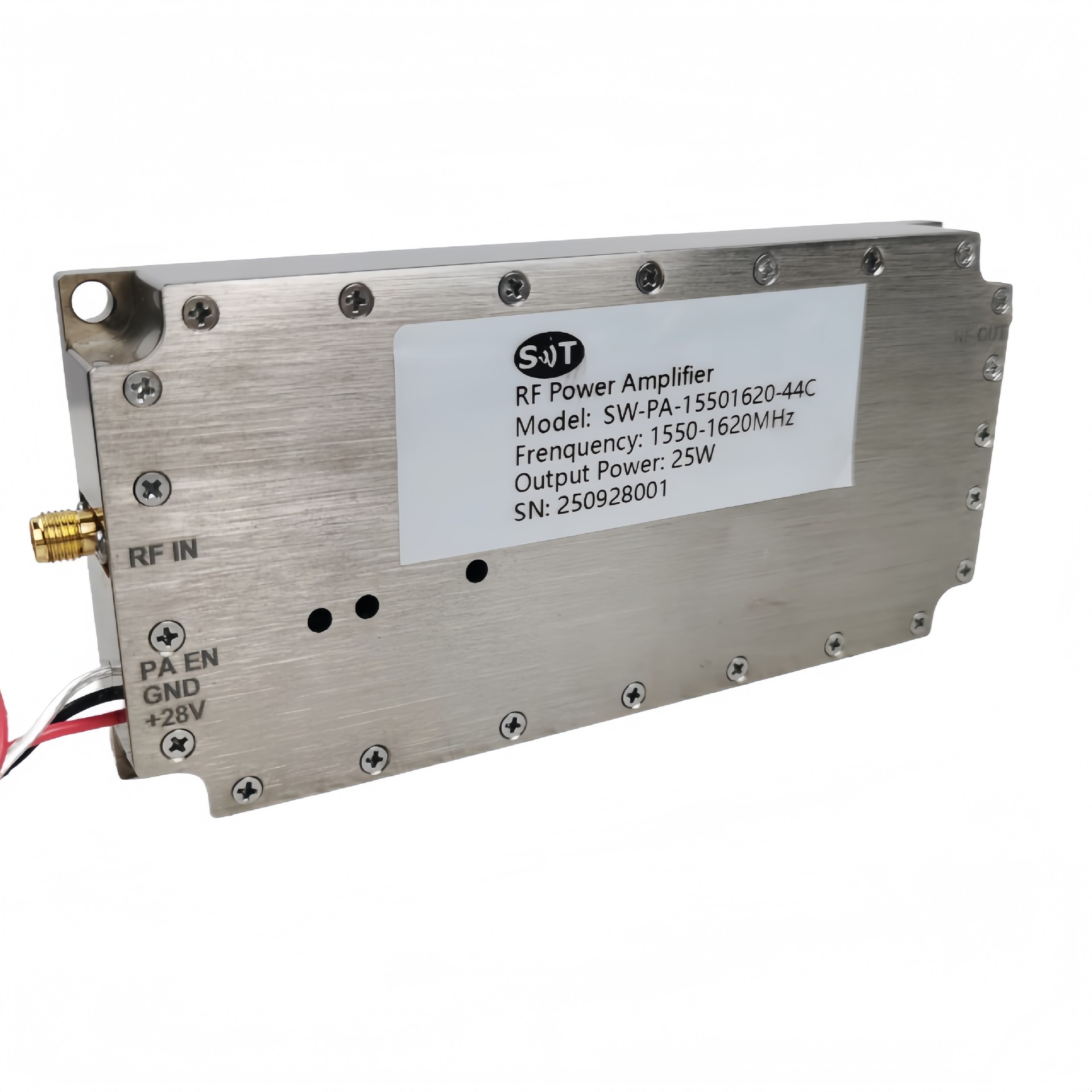

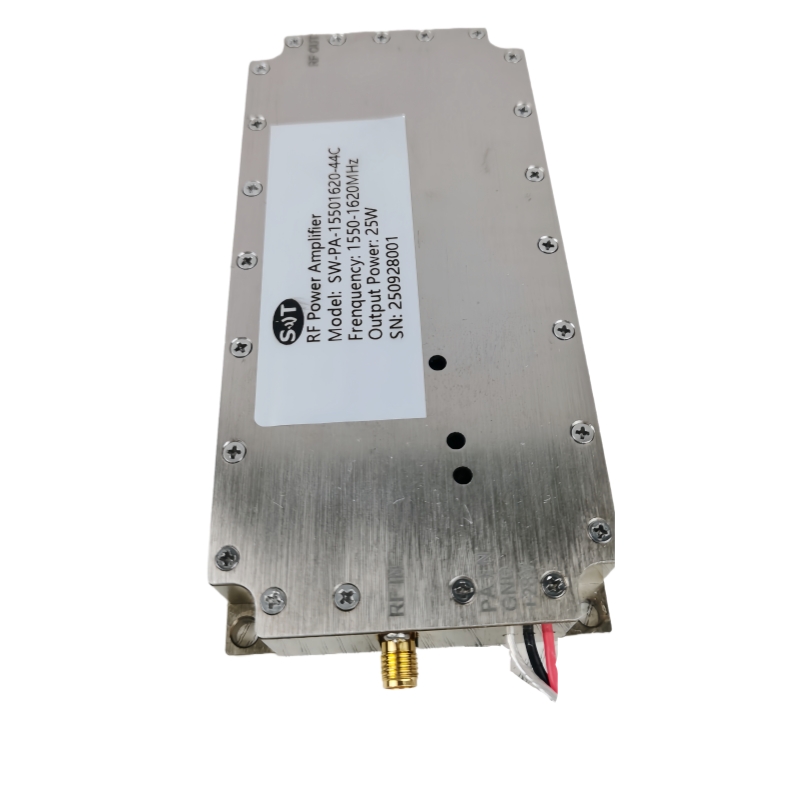

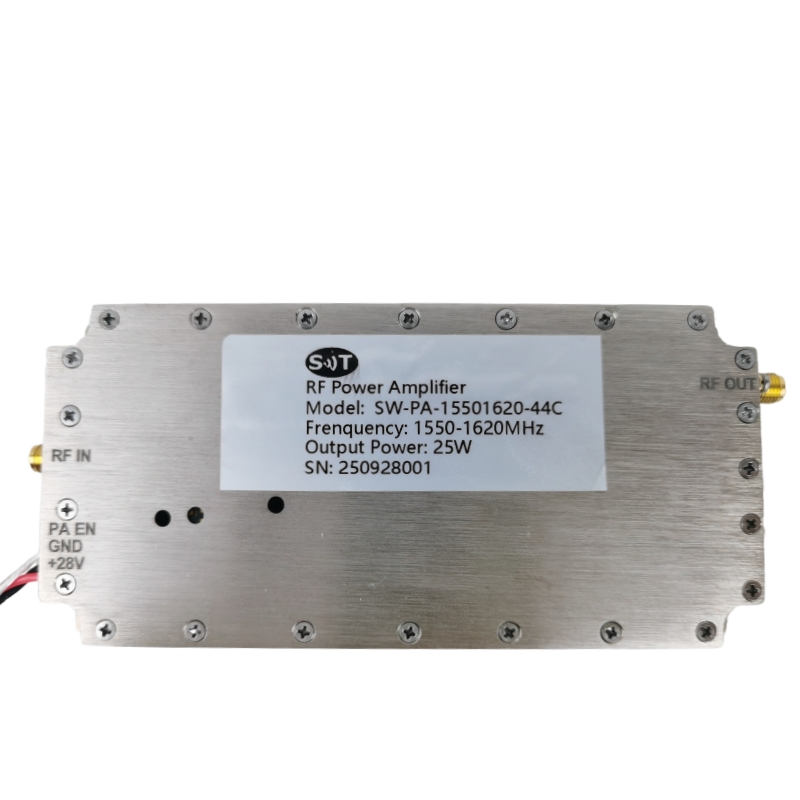

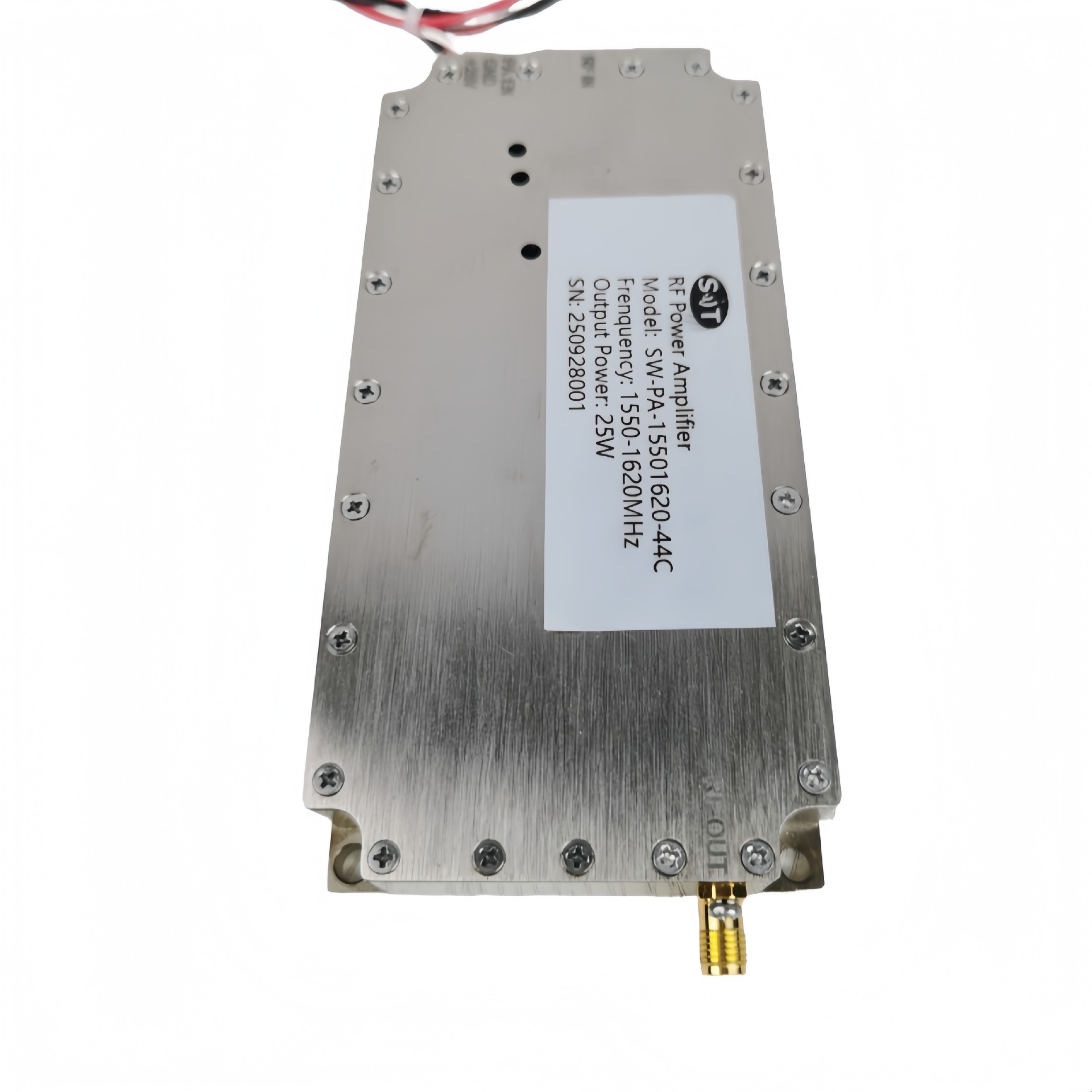

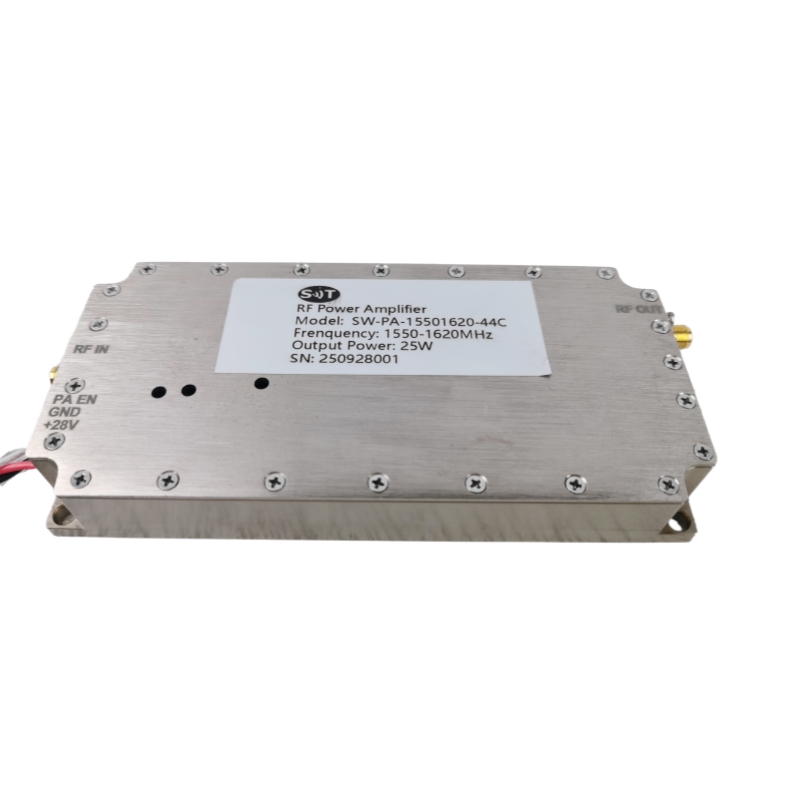

1550-1620 MHz 25W Power Amplifier for Industrial & Commercial Systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-15501620-44C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28V DC +25oC, and in a 50Ω system.
9RF / ELECTRICAL | |||||
PARAMETER | MIN | TYP. | MAX | UNIT | |
Operating Frequency | 1550 | 1620 | MHz | ||
RF INPUT | 0 | dBm | |||
Power Gain | 44 | dB | |||
P-sat Power Output | 44 | dBm | |||
Power Gain Flatness | 2 | dB | |||
Input VSWR | 2 | ||||
Operating Voltage | 28 | VDC | |||
In-Out impedance | 50 | Ω | |||
Current | 3 | 4 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 132×63×19 | mm |
RF Connectors (Input / Output) | SMA- KFD | -- |
Cooling | Baseplate Conduction | -- |
Mounting | φ4.4-4 Thru Hole | -- |
Weight | ≤0.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | VDD | +28V |
2 | GND | GND |
3 | PA Enable | Enable（22-30 V） |

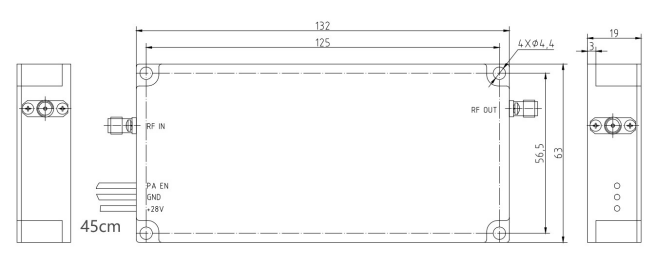

Outline Dimensional Drawing
