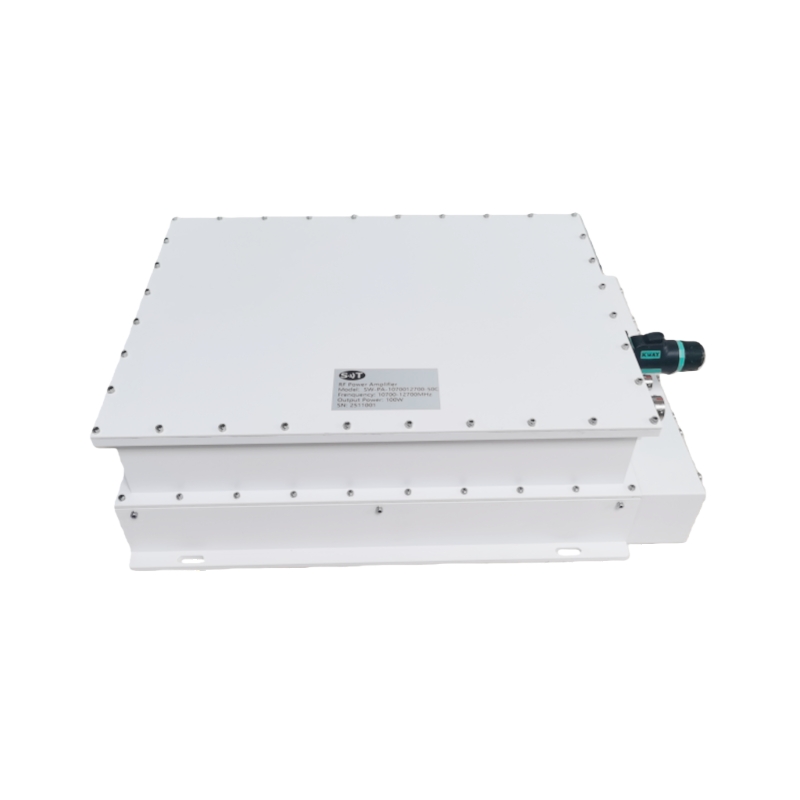

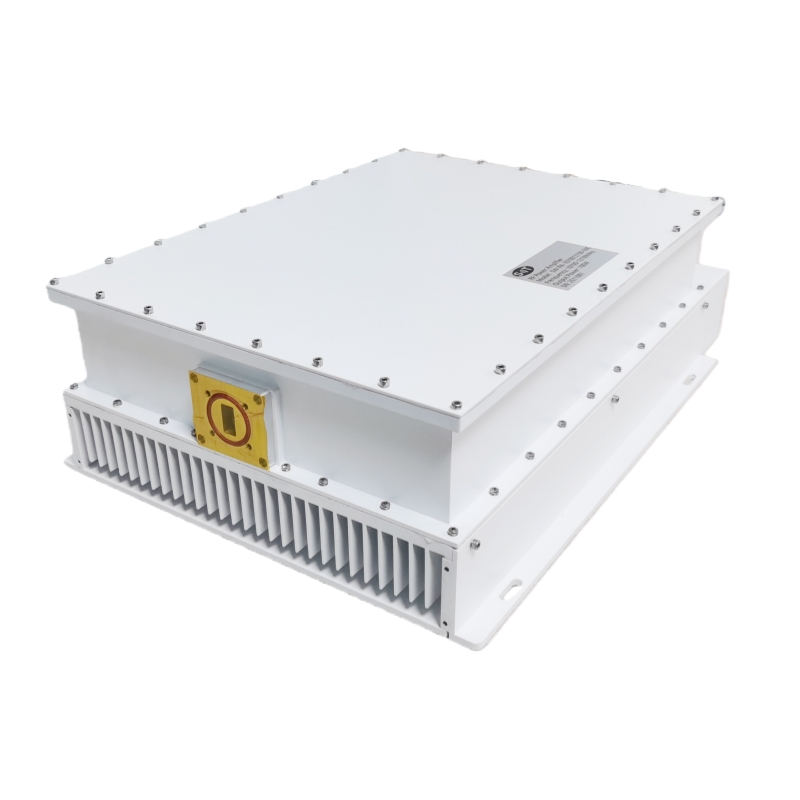

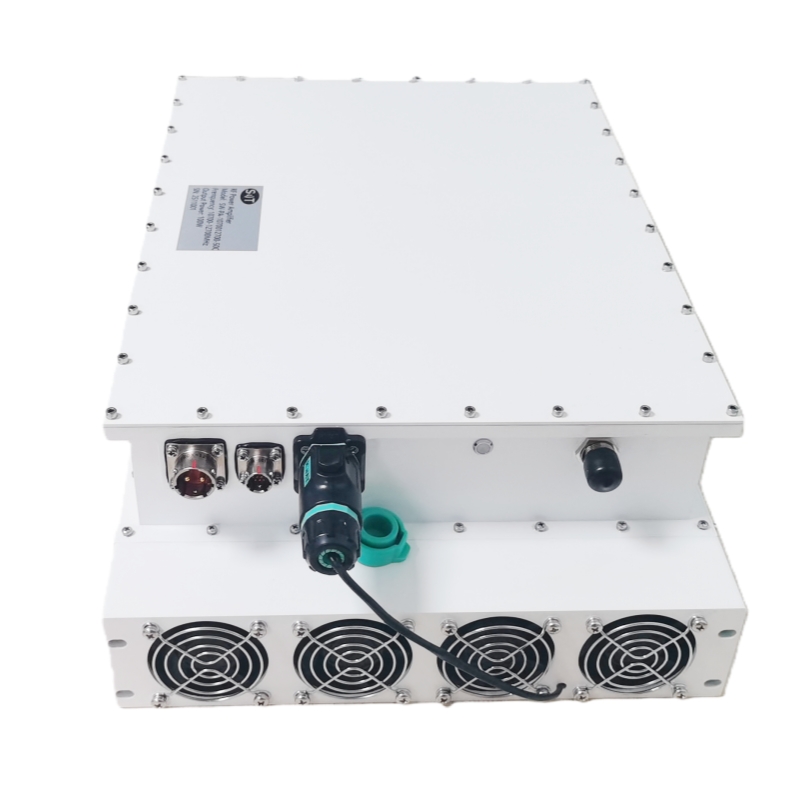

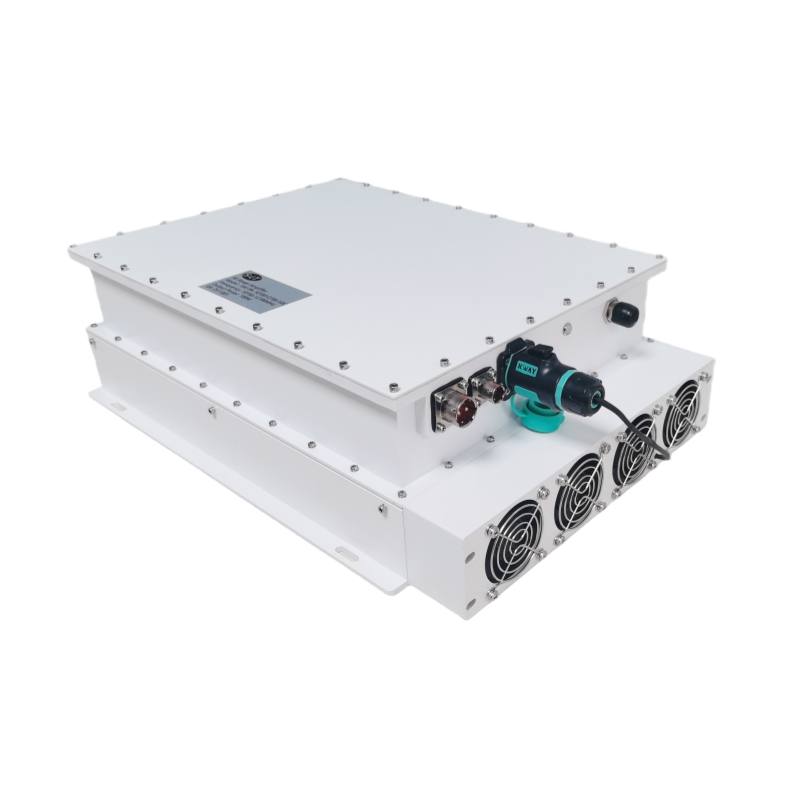

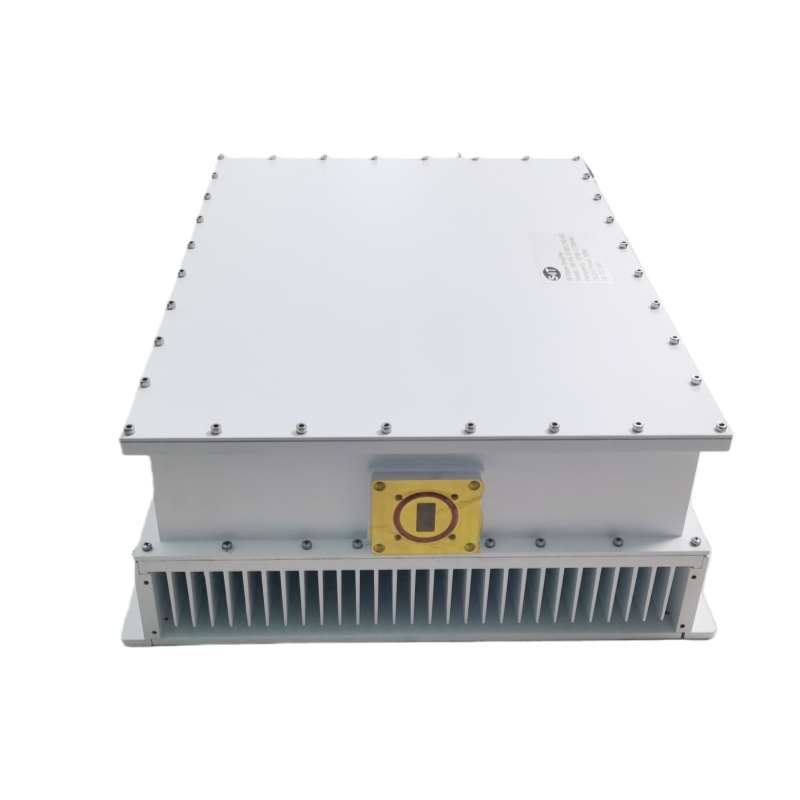

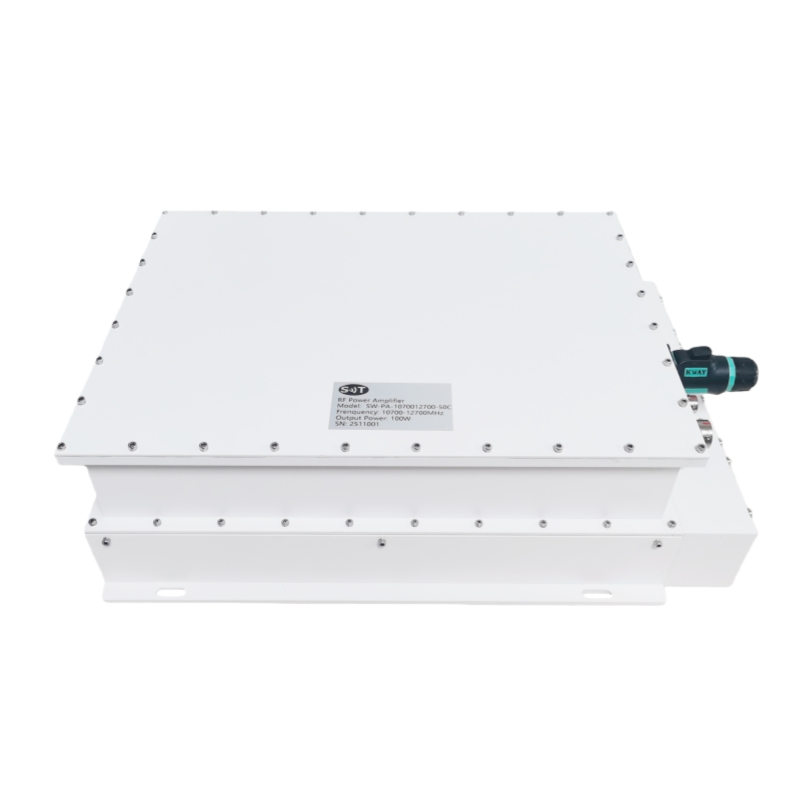

10700-12700 MHz 100 W Amplifier Output HighEfficiency CompactDesign for Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-1070012700-50C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28 VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | |||||
PARAMETER | MIN | TYP. | MAX | UNIT | |
RF Frequency | 10700 | 12700 | MHz | ||
RF INPUT | 0 | dBm | |||
P-sat Power Output | 50 | dBm | |||
Power Gain | 50 | dB | |||
Power Gain Flatness | ±1 | dB | |||
Temperature-induced gain variation | ±1 | dB | |||
IM3@Return of rated power 6dB ，The interval between two tone signals is 10MHz | -25 | dBc | |||
Input VSWR | 1.5 | -- | |||
Output VSWR | Build-in Isolator for VSWR protection | -- | |||
Spurious Signals | -55 | dBc | |||
Power consumption | @saturation | 600 | W | ||
@linear | 500 | W | |||
Operating Voltage | 24 | 28 | 30 | V DC | |
In-Out impedance | 50 | Ω | |||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

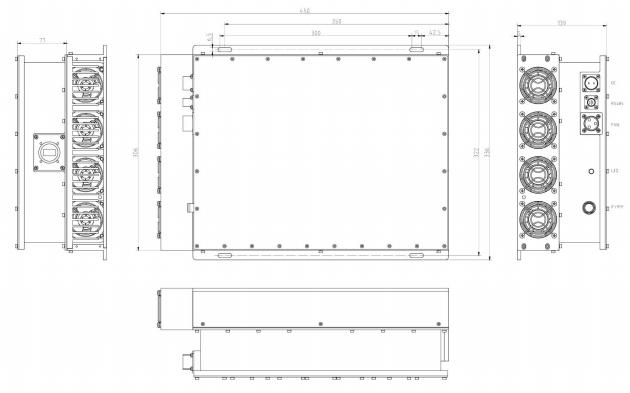

Dimensions (L x W x H) | 450*336 * 139mm | mm |
RF Connectors (Input / Output) | N- KFD/ Waveguide WR75 | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | φ4.5-6 Thru Hole | -- |
Weight | ≤15 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Humidity Range | 0-95 | % | |
Protections | Open circuit/short circuit/ over temperature protection | -- | |
Monitoring interface for temperature, tx power and errors | -- | ||
