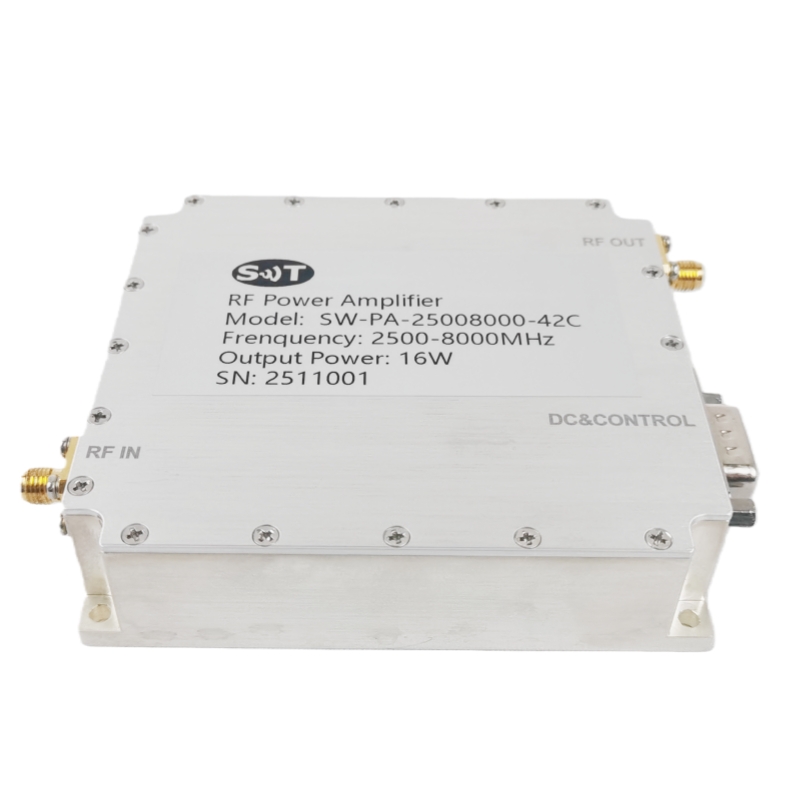

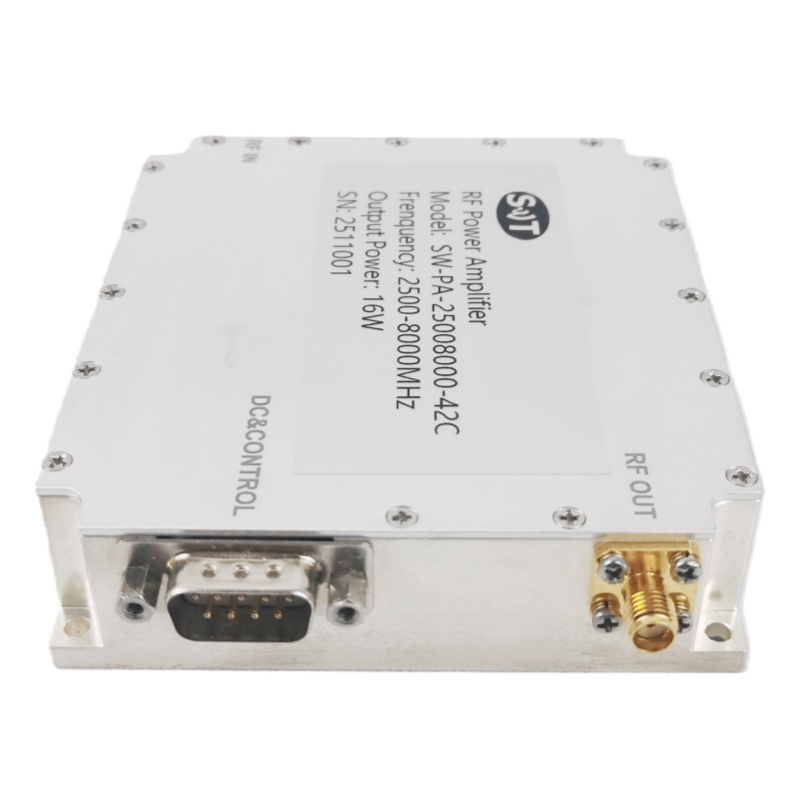

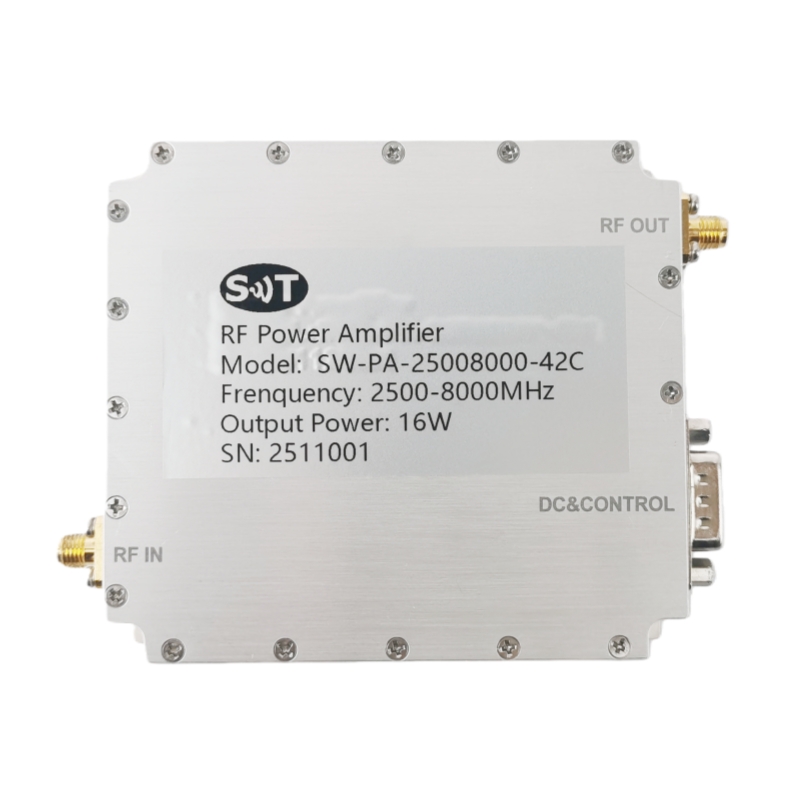

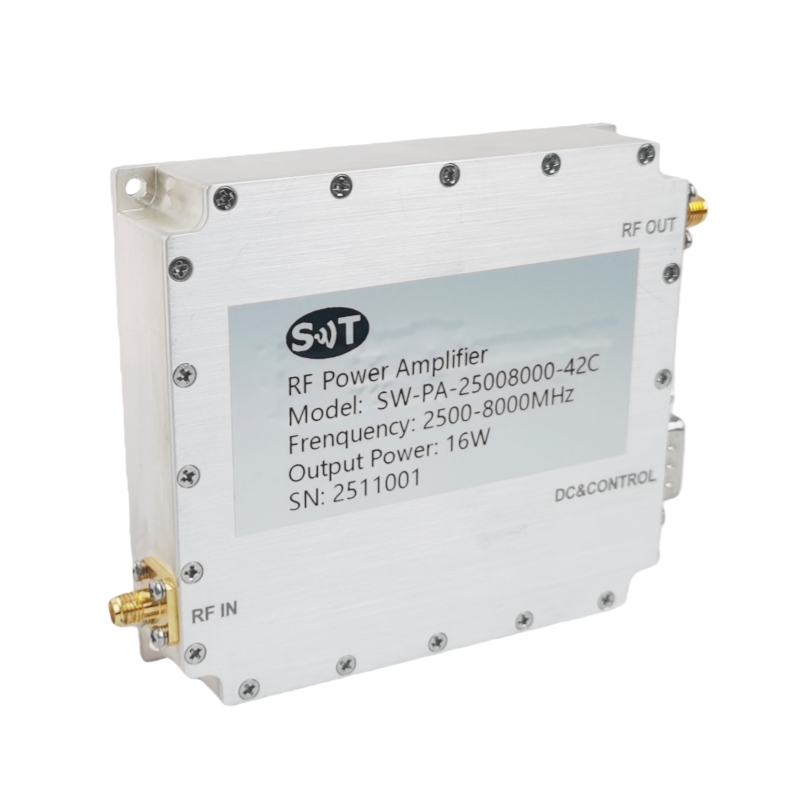

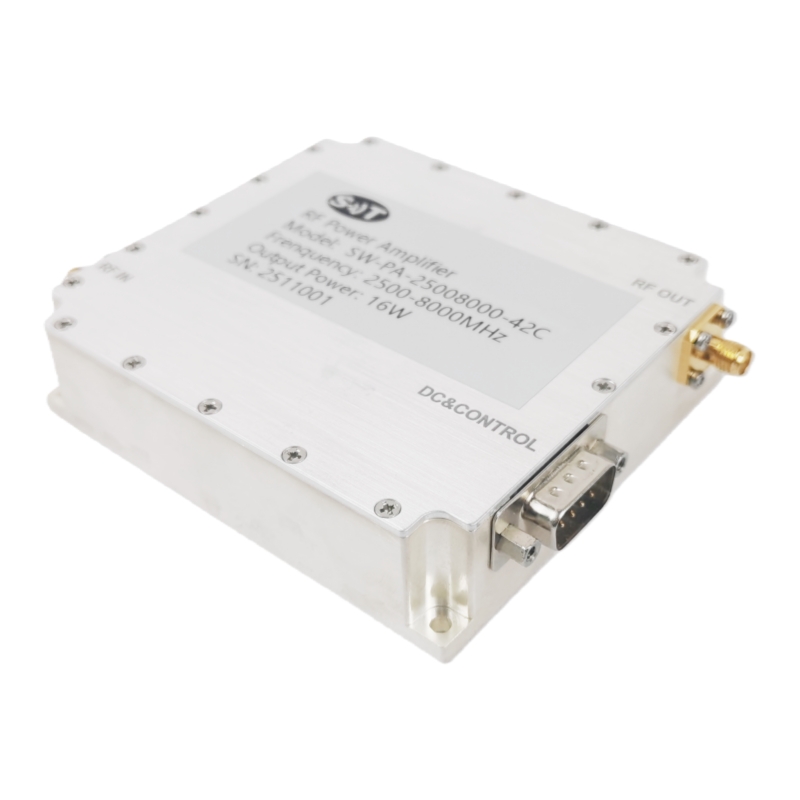

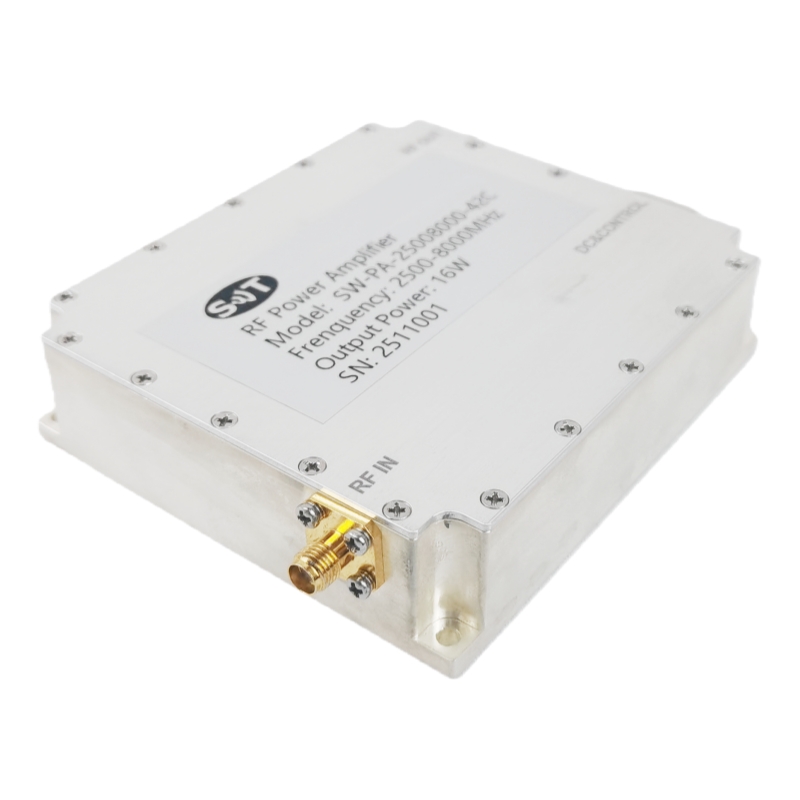

2.5 to 8 GHz RF Amplifier 15W Output High Efficiency High Linearity Compact Design for Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-25008000-42C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2500 | 8000 | MHz | |
RF INPUT | 0 | 5 | dBm | |
RF Gain @ P-sat | 42 | dB | ||
P-sat Output Power | 41 | 42 | dBm | |
Power Gain Flatness | ±2 | dB | ||
Switching time | 400 | ns | ||
In/Out Impedance | 50 | Ω | ||
Input VSWR | 1.3 | -- | ||
Operating Voltage | 26 | 28 | 30 | V DC |
Current@15W | 2.5 | 3.5 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

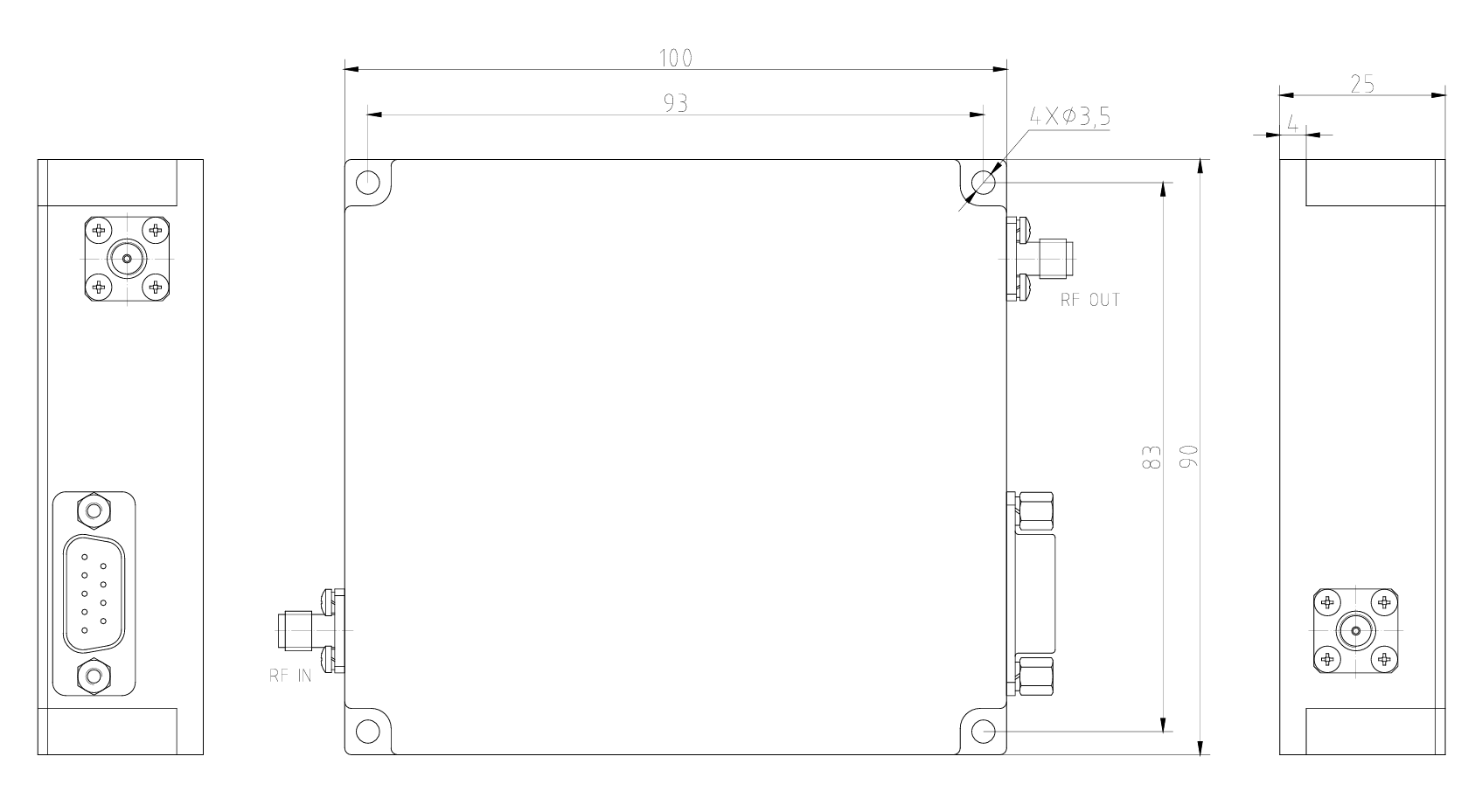

Dimensions (W x D x H) | 100*90*25 | mm |
RF Connectors (Input / Output) | SMA-K / SMA-K | -- |
DC/Control Connector | DB9 Male | -- |
Cooling | External heat dissipation fins are required | -- |
Weight | ≤0.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +50 | °C |
Humidity Range | 0-95 | % | |
| ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |
X1 | SMA- KFD | RF IN |
X2 | SMA- KFD | RF OUT |
X3 | DB9 Male | DC / Control interface |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB9 Male | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1-3 | VDD | + 28V |
4-6 | GND | GND |
7 | Current sensor | Current sensor voltage value: Voltage range 2.5-3.15V corresponds to output power of 0 A~3 A |
8 | Temperature sensor | Temperature sensor voltage value: Voltage range 0.25-1.25V corresponds to output power of -25 ℃~+75 ℃ |
9 | PA Enable(1) | On/Off (0...0.5V off, 2.5...5V on) |
