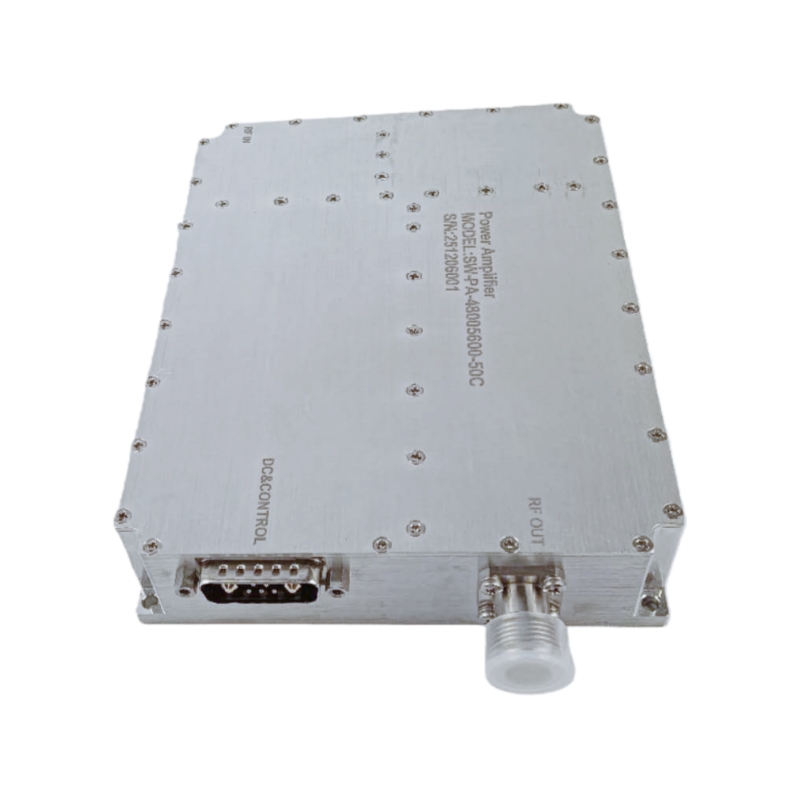

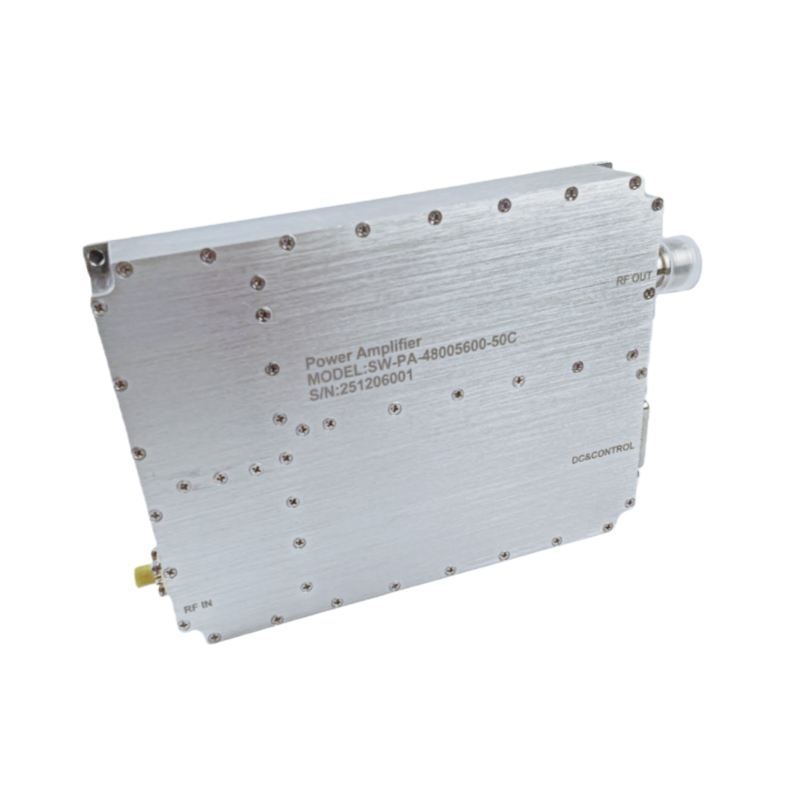

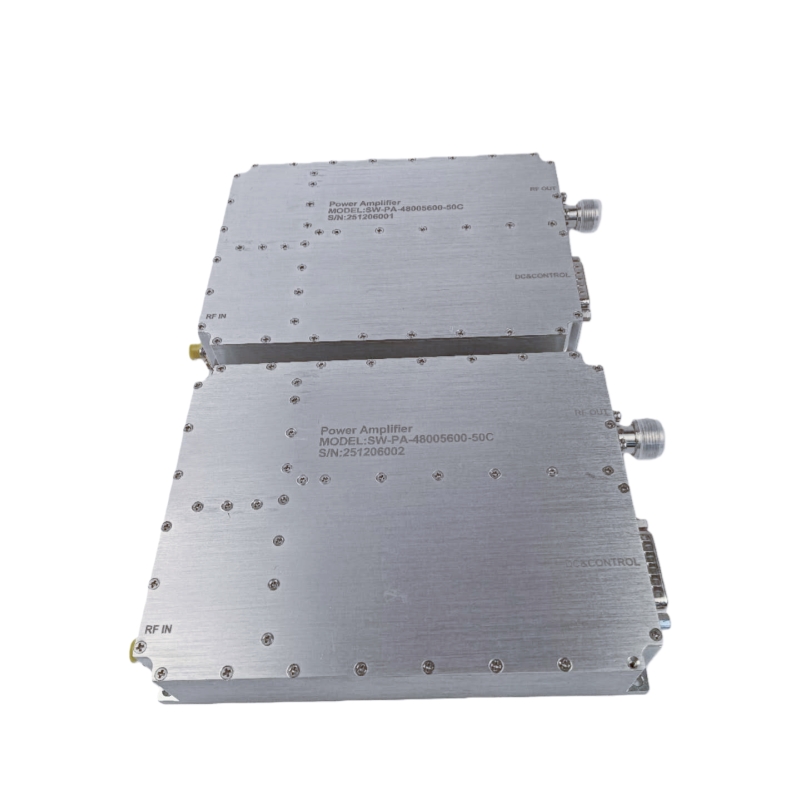

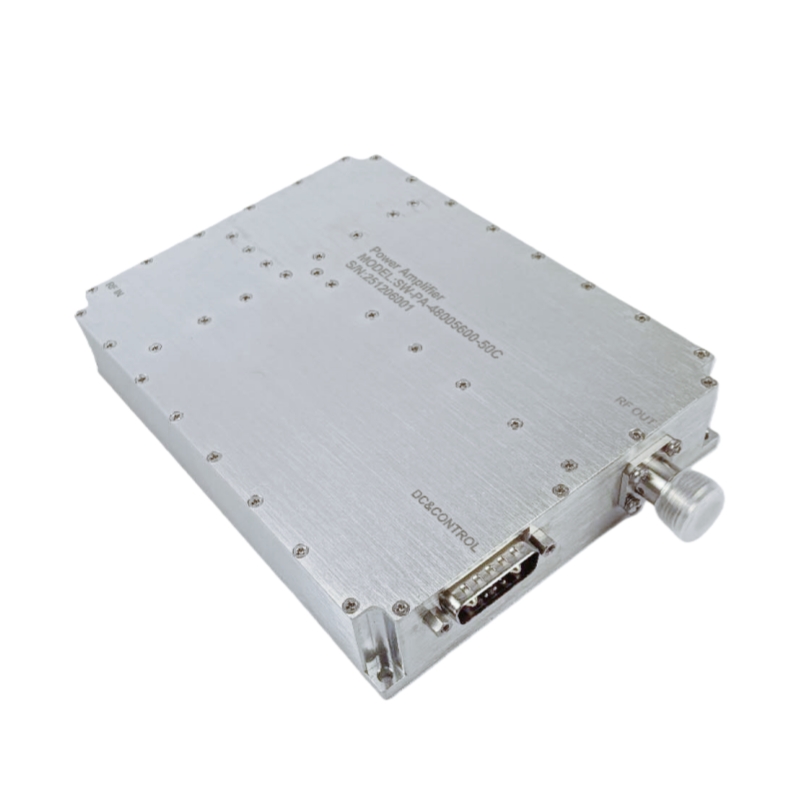

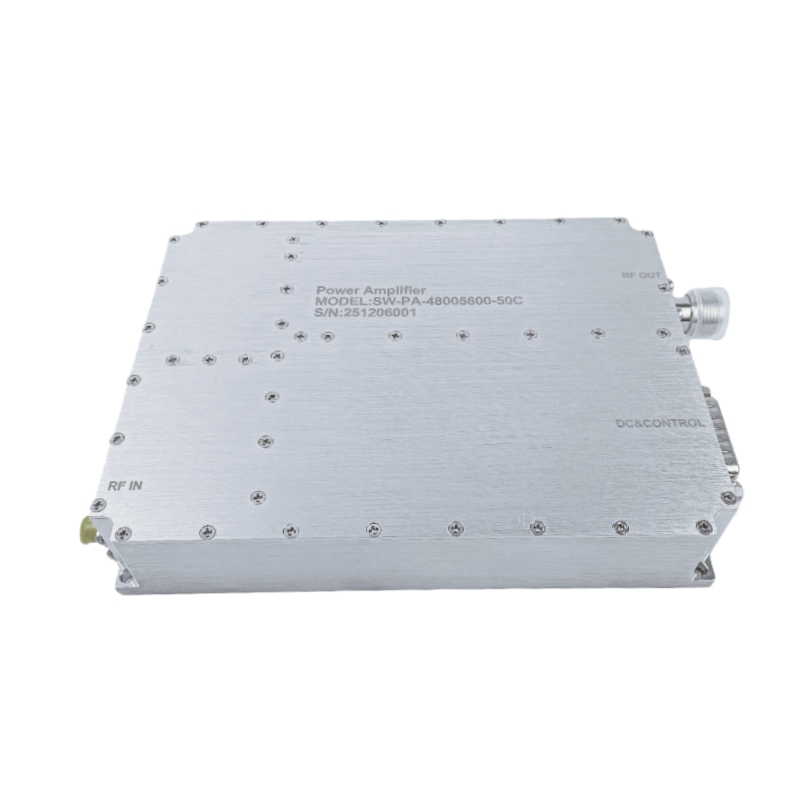

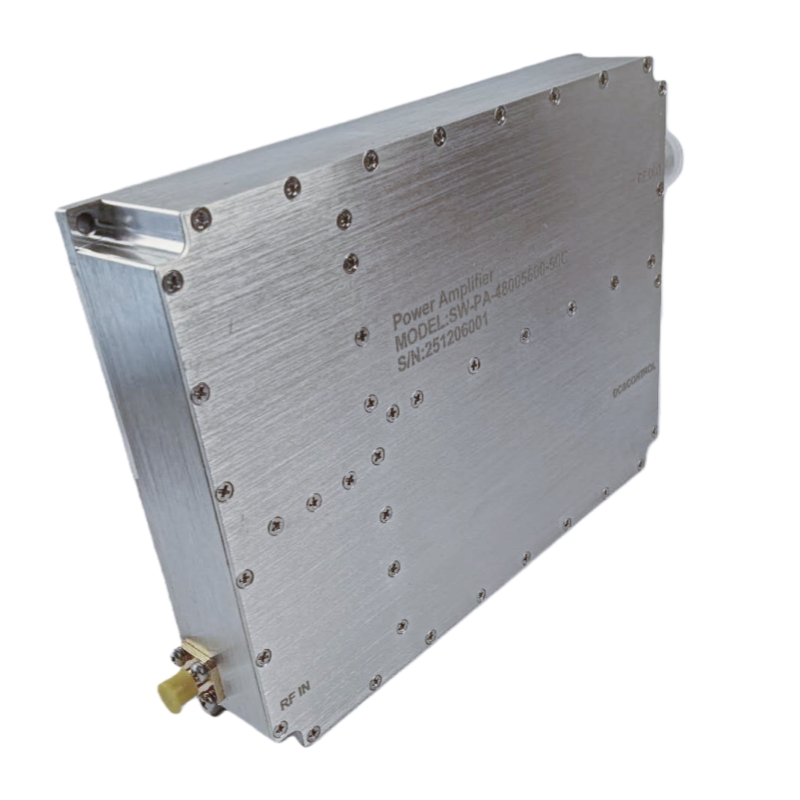

4800-5600MHz 100W High-Power, Wideband RF Amplifier for Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-48005600-50C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 4800 | 5600 | MHz | |
RF INPUT | -10 | dBm | ||
Power Gain | 60 | dB | ||
P-sat Output Power | 50 | dBm | ||
Power Gain Flatness | ±1.5 | dB | ||
In/Out Impedance | 50 | Ω | ||
Input VSWR | 1.25 | 2 | -- | |
Spurious Signals | -55 | dBc | ||
Harmonic Signals | -20 | dBc | ||
Operating Voltage | 28 | V | ||

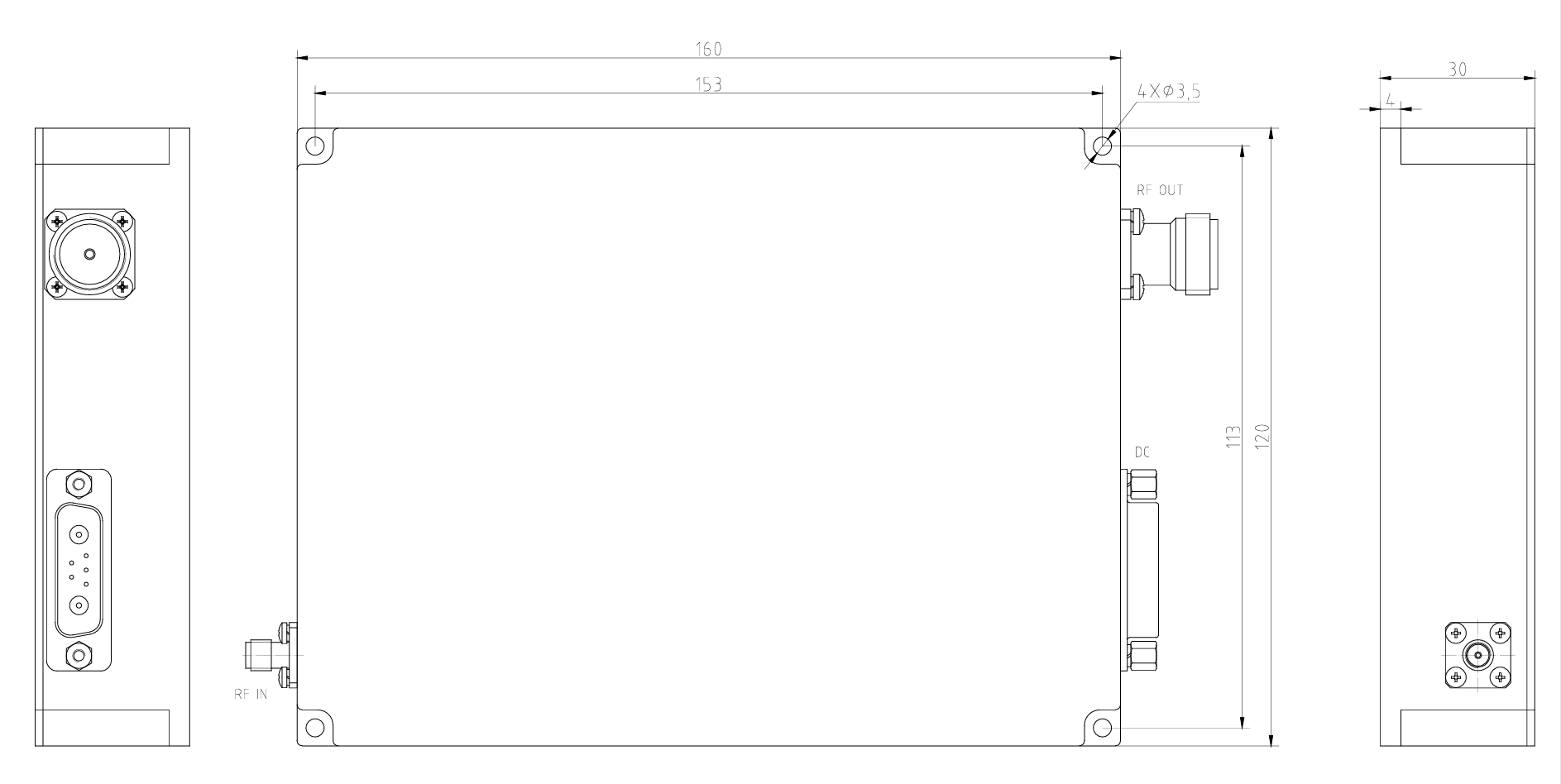

MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 160*120*30 | mm |
RF Connectors (Input / Output) | SMA-KF /N-KF | -- |
DC & Control Connector | D-SUB 7W2-M | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | φ3.5-4 Thru Hole | -- |
Weight | ≤2 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +65 | °C |
Humidity Range | 0-95 | % | |
PA Baseplate Shutoff Temperature | + 80 | °C | |
INPUT/OUTPUT panel Connector | |||
AMPLIFIER CONNECTOR TYPE: | —— | ||
TRIAD CABLE PART NUMBER: | —— | ||
NUMBER | interface type | DESCRIPTION | |
X1 | SMA-FK | RF IN | |
X2 | N-KF | RF OUT | |
X3 | D-SUB 7W2 M | DC & Control interface | |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 M | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
A1 | VDD | 28V |
A2 | GND | GND |
1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
2-5 | GND | GND |
Product Details
Name:
Operating Frequency:
Psat Output Power:
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
