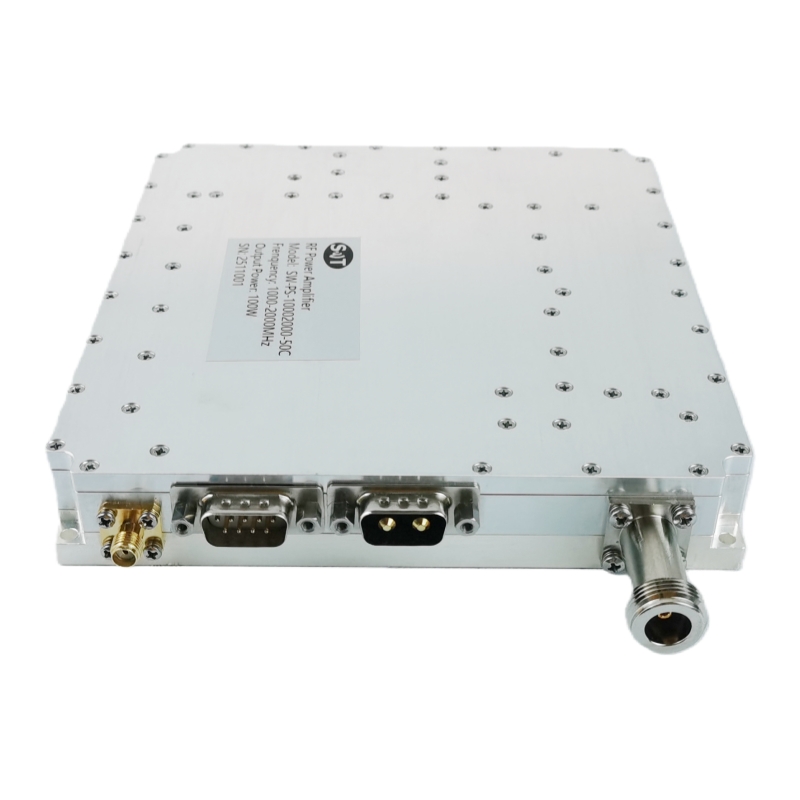

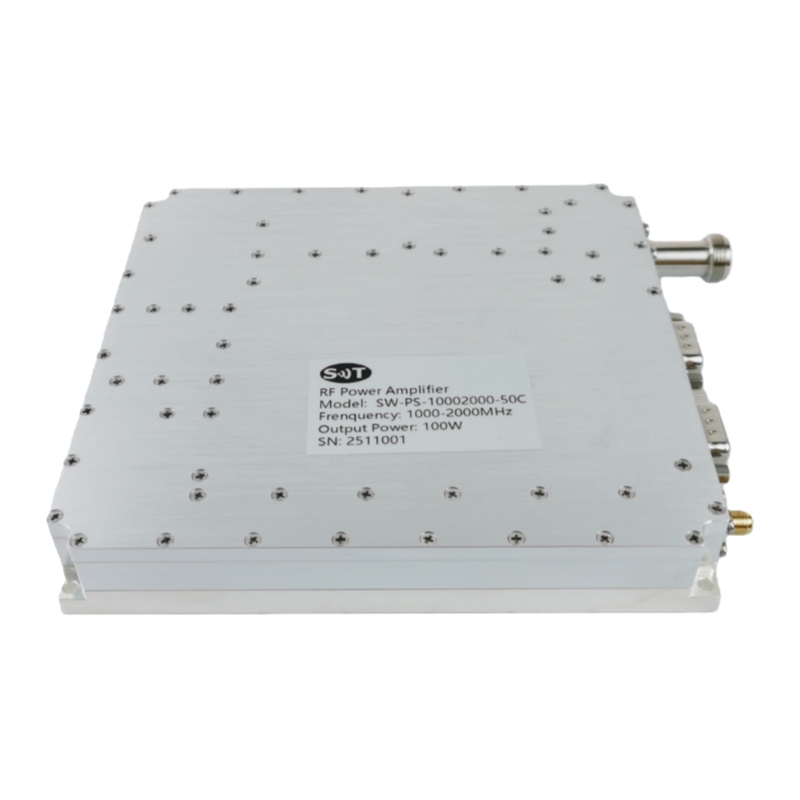

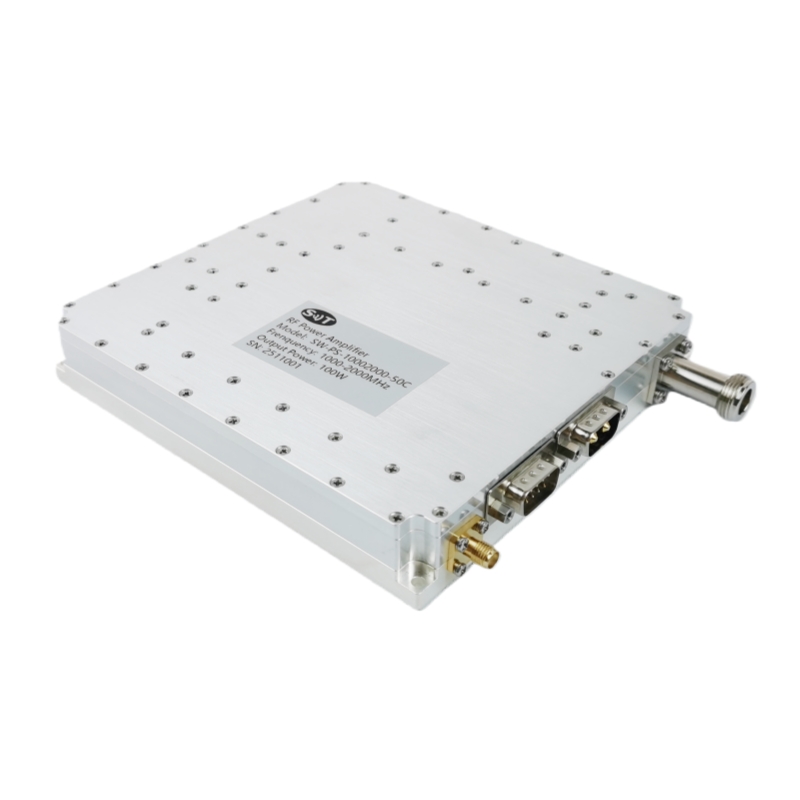

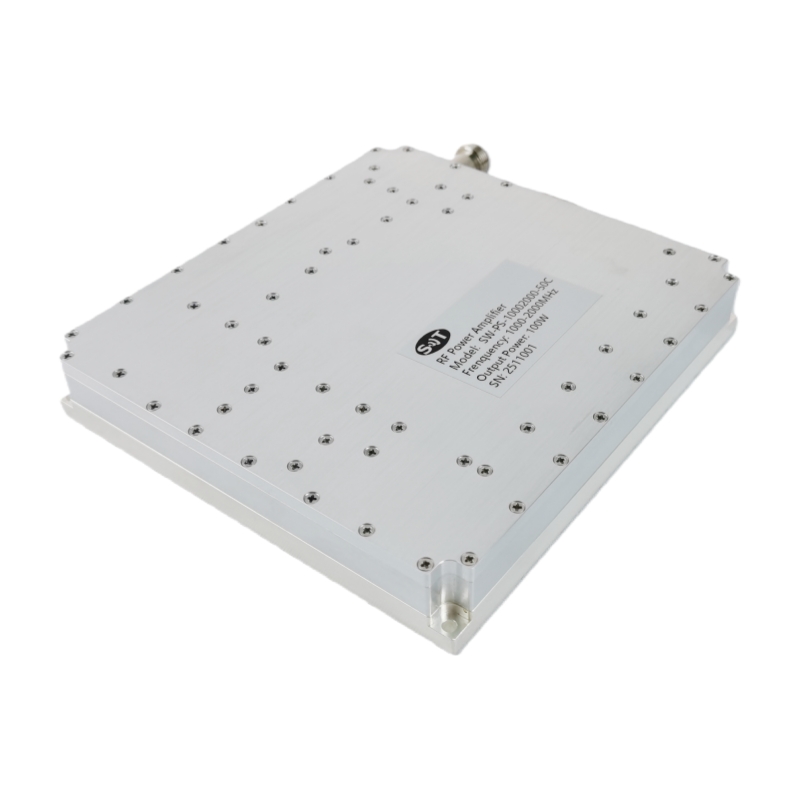

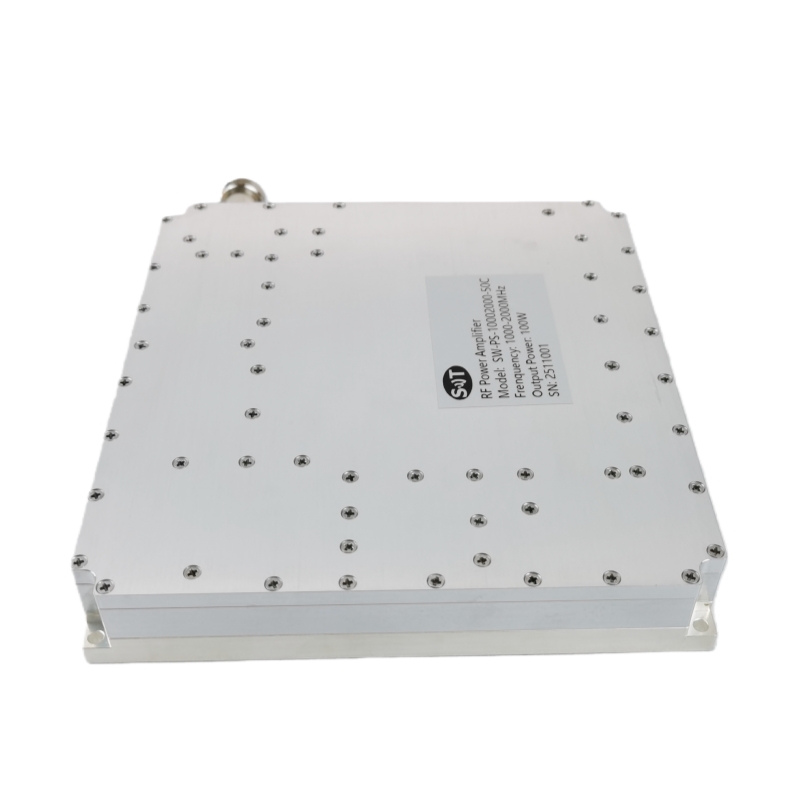

High-Performance 1-2GHz 100W RF Amplifier Module with Comprehensive Monitoring for Professional Wireless Systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-100020000-50C
Price：Please Contact Customer Service
Product Description
1. Main Technical Specifications
qualification | code | Min | TYP | Max | Unit |
service frequency | BW | 1 | 2 | GHz | |
saturated output power | Psat | 100 | W | ||
interiorinput power | Pin | 0 | dBm | ||
gain flatness | ΔG | ±2 | dB | ||
power gain | Gp | 50 | dB | ||
Gain adjustment range (potentiometer condition) | Gadj | 0 | 20 | dB | |
Spurious suppression @Pout=50dBm | Spur | -60 | dBc | ||
Harmonic suppression @Pout=50dBm | 2nd/3nd | -15 | -10 | dBc | |
Enter the standing wave ratio | VSWRin | 2.0 | |||
input/output impedance | I/O-IMP | 50 | Ω | ||
supply electricity | Vdc | 48 | V | ||
power dissipation | Pdiss | 400 | W | ||
operating temperature range | OT | -20 | +55 | ℃ | |

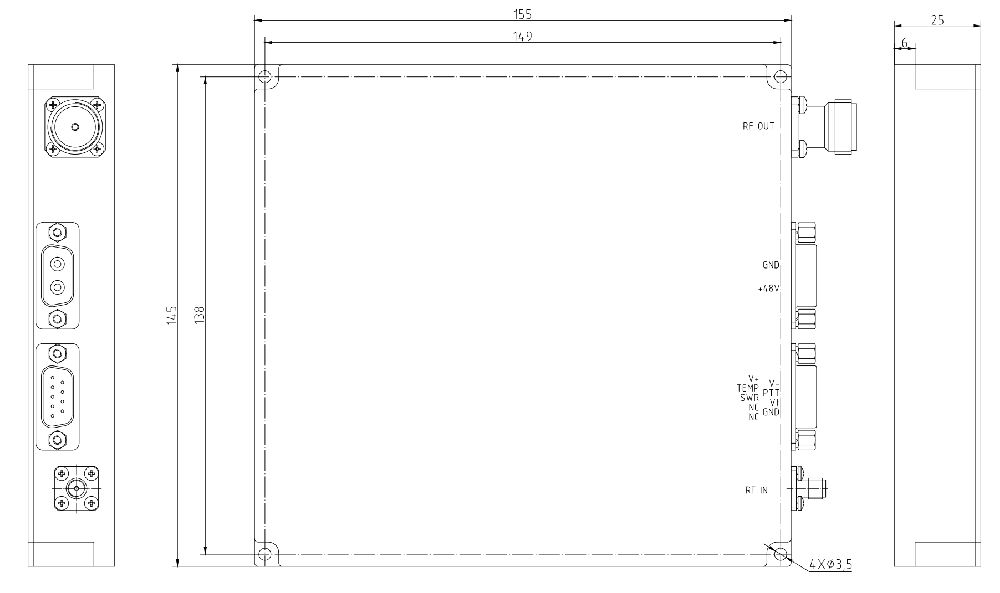

size | DM | 155*145*25mm | |||
weight | WT | No more than 3 kg | |||
heat radiation | Cooling | External radiator cooling is required | |||
2. Key Functional Indicators
1) Monitoring and alarm functions: forward power detection, reverse power detection, temperature monitoring, temperature alarm, and standing wave alarm with enable options. The standing wave and temperature alarm pins support direct LED connection for alarm indicators (no additional resistors required).
2) Control function: Remote control and monitoring can be achieved via RS485.
The control parameters include power supply and power cut-off control, alarm threshold setting and power setting.
3. Interface Definition
interface code | interface type | interface function | remarks |
X1 | SMA | radio frequency input | |
X2 | N | radio frequency output | |
X3 | D-SUB 2W2 | power supply interface | power supply interface |
X4 | DB9 Public | monitoring and control interface | Customize software as required |
D-SUB 2W2
pin | definition | function | remarks |
A1 | VDD | +48V | |
A2 | GND | GND |
DB9 Public Head Definition
pin | definition | function | remarks |
1 | RS485B | RS485 interface | |
2 | RS485A | ||
3 | SWR | standing wave alarm | High-level alarm (3.3V), low-level normal (0V) |
4 | TEMP | temperature alarm | High-level alarm (3.3V), low-level normal (0V) |
5 | V+ | forward power detection | The voltage range of 0.1-3V corresponds to an output power of 20-50 dBm. |
6 | GND | GND | |
7 | Vt | temperature detection voltage | The voltage range of 0.25-1.25V corresponds to an output power of-25℃ to +75℃. |
8 | PTT | enable | The amplifier defaults to enable (low level enable (0V), high level disable (3.3V)) |
9 | V- | reverse power detection | The voltage range of 0.1-3V corresponds to a reflected power of 20-50 dBm. |
