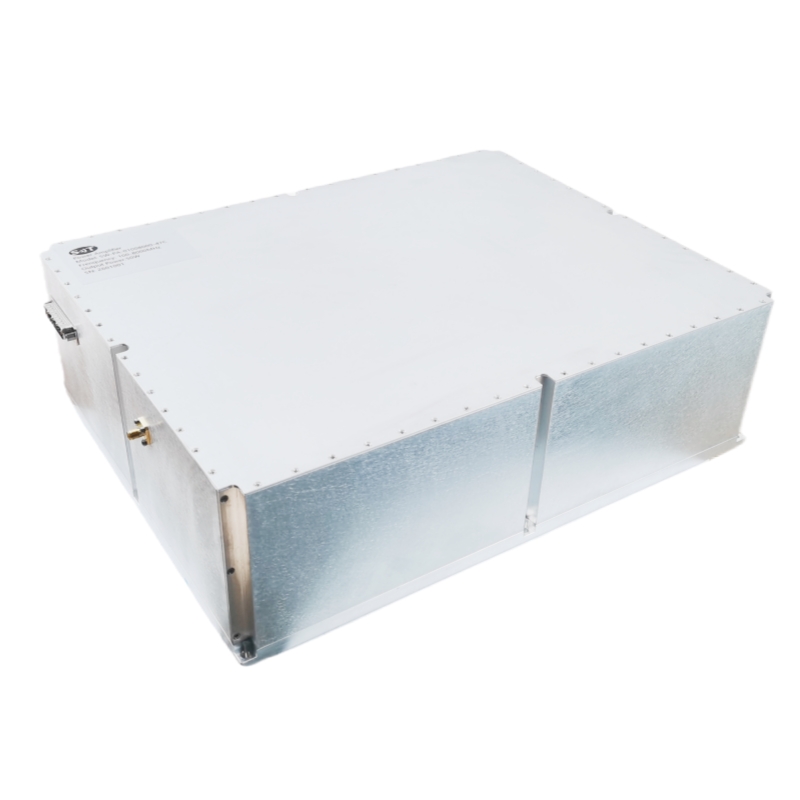

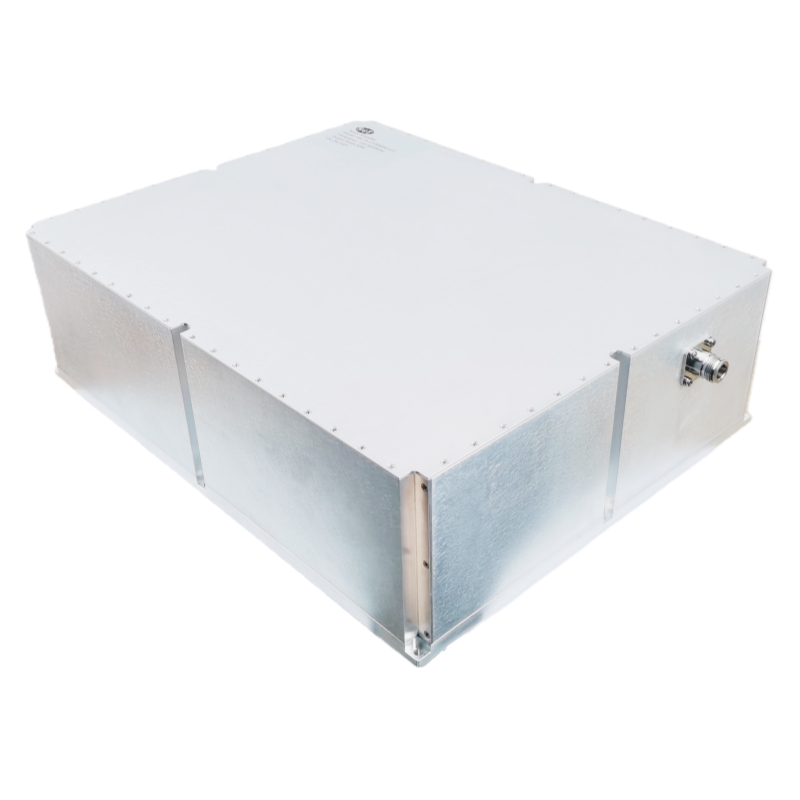

100–8000 MHz 50W Broadband RF Power Amplifier for Test, Measurement and RF Systems
1. Main Technical Specifications
qualification | code | Min | TYP | Max | Unit |
service frequency | BW | 100 | 8000 | MHz | |
saturated output power | Psat | 50 | W | ||
interiorinput power | Pin | 0 | dBm | ||
power gain flatness | ΔG | ±3 | dB | ||
power gain | Gp | 47 | dB | ||
Spurious suppression @Pout=47dBm | Spur | -50 | dBc | ||
Harmonic suppression @Pout=47dBm | 2nd/3nd | -20 | -10 | dBc | |
Enter the standing wave ratio | VSWRin | 2.0 | |||
input/output impedance | I/O-IMP | 50 | Ω | ||
supply electricity | Vdc | 28 | 30 | V | |
Power consumption @50W | Pdiss | 320 | 400 | W | |
operating temperature range | OT | -20 | +55 | ℃ | |
size | DM | 380×300×115mm³ | |||
weight | WT | No more than 15 kg | |||
heat radiation | Cooling | External radiator required for heat dissipation | |||
2. Interface Definition
interface code | interface type | interface function | remarks |
RFIN | SMA-K | radio frequency input | |
RFOUT | N-K | radio frequency output | |
DC | DSUB 4W4 male connector | power supply interface |
DSUB 4W4 Public Head Definition
pin | definition | function | remarks |
A1 | VDD | +28V | Power supply positive |
A2 | VDD | +28V | Power supply positive |
A3 | GND | GND | Power supply negative |
A4 | GND | GND | Power supply negative |

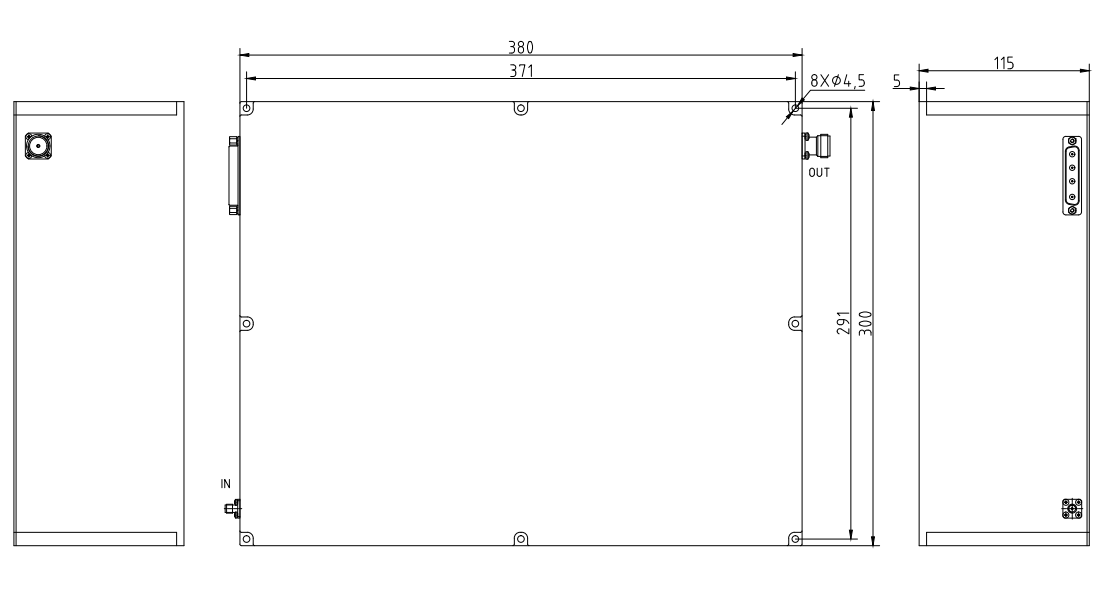

3. Dimensional drawing;
