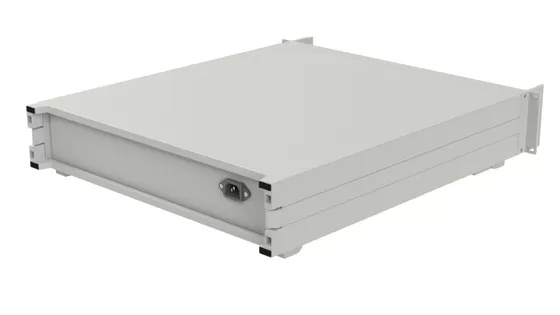

18-40 GHz Millimeter Wave Amplifiers Broadband RF Power Amplifiers for satellite communications, radar systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-1800040000-33C
Price：
Product Description
18-40 GHz Millimeter Wave Amplifiers Psat 33dBm Broadband RF Power Amplifiers for satellite communications, radar systems
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 18 | 40 | GHz | |
| Small Signal Gain | 33 | dB | ||
| Gain control | dB | |||
| Small Signal Gain Flatness | ±3 | ±5 | dB | |
| Noise Figure | dB | |||
| Output Power (Psat CW) | 33 | dBm | ||
| Spurious | dBc | |||
| Harmonic | dBc | |||
| VSWR | 1.8:1 | 2.5:1 | Ratio | |
| Input Voltage | 220 | Volt | ||
| Human-computer Interface | touch screen LCD:Voltage,Current,Gain | |||
| Program Control Interfac | TCP/IP and Ethernet | |||
Note:
1. VSWR Protection against any output mismatch.
2. Air forced cool.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +60 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 90 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

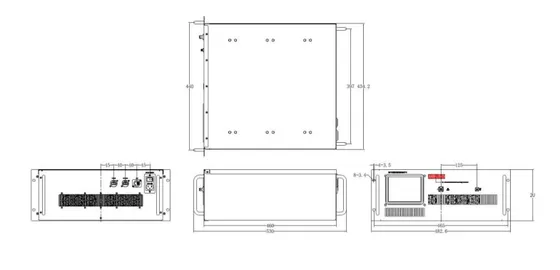

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 2U | Max | Millimeter |
| Weight | 15000 | Max | gram |
| RF Connectors Input | 2.92mm-F | ||
| RF Connectors output | 2.92mm-F | ||
| Forward / Reverse Detection Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
18-40 GHz RF Power Amplifiers
Operating Frequency:
18-40 GHz
Psat Output Power:
33dBm
Gain:
33dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20℃～+60℃
Application:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Transport Package:
2U
Specification:
Standard Packing
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
