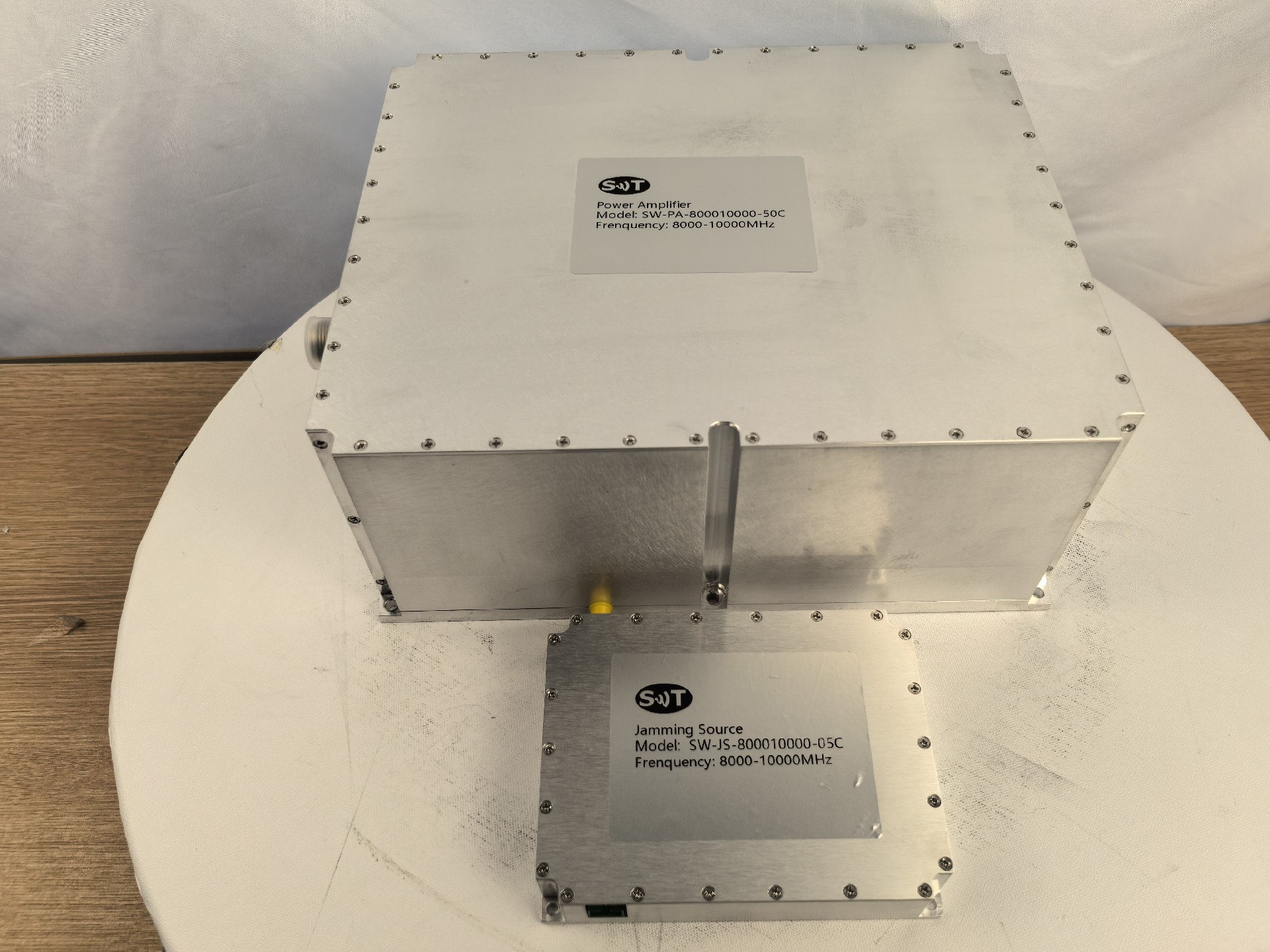

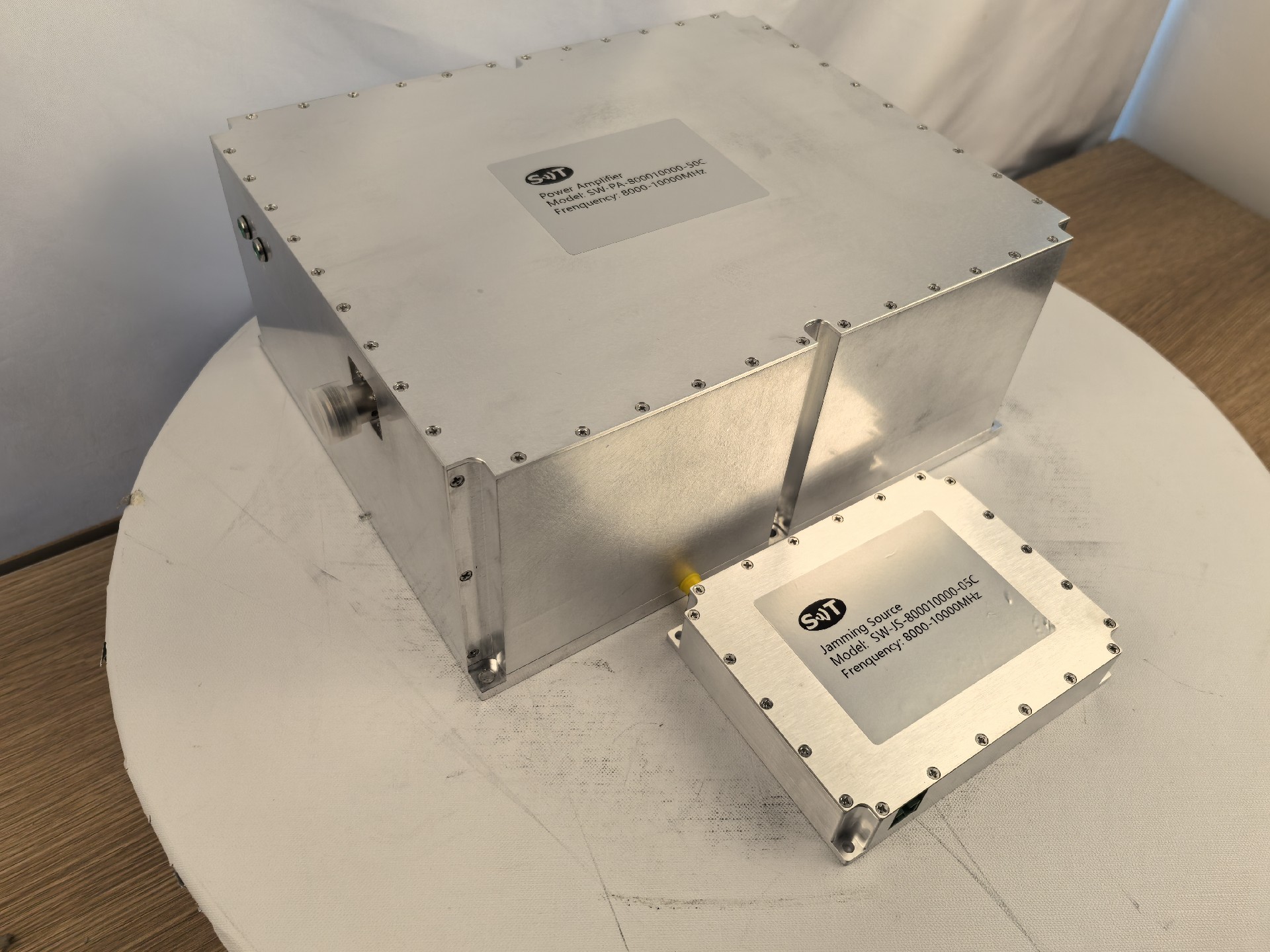

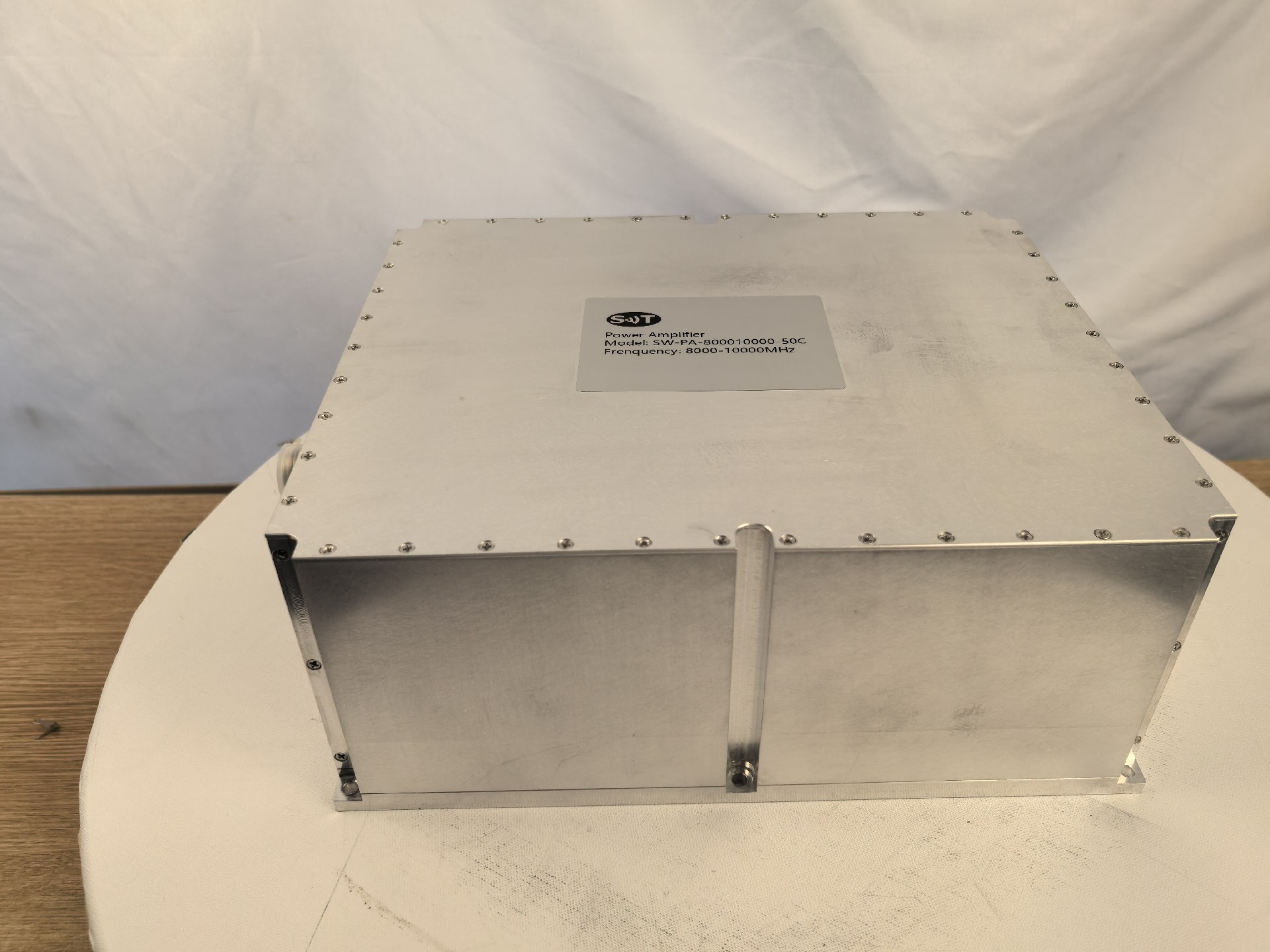

SW-PA-800010000-50C 100W power amplifier for military and commercial use
Place of Origin：China
Brand Name：SWT
Model Number：sw-pa-800010000-50c
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +32 VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 8000 | 10000 | MHz | |
Operation Mode | CW | -- | ||
Saturated Output Power | 50 | dBm | ||
Gain Flatness @ Psat | ±1.5 | dB | ||
Spurious Signals @ 100W | -55 | dBc | ||
Harmonic Signals @ 100W | -20 | dBc | ||
Input VSWR | 2 | -- | ||
Operating Voltage | 32 | V DC | ||
Currents | 20 | 25 | A | |
In-Out impedance | 50 | Ω | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

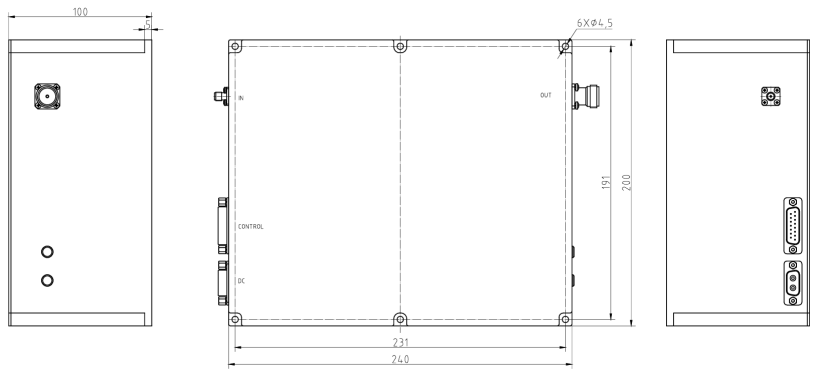

Dimensions (L x W x H) | 240*200*100 | mm |

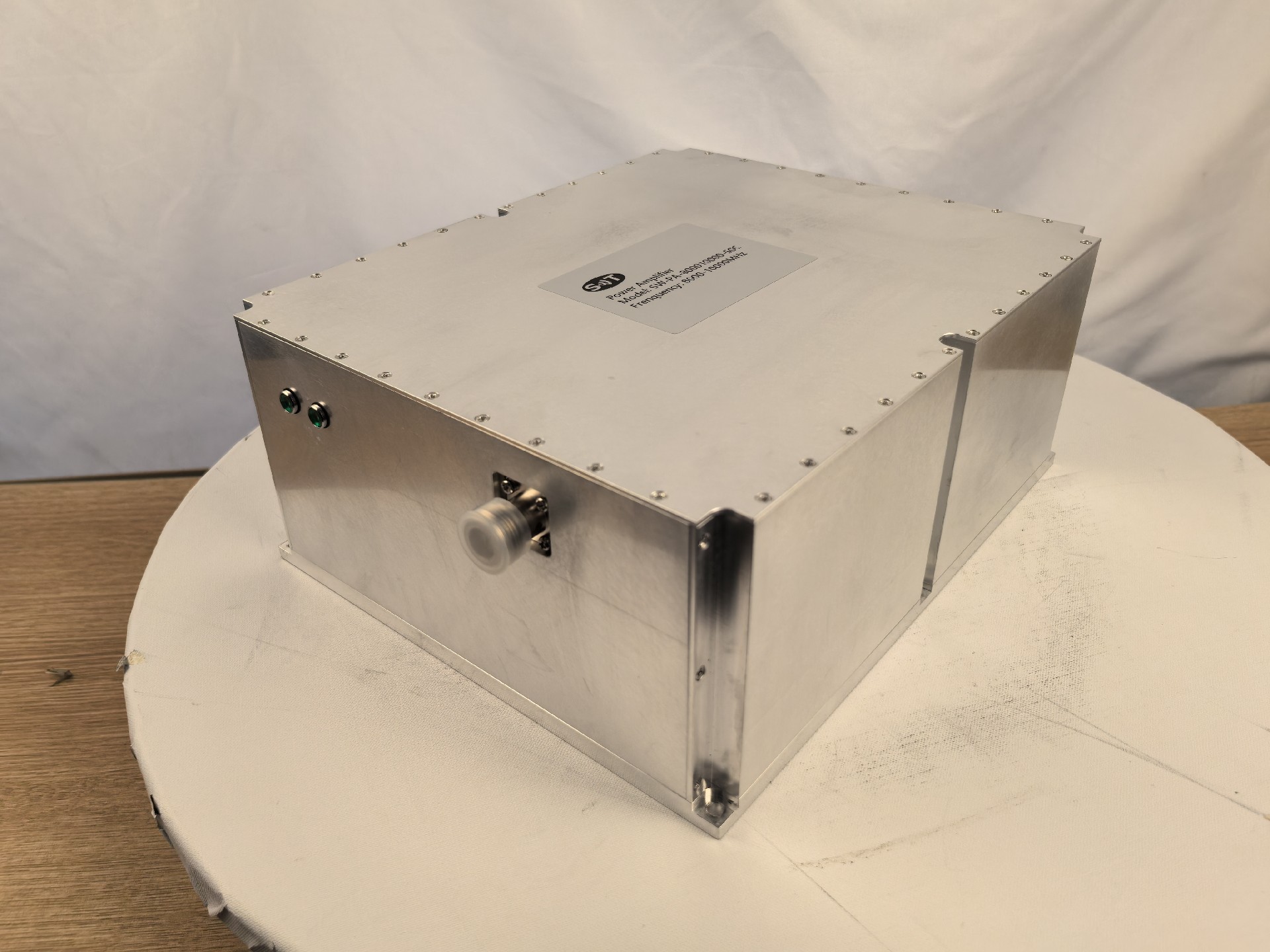

RF Connectors (Input/Output) | SMA- KFD /N- KFD | -- |
DC / Control Connector | D-SUB 2W2 M / D-B15 M | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | φ4.5-6 Thru Hole | -- |
Weight | ≤8 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -10 | +55 | °C |
Humidity Range | 0-95 | % | |
LED Monitoring | PA module must be have a LED for DC power on and another LED for RF power monitoring | -- | |
Protections | Open/Short Output Protection | -- | |
Over voltage protection | -- | ||
Reverse Polarity Protection | -- | ||
Over Temperature Protection | -- | ||
INPUT/OUTPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | D-SUB 2W2 M | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
A1 | +VDC | +32V | |
A2 | GND | Ground | |
INPUT/OUTPUT PINS | ||
AMPLIFIER CONNECTOR TYPE: | D-B15 M | |
TRIAD CABLE PART NUMBER: | —— | |
PIN NUMBER | LABEL | DESCRIPTION |
1 | Power On/OFF Control | Power OFF: TTL “Low”, Power On: TTL “High” (Low : 0~0.5V, High : 2.5~5V) |
2 | GND | Ground |
3 | RS485A | PC software communicate with PA through RS485 communication protocol TTL communication |
4 | RS485B | |
5 | GND | |
6-15 | NC | NC |
Product Details
Name:
100W Power Amplifier SW-PA-800010000-50C
Operating Frequency:
8000-10000 MHz (8-10 GHz)
Psat Output Power:
50 dBm (100W)
Gain:
Typ.50 dBm
Input Vswr:
Typ.2:1
Power Gain Flatness:
±1.5 dB @ Psat
Spurious Signals:
-55 dBc @ 100W
Harmonic Signals:
-20 dBc @ 100W
Operating Temp:
-10 ~ +55 °C
Application:
Military & Commercial RF
Transport Package:
Anti-static shockproof package
Specification:
32VDC,50Ω,CW,Multi-protection
