SW-PAR-07006000-53C 700-6000MHz 200W high-power RF power amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PAR-07006000-53C
Price：Please Contact Customer Service
Product Description
Description
The chassis is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight chassis.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 700 | 6000 | MHz | |
RF INPUT | 0 | 5 | dBm | |
Power Output range@ dBm | 23 | 53 | dBm | |
Power Output range@ W | 0.2 | 200 | W | |
P-1dB Power Output | 46 | dBm | ||
Power Gain | ||||
Power Gain Flatness | ±3 | dB | ||
lMD3 @2 tone power 43dbm@space 5MHz | -30 | -25 | dBc | |
Gain adjustable range | 0 | 30 | dB | |
Gain adjustable steps | 0.5 | dB | ||
Input VSWR | 1.75 | 2 | -- | |
In-Out impedance | 50 | Ω | ||
Operating Voltage | 200 | 220 | 260 | V AC |
Supply Power@200W | 1500 | W | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

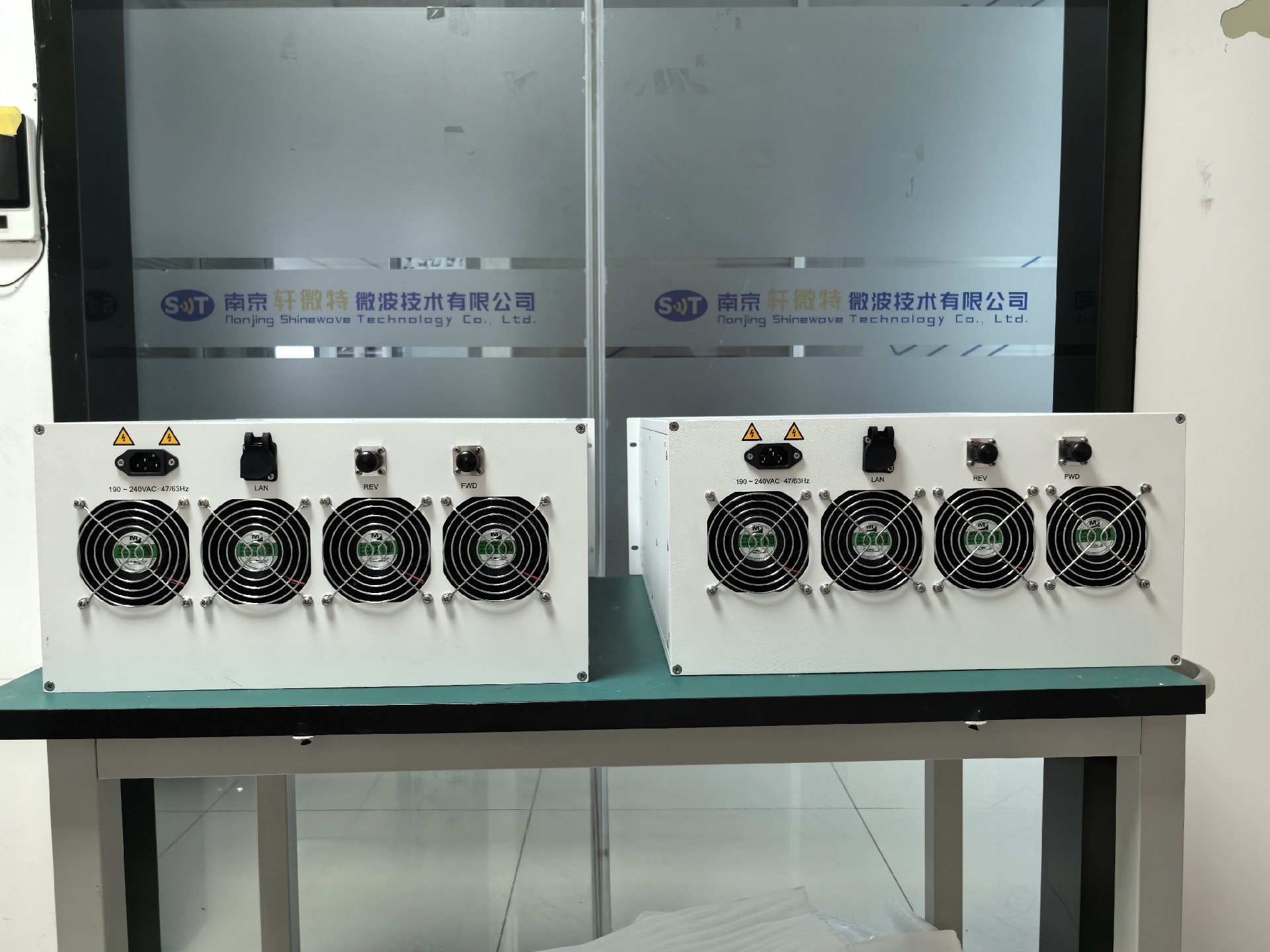

Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*550*223 | mm |
RF Connectors (Input / Output) | N-K / N-K (female) | -- |
Control Connector | RJ45：Remote control and monitoring can be realized through LAN | -- |
Cooling | Built-in cooling system, forced air cooling | -- |
Weight | ≤45 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -10 | +55 | °C |
Humidity Range | 0-95 | % | |
Protections | With over temperature protection, input over power protection, output mismatch protection | -- | |

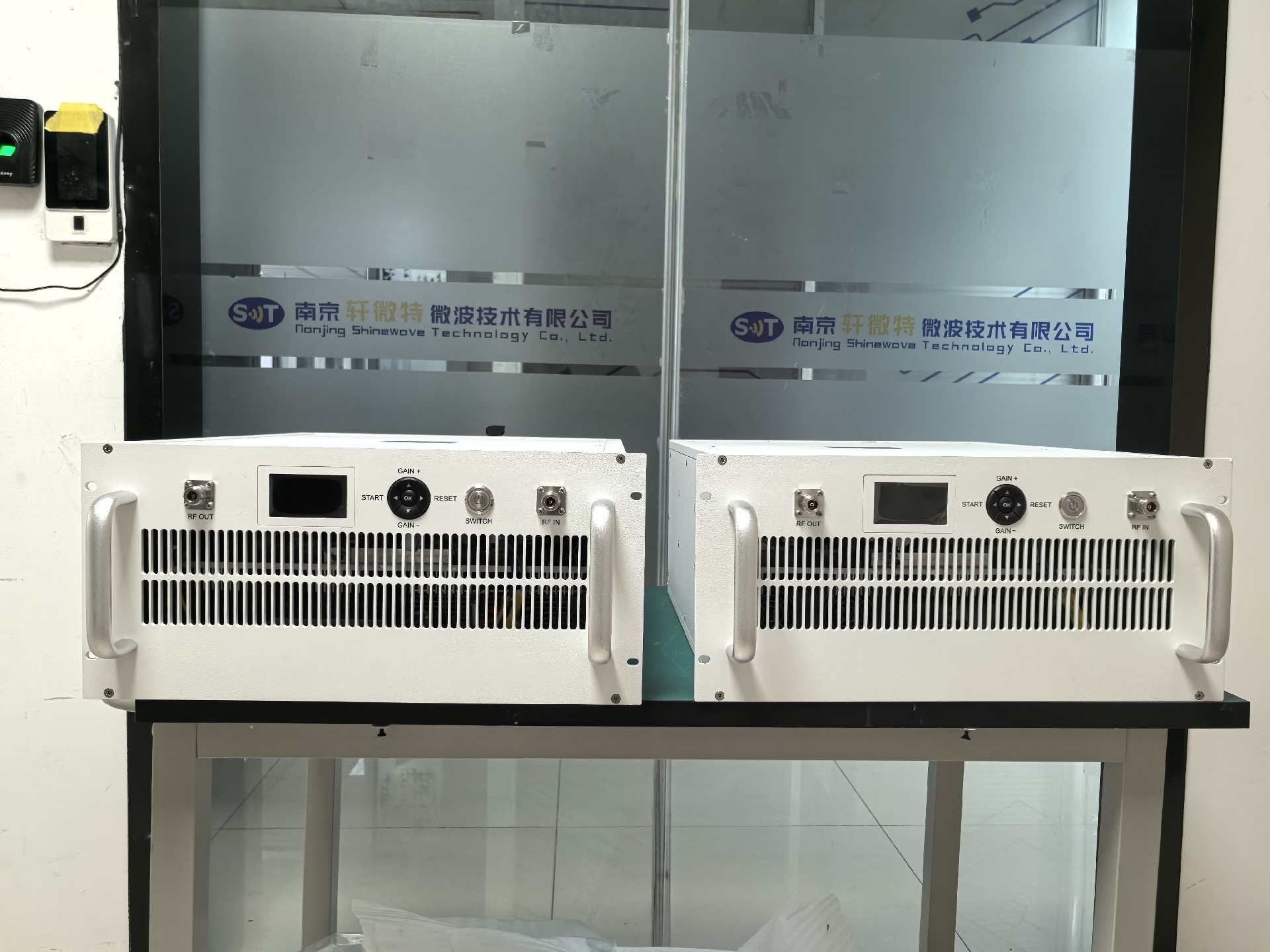

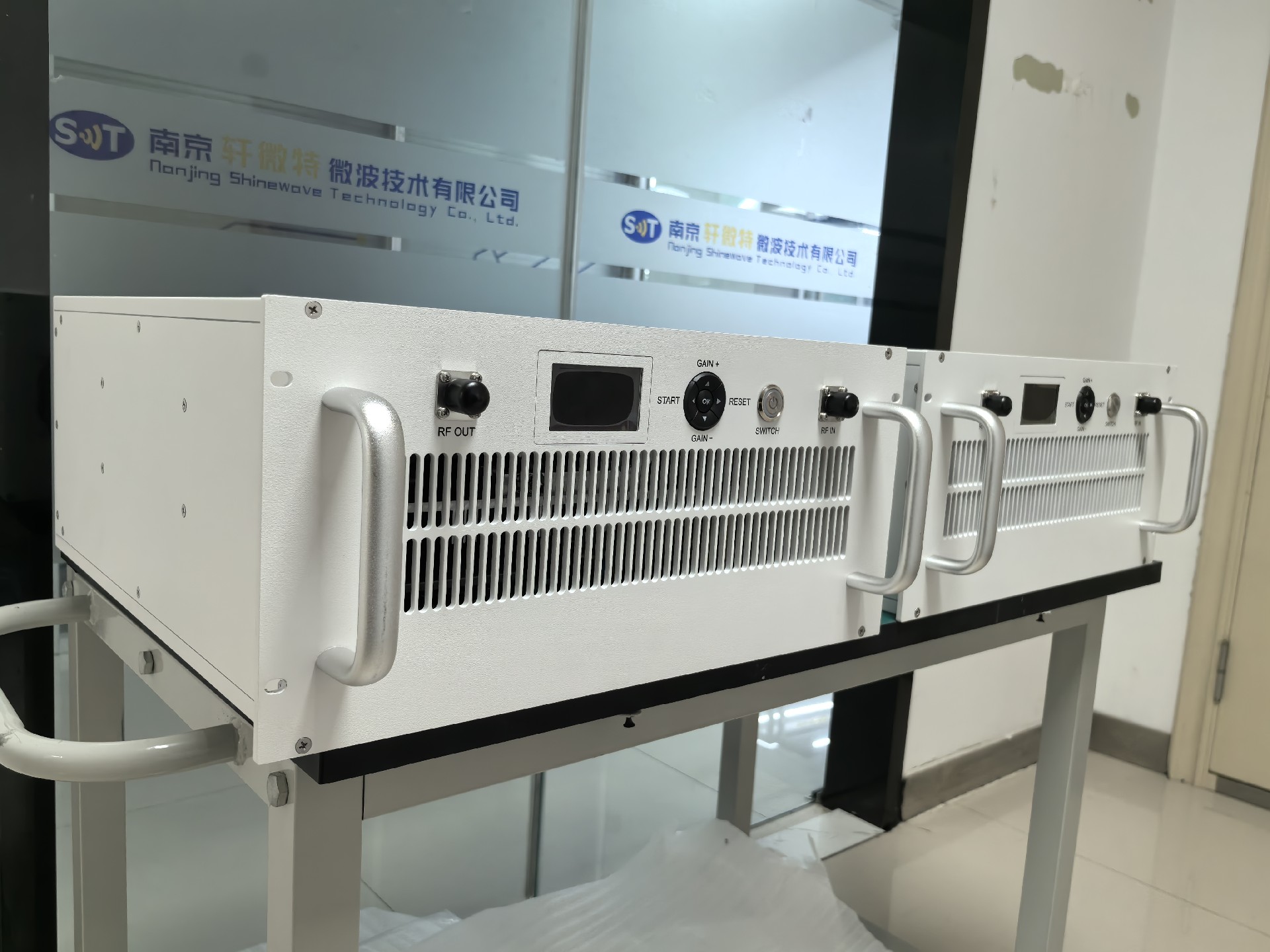

INPUT/OUTPUT panel Connector | ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |
X1 | N-FK | RF IN |
X2 | N-FK | RF OUT |
X3 | LCD Display | Human-computer interaction interface |
X4 | Switch | AC/220V/50Hz |

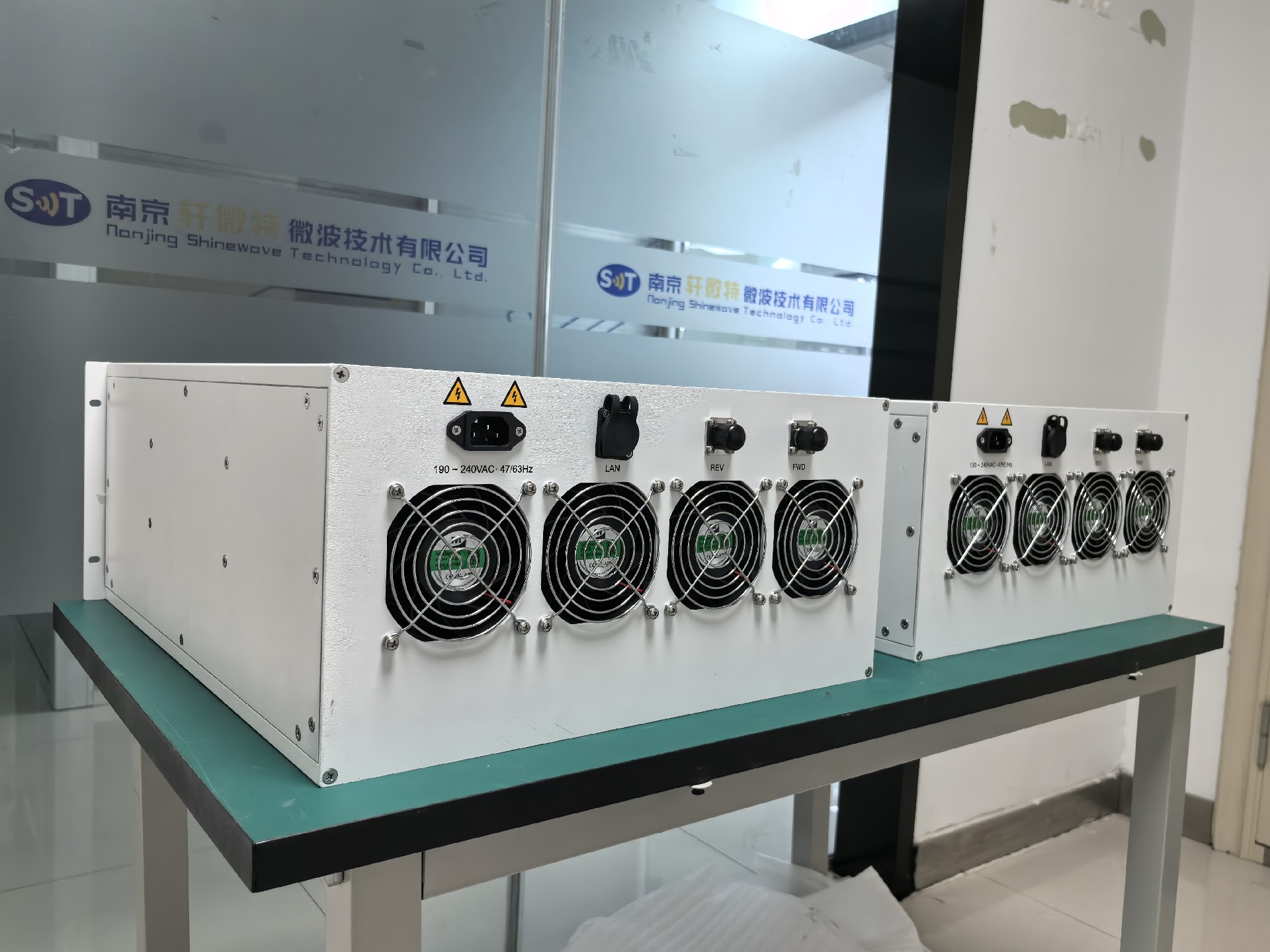

X5 | RJ45 | LAN (Control and monitoring) |
X6 | N-FK | Forward coupling port |
X7 | N-FK | Reverse coupling port |

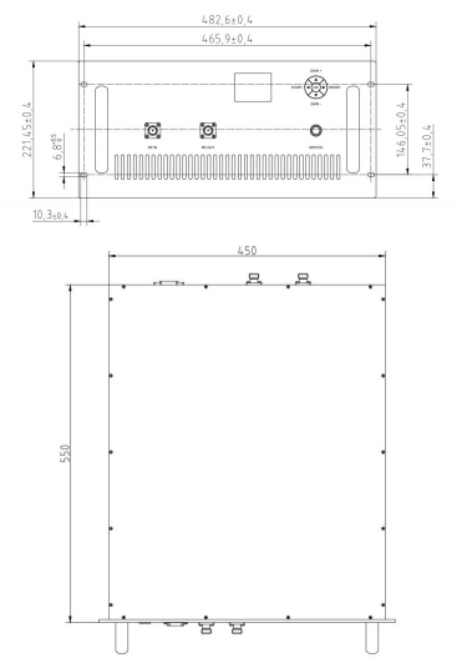

Outline Dimensional Drawing (TBD)
Product Details
Name:
200W Power Amplifier
Operating Frequency:
700–6000 MHz
Psat Output Power:
200 W (53 dBm)
Gain:
Adjustable 0–30 dB, step 0.5 dB
Input Vswr:
≤2:1
Power Gain Flatness:
±3 dB
Spurious Signals:
IMD3 ≤–25 dBc (2 tone, 5 MHz spacing, 43 dBm)
Harmonic Signals:
Not specified (standard for class)
Operating Temp:
–10°C to +55°C
Application:
Defense & Commercial
Transport Package:
Standard export pack
Specification:
50Ω, 5U, LAN, protection
