26.5 - 40GHz Broadband RF Power Amplifiers for millimeter-wave communications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-2650040000-46C
Price：
Product Description

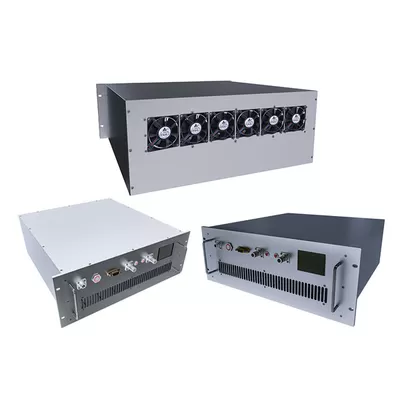

26.5 - 40GHz Broadband RF Power Amplifiers for millimeter-wave communications
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 26.5 | 40 | GHz | |
| Gain | 40 | dB | ||
| Gain control | dB | |||
| Gain Flatness | ±3 | dB | ||
| Noise Figure | dB | |||
| Output Power P1dB | 40 | Watt | ||
| Spurious | dBc | |||
| Harmonic | dBc | |||
| VSWR | 2:1 | Ratio | ||
| Input Voltage | 220 AC | Volt | ||
| Human-computer Interface | touch screen LCD:Voltage,Current,Gain,FWD Power | |||
| Program Control Interfac | RS422 and Ethernet | |||
Note:
1. Over Voltage Protection; Over Current Protection:Over REV VSWR Protection:Enable:Modulation.
2. Detection Function:FWD/REV Power;Coupling.
3. Forced air cooling.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | 5 | dBm | ||
| Operating Temperature | 0 | +50 | ℃ | |
| Non-operating Temperature | -20 | +70 | ℃ | |
| Relative humidity (non-condensing) | 90 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

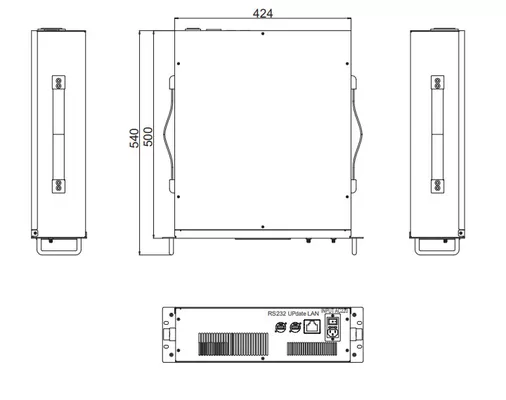

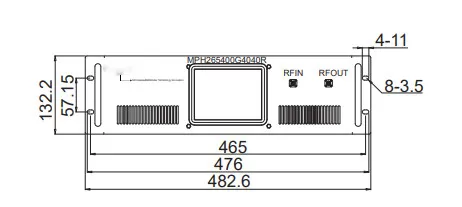

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 19’ 3U | Max | Millimeter |
| Weight | 15000 | Max | gram |
| RF Connectors Input | 2.92mm-F | ||
| RF Connectors output | 2.92mm-F | ||
| Forward / Reverse Detection Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
26.5 - 40GHz Broadband RF Power Amplifiers
Operating Frequency:
26.5 - 40GHz
Psat Output Power:
40W
Gain:
40dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20℃～+50℃
Application:
wireless communications, radar systems, satellite communications, broadcasting, millimeter-wave communications
Transport Package:
3U
Specification:
Standard Packing
