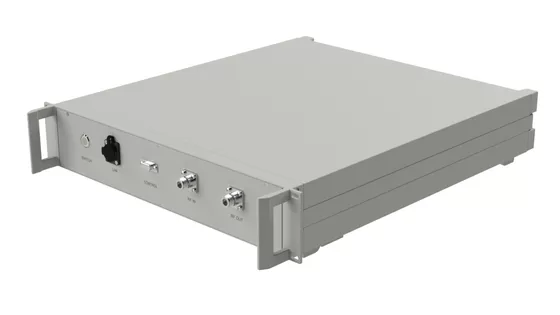

40-52 GHz Millimeter Ultra Communication module rf power Amplifiers for radar systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-4000052000-31C
Price：
Product Description
40-52 GHz Millimeter Ultra Communication module rf power Amplifiers for radar systems
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 40 | 52 | GHz | |
| Small Signal Gain | 30 | dB | ||
| Small Signal Gain Flatness | ±2.5 | dB | ||
| Gain control | 10 | dB | ||
| Output Power (Psat CW) | 31 | dBm | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic | -20 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| Input Voltage | 220VAC | |||
| Human-computer Interface | touch screen LCD:Voltage,Current,Gain | |||
| Program Control Interfac | RS422 and Ethernet | |||
Note:
1. Over temperature protection:75℃.
2. Forced air cooling.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | dBm | |||
| Operating Temperature | -20 | +50 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 90 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||
| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 2U | Max | Millimeter |
| Weight | 1500 | Max | gram |
| RF Connectors Input | 1.85mm-F | ||
| RF Connectors output | 1.85mm-F | ||
| Impedance | 50 | Ohms | |
Product Details
Name:
40-52 GHz rf power Amplifier
Operating Frequency:
40-52 GHz
Psat Output Power:
31dBm
Gain:
30dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±2.5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Operating Temp:
-20℃～+50℃
Application:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Transport Package:
2U
Specification:
Standard Packing
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
