50 - 75 GHz Millimeter Wave Amplifiers Psat 25 dBm RF Amplifier Module for 5G Networks
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-5000075000-25C
Price：
Product Description
50 - 75 GHz Millimeter Wave Amplifiers Psat 25 dBm RF Amplifier Module for 5G Networks
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 50 | 75 | GHz | |
| Gain | 25 | dB | ||
| Gain Flatness | ±2 | dB | ||
| Psat Output Power | 23 | 25 | dBm | |
| Spurious | -60 | dBc | ||
| Harmonics | -15 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| DC Power Supply | 5 | Volt | ||
| Current | 1200 | mA | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +60 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | / | feet | ||
| Shock / Vibration (MIL-STD-810F) | / | |||

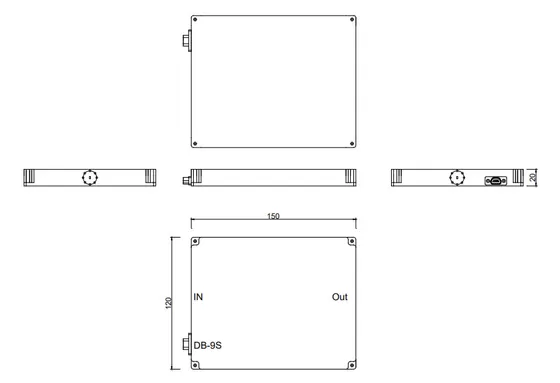

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 150*120*20 | Max | Millimeter |
| Weight | 600 | Max | gram |
| RF Connectors Input | WR19 | ||
| RF Connectors output | WR19 | ||
| Power supply Connects | DB-9S | ||
| Impedance | Ohms | ||
Product Details
Name:
0.01~18GHz
Operating Frequency:
12~16V, 600mA
Psat Output Power:
25dBm
Gain:
5dBtyp@23℃
Input Vswr:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm
Power Gain Flatness:
±2dBp-p
Spurious Signals:
2:1 Ratio
Harmonic Signals:
≥20dBm typ
Operating Temp:
-40℃～+80℃
Application:
Radar, Electronic Warfare, Test and Measurement
Transport Package:
55*55*13mm
Specification:
Standard Packing
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
