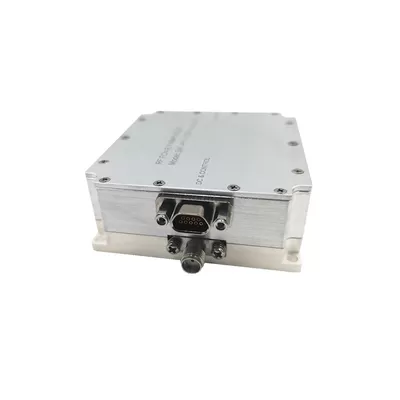

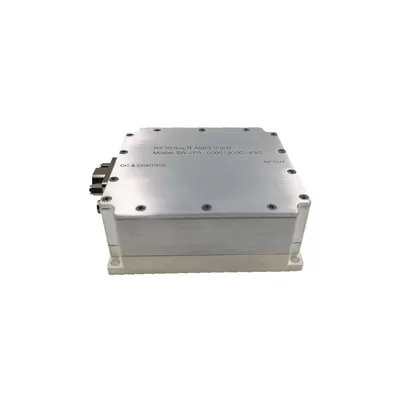

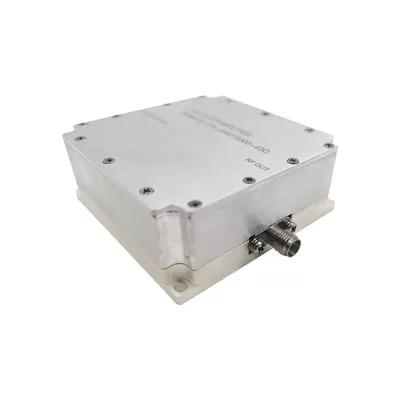

6-18GHz PSat 40dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and reseach
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-600018000-40C
Price：
Product Description
The 6000-18000 MHz 43dBm RF Power Amplifier is a high-power amplifier designed specifically for this frequency range, offering an output power of 43dBm.
It has a wide range of applications, playing a crucial role in communication, radar, and scientific research fields.
Key Features:
Wide Frequency Range: The amplifier is suitable for the 6000-18000 MHz frequency range, covering a broad spectrum from microwave to millimeter wave frequencies.
High Output Power: With an output power of 43dBm, it is suitable for applications requiring high-power signals.
Signal Amplification and Processing: The amplifier provides signal amplification and processing capabilities, ensuring reliable signal transmission and processing.
Multi-domain Applications: Widely used in communication systems, radar technology, and scientific research, supporting various application requirements.
Key Applications:
Communication Systems: Used to enhance communication signals within the 6000-18000 MHz frequency range, supporting high-speed data transfer and reliable communication.
Radar Technology: Used in radar systems for signal transmission and reception, enabling target detection and tracking.
Scientific Research: Used in experiments and testing in laboratories and research institutions, such as radio astronomy and microwave spectroscopy.
Overall, the 6000-18000 MHz 43dBm RF Power Amplifier is a powerful and versatile device, providing reliable signal amplification and processing capabilities for a wide range of applications.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 6000 | 18000 | MHz | |
| RF INPUT | 0 | dBm | ||
| P-sat Power Output | 40 | dBm | ||
| Power Gain | 40 | dB | ||
| Power Gain Flatness | ±2 | ±3 | dB | |
| Input VSWR | 1.5 | 2 | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals | -15 | dBc | ||
| Operating Voltage | 28 | VDC | ||
| In-Out impedance | 50 | Ω | ||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 62.6*60.6*24 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ SMA- KFD | -- |
| DC / Control Connector | J30J-15ZKP | -- |
| Cooling | Consider heat dissipation with the system | -- |
| Mounting | φ2.8-4 Thru Hole | -- |
| Weight | ≤1 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | 0 | +50 | °C |
| Humidity Range | 0-100 | % | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | J30J-15ZKP | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-3 | +VDC | +28V | |
| 4-6 | GND | Ground | |
| 7 | Amp Enable | Disable : TTL “Low”, Enable: TTL “High” (Low : 0~0.5V, High : 2.5~5V) | |
| 8 | NC | NC | |
| 9 | NC | NC | |
Product Details
Name:
6-18GHz
Operating Frequency:
12~16V, 600mA
Psat Output Power:
40dBm
Gain:
5dBtyp@23℃
Input Vswr:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm
Power Gain Flatness:
±2dBp-p
Spurious Signals:
2:1 Ratio
Harmonic Signals:
≥20dBm typ
Operating Temp:
-40℃～+80℃
Application:
Radar, Electronic Warfare, Test and Measurement
Transport Package:
55*55*13mm
Specification:
Standard Packing
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
