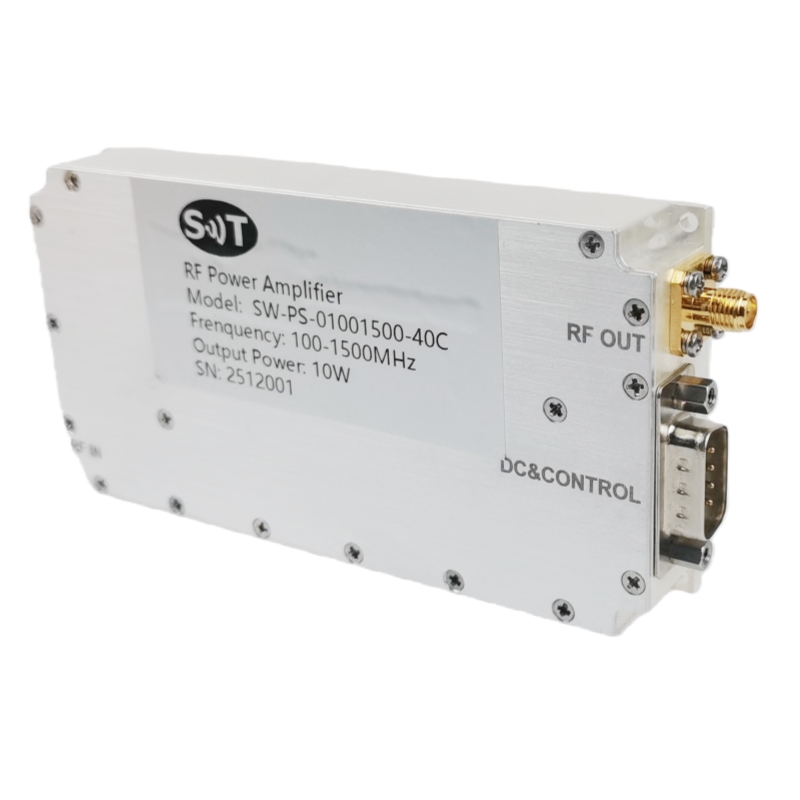

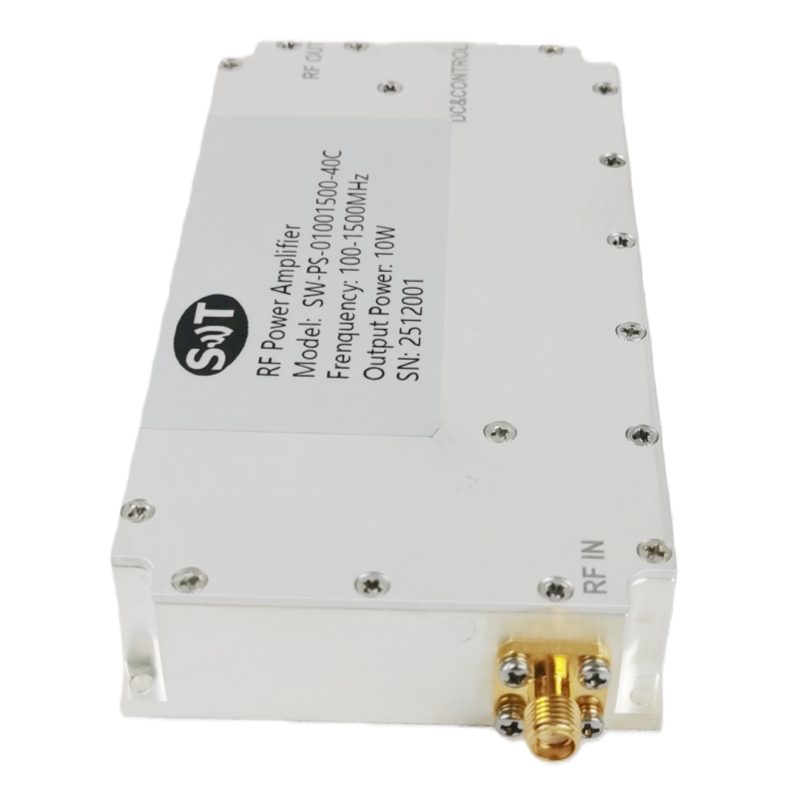

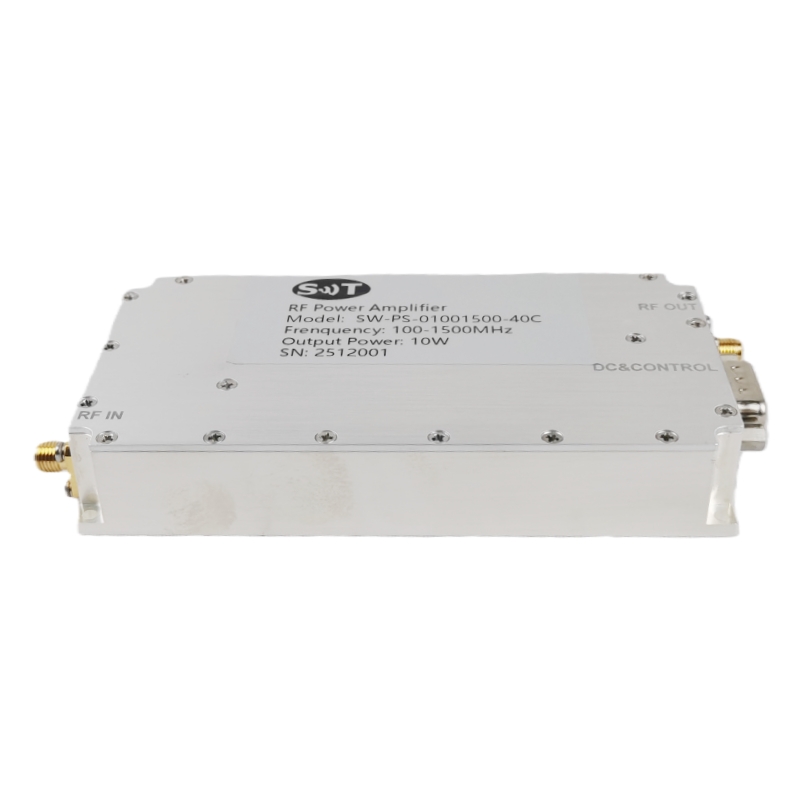

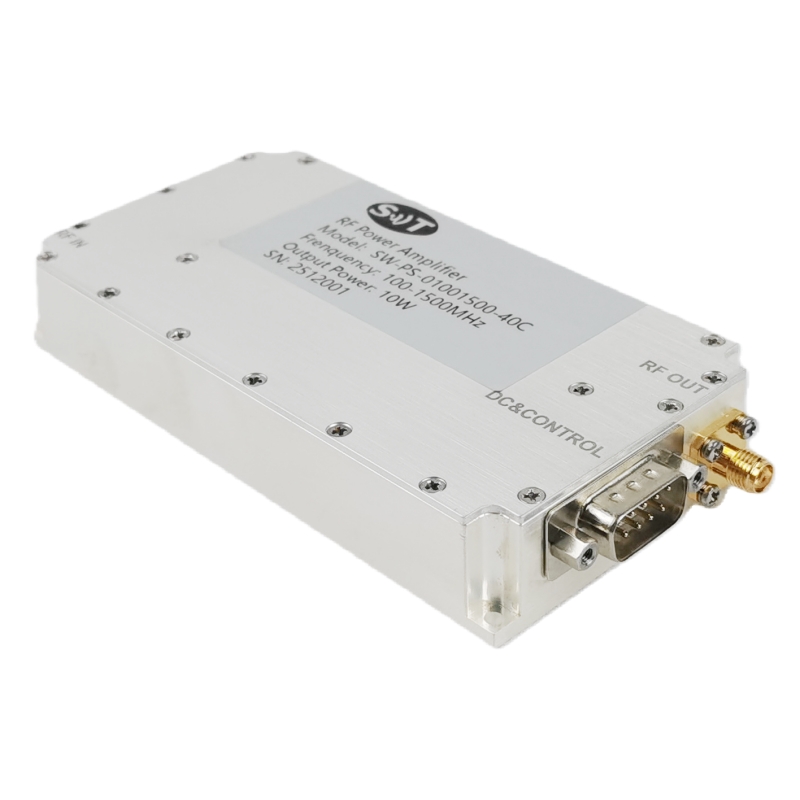

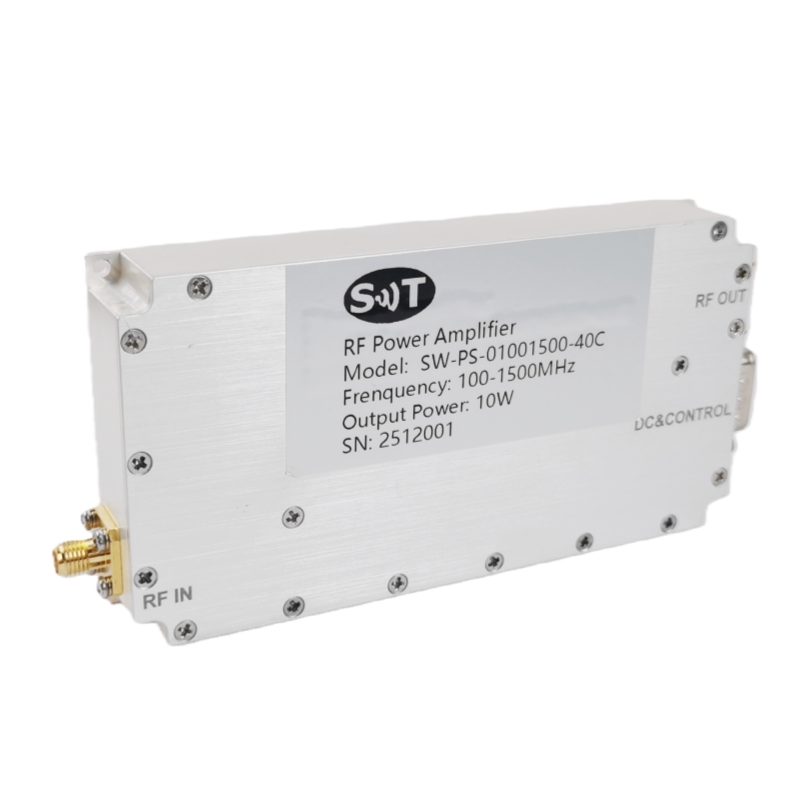

100-1500 MHz Broadband 40 dB Gain 10W Saturated Output Power Amplifier Module for Industrial and Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-01001500-40C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 100 | 1500 | MHz | |
RF INPUT | 0 | dBm | ||
P-sat Power Output | 40 | dBm | ||
Power Gain (Pin @ 0 dBm) | 40 | dB | ||
Gain Flatness (Pin @ 0 dBm) | ±2 | dB | ||
Input Return Loss | -15 | dB | ||
Operating Voltage | 28 | 32 | VDC | |
In-Out impedance | 50 | Ω | ||
Quiescent Current Consumption | 0.5 | A | ||
Current Consumption @ Pin 0dBm | 1.8 | 2 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

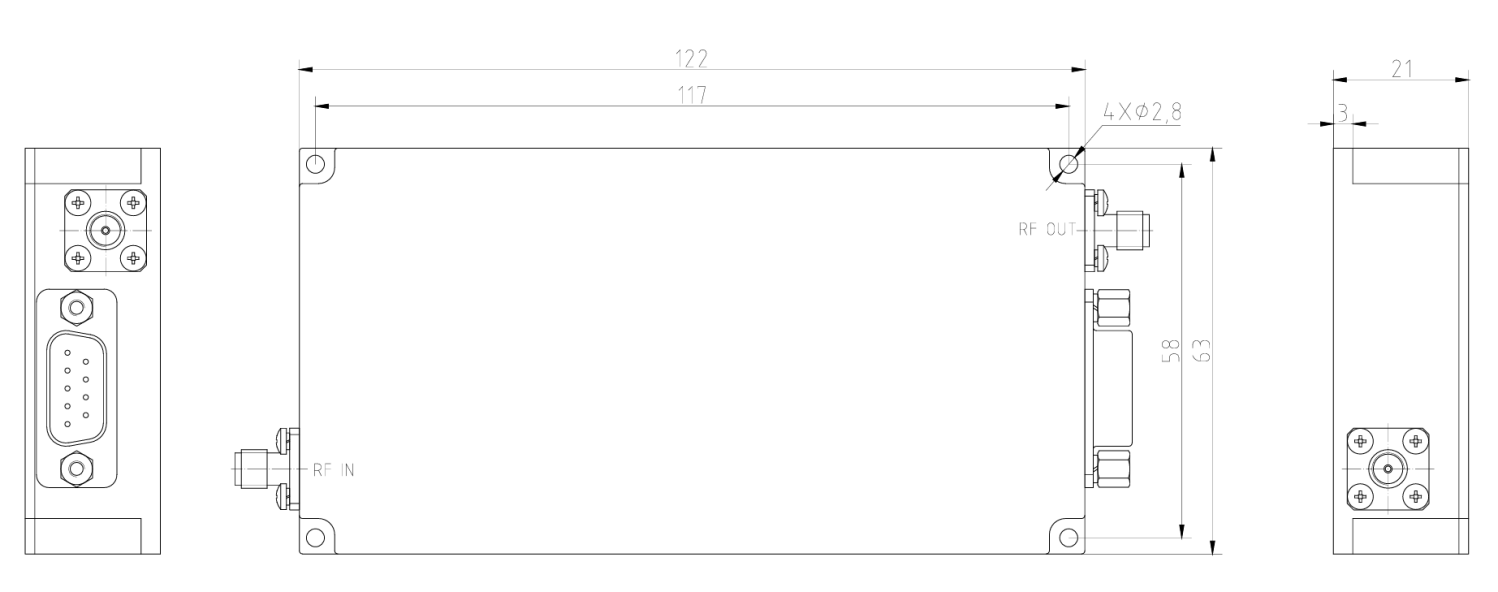

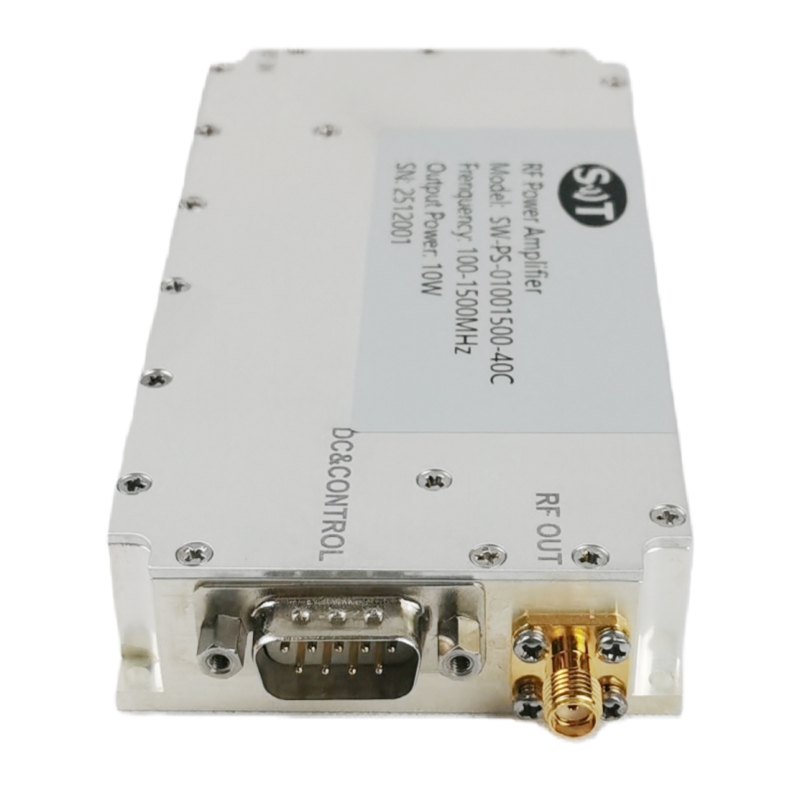

Dimensions (L x W x H) | 122 x63 x 21 | mm |
RF Connectors (Input / Output) | SMA- KFD/ SMA - KFD | -- |
DC /Control Connector | DB9 | -- |
Cooling | Consider heat dissipation with the system (Not Supplied) | |
Mounting | φ2.8-4 Thru Hole | -- |
Weight | ≤0.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +55 | °C |
Storage Temp. | -40 | +80 | °C |
Humidity Range | 0-95 | % | |
INPUT/OUTPUT PINS | ||
AMPLIFIER CONNECTOR TYPE: | DB9 | |
TRIAD CABLE PART NUMBER: | —— | |
PIN NUMBER | LABEL | DESCRIPTION |
1 | VDD | +28 VDC |
2 | VDD | +28 VDC |
3 | VDD | +28 VDC |
4 | GND | GND |
5 | GND | GND |
6 | GND | GND |
7 | Temperature Monitor | Reference voltage : 750mV @ 25°C, Scale : 10mV/°C |
8 | Enable / Disable | On : TTL"Low"(Enable) (0-0.5V) Off : TTL "High" (50mA @ Disable) (2.5-5V) |
9 | NC | NC |
