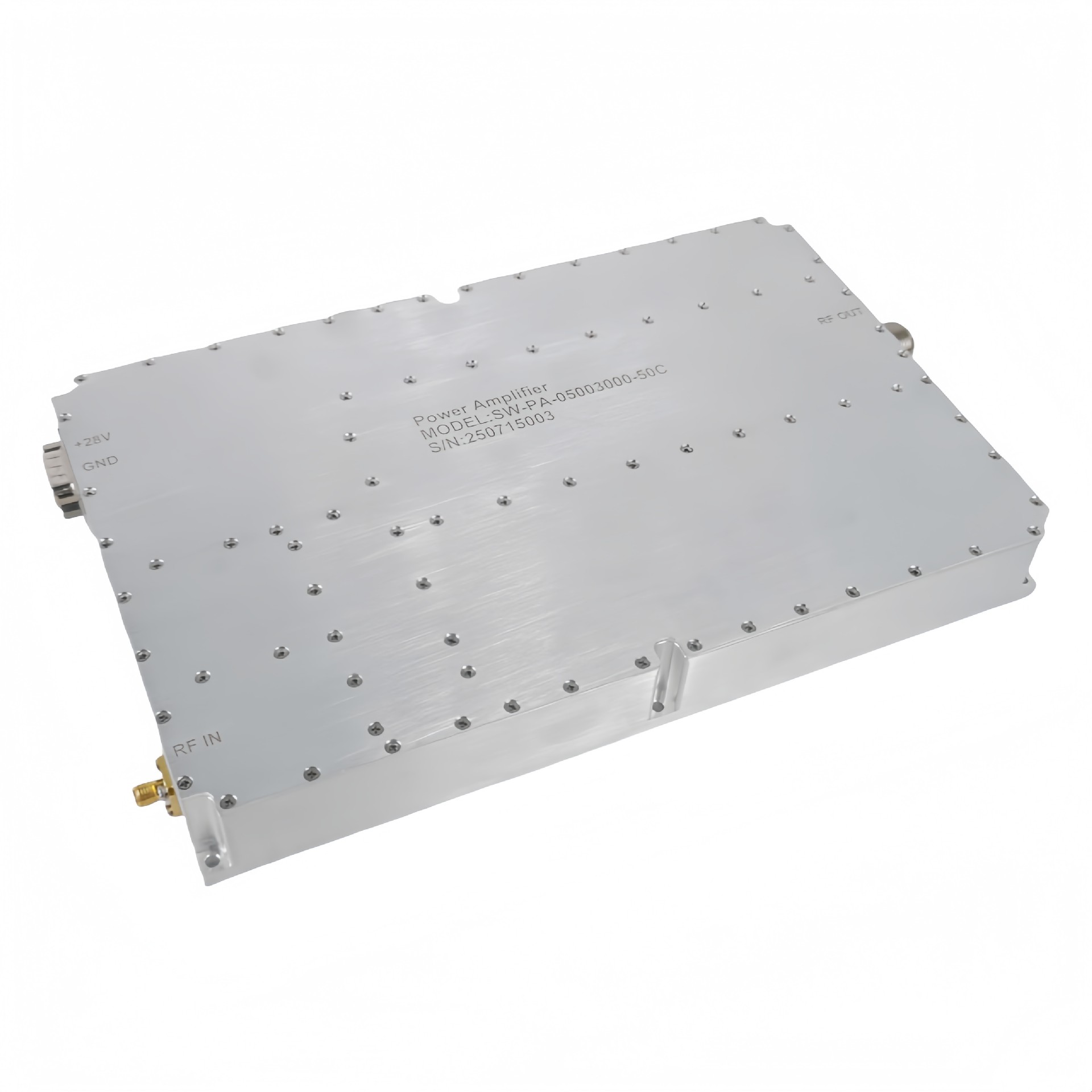

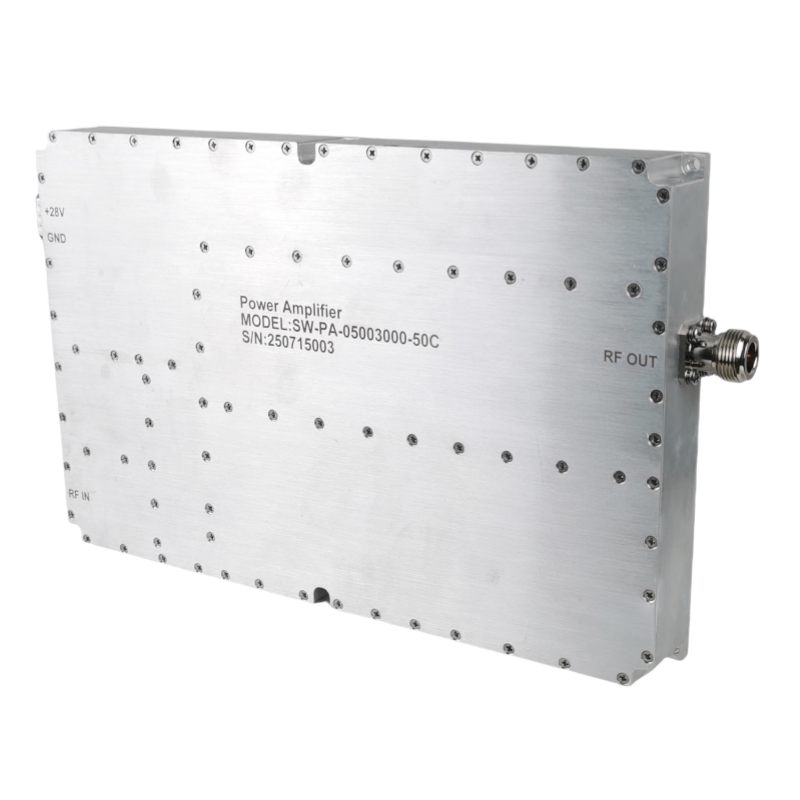

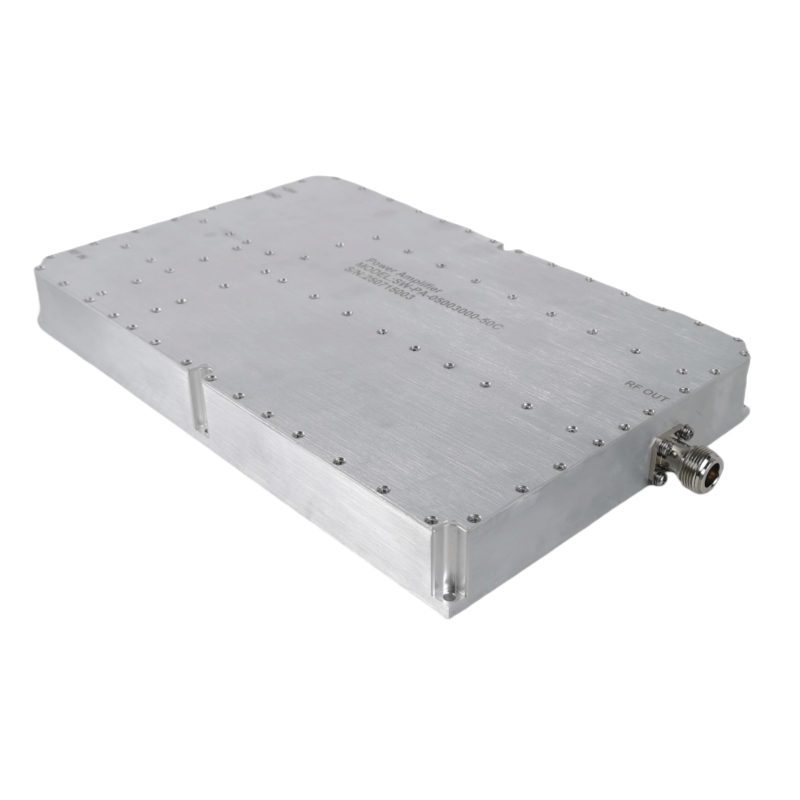

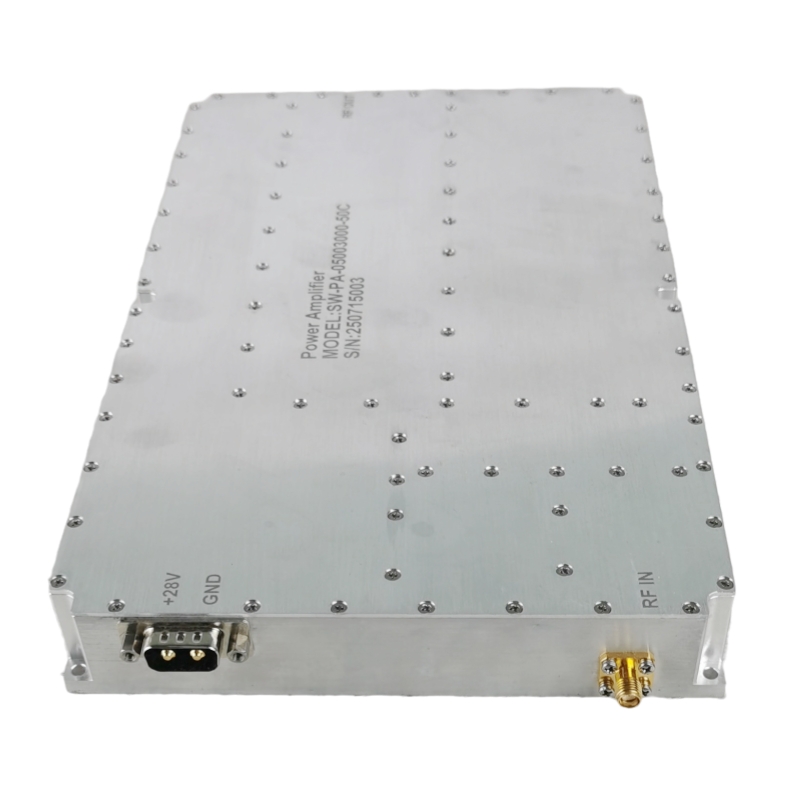

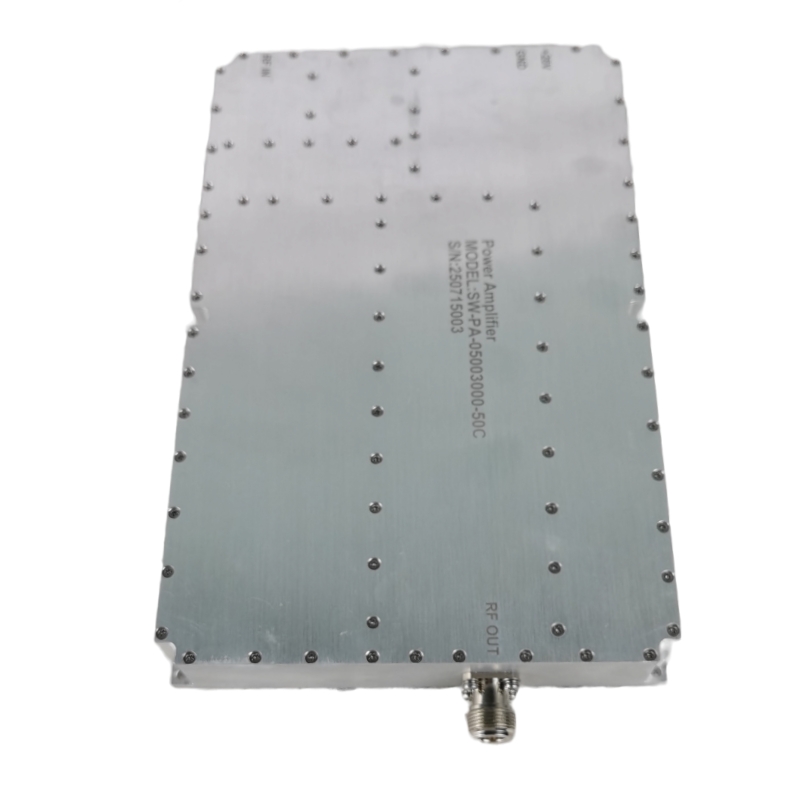

500-3000MHz Power Amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-05003000-50C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28 VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 500 | 3000 | MHz | |
PSat Power Output | 50 | dBm | ||
RF Intput | 0 | dBm | ||
In/Out Impedance | 50 | Ω | ||
Operating Voltage | 28 | 30 | V | |
Power consumption | 420 | 500 | W | |
Operating Temp. (Housing Temp.) | -20 | +25 | +55 | ℃ |

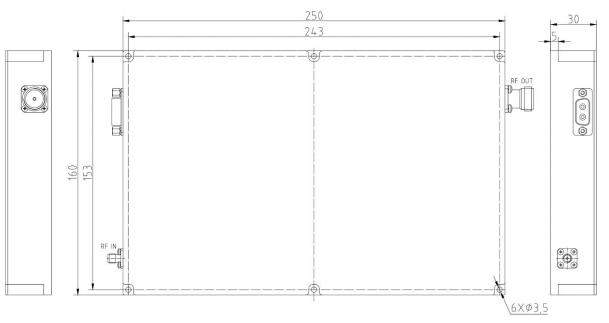

Dimensions (L x W x H) | 250*160*25 | mm3 | ||
Weight | ≤4 | kg | ||
Cooling | Requires external radiator for heat dissipation | |||
Interface Definition | |||
INTFACE CODE | INTERDACE TYPE | INTERFACE FUNCATION | NOTE |
RFIN | SMA-K | RF Input | |
RFOUT | N-K | RF Output | |
DC | D-SUB 2W2(M) | Power Supply Port | |
DSUB 2W2 Male Definition | |||
PIN | DEFINITION | FUNCATION | NOTE |
A1 | VDD | +28V | Power Positive |
A2 | GND | GDN | Power Negative |
Product Details
Name:
Power Amplifier Module
Operating Frequency:
500-3000MHz
Psat Output Power:
50dBm
Gain:
50dBm
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
