Customized Ultra-Broadband 400-6000MHz All-Alumium Cavity Solid State RF Power Amplifier for Electronic Warfare
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-04006000-33C
Price：$1258/pcs
Product Description
Customized Ultra-Broadband 400-6000MHz All-Alumium Cavity Solid State RF Power Amplifier for Electronic Warfare
The 400-6000MHz 2W RF power amplifier is a high-performance, medium-power device suitable for various RF and wireless communication applications. Key features include:
Wide Frequency Range: Covers 400MHz to 6000MHz, suitable for diverse communication and testing scenarios.
2W Output Power: Provides 33dBm output, ideal for medium-range signal transmission.
High Gain: Delivers 30dB gain, effectively amplifying signals.
Compact Design: Small form factor for easy integration.
Applications:Used in wireless communication, testing equipment, radar, and electronic warfare to enhance signal transmission and system performance.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 400 | 6000 | MHz | |
| Oeration mode | Seep frequency source | |||
| P-sat Power Output | 46.5 | 47 | dBm | |
| Power Gain Flatness | ±2.5 | dB | ||
| Input VSWR | 2 | |||
| Operating Voltage | 28 | VDC | ||
| In-Out impedance | 50 | |||
| Current | 7 | 8 | A | |
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 200x150x30 | mm |
| RF Connectors (Input / Output) | N- KFD | -- |
| DC / Control Connector | D SUB 7W2 | -- |
| Cooling | Consider heat dissipation with the system | -- |
| Mounting | 3-6 Thru Hole | -- |
| Weight | ≤1.5 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -40 | +60 | °C |
| Humidity Range | 0-100 | % | |
| PA Baseplate Shutoff Temperature | + 90 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | D SUB 7W2 | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| A1 | +VDC | +28V | |
| A2 | GND | Ground | |
| 1-2 | NC | NC | |
| 3 | RS485A | Gain Control and Seep speed Control | |
| 4 | RS485B | ||
| 5 | GND | ||

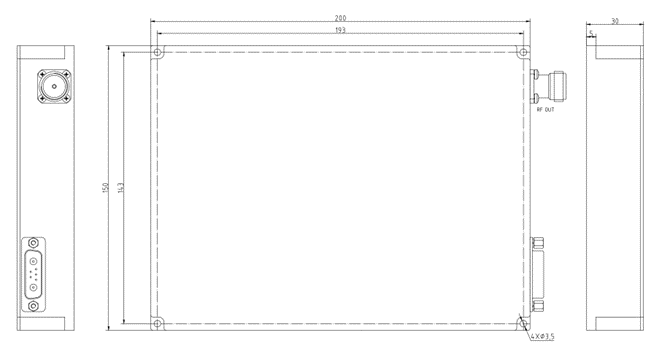

Outline Dimensional Drawing

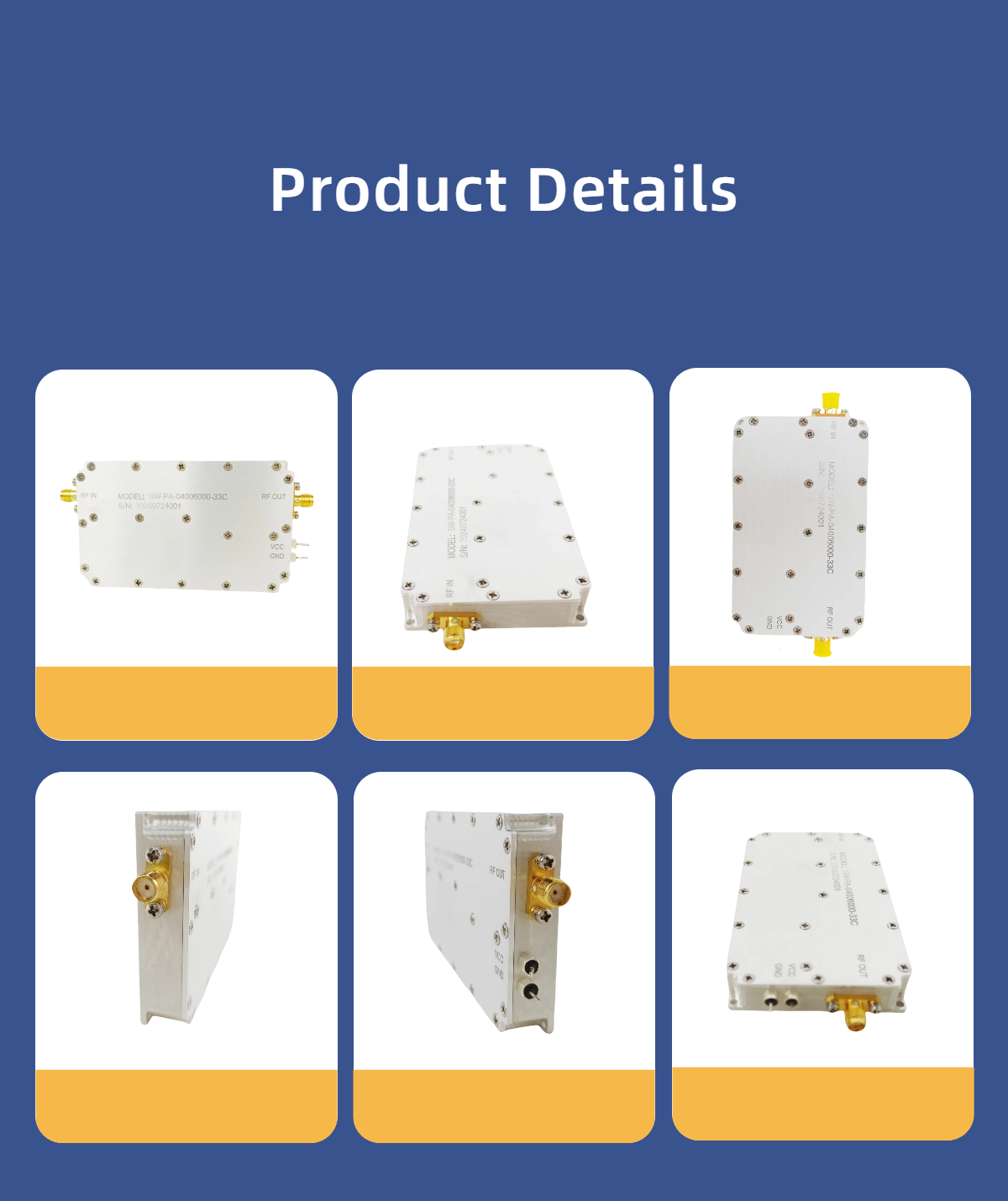

Product Details
Name:
High-Performance Medium-Power Device 400-6000MHz 2W RF Power Amplifier for Medium-Range Signal Transmission
Operating Frequency:
0.4-6GHz
Psat Output Power:
2W
Gain:
33dB
Input Vswr:
2
Power Gain Flatness:
±2.5dB
Spurious Signals:
Harmonic Signals:
Operating Temp:
-40~60°c
Application:
Broadcasting, Public Safety Military Communication
Transport Package:
Carton
Specification:
200x150x30mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
