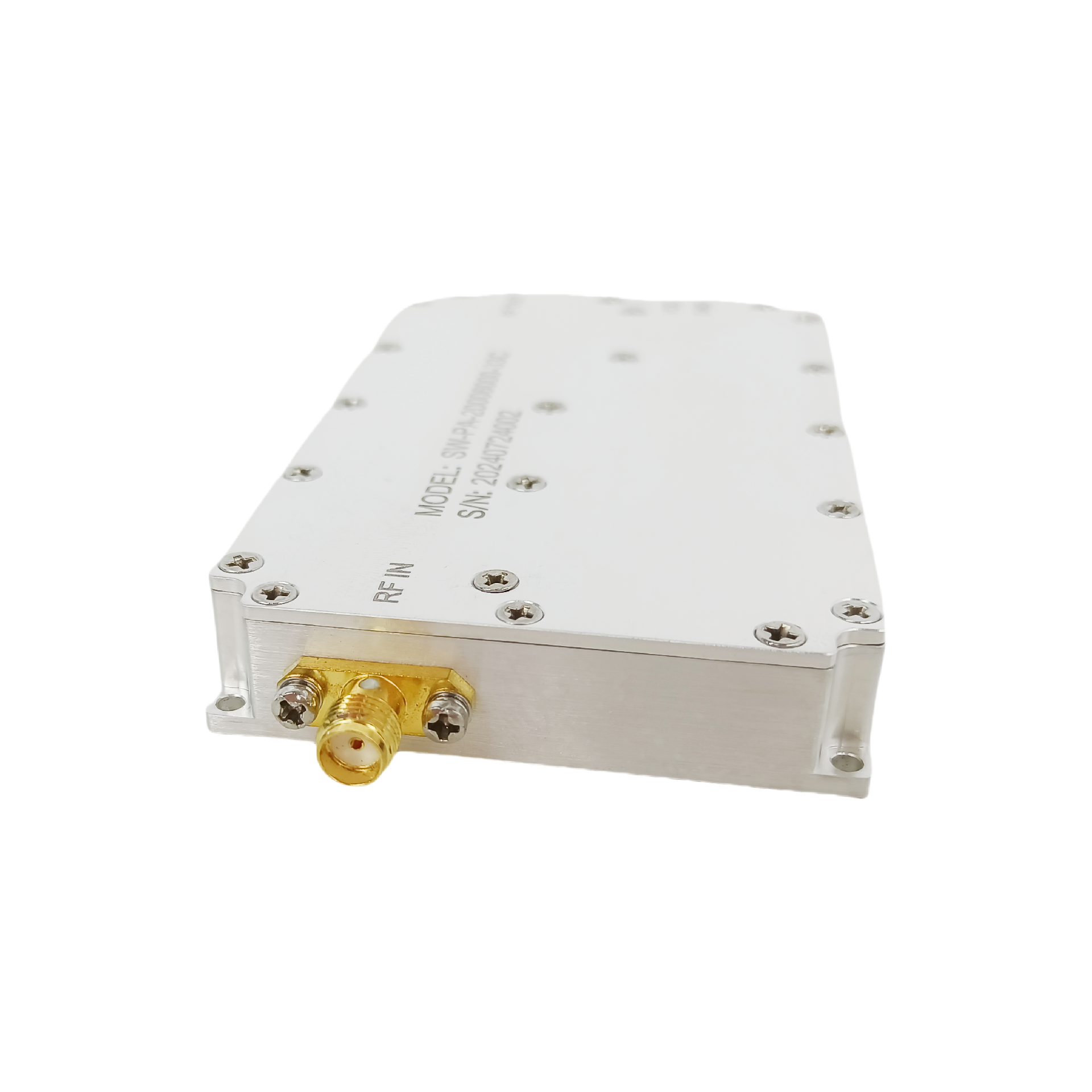

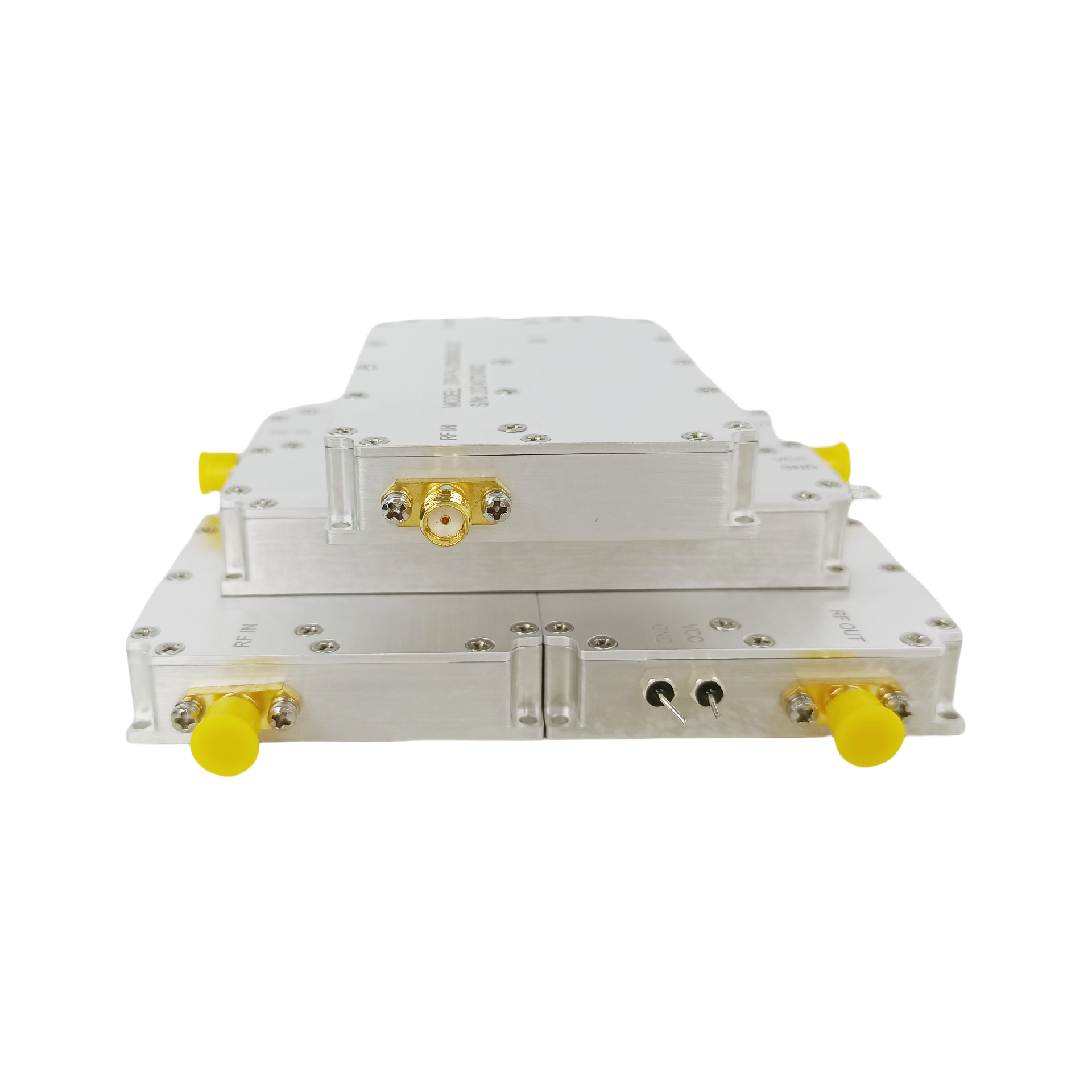

Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-20006000-33C
Price：$900/pcs
Product Description
High Gain and Linearity 2-6GHz 2W Ultra-Broadband Communication Module RF Power Amplifier for RF Testing
This 2000-6000MHz RF power amplifier covers a wide frequency range with an output power of up to 2W. It is suitable for a variety of applications, including wireless communication, radar systems, and RF testing. The amplifier features high gain and good linearity, ensuring stable power output under different operating conditions while maintaining signal integrity.
Key Features:
Wide Frequency Coverage: Supports the 2000-6000MHz frequency range, suitable for various wireless communication and testing scenarios.
High Power Output: Provides 2W of output power, ideal for medium-power applications.
High Gain and Linearity: Maintains low distortion and high signal quality during amplification, ensuring excellent signal integrity.
Compact Design: Small and easy to integrate into various systems.
This amplifier is an ideal choice for medium-power RF systems, particularly for applications requiring wideband coverage and high performance in communication and testing environments.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 2000 | 6000 | MHz | |
| RF INPUT | 0 | dBm | ||
| P-1dB Power Output | 33 | dBm | ||
| Power Gain | 33 | dB | ||
| Power Gain Flatness | ±2 | ±3 | dB | |
| Input VSWR | 2 | |||
| Operating Voltage | 28 | VDC | ||
| In-Out impedance | 50 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 62.6*60.6*24 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ SMA- KFD | -- |
| DC / Control Connector | J30J-15ZKP | -- |
| Cooling | Consider heat dissipation with the system | -- |
| Mounting | φ2.8-4 Thru Hole | -- |
| Weight | ≤1 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | 0 | +50 | °C |
| Humidity Range | 0-100 | % | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | J30J-15ZKP | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-3 | +VDC | +28V | |
| 4-6 | GND | Ground | |
| 7 | Amp Enable | Disable : TTL "High", Enable: TTL "Low" (Low : 0~0.5V, High : 2.5~5V) | |
| 8-15 | NC | NC | |

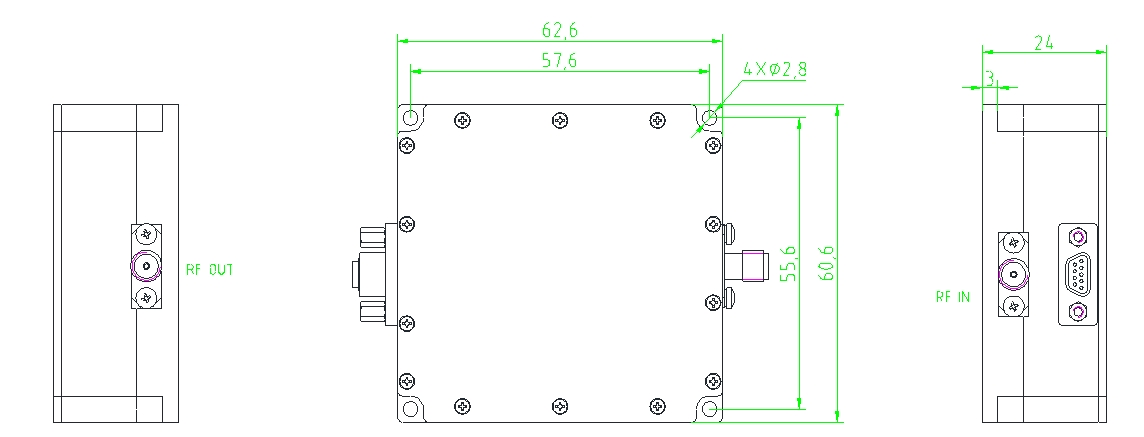

Outline Dimensional Drawing

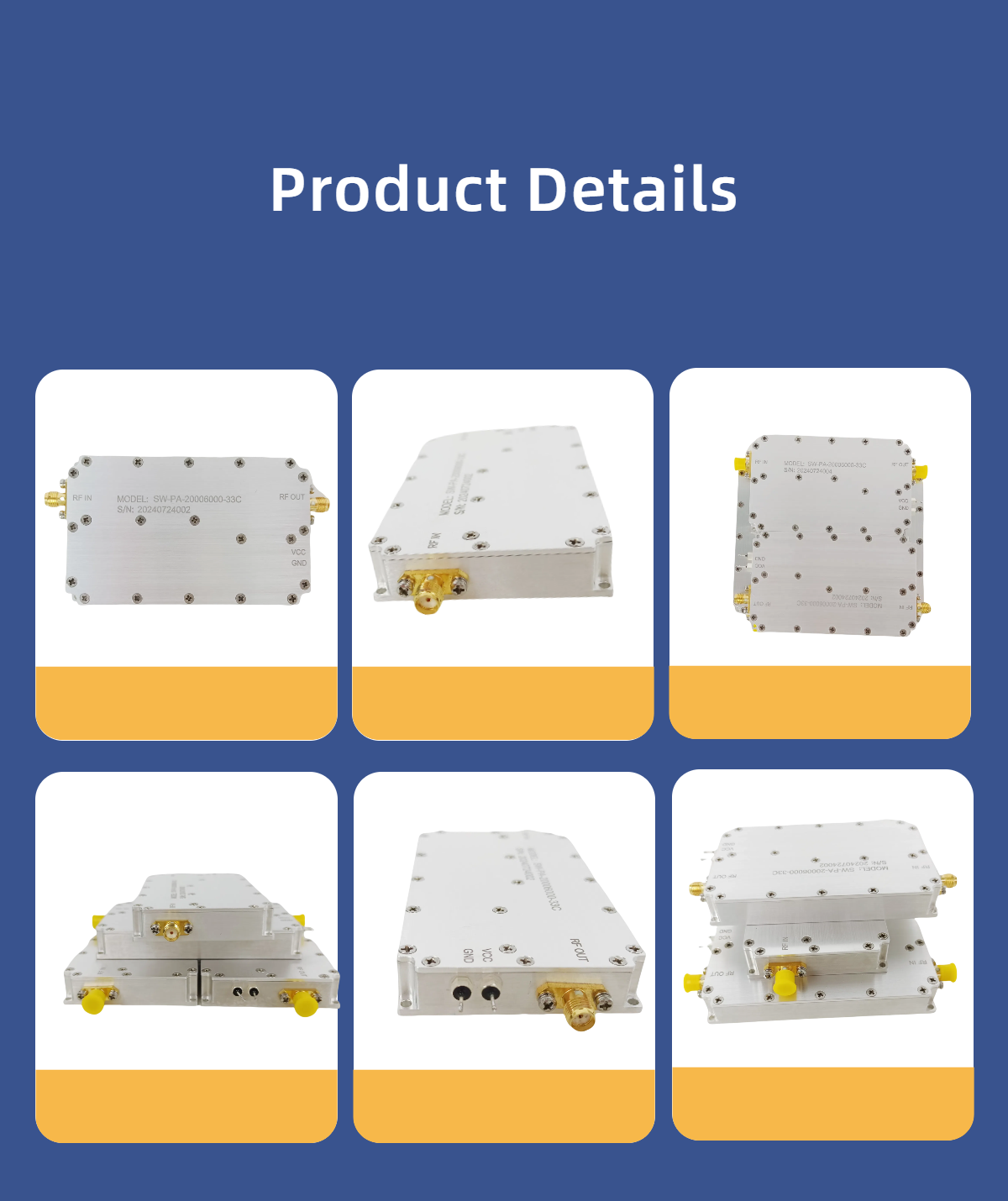

Product Details
Name:
2000-6000MHz 2W RF Power Amplifier
Operating Frequency:
2000-6000MHz
Psat Output Power:
2W
Gain:
33dB
Input Vswr:
2
Power Gain Flatness:
±2dB
Spurious Signals:
Harmonic Signals:
Operating Temp:
0~50°c
Application:
Wireless Communication, Radar Systems
Transport Package:
Carton
Specification:
62.6*60.6*24mm
