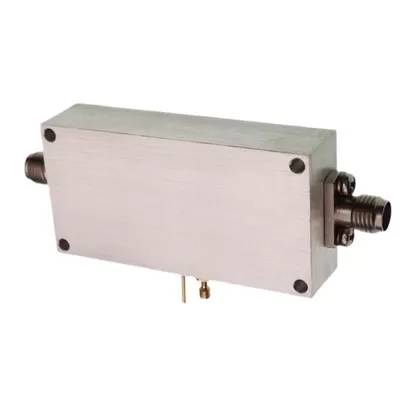

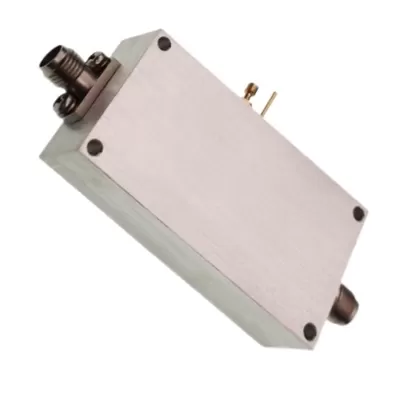

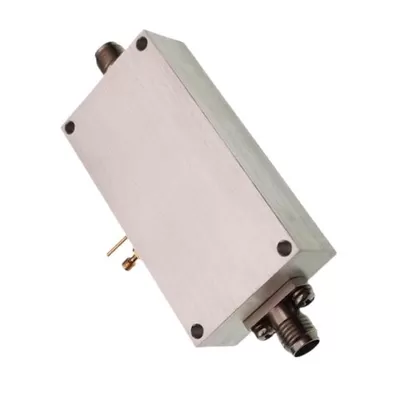

2 - 18GHz Psat 40dBm Wideband Power Amplifier for wireless communication, point-to-point links

2 - 18GHz Psat 40dBm Wideband Power Amplifier for wireless communication, point-to-point links

Description

The 2-18 GHz Psat 40 dBm Wideband Power Amplifier is a high-performance RF power amplifier designed for broad frequency range operation, offering 40 dBm saturation power. Its key features include:

Key Features:

• Frequency Range: Covers a wide spectrum from 2 GHz to 18 GHz, making it ideal for a variety of RF applications, including communications, radar, and electronic warfare systems that require high-frequency amplification.

• Psat 40 dBm: The amplifier delivers a saturation power (Psat) of 40 dBm (approximately 10W), ensuring strong, high-power output for demanding applications.

• Wideband Performance: It provides consistent and reliable amplification over a broad frequency range, minimizing distortion and ensuring high signal integrity.

• High Power Output: Capable of handling high input power levels, delivering significant output power without compromising performance.

Applications:

This wideband power amplifier is suitable for:

• Telecommunications: Used in systems like wireless communication, point-to-point links, and mobile network base stations that require high-frequency amplification across the 2-18 GHz range.

• Radar Systems: For radar and sensing applications, including weather radar, military radar, and automotive radar, where long-range and high-power signal transmission are crucial.

• Satellite Communications: Amplifying signals in satellite uplinks and downlinks, especially in high-frequency bands used in modern satellite systems.

• Test & Measurement: In RF test equipment for simulating real-world signal conditions or boosting signals in lab setups for system testing and characterization.

• Electronic Warfare: Used in military systems for jamming, electronic countermeasures, and RF signal generation in defense and security applications.

• Broadcasting: Amplifying high-frequency signals for broadcasting and transmission applications, ensuring reliable long-range coverage.

The 2-18 GHz Psat 40 dBm Wideband Power Amplifier is a versatile and powerful solution for high-frequency applications requiring strong signal amplification, broad coverage, and high output power in both civilian and military RF environments.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
