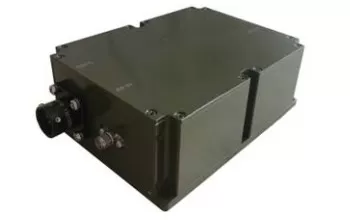

3 -18 GHz 42dBm Wideband RF Power Amplifier High Power Amplifier for measurement, and testing
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-300018000-42C
Price：
Product Description
3 -18 GHz Psat 42dB Wideband RF Power Amplifier High Power Amplifier for measurement, and testing applications
Description
Frequency Range: This power amplifier is designed to amplify signals in the wideband frequency range of 3 to 18 GHz, covering a broad spectrum of RF applications.
Psat 42dB: With a Psat (saturated output power) of 42dB, this amplifier offers high output power and signal amplification capability.
Wideband Design: It is engineered for wideband applications, effectively amplifying signals across multiple frequency ranges, providing flexibility in usage and application choices.
Applications: Suitable for various RF systems that require signal amplification within the 3-18 GHz frequency band, including radar, communications, measurement, and testing applications.
Stability and Reliability: Designed for stability and reliability, making it suitable for long-term stable operation and use in demanding environments.
In summary, the 3-18 GHz Psat 42dB wideband RF power amplifier offers a broad frequency range, high output power, and stability, making it ideal for various high-frequency RF signal amplification applications.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 3 | 18 | GHz | |
| Power Gain Pout=42dBm | 42 | dB | ||
| Power Gain Flatness | ±5 | dB | ||
| Output Power (Psat) | 42 | Watt | ||
| Noise Figure | dBm | |||
| IP3 | dBm | |||
| Spurious | -60 | dBc | ||
| Harmonics | -10 | dBc | ||
| Input VSWR | 2:1 | Ratio | ||
| Output VSWR | 2:1 | Ratio | ||
| Power Supply | +28 | Volt | ||
| Current | 2 | A | ||
Note:
1. Over Temperature Protection; Over Voltage Protection; Over Current Protection;
2. Air forced cool.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | -5 | 0 | +5 | dBm |
| Operating Temperature | 0 | +40 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||
| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 200*140*35 | Max | Millimeter |
| Weight | 4 | Max | Kg |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| DC Interface Connectors | J30J-9ZK | ||
| Impedance | 50 | Ohms | |
Product Details
Name:
3 -18GHz RF Power Amplifier
Operating Frequency:
3 -18GHz
Psat Output Power:
42dBm
Gain:
42dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-10dBc
Operating Temp:
0~40°c
Application:
EMC Test，Communications, radar system
Transport Package:
Carton
Specification:
200*140*35mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
