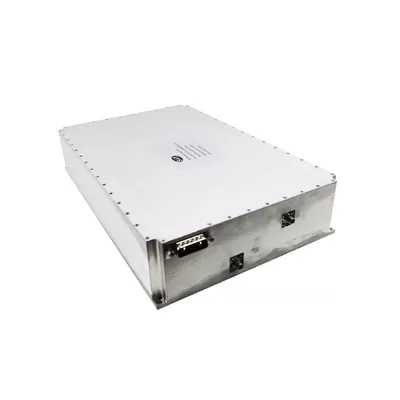

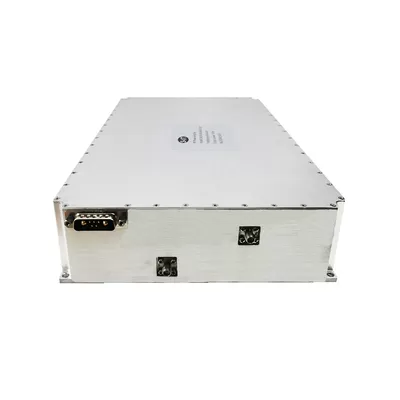

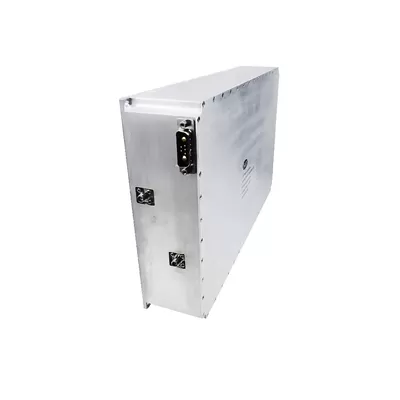

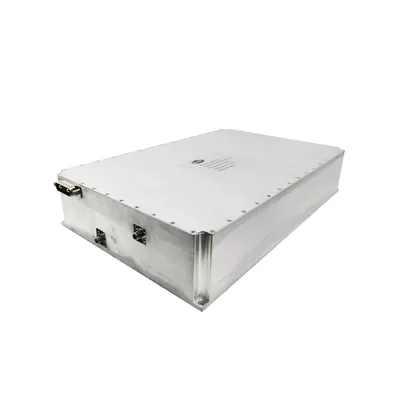

Customized 400-6000MHz 100W Solid State High Power broadband RF Amplifier for UAV jamming
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-04006000-50C
Price：$11500/pcs
Product Description
Customized 400-6000MHz 100W Solid State High Power broadband RF Amplifier for UAV jamming
Product Description
The 100W power amplifier operating in the frequency range of 400MHz to 6000MHz is a versatile and powerful component used in a wide range of communication and RF applications.
Its key features include:
High Power Output: With a power output of 100 watts, this amplifier provides significant power for driving RF systems, including transmitters, amplifiers, and RF-based equipment.
Wide Frequency Range: Covering frequencies from 400MHz to 6000MHz, it spans multiple bands and is suitable for various applications such as mobile communication, radar systems, satellite communication, and electronic warfare.
High Efficiency: Designed for high efficiency, this amplifier optimizes power consumption while delivering robust performance, making it ideal for applications where power efficiency is crucial.
Reliability and Stability: Engineered for reliability and stability, it maintains consistent performance across different operating conditions, ensuring dependable operation in demanding environments.
This 100W power amplifier is a valuable asset in RF design, offering high power, wide frequency coverage, and efficient operation.
The 100W power amplifier operating in the 400MHz to 6000MHz frequency range is a versatile component with a wide range of applications in communication and RF systems.
Mobile Communication Systems: It drives base station equipment, providing high power output to enhance signal coverage and transmission distance, suitable for 2G, 3G, 4G, and 5G networks.
Radar Systems: Used for signal transmission and reception in radar applications, delivering sufficient power for long-range target detection and tracking.
Satellite Communication: Suitable for ground stations and satellite communication equipment, ensuring stable and efficient signal transmission for satellite communications.
Electronic Warfare Systems: In electronic warfare equipment, it can be used for jamming or countering opponent RF signals, providing robust interference and countermeasure capabilities.
Industrial and Scientific Applications: Used in scientific research, medical equipment, wireless measurements, etc., providing reliable RF power support.
Aerospace Applications: Suitable for communication systems in aircraft, satellites, and spacecraft, ensuring reliable data transmission and communication links.
Overall, this power amplifier's applications span multiple fields including communication, radar, satellite communication, electronic warfare, industrial science, aerospace, and broadcasting, providing robust power support and signal transmission capabilities for various RF applications.
Product Parameter
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 400 | 6000 | MHz | |
| RF INPUT | -10 | dBm | ||
| Power Gain | 60 | dB | ||
| P-sat Output Power | 49.5 | 50 | dBm | |
| Power Gain Flatness | ±4 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -40 | dBc | ||
| Harmonic Signals | -15 | dBc | ||
| Operating Voltage | 28 | V | ||
| Supply Power | 500 | W | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | 300*192*25 | mm |
| RF Connectors (Input / Output) | SMA-KF / SMA-FK | -- |
| Control Connector | D-SUB:Power on/power off control; Monitoring parameters include output power, temperature |
-- |
| Cooling | Exteral Heatsink Required | -- |
| Weight | ≤4.5 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -40 | +85 | °C |
| Storage Temp. | -40 | +85 | °C |
| Amplifier Safeguard Temp. | +90 | °C | |
| Shock | MIL-STD-810F/G | ||
| Vibration | MIL-STD-810F/G | ||
| Protections | With over temperature protection, input over power protection, over voltage protection, over current protection | ||
| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | —— | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| NUMBER | interface type | DESCRIPTION | |
| X1 | SMA-FK | RF IN | |
| X2 | SMA-FK | RF OUT | |
| X6 | D-SUB | DC & Control interface | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | D-SUB | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | Definition | DESCRIPTION |
| 1 | VDD | 28V |
| 2 | VDD | 28V |
| 3 | GND | GND |
| 4 | GND | GND |
| 5 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 6 | Alarm | Alarm (TTL) |
| 7 | Temp monitoring | Temperature (Analog) |
| 8 | NC | NC |
| 9 | NC | NC |
Product Details
Name:
Customized 400-6000MHz 100W Solid State High Power broadband RF Amplifier for UAV jamming
Operating Frequency:
0.4-6GHz
Psat Output Power:
100W
Gain:
50dB
Input Vswr:
2
Power Gain Flatness:
±4dB
Spurious Signals:
-40dBc
Harmonic Signals:
-15dBc
Operating Temp:
-40~85°c
Application:
Radar Systems,Satellite Communication,Electronic Warfare Systems
Transport Package:
Carton
Specification:
300*192*25mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
