1~ 3.2GHz P1dB 33 dBm RF Power Amplifier for long-range detection and imaging in Industrial, automotive, and weather radar
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-10003200-33C
Price：
Product Description
1~ 3.2GHz P1dB 33 dBm RF Power Amplifier for long-range detection and imaging in Industrial， automotive, and weather radar
Description
The 1~3.2 GHz P1dB 33 dBm Wideband Power Amplifier is an RF power amplifier designed to operate across a 1 GHz to 3.2 GHz frequency range, offering high power and wideband amplification. Its key features include:
Key Features:
Frequency Range: Covers a broad spectrum from 1 GHz to 3.2 GHz, making it suitable for various RF applications, including communication, radar, and wireless systems.
P1dB 33 dBm: The amplifier has a 1 dB compression point (P1dB) of 33 dBm, meaning it can handle relatively high input power levels before its gain begins to decrease, ensuring reliable and linear amplification.
Wideband Performance: Capable of amplifying signals across a wide frequency range with minimal distortion, providing consistent performance across the specified spectrum.
High Power Output: Designed to deliver significant power, enabling strong signal transmission for long-range communication or high-performance systems.
Applications:
This wideband power amplifier is commonly used in:
Telecommunications: For signal amplification in mobile communication, wireless networks, and base station systems operating in the 1-3.2 GHz range.
Radar Systems: Used in radar and sensing applications for long-range detection and imaging, including military, automotive, and weather radar.
Test & Measurement: In RF testing and measurement setups to amplify signals for system analysis and characterization.
Satellite Communication: Amplifying signals in satellite systems, including uplink and downlink communications.
Broadcasting: In broadcasting applications to strengthen signals and ensure wide-area coverage.
Electronic Warfare: In military applications for jamming, electronic countermeasures, or RF testing.
The 1~3.2 GHz P1dB 33 dBm Wideband Power Amplifier is ideal for applications requiring high output power, linearity, and wide frequency coverage, ensuring optimal performance in demanding RF environments.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 1 | 3.2 | GHz | |
| Small Signal Gain | 30 | dB | ||
| Gain Flatness | ±1.0 | dB | ||
| Output Power P1dB | 33 | dBm | ||
| Noise Figure | dBm | |||
| IP3 | 42 | dBm | ||
| Spurious | -60 | dBc | ||
| Harmonics | -15 | dBc | ||
| VSWR | 1.5:1 | Ratio | ||
| Power Supply | -12 | Volt | ||
| Current | 2 | A | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | +20 | +50 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||

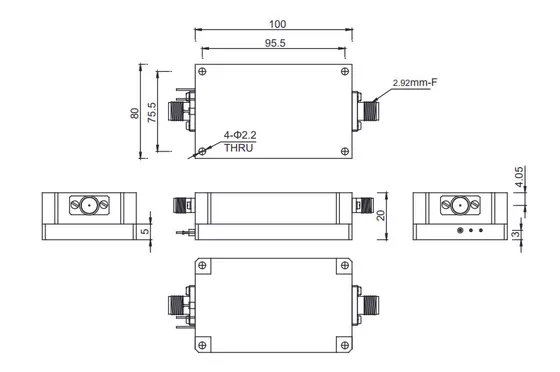

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 100*80*20 | Max | Millimeter |
| Weight | 400 | Max | g |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| DC Interface Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
1~ 3.2GHz RF Power Amplifier
Operating Frequency:
1~ 3.2GHz
Psat Output Power:
33dBm
Gain:
30dB
Input Vswr:
1.5:1
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
0~45°c
Application:
EMC Test，Communications, radar system
Transport Package:
Carton
Specification:
482*550*223mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
