80 ~1000 MHz Wideband Amplifier rackmount Psat 400W RF Power Amplifier for EMC test
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-00801000-56C
Price：
Product Description

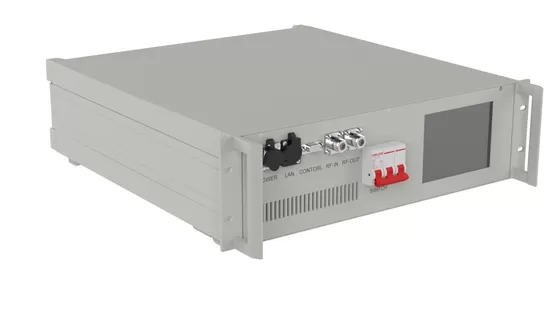

80 ~1000 MHz Wideband Amplifier rackmount Psat 400W RF Power Amplifier for EMC test
Description
The 80-1000 MHz Psat 400W RF Power Amplifier is a high-performance amplifier designed for use in the 80 MHz to 1000 MHz frequency range, delivering up to 400W of saturated output power. Its key features include:
Key Features:
Frequency Range: Covers 80 MHz to 1000 MHz (1 GHz), suitable for a wide range of RF applications, including communications, radar, and broadcasting systems that operate in this frequency range.
Psat 400W: The amplifier delivers a saturation power (Psat) of 400W, making it ideal for high-power signal amplification, capable of handling demanding applications that require substantial output power.
High Efficiency: Designed to provide efficient amplification with minimal distortion, making it suitable for both continuous and pulsed operation.
Robust Performance: Ensures stable and reliable performance across the specified frequency range, even under high power conditions.
Applications:
This 400W RF power amplifier is widely used in:
Telecommunications: For signal transmission in mobile networks, wireless communication, and point-to-point systems.
Broadcasting: In radio and television broadcasting systems to ensure high-power signal transmission over long distances.
Radar Systems: For use in radar and sensing applications, where high output power is needed for long-range detection and imaging.
Test & Measurement: In RF test equipment for simulating real-world signal conditions or boosting signals for system testing and characterization.
Military and Aerospace: Used for communication, jamming, and other RF operations in military and aerospace applications, requiring high power and reliability.
Satellite Communications: Amplifying signals in satellite uplinks and downlinks, where high-power transmission is crucial for long-distance communication.
The 80-1000 MHz Psat 400W RF Power Amplifier is designed for demanding RF environments that require high output power and broad frequency coverage, ensuring reliable performance in various communication, radar, and test applications.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 80 | 1000 | MHz | |
| RF INPUT | 0 | 5 | dBm | |
| Power Gain | 56 | dB | ||
| P-1dB Output Power | 300 | W | ||
| P-sat Output Power | 400 | W | ||
| Power Gain Flatness | ±3.5 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -65 | dBc | ||
| Harmonic Signals | -15 | dBc | ||
| Gain Adjust Range | 31.5 | |||
| Gain Adjust Ste | 0.5 | |||
| Operating Voltage | 200 | 220 | 240 | V AC |
| Supply Power | 3000 | W | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |

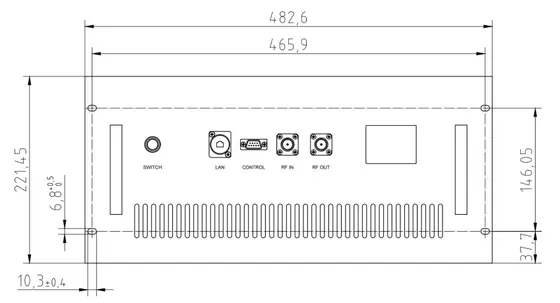

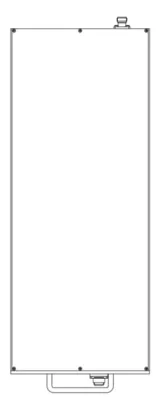

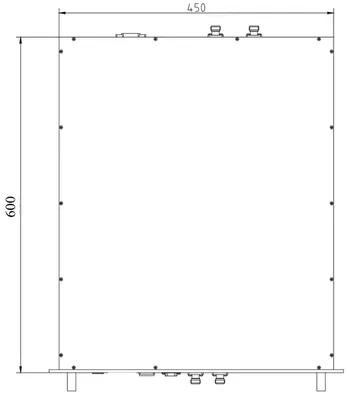

| Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*600*223 | mm |
| RF Connectors (Input / Output) | N-K / N-K (N female) | -- |
| Control Connector (Option1) | DB9:Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current | -- |
| Control Connector (Option2) | RJ45:Remote control and monitoring can be realized through LAN | |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤40 | kg |
| AC Connector | Three-in-one air switch | |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -25 | +55 | °C |
| Housing Temp. | -45 | +55 | °C |
| Amplifier Safeguard Temp. | +80 | °C | |
| Protections | With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection | ||
| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | —— | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| NUMBER | interface type | DESCRIPTION | |
| X1 | N-FK | RF IN | |
| X2 | N-FK | RF OUT | |
| X3 | LCD display | Human-computer interaction interface | |
| X4 | Three-in-one air switch | AC/220V/50Hz | |
| X5 | RJ45 | LAN | |
| X6 | DB9 | Control interface | |
| X7 | N-FK | Forward coupling port | |
| X8 | N-FK | Reverse coupling port | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | DB9 | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 3 | Temp monitoring | Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 4 | Voltage monitoring | Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 5 | Current monitoring | Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 6 | RXD | RS232 serial bus interface, PA gain adjustment |
| 7 | TXD | |
| 8 | GND | |
| 9 | NC | NC |
Product Details
Name:
80 ~1000 MHz RF Power Amplifier
Operating Frequency:
80 ~1000 MHz
Psat Output Power:
400W
Gain:
56dB
Input Vswr:
2
Power Gain Flatness:
±3.5dB
Spurious Signals:
-65dBc
Harmonic Signals:
-15dBc
Operating Temp:
-25~55°c
Application:
EMC Test
Transport Package:
Carton
Specification:
482*550*223mm
