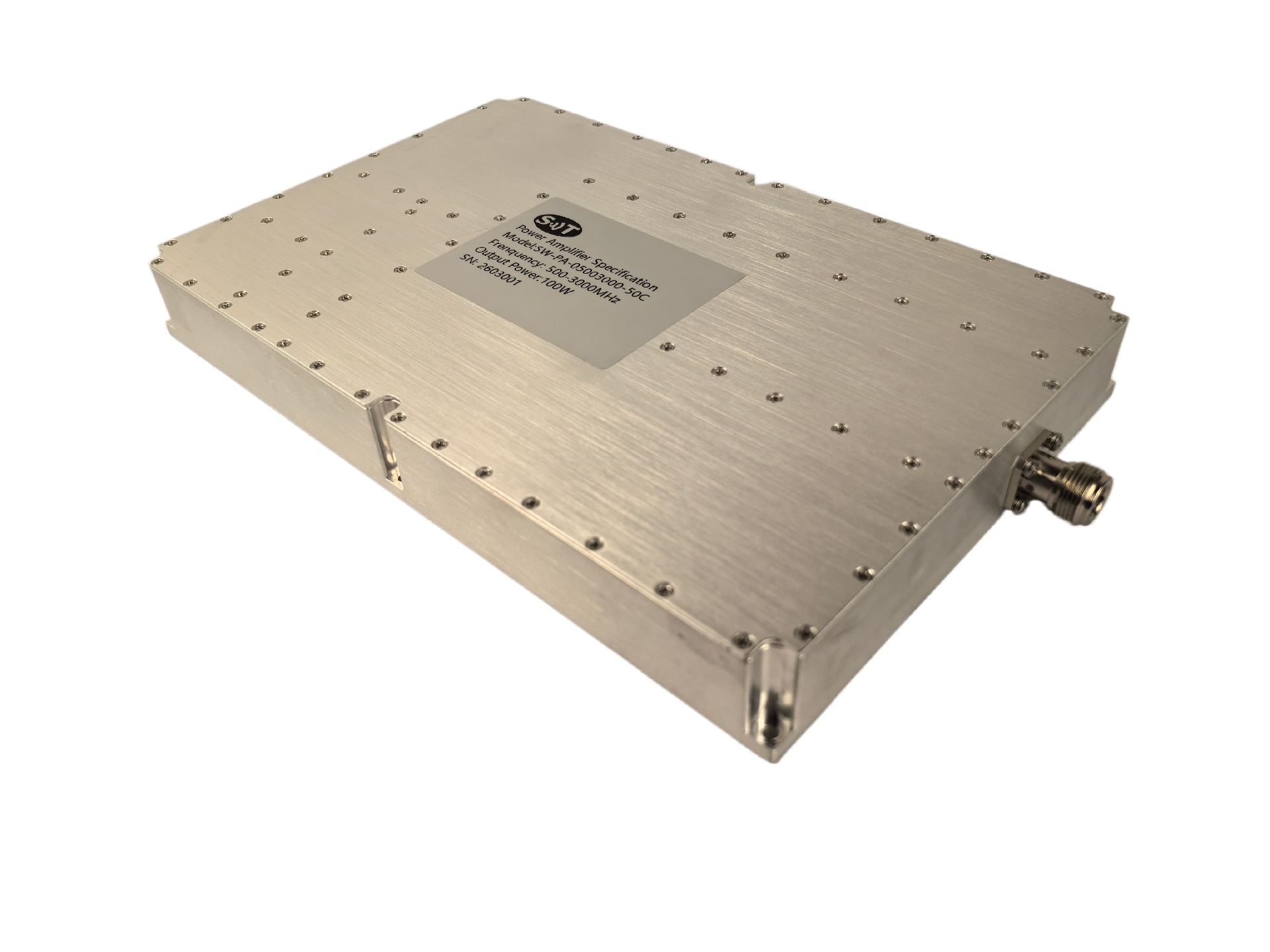

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28 VDC +25oC, and in a 50Ω system.

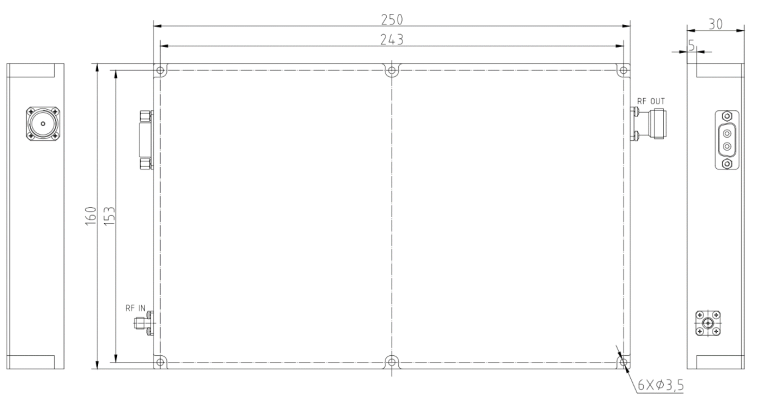

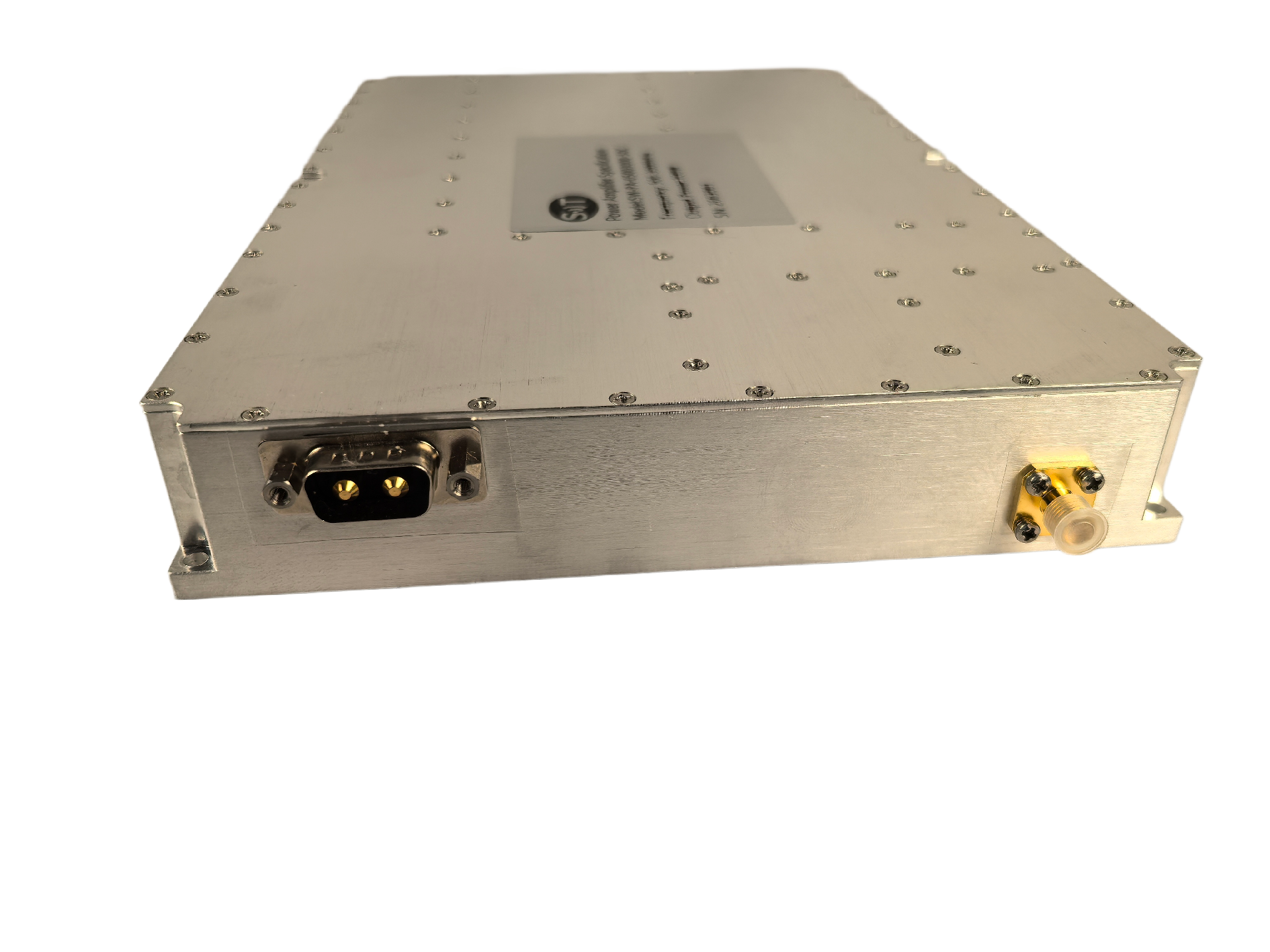

RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 500 | 3000 | MHz | |
PSat Power Output | 50 | dBm | ||
RF Intput | 0 | dBm | ||
In/Out Impedance | 50 | Ω | ||
Operating Voltage | 28 | 30 | V | |
Power consumption | 420 | 500 | W | |
Operating Temp. (Housing Temp.) | -20 | +25 | +55 | ℃ |
Dimensions (L x W x H) | 250*160*25 | mm³ | ||
Weight | ≤12 | kg | ||
Cooling | Requires external radiator for heat dissipation | |||
Interface Definition | |||
INTFACE CODE | INTERDACE TYPE | INTERFACE FUNCATION | NOTE |

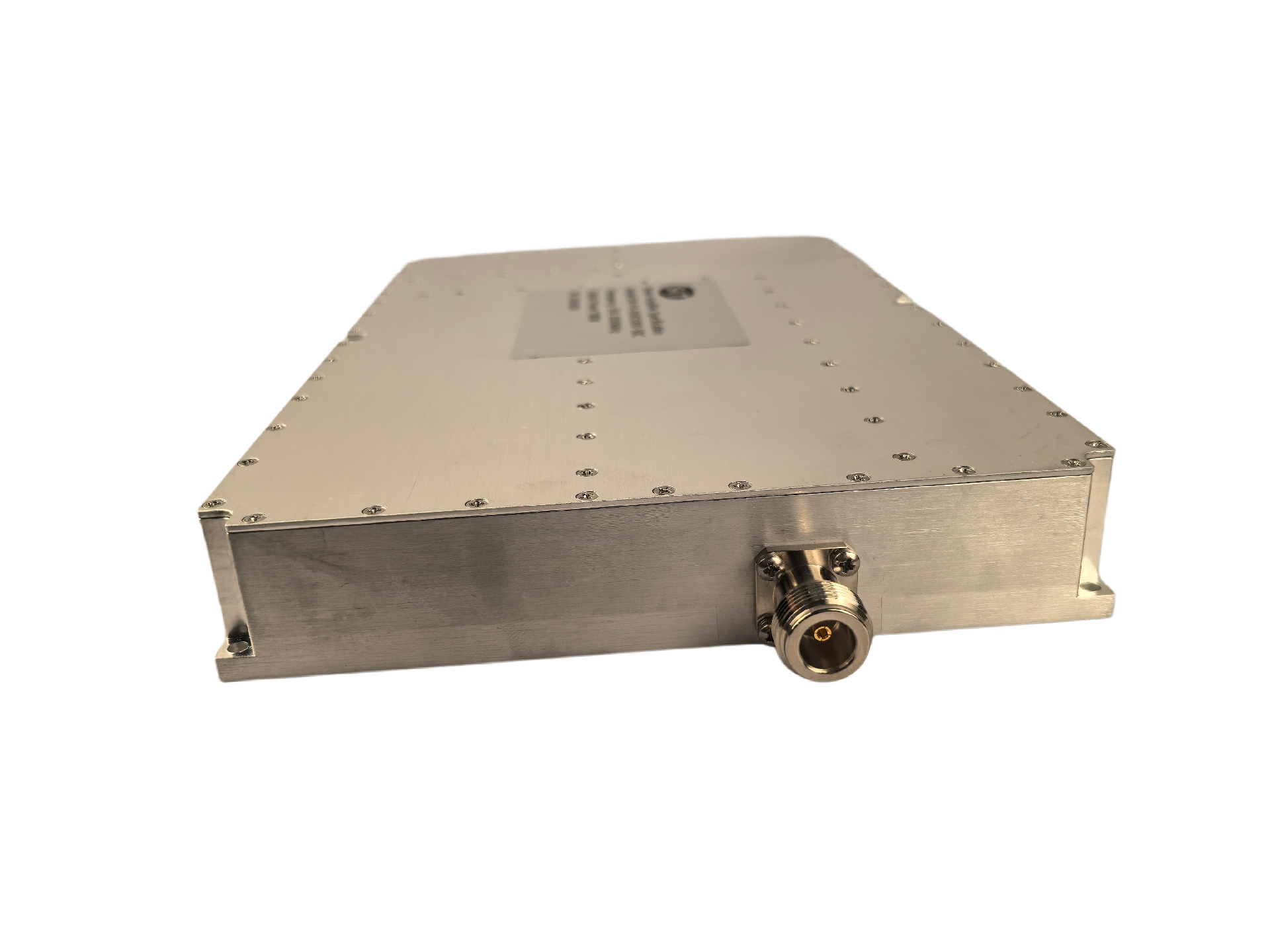

RFIN | SMA-K | RF Input | |

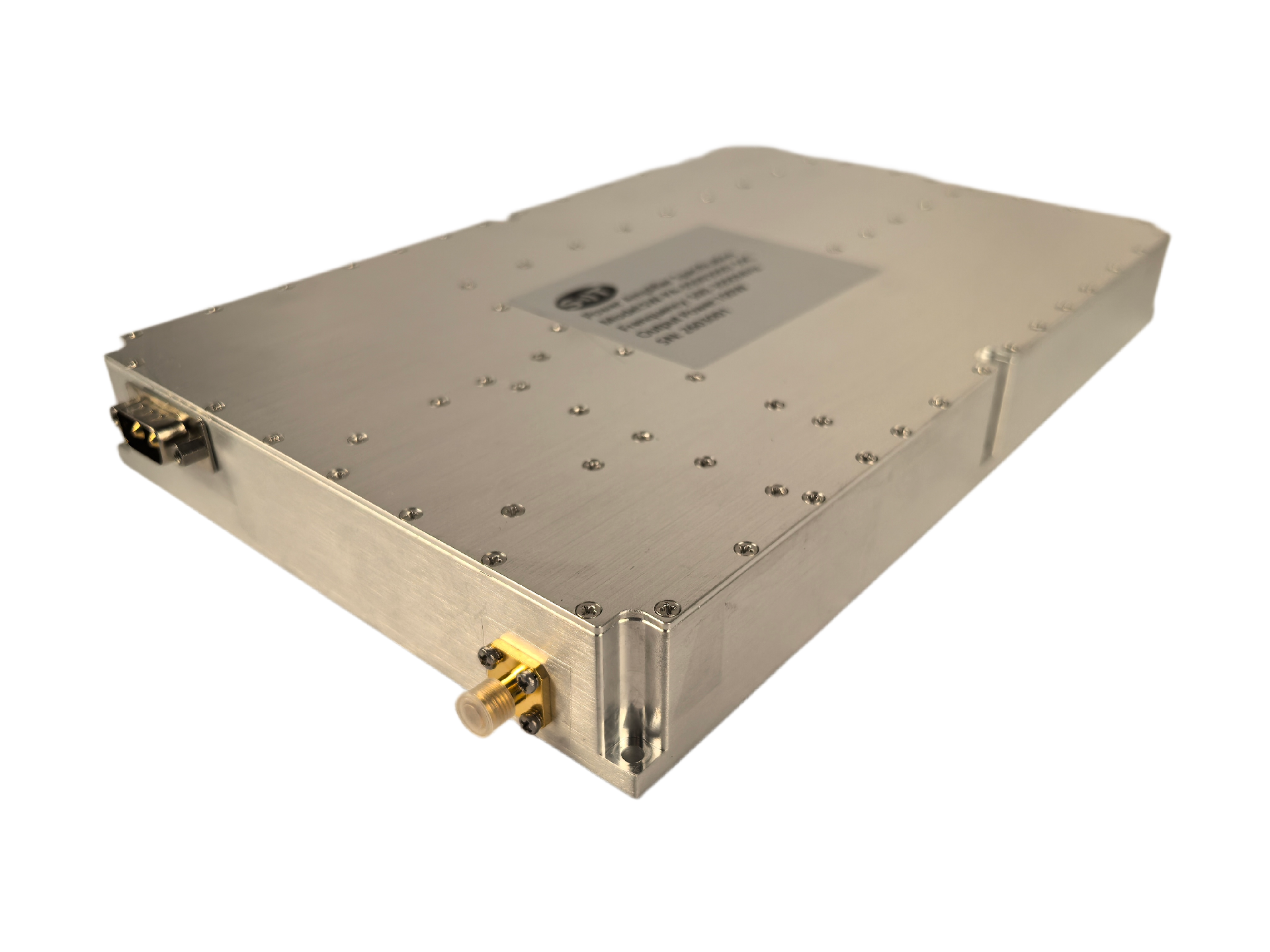

RFOUT | N-K | RF Output | |

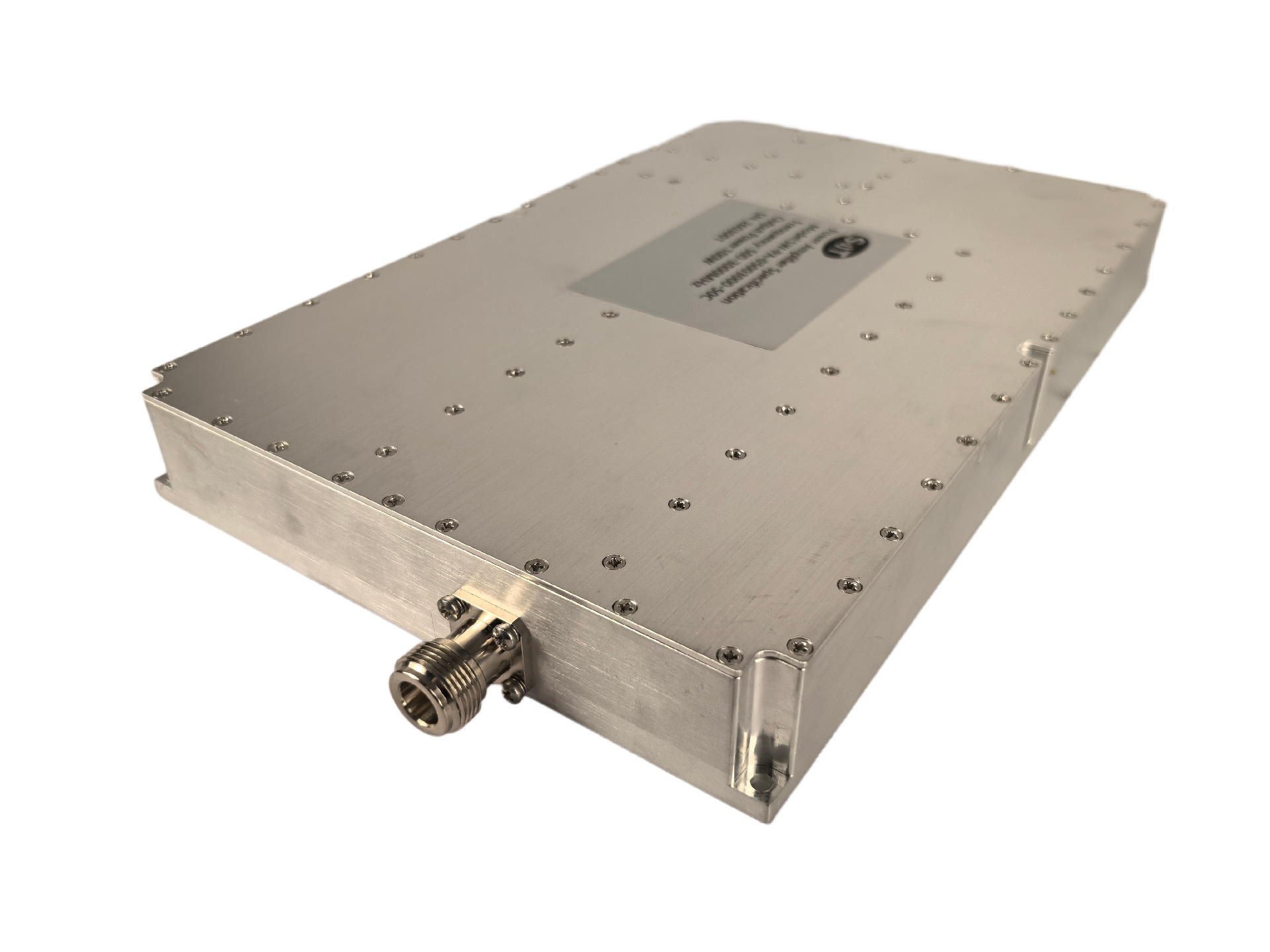

DC | D-SUB 2W2(M) | Power Supply Port | |
DSUB 2W2 Male Definition | |||
PIN | DEFINITION | FUNCATION | NOTE |
A1 | VDD | +28V | Power Positive |
A2 | GND | GDN | Power Negative |
Product Details
Name:
SW-PA-05003000-50C 100W Broadband RF Power Amplifier
Operating Frequency:
500 ~ 3000 MHz
Psat Output Power:
50 dBm (100W)
Gain:
N/A
Input Vswr:
N/A
Power Gain Flatness:
N/A
Spurious Signals:
N/A
Harmonic Signals:
N/A
Operating Temp:
-20 ~ +55 ℃ (Housing Temp.)
Application:
Military and commercial applications, including wireless communication systems
Transport Package:
N/A
