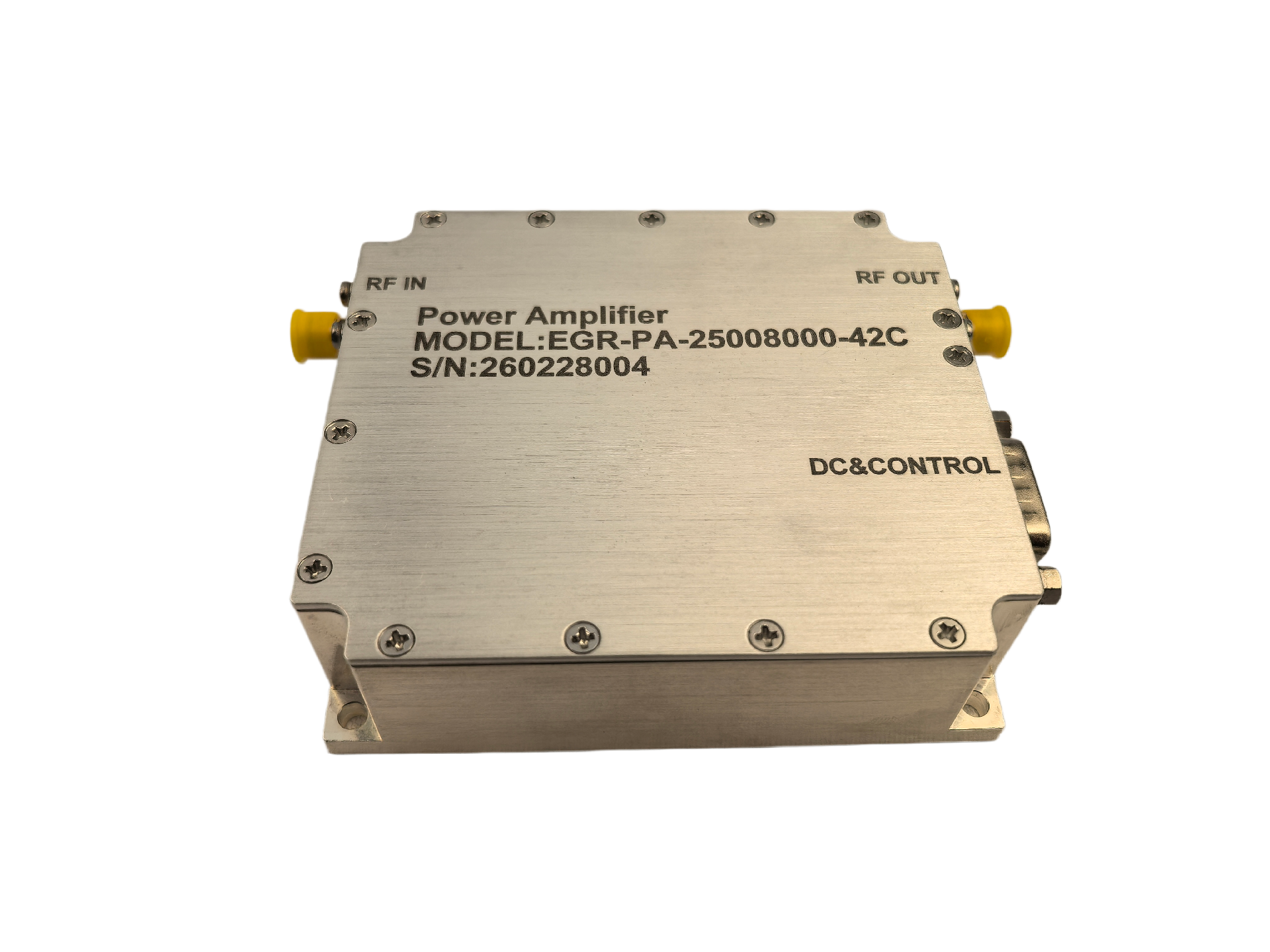

SW-PA-25008000-42C 2500-8000MHz 15W High Gain RF
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-25008000-42C
Price：$900
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2500 | 8000 | MHz | |
RF INPUT | 0 | 5 | dBm | |
RF Gain @ P-sat | 42 | dB | ||
P-sat Output Power | 41 | 42 | dBm | |
Power Gain Flatness | ±2 | dB | ||
Switching time | 400 | ns | ||
In/Out Impedance | 50 | Ω | ||
Input VSWR | 1.3 | -- | ||
Operating Voltage | 26 | 28 | 30 | V DC |
Current@15W | 2.5 | 3.5 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

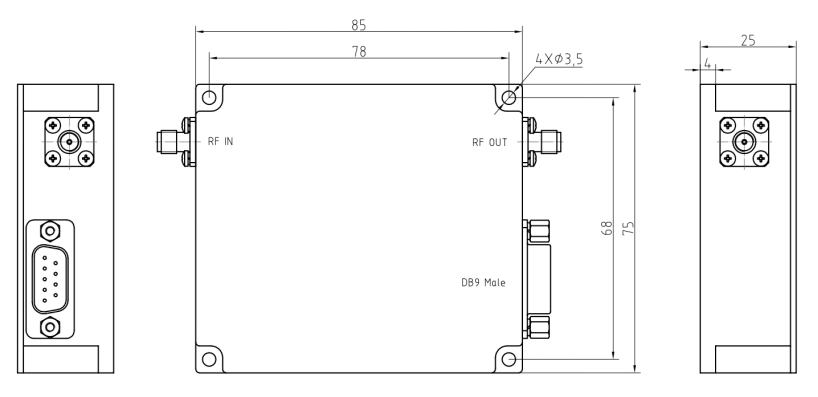

Dimensions (W x D x H) | 85*75*25 | mm |
RF Connectors (Input / Output) | SMA-K / SMA-K | -- |
DC/Control Connector | DB9 Male | -- |

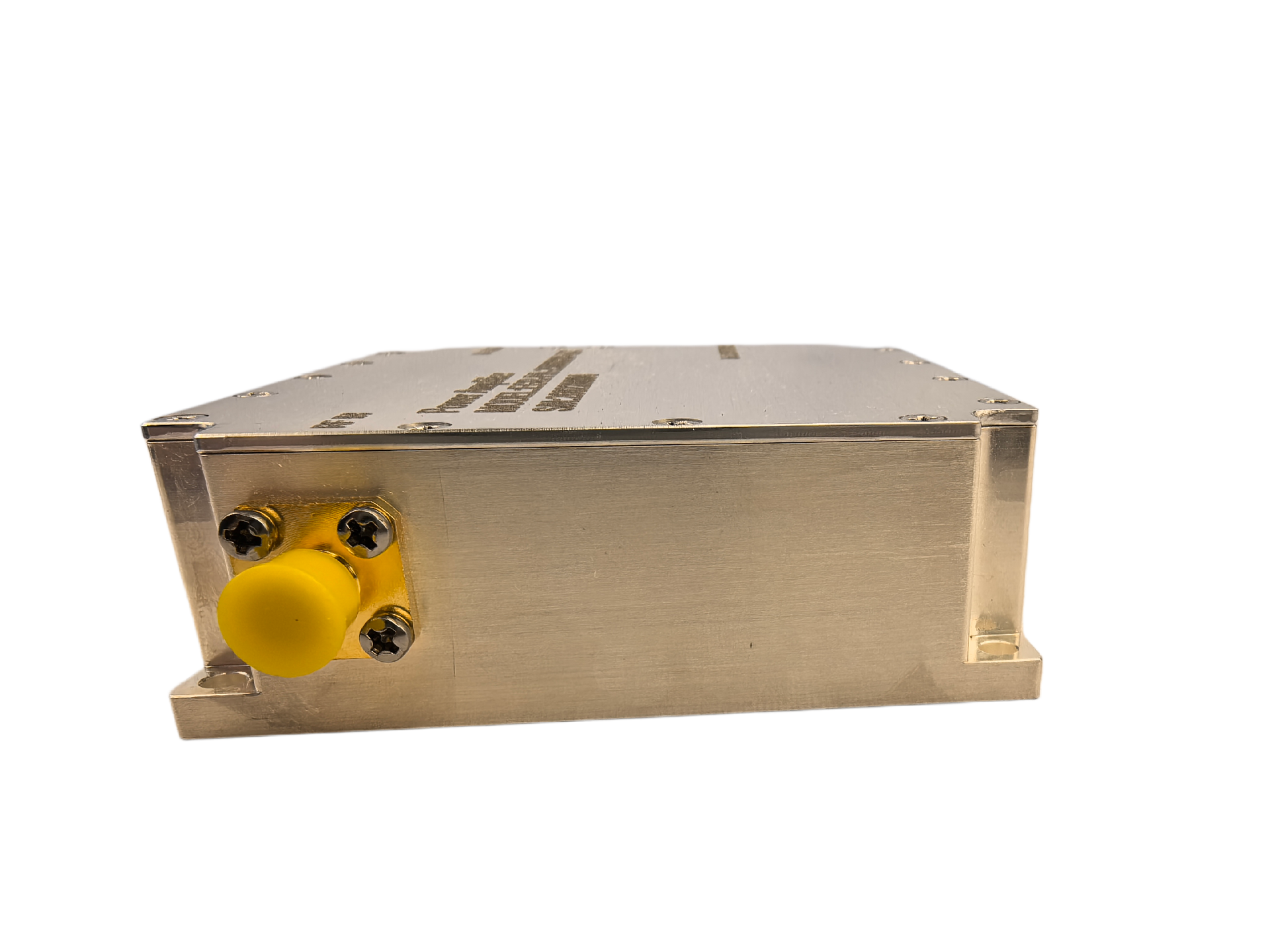

Mounting | φ3.5-4 Thru Hole | -- |
Cooling | External heat dissipation fins are required | -- |
Weight | ≤0.35 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +50 | °C |
Humidity Range | 0-95 | % | |
| ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |

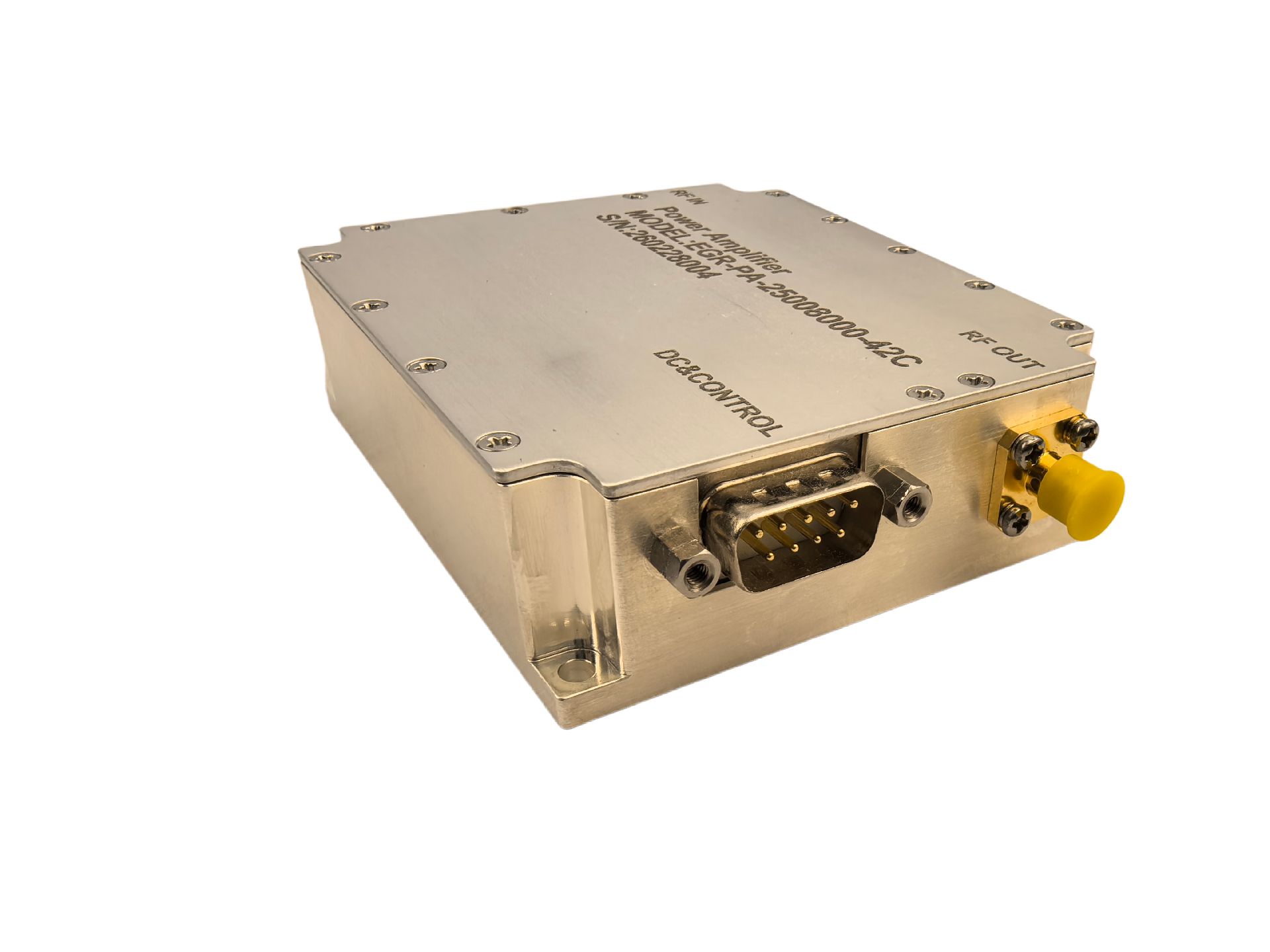

X1 | SMA- KFD | RF IN |
X2 | SMA- KFD | RF OUT |

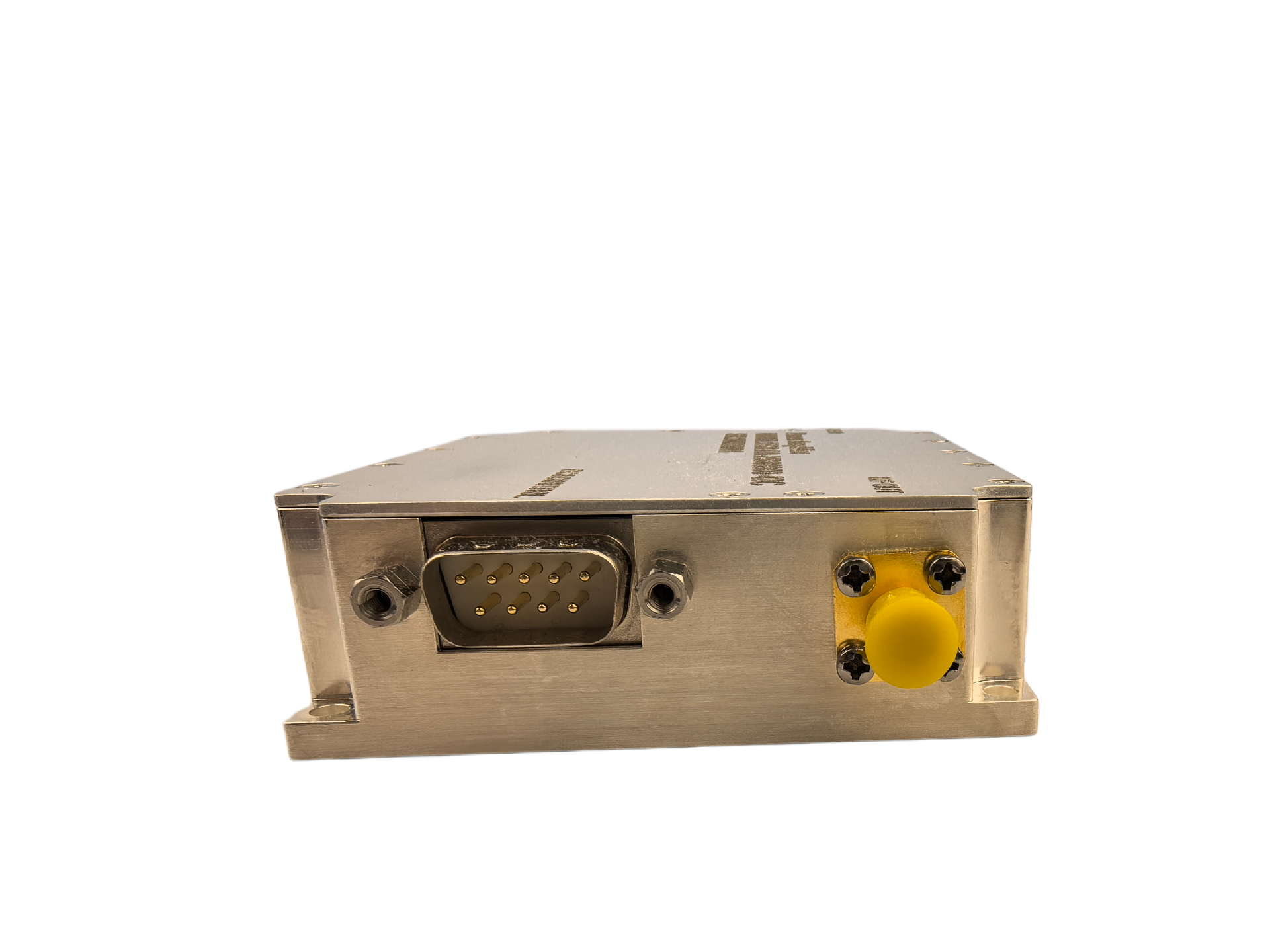

X3 | DB9 Male | DC / Control interface |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB9 Male | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1-3 | VDD | + 28V |
4-6 | GND | GND |
7 | Current sensor | Current sensor voltage value: Voltage range 2.5-3.15V corresponds to output power of 0 A~3 A |
8 | Temperature sensor | Temperature sensor voltage value: Voltage range 0.25-1.25V corresponds to output power of -25 ℃~+75 ℃ |
9 | PA Enable(1) | On/Off (0...0.5V off, 2.5...5V on) |
Note: (1) Logic Lo: 0~1V; Logic Hi: 2.5~5V
Product Details
Name:
SW-PA-25008000-42C
Operating Frequency:
2500-8000MHz
Psat Output Power:
41-42dBm
Gain:
42dB (typ.)
Input Vswr:
≤1.3
Power Gain Flatness:
±2dB
Spurious Signals:
N/A
Harmonic Signals:
N/A
Operating Temp:
-20~+50℃
Application:
Industrial & commercial RF communication
Transport Package:
Standard anti-static packaging
Specification:
85×75×25mm, ≤0.35kg
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
