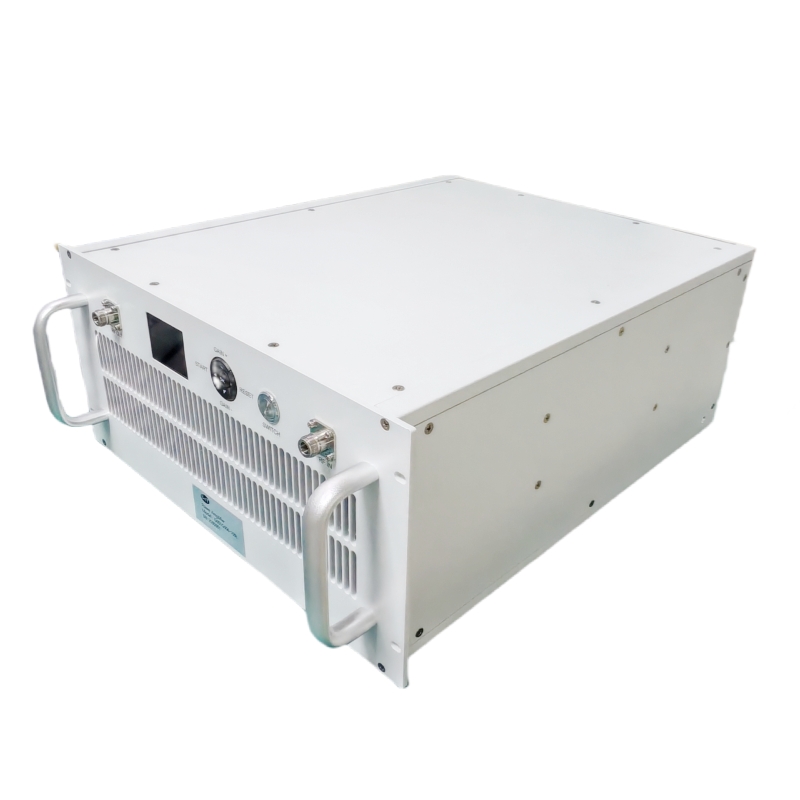

100W RF Power Amplifier for Industrial & 5G | 1-6GHz Broadband PA
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-10006000-50C
Price：Please Contact Customer Service

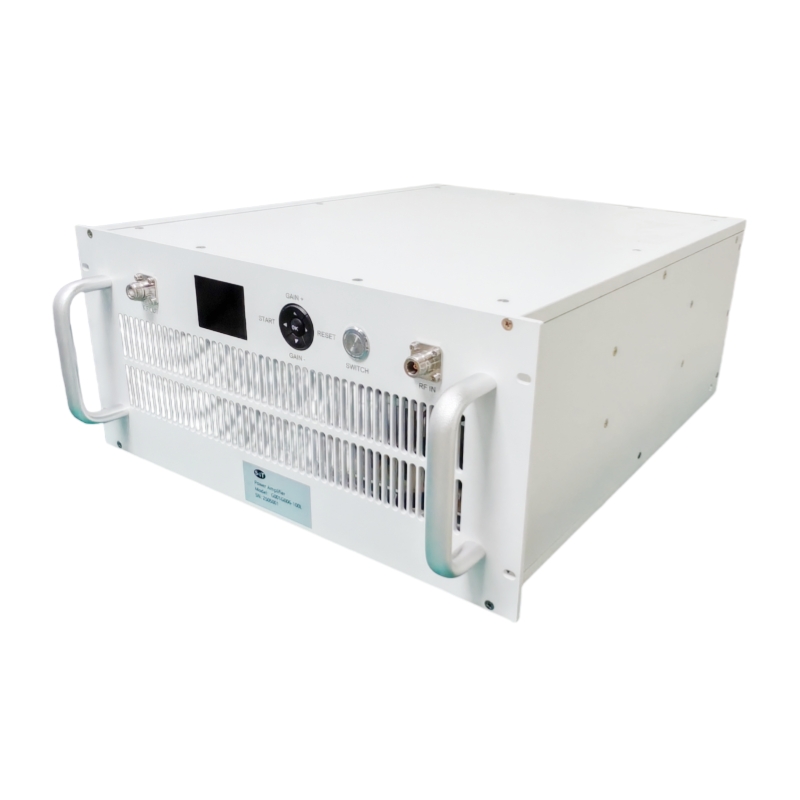

Product Description
Description
The chassis is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
RF/Electrical
| RF/ELECTRICAL | MIN | TYP. | MAX | UNIT | |
|---|---|---|---|---|---|
| Operating Frequency | 1000 | 6000 | MHz | ||
| RF Input | 0 | 5 | dBm | ||
| Power Gain | 50 | dB | |||
| P-1dB Output Power | 50 | W | |||
| P-sat Output Power | 100 | W | |||
| Power Gain Flatness | ±4 | dB | |||
| In/Out Impedance | 50 | Ω | |||
| Spurious Signals | -65 | dBc | |||
| Harmonic Signals | -15 | dBc | |||
| Gain Adjust Range | 31.5 | dB | |||
| Gain Adjust Step | 0.5 | dB | |||
| Operating Voltage | 200 | 220 | 240 | V AC | |
| Supply Power | 1600 | W | |||
| Input VSWR | 2 | ||||

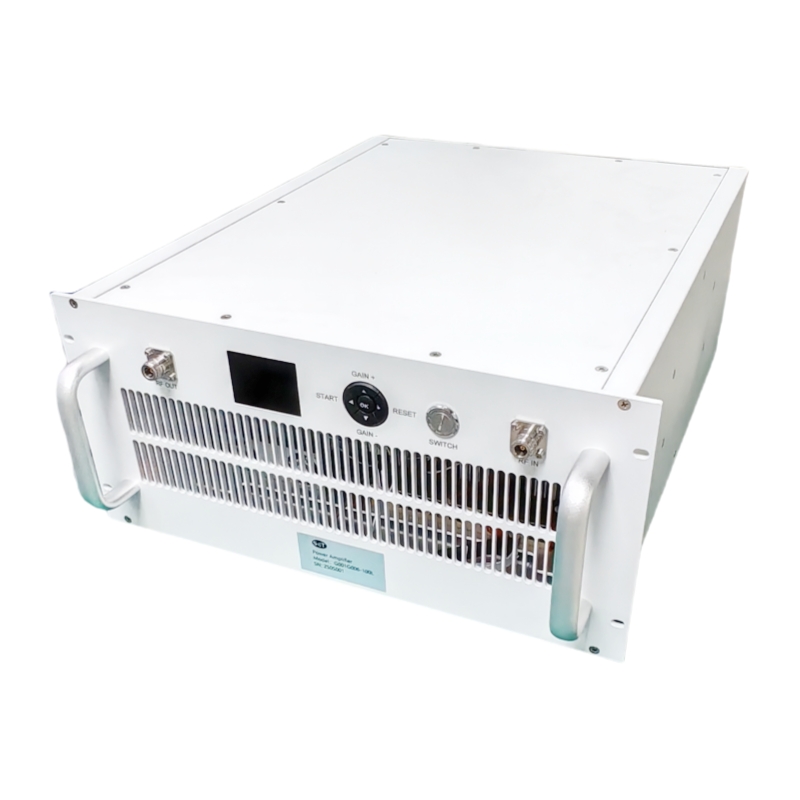

Mechanical
| MECHANICAL | VALUE | UNIT |
|---|---|---|

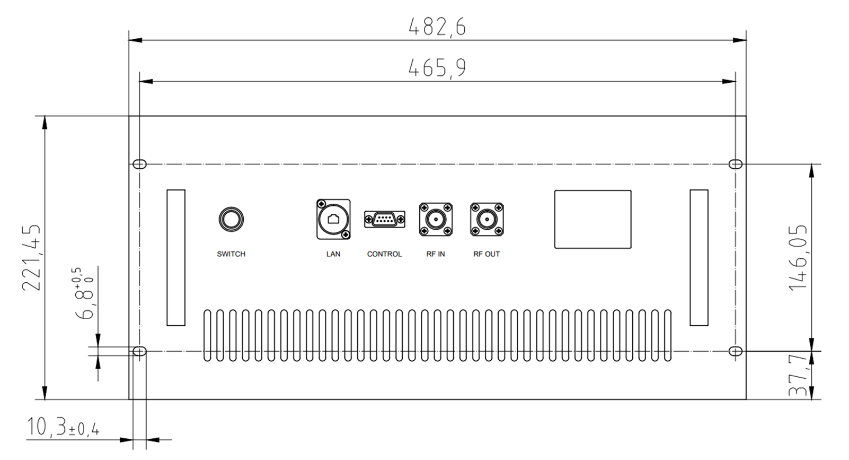

| Dimensions (W×D×H) | 482×600×223 (19-inch 5U) | mm |
| RF Connectors (Input/Output) | N-K / N-K (N female) | -- |
| Control Connector (Option1) | DB9: Power/Gain control + Monitoring | -- |
| Control Connector (Option2) | RJ45: LAN remote control | -- |
| Cooling | Forced air cooling | -- |
| Weight | ≤40 | kg |
| AC Connector | Three-in-one air switch | -- |
Environmental/Protections
| ENVIRONMENTAL/PROTECTIONS | MIN | MAX | UNIT |
|---|---|---|---|
| Operating Temp. | -25 | +55 | °C |
| Humidity Range | 0 | 90% | % |
| Amplifier Safeguard Temp. | +80 | °C | |
| Protections | Over-temperature, Input over-power, Over-voltage, Over-current, Output mismatch | ||

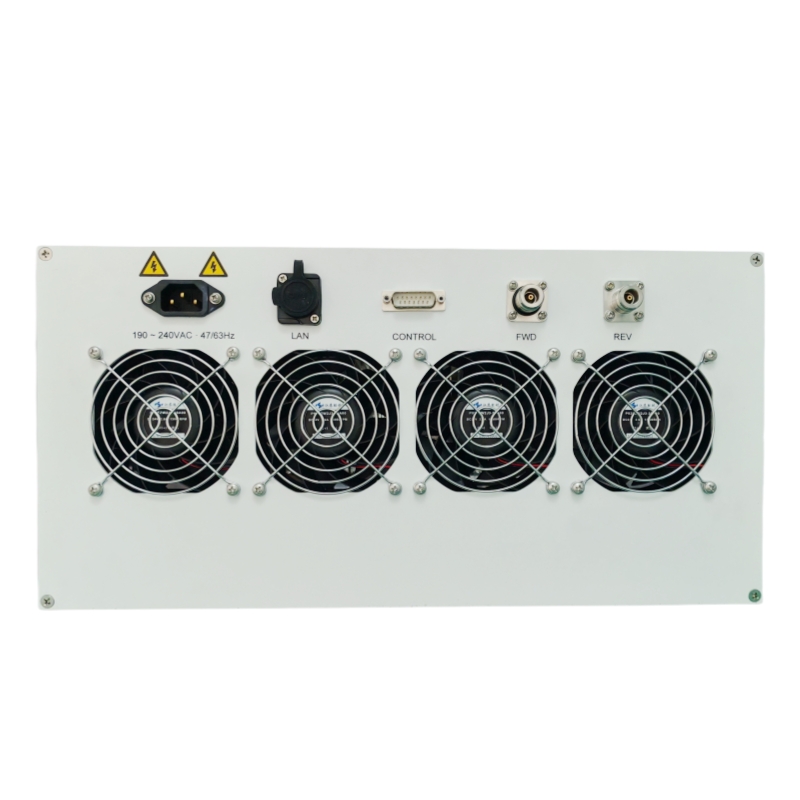

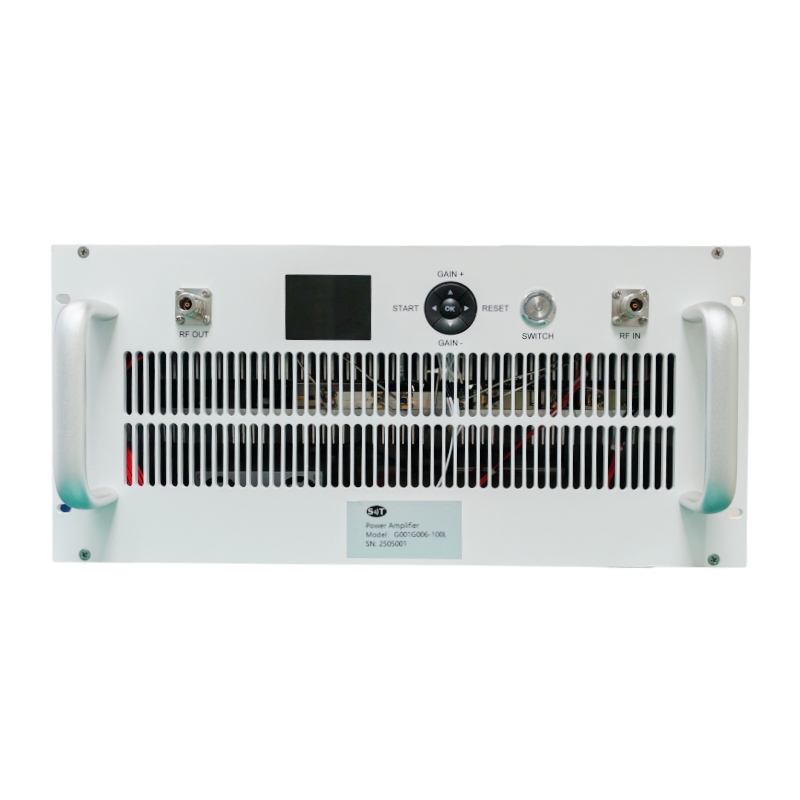

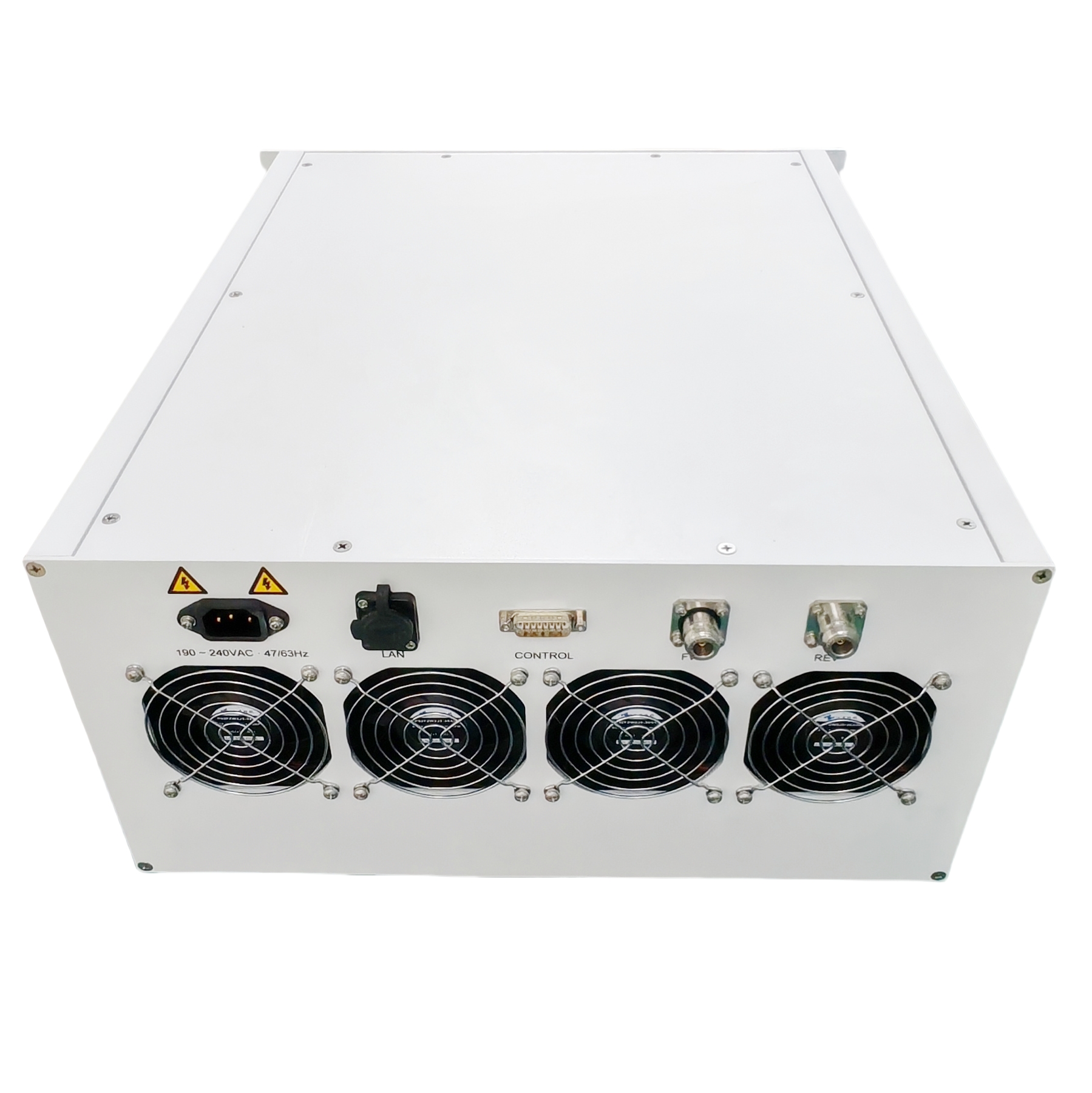

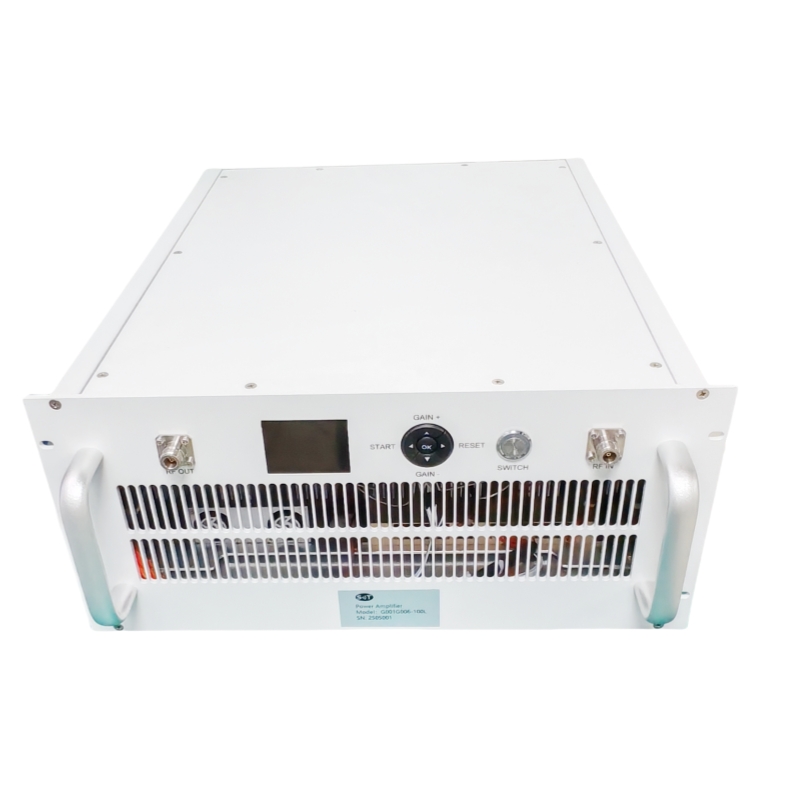

Connector Definitions
| NUMBER | INTERFACE TYPE | DESCRIPTION |
|---|---|---|
| X1 | N-FK | RF IN |
| X2 | N-FK | RF OUT |
| X3 | LCD display | Human-computer interface |
| X4 | Three-in-one air switch | AC/220V/50Hz |
| X5 | RJ45 | LAN |
| X6 | DB9 | Control interface |
| X7 | N-FK | Forward coupling port |
| X8 | N-FK | Reverse coupling port |
DB9 Pinout
| PIN NUMBER | DEFINITION | DESCRIPTION |
|---|---|---|
| 1 | PA Enable | TTL Hi=Enable, Lo=Disable |
| 2 | Output Power monitoring | TTL Hi=Normal, Lo=Fault |
| 3 | Temp monitoring | TTL Hi=Normal, Lo=Fault |
| 4 | Voltage monitoring | TTL Hi=Normal, Lo=Fault |
| 5 | Current monitoring | TTL Hi=Normal, Lo=Fault |
| 6 | RXD | RS232 for gain adjustment |
| 7 | TXD | RS232 data transmit |
| 8 | GND | Ground |
| 9 | NC | No connection |
Product Details
Name:
100W RF Power Amplifier for Military & 5G | 1-6GHz Broadband PA
Operating Frequency:
000–6000MHz
Psat Output Power:
100W
Gain:
50 dB
Input Vswr:
2
Power Gain Flatness:
±4dB
Spurious Signals:
≤ -65 dBc
Harmonic Signals:
≤ -15 dBc
Operating Temp:
+25°C
Application:
Military & Defense, Telecom Infrastructure, Industrial & Testing,
Transport Package:
Carton Packaging or Aluminum Case Packaging
Specification:
482*600*223 mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
