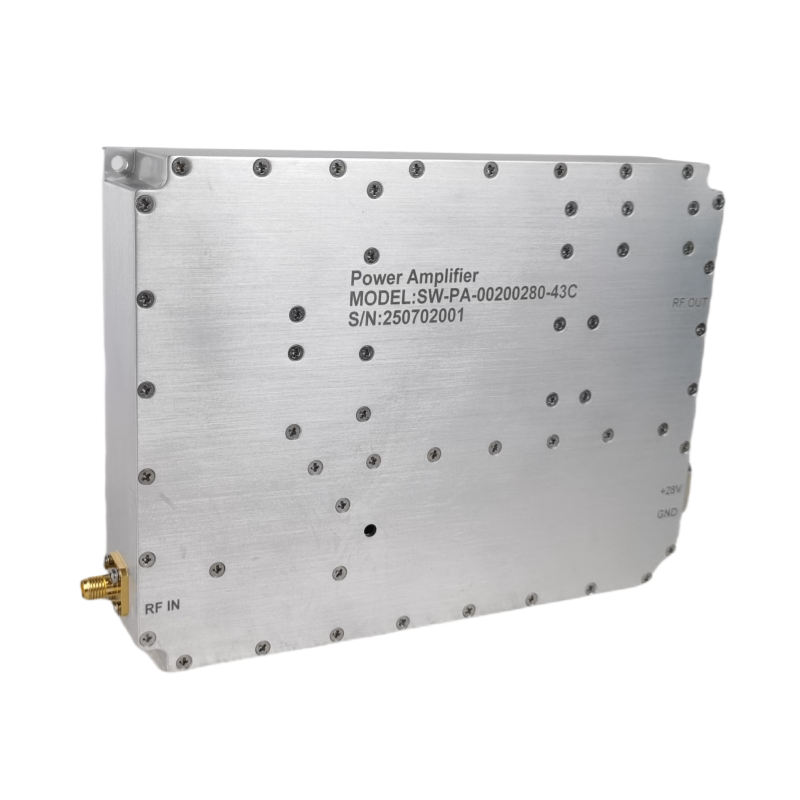

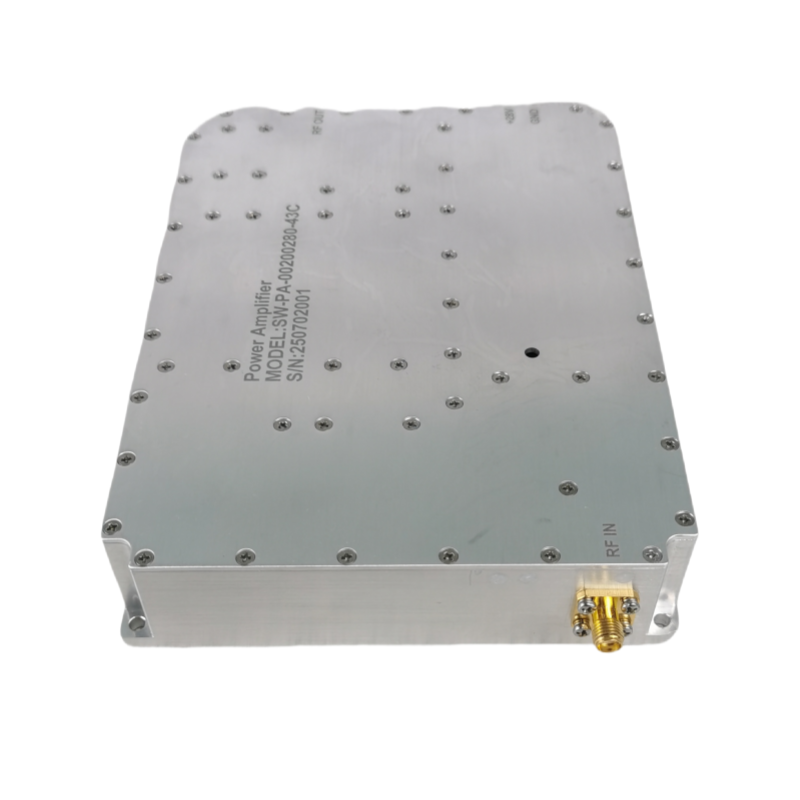

20W 20-280MHz Power Amplifier for Industrial & Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-00200280-43C
Price：Please Contact Customer Service
Product Description
Description

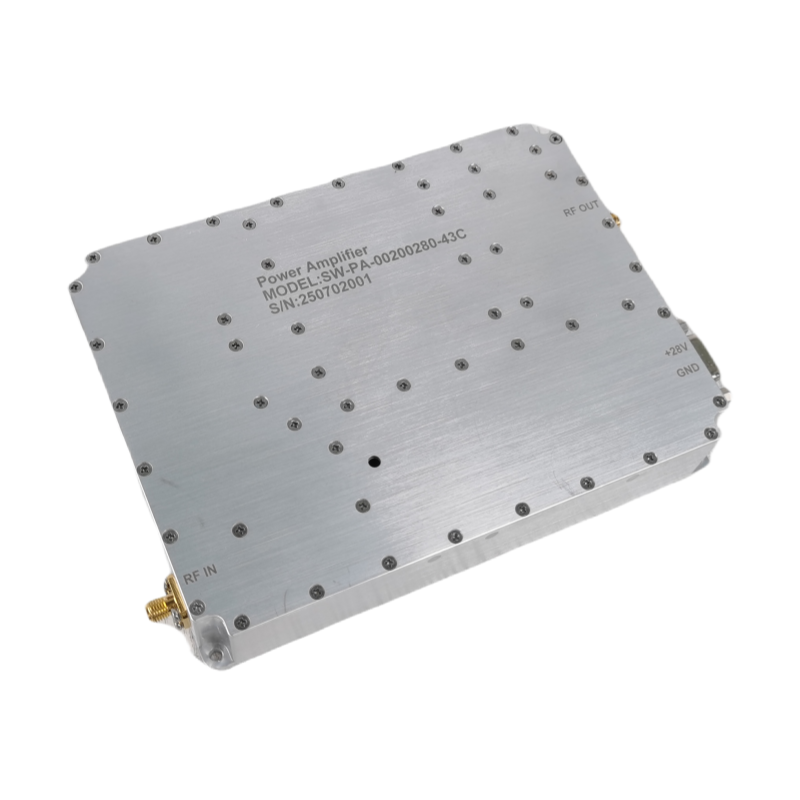

The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28V DC +25oC, and in a 50Ω system.
9RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 20 | 280 | MHz | |
RF INPUT | -2 | dBm | ||
Power Gain@ can be adjust by Potentiometer | 45 | dB | ||
P-1dB Power Output | 43 | dBm | ||
Frequency response@ Temp | ±0.5 | dB | ||
Frequency response @ 20-280 MHz | ±2 | dB | ||
Frequency response @ 40-100 MHz) | ±1 | dB | ||
Harmonic | -20 | dBc | ||
Spurious | -50 | dBc | ||
Input VSWR | 1.5 | |||
Operating Voltage | 24 | 28 | VDC | |
In-Out impedance | 50 | Ω | ||
Current | 4 | 5 | A | |

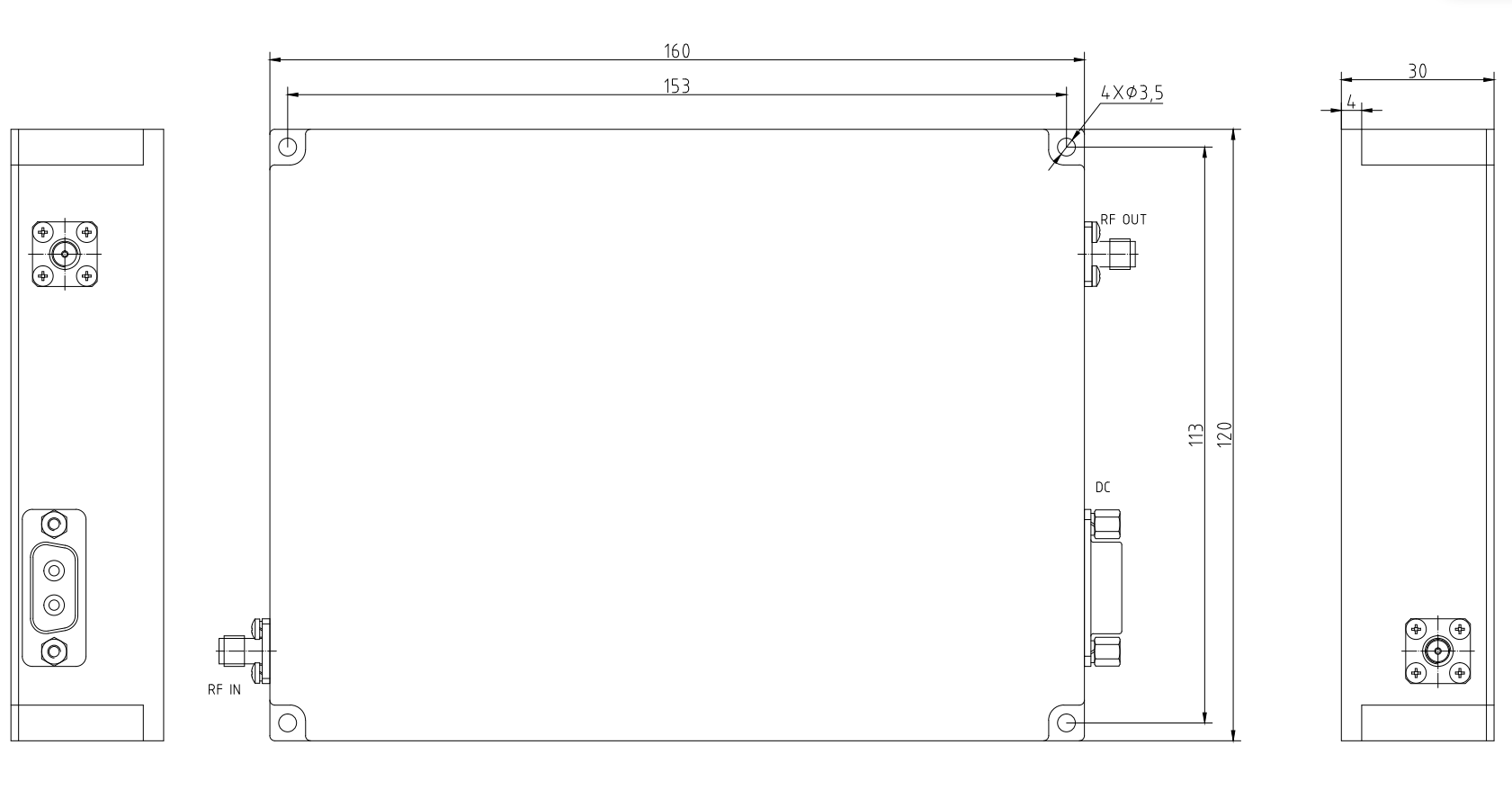

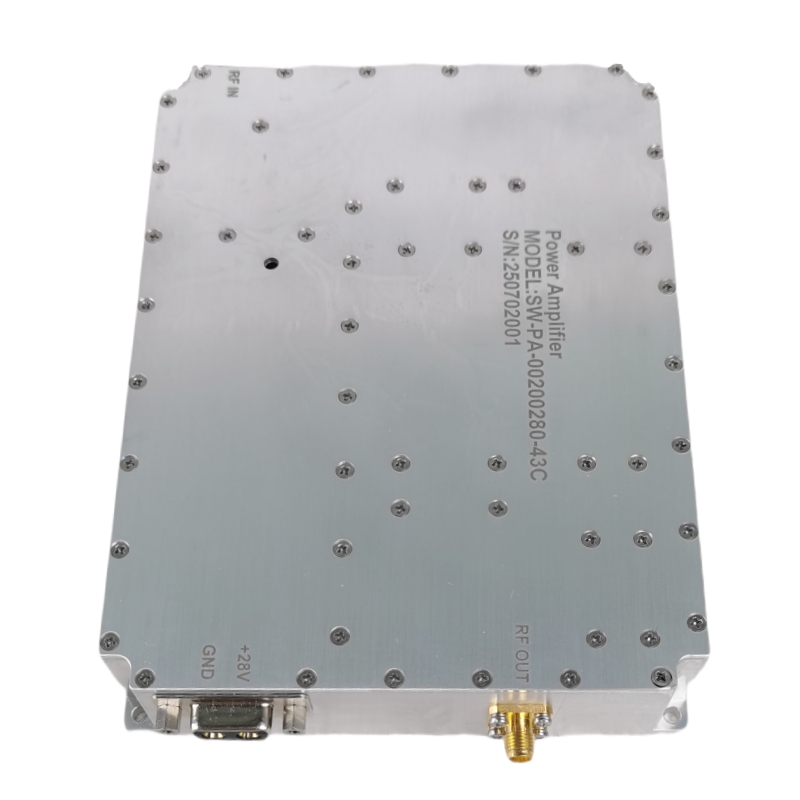

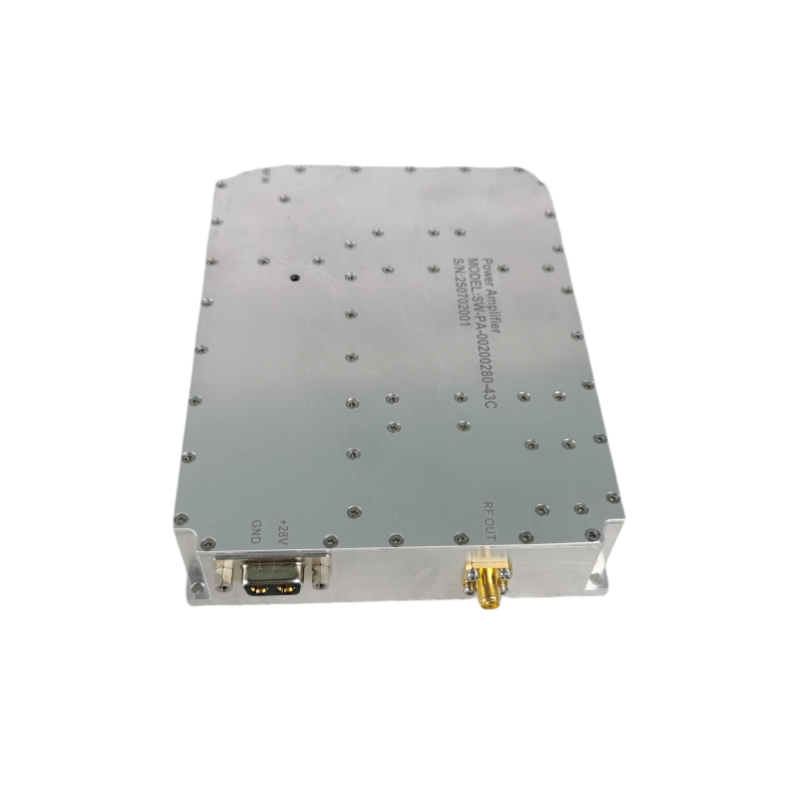

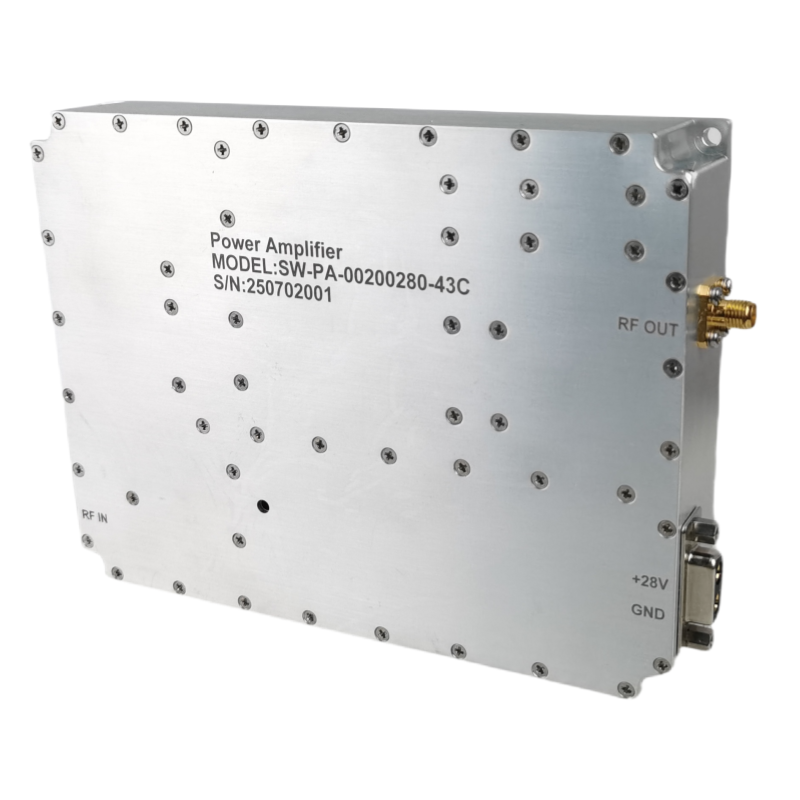

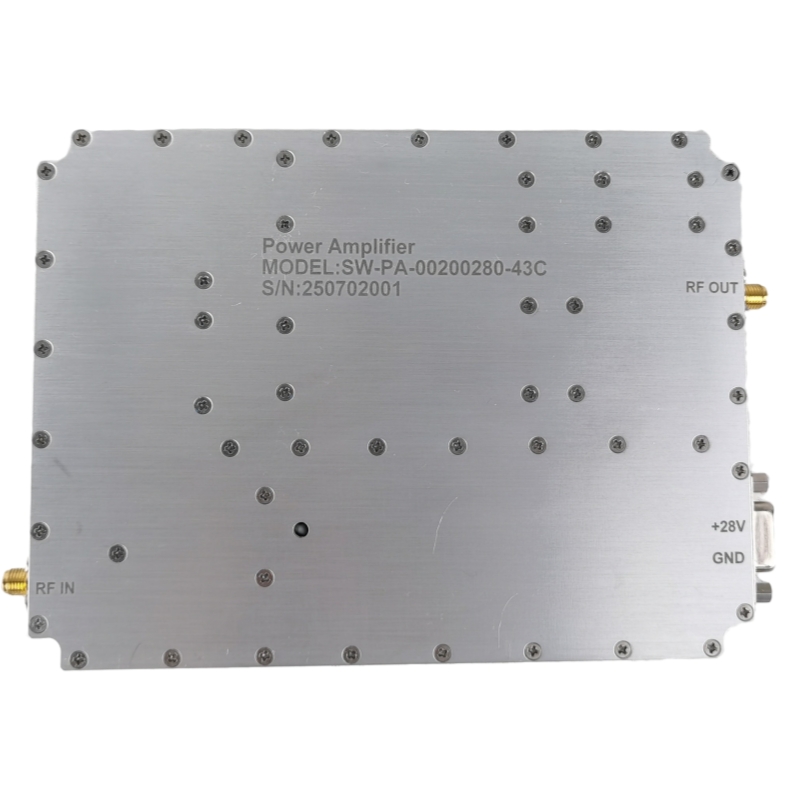

MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 160×120×30 | mm |
RF Connectors (Input/Output) | SMA- KFD/SMA - KFD | -- |
Cooling | Additional heat dissipation fins are required | -- |
Mounting | φ4.4-4 Thru Hole | -- |
Weight | ≤1 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | +10 | +50 | °C |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | D-SUB 2W2 | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | VDD | +28V |
2 | GND | GND |
Product Details
Name:
20W 20-280MHz Power Amplifier for Industrial & Commercial Applications
Operating Frequency:
20-280MHz
Psat Output Power:
20W
Gain:
43dBm
Input Vswr:
1.5
Power Gain Flatness:
±2
Spurious Signals:
-50 dBc
Harmonic Signals:
≤ -20 dBc
Operating Temp:
+10°C 至 +50°C
Application:
Military & Commercial Systems
Transport Package:
160×120×30 mm
Specification:
