3 - 6 GHz Wideband RF Amplifier Psat 100 W EMC High Power Amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-30006000-47C
Price：
Product Description
EMC High Power Amplifier 3-6 GHz Psat 100 W Wideband Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 3 | 6 | GHz | |
| Power Gain | 47 | 52 | dB | |
| Power Gain Flatness | ±2 | dB | ||
| Psat Power | 100 | Watt | ||
| Noise Figure | dBm | |||
| IP3 | dBm | |||
| Spurious | -60 | dBc | ||
| Harmonics | 15 | dBc | ||
| VSWR | Ratio | |||
| DC Power Supply | +28 | Volt | ||
| Current | 16 | A | ||
Note:
1.Air forced cool.
2.output VSWR protection; Over Temperature Protection; Over lnput Power Protection;
3.Current detection, temperature detection, TTL switch control (1ms max)
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | dBm | |||
| Operating Temperature | -40 | +80 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

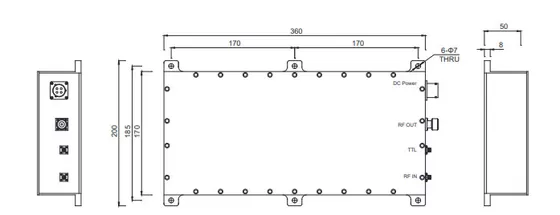

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 360*200*50 | Max | Millimeter |
| Weight | 10 | Max | Kg |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | N-F | ||
| DC Interface Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
3 - 6 GHz RF Power Amplifier
Operating Frequency:
3 - 6 GHz
Psat Output Power:
100W
Gain:
47dB
Input Vswr:
Power Gain Flatness:
±2dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-40~80°c
Application:
Communications, radar system
Transport Package:
Carton
Specification:
360*200*50mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
