2 - 4.4 GHz EMC Amplifiers High Power P1dB 37 dBm Wideband Power Amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-20004400-37C
Price：
Product Description
EMC High Power Amplifier 2-4.4 GHz P1dB 37 dBm Wideband Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 2 | 4.4 | GHz | |
| Small Signal Gain | 33 | dB | ||
| Small Signal Gain Flatness | ±2 | dB | ||
| Output Power @P-1 | 37 | dBm | ||
| Noise Figure | dBm | |||
| IP3 | dBm | |||
| Spurious Signals | -60 | dBc | ||
| Harmonics | -15 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| DC Power Supply | +10 | Volt | ||
| Current | 5 | A | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +50 | ℃ | |
| Non-operating Temperature | -40 | +65 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||

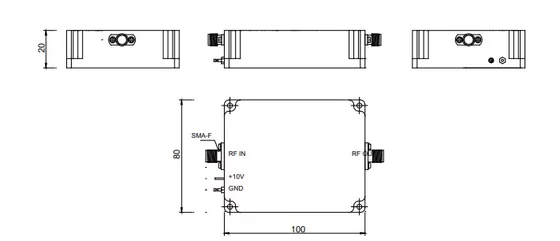

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 100*80*20 | Max | Millimeter |
| Weight | 2 | Max | Kg |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| DC Interface Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
2 - 4.4 GHz RF Power Amplifier
Operating Frequency:
2 - 4.4 GHz
Psat Output Power:
37dBm
Gain:
33dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±2dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20~50°c
Application:
Communications, radar systems
Transport Package:
Carton
Specification:
100*80*20mm
