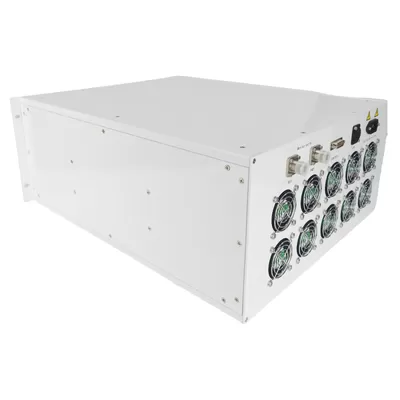

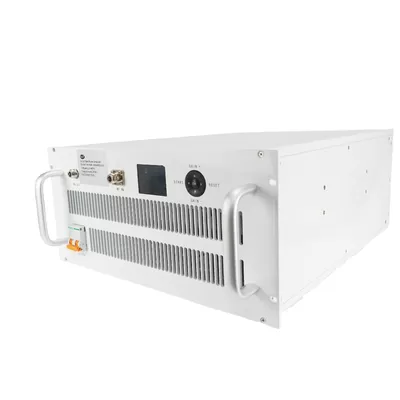

High Performance and Reliability 1000-2000 MHz 200W RF Power Amplifier for Test and Measurement
Place of Origin：China
Brand Name：SWT
Model Number：SW-PAR-10002000-53C
Price：$6500-7100/pcs
Product Description
High Performance and Reliability 1000-2000 MHz 200W RF Power Amplifier for Test and Measurement
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 1000 | 2000 | MHz | |
| RF INPUT | 0 | dBm | ||
| Power Gain | 53 | dB | ||
| P-sat Output Power | 53 | dBm | ||
| Power Gain Flatness | ±3 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals | -15 | -10 | dBc | |
| Operating Voltage | 200 | 220 | 260 | V AC |
| Supply Power | 1500 | W | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*550*223 | mm |
| RF Connectors (Input / Output) | N-K / N-K (female) | -- |
| Control Connector | DB15:Power on/power off control; Gain Control; Monitoring parameters include output power, temperature Remote control and monitoring can be realized through RS232 | -- |
| Control Connector | RJ45:Remote control and monitoring can be realized through LAN | -- |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤45 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | 0 | +45 | °C |
| Humidity Range | 0-90 | % | |
| Amplifier Safeguard Temp. | +80 | °C | |
| Protections | With over temperature protection, input over power protection, output mismatch protection | ||

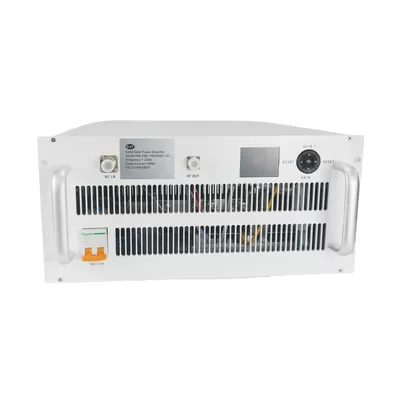

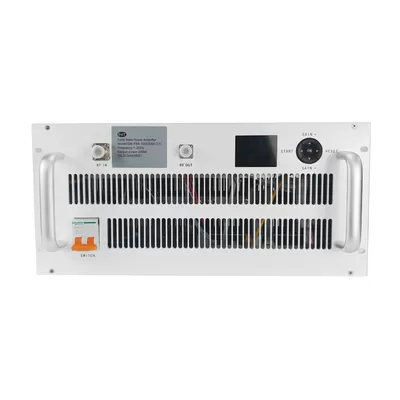

| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | -- | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| NUMBER | interface type | DESCRIPTION | |
| X1 | N-FK | RF IN | |
| X2 | N-FK | RF OUT | |
| X3 | LCD Display | Human-computer interaction interface | |
| X4 | Switch | AC/220V/50Hz | |
| X5 | RJ45 | LAN | |
| X6 | DB15 | Control interface | |
| X7 | N-FK | Forward coupling port | |
| X8 | N-FK | Reverse coupling port | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | DB15 | |
| TRIAD CABLE PART NUMBER: | -- | |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (Output analog voltage) |
| 3 | Reverse Power monitoring | Reverse Power Detection (Output analog voltage) |
| 4 | Temp monitoring | Temp monitoring alarm (Output analog voltage) |
| 5 | GND | GND |
| 6 | RXD | RS232 serial bus interface (TTL) |
| 7 | TXD | |
| 8 | GND | |
| 9-15 | NC | NC |
Product Details
Name:
1-2GHz RF Power Amplifier
Operating Frequency:
1-2GHz
Psat Output Power:
200W
Gain:
53dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
0~45°c
Application:
EMC Test
Transport Package:
Carton
Specification:
482*550*223mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
