High Reliable And Stable High Efficiency 1-6GHz Tri-Band 30W RF Power Amplifier For Radar Systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-TRIPA-10006000-45C
Price：
Product Description

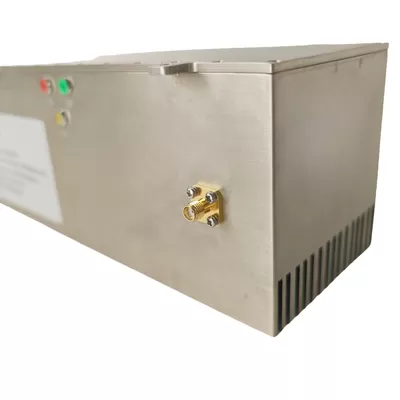

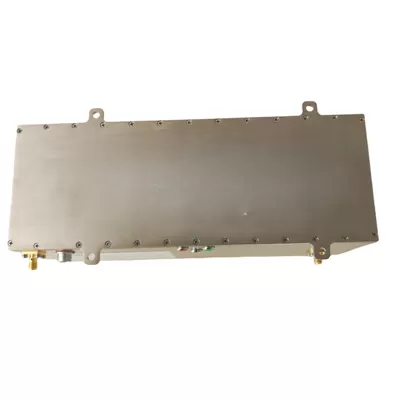

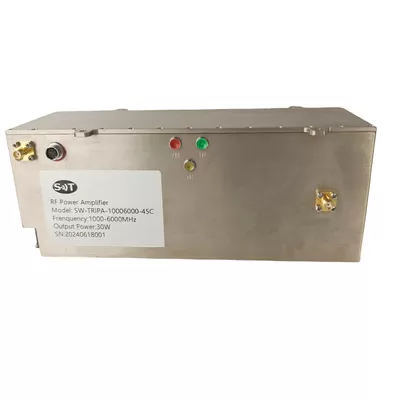

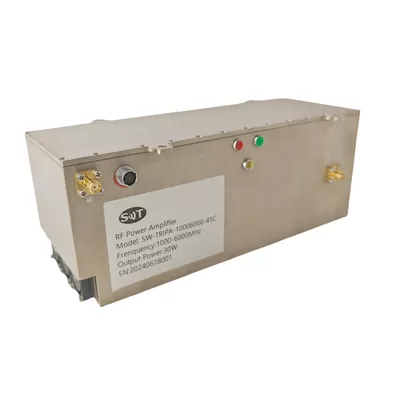

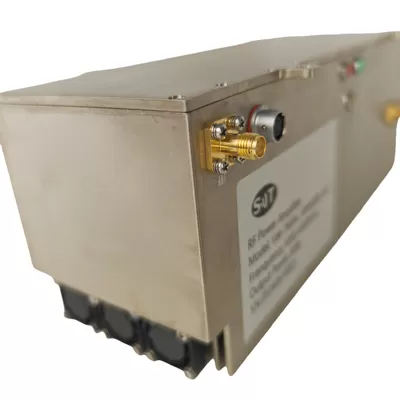

High Reliable And Stable High Efficiency 1-6GHz Tri-Band 30W RF Power Amplifier For Radar Systems
Description
The 1-6GHz 30W RF Power Amplifier is a broadband high-power amplifier suitable for various applications, including wireless communication, radar systems, electronic warfare, and signal testing. This amplifier employs advanced design technology to ensure high efficiency, high gain, and stable output power.
Product Features
High Efficiency: Utilizes efficient power amplification technology to ensure high performance and low power consumption.
High Gain: Provides excellent gain performance to ensure high-quality signal amplification.
Stability: Offers outstanding frequency and temperature stability, adapting to various complex environments.
Rugged and Durable: Designed to meet industrial-grade standards, ensuring high reliability and durability.
Application Scenarios
Wireless Communication: Enhances signal transmission quality, ensuring stable and reliable communication.
Radar Systems: Improves radar signal detection capabilities, enhancing the system's detection range and accuracy.
Electronic Warfare: Provides powerful signal interference and suppression capabilities in electronic warfare systems.
Signal Testing: Used in various RF signal testing systems to ensure the accuracy and reliability of test results.
Advantages
Efficient and Stable: Employs advanced amplification technology to ensure high efficiency and stability.
Broad Frequency Coverage: Covers a frequency range of 1-6GHz, suitable for various application scenarios.
Easy Integration: Compact design makes it easy to integrate into existing systems.
High Reliability: Meets industrial-grade standards, suitable for various harsh environments.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency Channal 1 | 1320 | 1480 | MHz | |
| Operating Frequency Channal 2 | 2170 | 2380 | MHz | |
| Operating Frequency Channal 3 | 4370 | 4630 | MHz | |
| RF INPUT Channal 1&2 | 0 | dBm | ||
| RF INPUT Channal 3 | -7 | dBm | ||
| P-1dB Power Output (High) | 45 | dBm | ||
| Power Gain Channal 1&2 | 45 | dB | ||
| Power Gain Channal 3 | 52 | dB | ||
| Power Output (Low) | 30 | dBm | ||
| Power Gain Flatness (Per Band) | ±0.75 | dB | ||
| VSWR | 2.0 | |||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals@ 40dBm | -60 | dBc | ||
| Operating Voltage | 18 | 28 | 36 | VDC |
| In-Out impedance | 50 | Ω | ||
| Efficiency @ Pout: 40~41 dBm | 30 | % | ||
| Output Filtering | Mechanical Filter (Triplexer) | |||
| Input Filtering | Spectral Input is not Clean | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 228×113×89.5 | mm |
| RF Connectors (Input / Output) | SMA-Female, 50 ohms | -- |
| DC /Control Connector | 6 Pin (MS27473E8B35P) | -- |
| Cooling | Heat dissipation with the cooling system | |
| Mounting | 3-4 Thru Hole | -- |
| Weight | ≤2 | kg |
| Laser Printer Connector | PWR /RF in /ANT | |
| Laser Printer LED | ANT/PWR/AMP | |
| Case | Aluminum (ENP) | |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -30 | +55 | °C |
| Humidity Range | 0-95 | % | |
| Reverse Voltage Protection | Yes | ||
| Antenna Disconnect Protection | Yes (Isolator or Coupler) | ||
| Overheat Protection | Yes ( Fan & Heat sink & AMP Off+80 °C) | ||
| Current Protection | Hot Swap | ||
| Configure Interface | serial port:RS485 (Band, Pout (High/Low)) | ||
| Report Parameter | BW, AMP mode (High/Low), VSWR, SySTime, Temp, PWR Detect | ||
| Monitor Power Supply | Yes (Red LED & serial port:RS485) | ||
| Monitor Output Power Detection | Yes (Green LED (>4watt)& RS485) | ||
| Monitor VSWR | Yes (Yellow LED & RS485) | ||
| Mechanical Shock | 6g ,llms ,10 Times ,3 axis ,2 Direct | ||
| Vibration Frequency | 5 to 2000 Hz ,15 min .3g ,3 axis .2 Direct | ||
| Enclosure Class | IP67 | ||
| INPUT/OUTPUT PINS | ||
| AMPLIFIER CONNECTOR TYPE: | MS27473E8B35P | |
| TRIAD CABLE PART NUMBER: | -- | |
| PIN NUMBER | LABEL | DESCRIPTION |
| 1 | VDD | +28V |
| 2 | GND | GND |
| 3 | NC | NC |
| 4 | RS485A | serial port:RS485 (Band, Pout (High/Low)) |
| 5 | RS485B | |
| 6 | GND | GND |
Product Details
Name:
1-6GHz RF Power Amplifier
Operating Frequency:
1-6GHz
Psat Output Power:
30W
Gain:
45dB
Input Vswr:
2
Power Gain Flatness:
±0.75dB
Spurious Signals:
-60dBc
Harmonic Signals:
-60dBc
Operating Temp:
-30~55°c
Application:
Communication,Radar Systems,Test and Measurement
Transport Package:
Carton
Specification:
228×113×89.5mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
