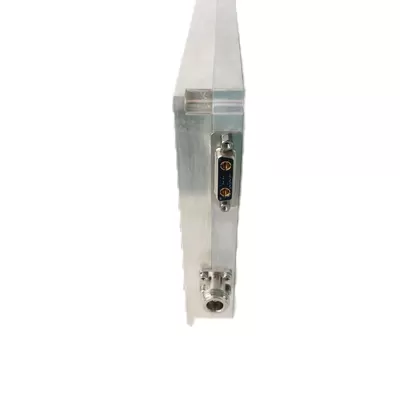

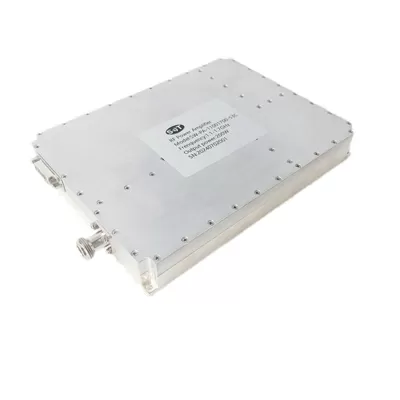

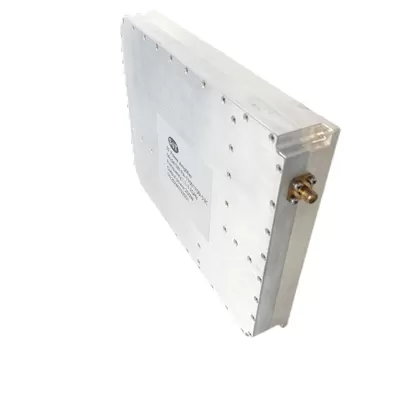

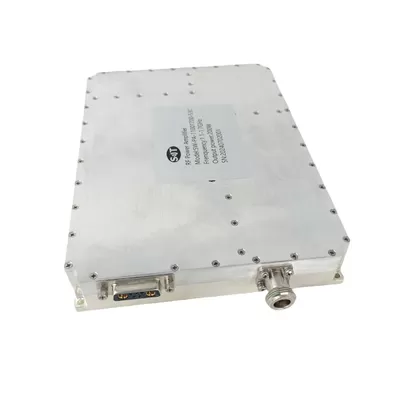

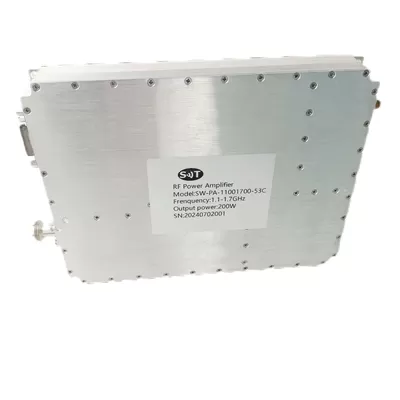

1100-1700MHz 200W High Power RF Module Power Amplifier For Increasing Communication Signal Strength
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-11001700-53C
Price：$3123/pcs
Product Description
Customised High-efficiency, Highly stable 1.1-1.7 GHz High-power Solid State Amplifiers for Signal Amplification
Description
The 1100-1700MHz 200W RF Power Amplifier is a wideband high-power amplifier suitable for various applications, including wireless communication, radar systems, electronic warfare, and signal testing. This amplifier employs advanced design technology to ensure high efficiency, high gain, and stable output power.
Key Features
Frequency Range: 1100-1700MHz
Output Power: 200 Watts
High Efficiency: Utilizes efficient power amplification technology to ensure high performance and low power consumption
High Gain: Provides excellent gain performance to ensure high-quality signal amplification
Stability: Offers outstanding frequency stability and temperature stability, adaptable to various complex environments
Durability: Designed to meet industrial-grade standards, providing high reliability and durability
Application Scenarios
Wireless Communication: Enhances signal transmission quality, ensuring stable and reliable communication
Radar Systems: Improves radar signal detection capability, enhancing system detection range and accuracy
Electronic Warfare: Provides powerful signal jamming and signal suppression capabilities in electronic warfare systems
Signal Testing: Used in various RF signal testing systems, ensuring accuracy and reliability of test results
UAV:Meeting the needs of high-speed data transmission, improving data link stability, and ensuring reliable transmission and timely return of mission data.
Advantages
High Efficiency and Stability: Utilizes advanced amplification technology to ensure high efficiency and stability
Wide Frequency Coverage: Covers a frequency range of 1100-1700MHz, suitable for various applications
Easy Integration: Compact design, easy to integrate into existing systems
High Reliability: Meets industrial-grade standards, suitable for various harsh environments
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 1100 | 1700 | MHz | |
| RF INPUT | 0 | dBm | ||
| Power Gain | 53 | dB | ||
| P-sat Output Power | 53 | dBm | ||
| Power Gain Flatness | ±1.5 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals | -15 | dBc | ||
| Operating Voltage | 28 | V | ||
| Currents | 20 | A | ||
| Input VSWR | 1.5 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 200*150*30 | mm |
| RF Connectors (Input / Output) | SMA-KF / N-FK | -- |
| Control Connector | D-SUB:Power on/power off control; Monitoring parameters include output power, temperature | -- |
| Cooling | Exteral Heatsink Required | -- |
| Weight | ≤4 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -20 | +60 | °C |
| Storage Temp. | -40 | +80 | °C |
| Amplifier Safeguard Temp. | +80 | °C | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 | |
| TRIAD CABLE PART NUMBER: | -- | |
| NUMBER | Definition | DESCRIPTION |
| A1 | VDD | 28V |
| A2 | GND | GND |
| 1 | Amp Enable | Enable : TTL "Low", Disable : TTL "High" (Low : 0~0.5V, High : 2.5~5V) |
| 2 | Output Power monitoring | Output Power Detection (Output analog voltage) |
| 3 | Reverse Power monitoring | Reverse Power Detection (Output analog voltage) |
| 4 | Temp monitoring | Temp monitoring (Output analog voltage) |
| 5 | GND | Ground |
Product Details
Name:
1.1-1.7 GHz RF Power Amplifier
Operating Frequency:
1.1-1.7 GHz
Psat Output Power:
200W
Gain:
53dB
Input Vswr:
1.5
Power Gain Flatness:
±1.5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20~60°c
Application:
Communication,Radar Systems,Test and Measurement
Transport Package:
Carton
Specification:
200*150*30mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
