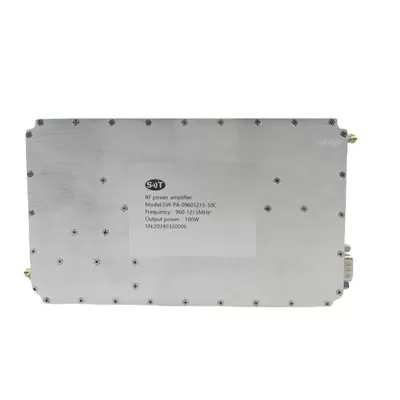

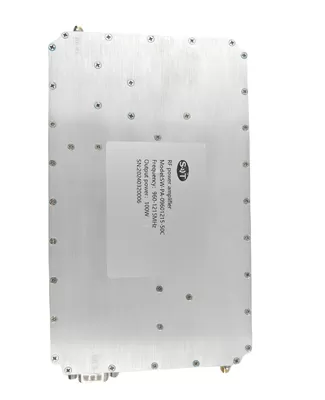

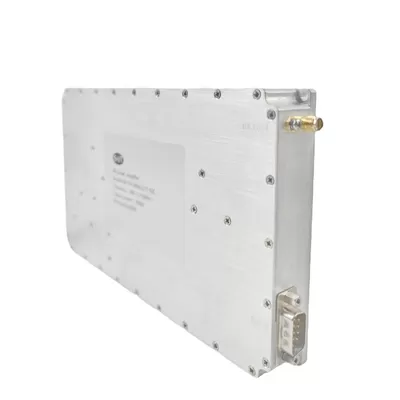

960-1215MHz 50dBm Output Power L Band Solid State RF Power Amplifier for Telecommunication, Radar
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-09601215-50C
Price：$1151/pcs
Product Description
960-1215MHz 50dBm Output Power L Band Solid State RF Power Amplifier for Telecommunication, Radar

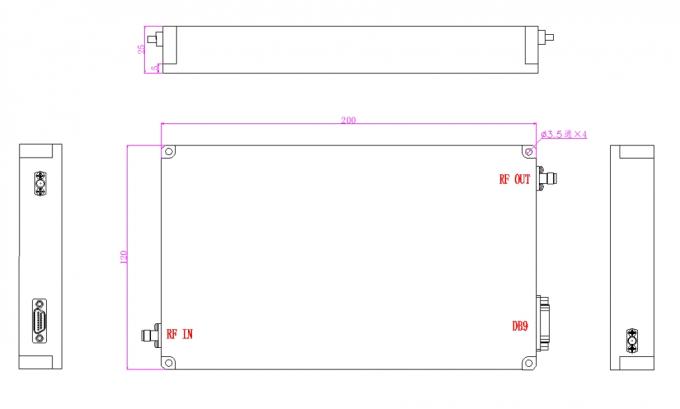

Outline Dimensional Drawing
Specification
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 960 | 1087 | 1215 | MHz |
| RF INPUT | 0 | dBm | ||
| P-1dB Output Power | 50 | dBm | ||
| Gain | 50 | dB | ||
| Power Gain Flatness | 2 | 3 | dB | |
| Input VSWR | 1.5 | |||
| Operating Voltage | 28 | VDC | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals | -20 | dBc | ||
| Current | 12 | A | ||
| Third Order Intercept Point (dBm) 2Tone@44dBm/Tone,A=1 MHz | 33 | dBc | ||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 200*120*25 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ SMA- KFD | -- |
| DC / Control Connector | DB9 | -- |
| Cooling | Baseplate Conduction - Optional Heatsink Available | -- |
| Mounting | 3-4 Thru Hole | -- |
| Weight | ≤1.5 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -20 | +55 | °C |
| Humidity Range | 0-100 | % | |
| Max RF Input | +3 | dBm | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | DB9 | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-3 | +VDC | +28V | |
| 4-6 | GND | Ground | |
| 7 | Amp Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection | |
| 8 | FWD | Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault ) | |
| 9 | REV | Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) | |
Product Details
Name:
960-1215MHz RF Power Amplifier
Operating Frequency:
960-1215MHz
Psat Output Power:
100W
Gain:
50dB
Input Vswr:
1.5
Power Gain Flatness:
±2dB
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Operating Temp:
-20~55°c
Application:
Communication,EMC Test,Electronic Warfare
Transport Package:
Carton
Specification:
200 x 125 x 25mm
